Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E105J3V3QE2SWITCH ROCKER SPDT 7.5A 125V |
0 |
|
Datasheet |
E | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 7.5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
M2013TJW01-FA-3A-CCSWITCH ROCKER SPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Red | 2 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.40mm x 15.90mm | -30°C ~ 85°C | CSA, UL |
|
|
M2013TJW01-FA-3A-FFSWITCH ROCKER SPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Green/Green | 2.25 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.40mm x 15.90mm | -30°C ~ 85°C | CSA, UL |
|

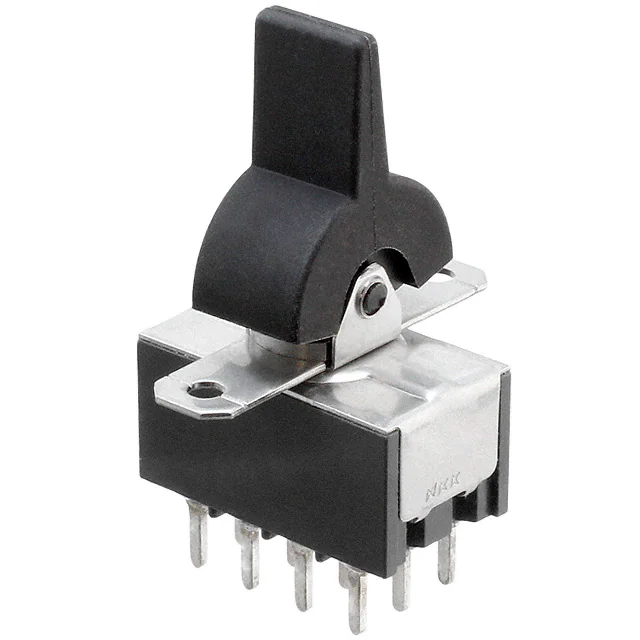

M2043TNW03-EASWITCH ROCKER 4PDT 6A 125V |
8 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | 4PDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
L11D1AH01-A3Z00-000SWITCH ROCKER SPST 20A 12V |
20 |
|
- |
L | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Concave (Curved) - Illuminated | Black | No Marking | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 44.04mm x 22.02mm | -40°C ~ 85°C | - |
|
|
WR12AT/CULSWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
|
V1B1C0D4-9ZR13-000SWITCH ROCKER SPST 15A 24V |
16 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (DC) | - | 24 V | Convex (Reverse V) - Illuminated | Red | O - | LED, Red | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VBD2SW0B-AZD00-0SWITCH ROCKER DPST-NO 20A 12V |
10 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPST-NO | Off-Mom | 20A (DC) | - | 12 V | Locking | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
M2018TJG02-GA-2A-FSWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Paddle - Illuminated | Black | No Marking | LED, Green | 2.1 VDC | Quick Connect - 0.062" (1.5mm) | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
|
M2028TXG13-DCSWITCH ROCKER DPDT 0.4VA 28V |
26 |
|
Datasheet |
M | Box | Obsolete | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2028TXG13-FCSWITCH ROCKER DPDT 0.4VA 28V |
26 |
|
Datasheet |
M | Box | Obsolete | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|

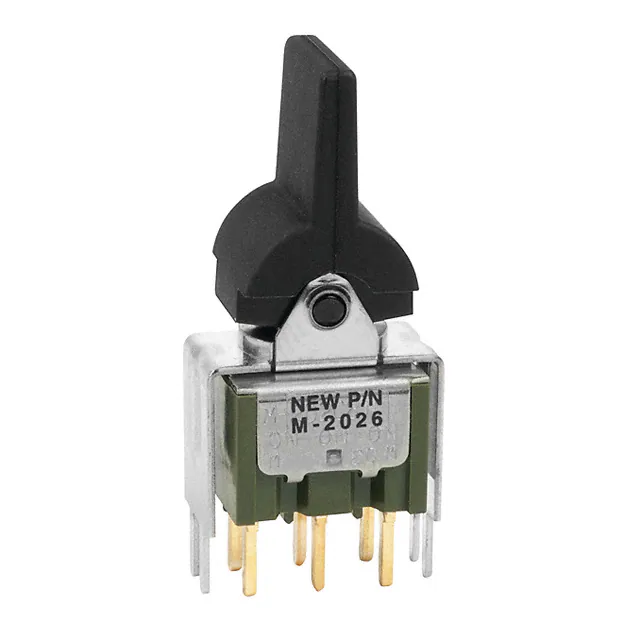

M2026TXG13-GASWITCH ROCKER SP3T 0.4VA 28V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SP3T | Mom-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|
|
M2026TXG13-DASWITCH ROCKER SP3T 0.4VA 28V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SP3T | Mom-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|
M2027TXG30-DESWITCH ROCKER SP3T 0.4VA 28V |
7 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle | SP3T | On-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Yellow | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|
|
M2027TXG30-DASWITCH ROCKER SP3T 0.4VA 28V |
7 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | SP3T | On-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|
|
M2027TXG30-DCSWITCH ROCKER SP3T 0.4VA 28V |
7 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | SP3T | On-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|
|
M2027TXG30-ECSWITCH ROCKER SP3T 0.4VA 28V |
7 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | SP3T | On-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Red | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|
|
MLW3023SWITCH ROCKER DPDT 5A 125V |
0 |
|
Datasheet |
MLW | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 5A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
MLW3023/CULSWITCH ROCKER DPDT 5A 125V |
22 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 5A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
M2018TJG02-FG-3A-EESWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) - Illuminated | Blue | No Marking | LED, Yellow | 2 VDC | Quick Connect - 0.062" (1.5mm) | - | Epoxy Sealed Terminals | Rectangular - 18.40mm x 15.90mm | -30°C ~ 85°C | CSA, UL |
