Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2027TJW01-FASWITCH ROCKER SP3T 6A 125V |
23 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | SP3T | On-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Jumper needed to achieve triple throw | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|

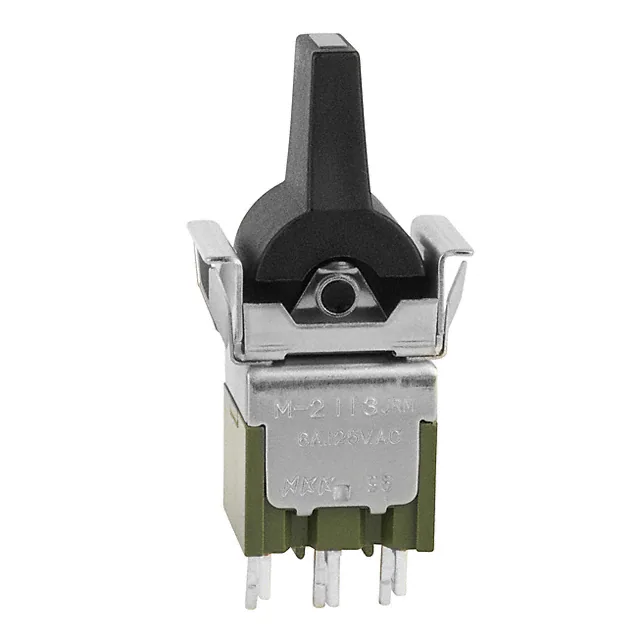

M2113JCFW01SWITCH ROCKER SPDT 6A 125V |
15 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle - Illuminated | Black | No Marking | LED, Green/Red | 2.0, 2.2 VDC | Solder Lug | - | - | Rectangular - 15.90mm x 13.10mm | -25°C ~ 70°C | CSA, UL |
|
|
WR12AF/CULSWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
WR12BSSWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Ivory | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
7201J3V6BE2SWITCH ROCKER DPDT 0.4VA 20V |
7 |
|
Datasheet |
7000 | Tray | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 27.81mm x 16.46mm | -30°C ~ 85°C | cULus |
|
|
M2018TJG02-FA-2A-CSWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Red | 2.8 VDC | Quick Connect - 0.062" (1.5mm) | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
|
M2023TXG45-DHSWITCH ROCKER DPDT 0.4VA 28V |
28 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Gray | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
WR11AT/CULSWITCH ROCKER SPST 15A 125V |
0 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|

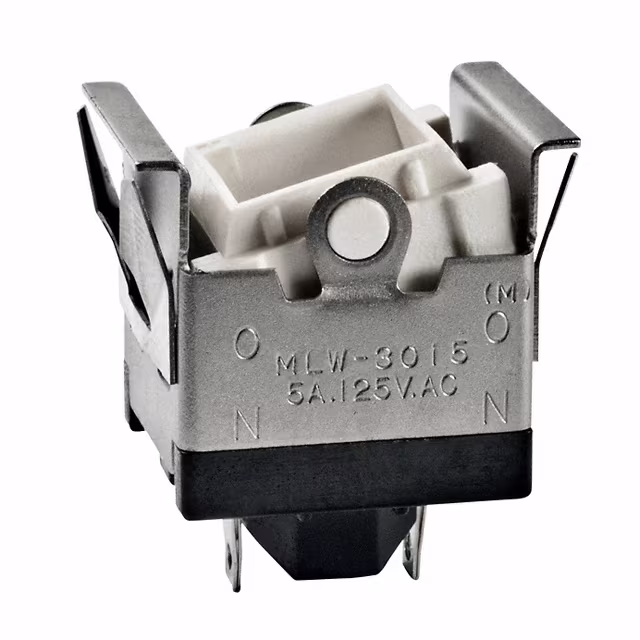

MLW3015SWITCH ROCKER SPDT 5A 125V |
0 |
|
Datasheet |
MLW | Tray | Obsolete | Panel Mount, Snap-In | SPDT | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
LS1511-32-BL-BL-012SWITCH ROCKER SPST 15A 125V |
20 |
|
Datasheet |
LS | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Concave (Curved) - Illuminated | Black | No Marking | Incandescent, Amber/Clear/Green | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 36.83mm x 21.08mm | -17.8°C ~ 65.6°C | - |
|
|
VA51B20B-ARB00-000SWITCH ROCKER DPST 15A 250V |
6 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | - | - | - | Convex (Reverse V) - Illuminated | Black | No Marking | Neon, Red | 250 VAC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
M2028TXG13SWITCH ROCKER DPDT 0.4VA 28V |
26 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2032TYW01-HASWITCH ROCKER 3PDT 6A 125V |
14 |
|
Datasheet |
M | Box | Obsolete | Panel Mount, Flange | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
|
M2032TYW01-JBSWITCH ROCKER 3PDT 6A 125V |
14 |
|
Datasheet |
M | Box | Obsolete | Panel Mount, Flange | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
|
M2032TYW01-JCSWITCH ROCKER 3PDT 6A 125V |
14 |
|
Datasheet |
M | Box | Obsolete | Panel Mount, Flange | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
M2026TXG13SWITCH ROCKER SP3T 0.4VA 28V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SP3T | Mom-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|
|
JWL22BCA-ASWITCH ROCKER DPDT 16A 125V |
0 |
|
Datasheet |
JW | Tray | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|
|
M2023TJG01-FA-1ASWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Red | No Marking | - | - | Solder Lug | - | - | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2023TJG01-FH-1HSWITCH ROCKER DPDT 0.4VA 28V |
56 |
|
Datasheet |
M | Box | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Gray | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|

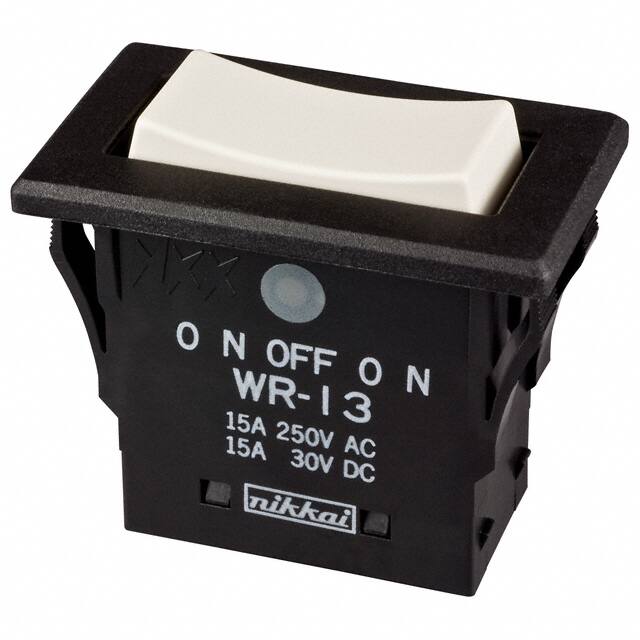

WR13BSSWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Ivory | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
