Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2019TJW01-FG-2A-FSWITCH ROCKER SPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Blue | No Marking | LED, Green | 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
|
M2022TJG01-FB-1BSWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2022TJG01-FB-3A-EESWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) - Illuminated | White | No Marking | LED, Yellow | 2 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 15.90mm | -30°C ~ 85°C | CSA, UL |
|
|
M2022TJG01-GB-1BSWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2022TJG01-GB-4A-EESWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle - Illuminated | White | No Marking | LED, Yellow | 2 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 15.90mm | -30°C ~ 85°C | CSA, UL |
|
|
M2022TJG03-GB-1BSWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | White | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2022TJW01/U-FASWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 6A (AC) | 125 V | - | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2022TJW01-FA-3A-CFSWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Green/Red | 2.0, 2.25 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 15.90mm | -30°C ~ 85°C | CSA, UL |
|
|
M2022TJW01-FC-1CSWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2022TJW01-GA-2ASWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2022TJW01-GA-3A-CCSWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Paddle - Illuminated | Black | No Marking | LED, Red | 2 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 15.90mm | -30°C ~ 85°C | CSA, UL |
|
|
M2022TJW01-GCSWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Paddle | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2022TJW01-GC-1CSWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Paddle | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2022TJW01-GHSWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Paddle | Gray | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|

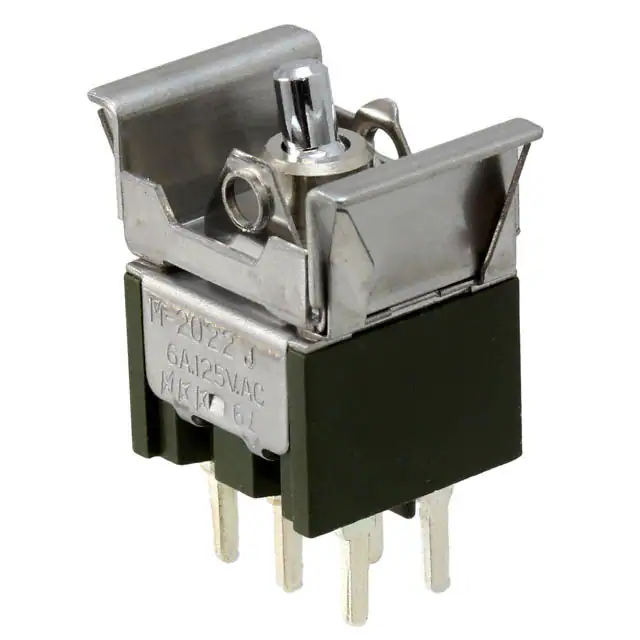

M2022TJW03SWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|

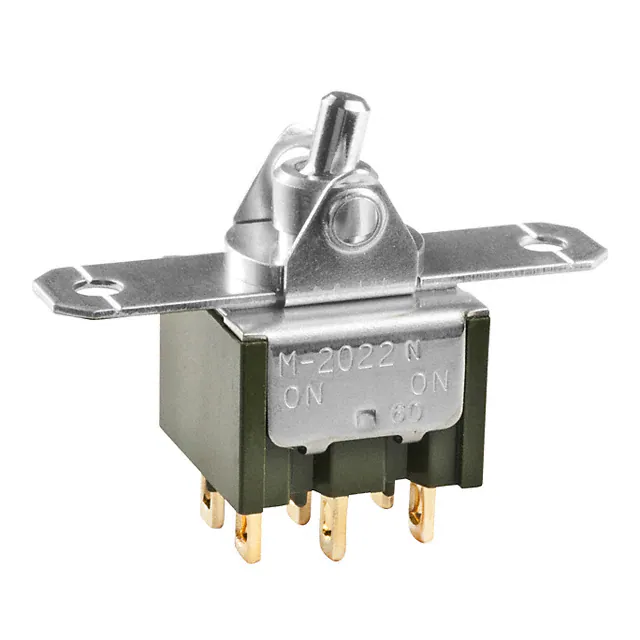

M2022TNG01-DASWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
M2022TXG15/108-KASWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|

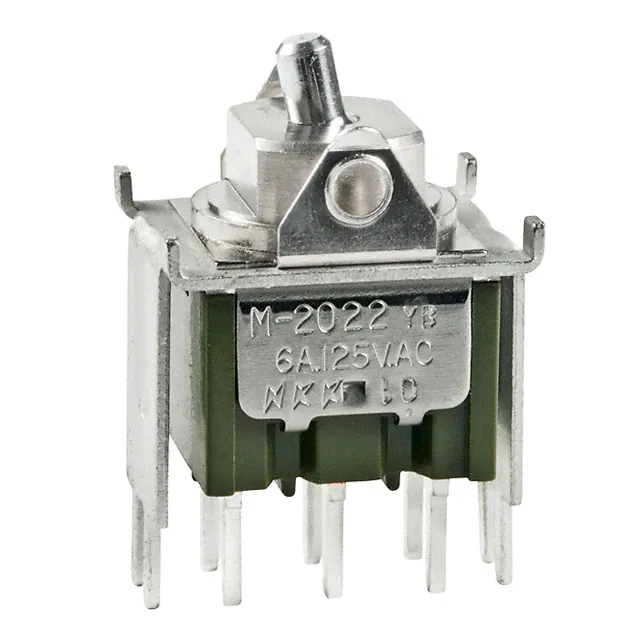

M2022TZW13SWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2023TJW01-FC-2ASWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2023TJW01-GC-2ASWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
