Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LW3123-F2CF-ASWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
LW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 10A (AC), 6A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | White (Red, Green Filter/Diffuser) | No Marking | Incandescent, Green/Red | 12 VAC | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
|
DF62J12P215HQFSWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
DF | Tray | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 16A (AC), 6A (DC) | 125 V | 48 V | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.31mm x 12.50mm | -20°C ~ 85°C | cULus |
|
DF62J12P215PQFSWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
DF | Tray | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 16A (AC), 6A (DC) | 125 V | 48 V | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.31mm x 12.50mm | -20°C ~ 85°C | cULus |
|
D502J12B215PQFSWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
D | Tray | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | Guard | Rectangular - 27.13mm x 19.20mm | -30°C ~ 65°C | cULus |
|
|
C222J12S205QASWITCH ROCKER DPST 15A 125V |
0 |
|
Datasheet |
C | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.50mm x 25.40mm | -30°C ~ 65°C | CSA, UL, VDE |
|

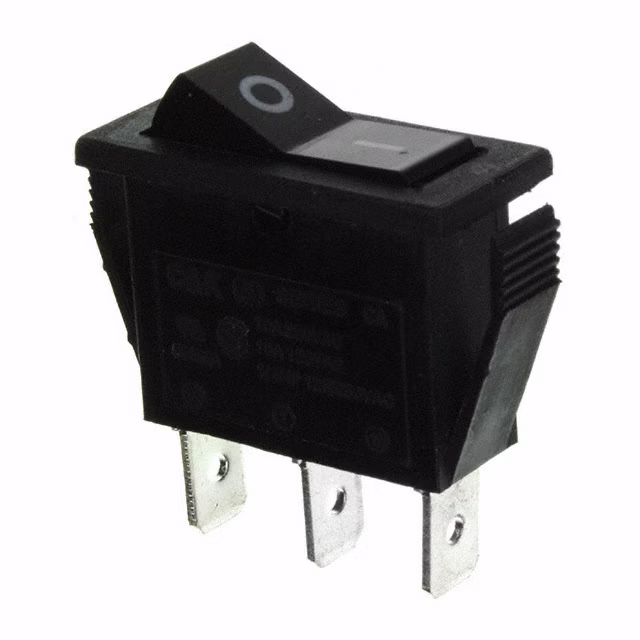

CA01J12207PQSWITCH ROCKER SPDT 15A 125V |
0 |
|
- |
CA | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 15A (AC) | 125 V | - | Concave (Standard V) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.20mm x 10.67mm | -30°C ~ 65°C | CSA, UL |
|

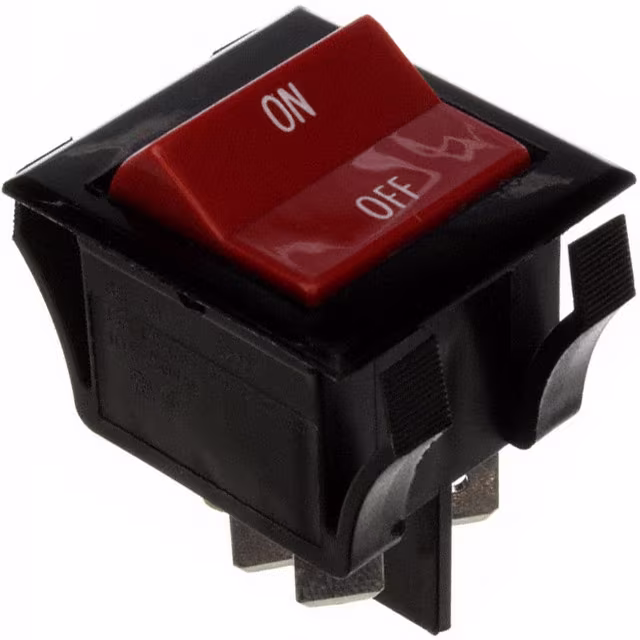

C222J13S205DQASWITCH ROCKER DPST 15A 125V |
0 |
|
Datasheet |
C | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) | Red | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.50mm x 25.40mm | -30°C ~ 65°C | CSA, UL, VDE |
|

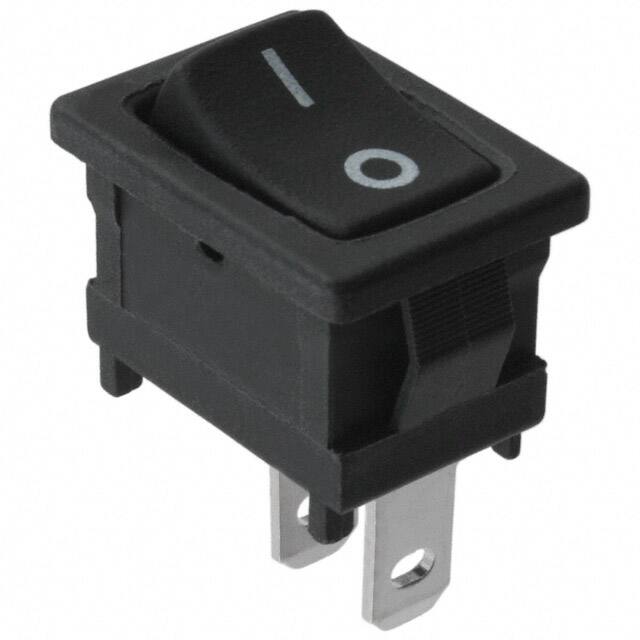

D502J12S217PQFSWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
D | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|
D601J12S205QFSWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
D | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.53mm x 19.20mm | -30°C ~ 65°C | cULus |
|

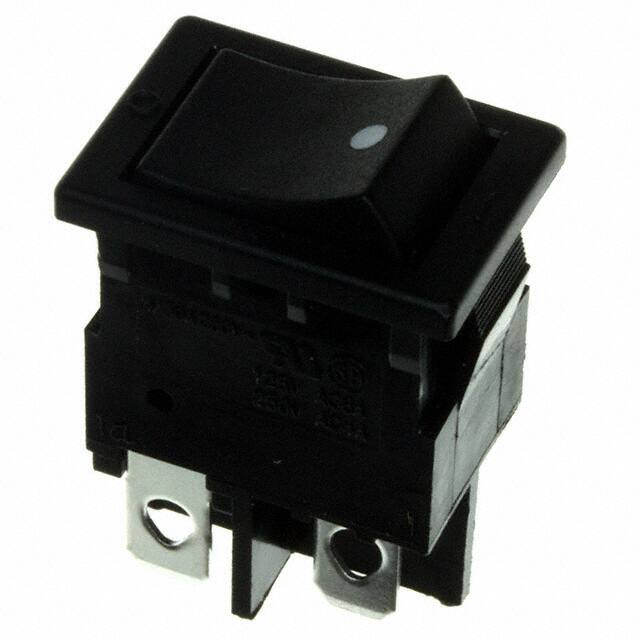

SEW202A01BBSWITCH ROCKER |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | Concave (Curved) | Black | Dot | - | - | - | - | - | - | - | - |
|

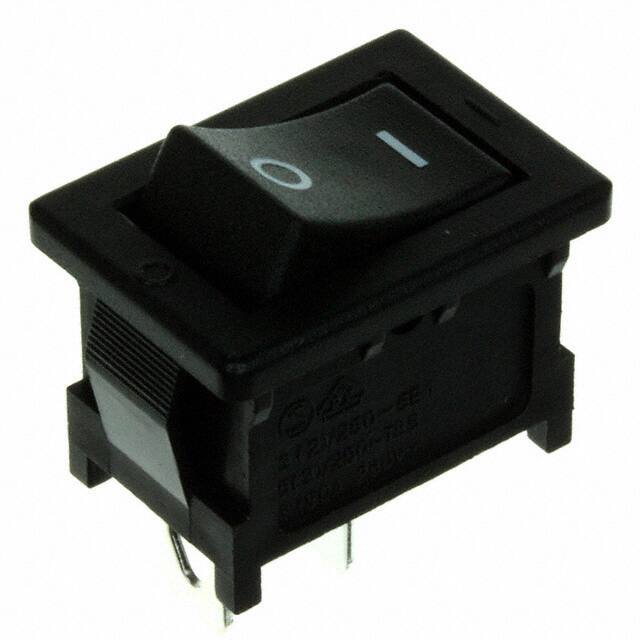

SFW101A03BBSWITCH ROCKER |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | Concave (Curved) | Black | O I | - | - | - | - | - | - | - | - |
|

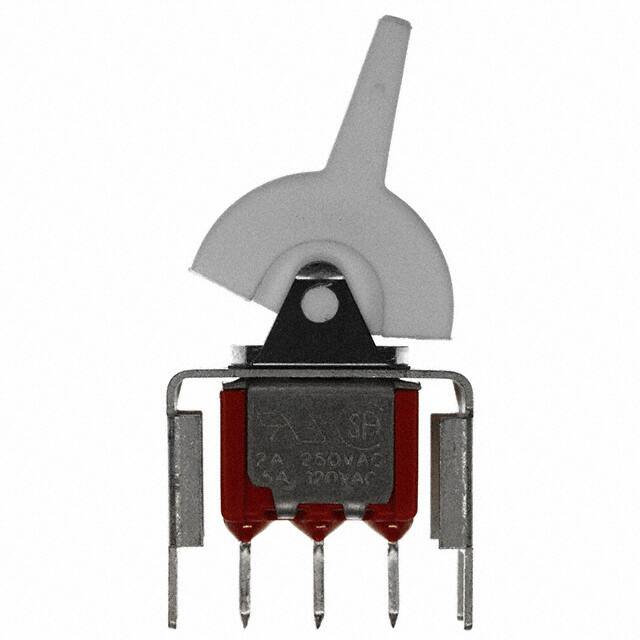

U11J2V6ME1SWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
7000 | Tray | Obsolete | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Paddle | White | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | cULus |
|

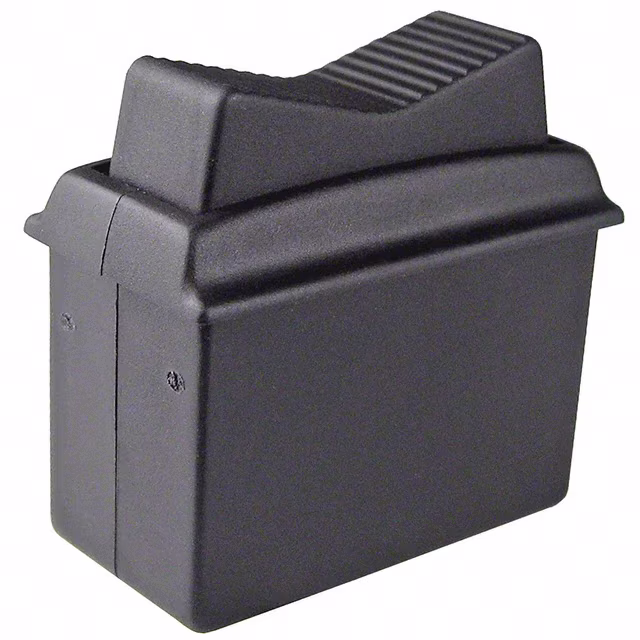

500-252SWITCH ROCKER SPDT 1A 115V |
0 |
|
- |
CH | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 1A (AC/DC) | 115 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Wire Leads | - | - | Rectangular - 35.81mm x 17.91mm | -40°C ~ 85°C | - |
|

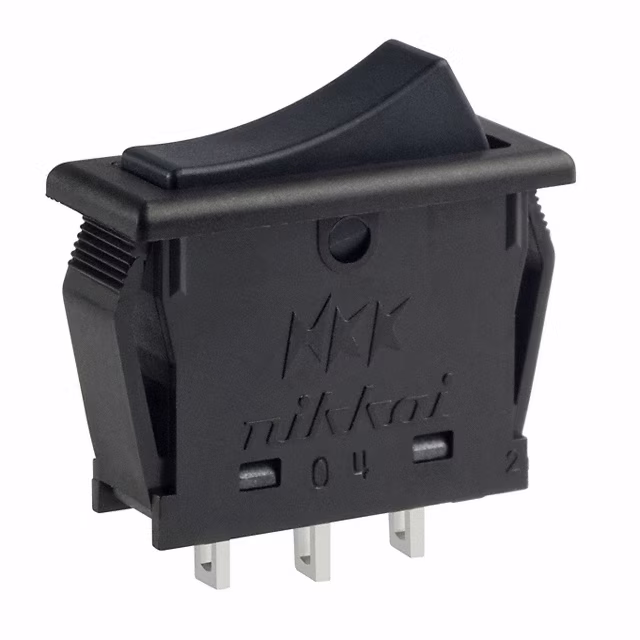

CWT12AAS1/UCSWITCH ROCKER SPDT 6A 125V |
0 |
|
Datasheet |
CWT | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | Dust Proof | Epoxy Sealed Terminals | Rectangular - 19.20mm x 6.80mm | -25°C ~ 70°C | cULus |
|
|
LW3122-0100-GSWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
LW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 10A (AC), 6A (DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
|

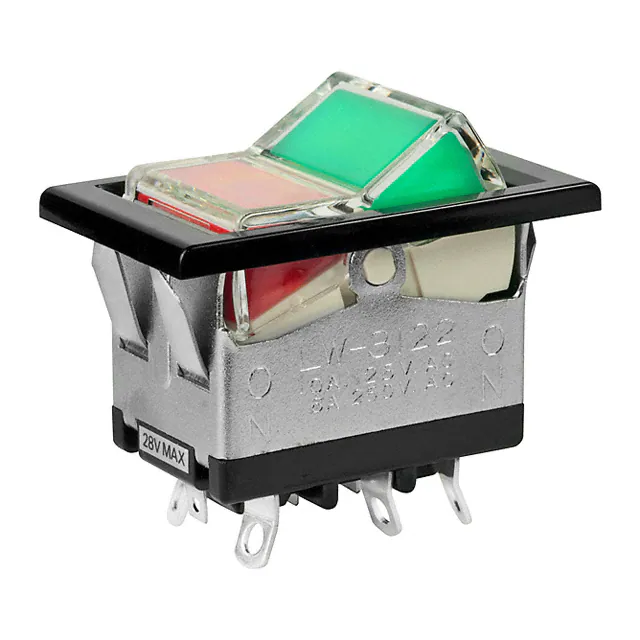

LW3122-F4CF-ASWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
LW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 10A (AC), 6A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Clear (Red, Green Filter/Diffuser) | No Marking | Incandescent, Green/Red | 12 VAC | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
|

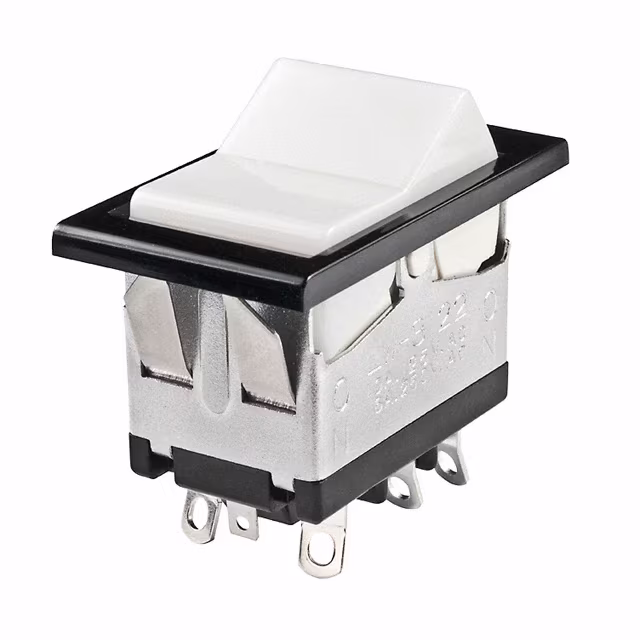

LW3122-K3CF-ASWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
LW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 10A (AC), 6A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | White | No Marking | Incandescent, Green/Red | 24 VAC | Solder Lug | - | With Lamp Covers | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
|

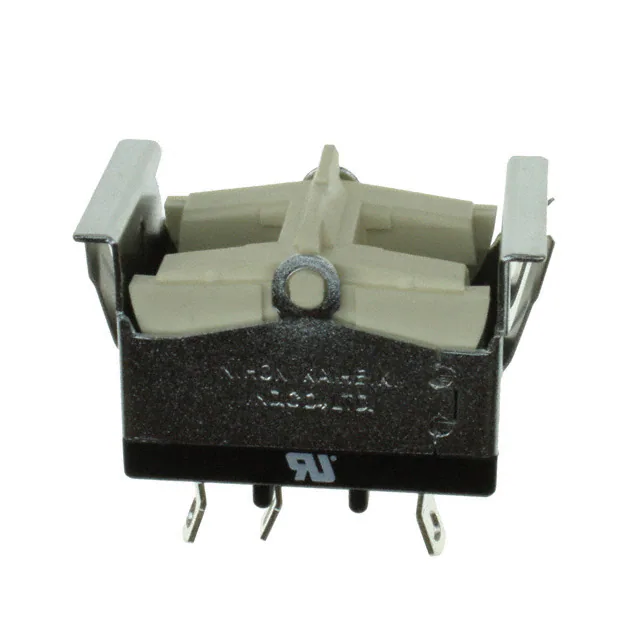

LW3123/USWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
LW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 10A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
|

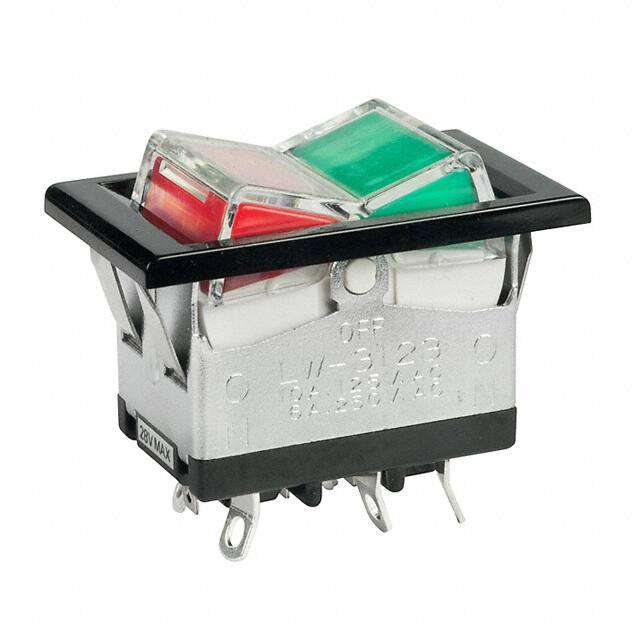

LW3123/U-L4CF-ASWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
LW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 10A (AC) | 125 V | - | Concave (Standard V) - Illuminated | Clear (Red, Green Filter/Diffuser) | No Marking | Incandescent, Green/Red | 28 VAC | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
|
|
LW3129/U-0100-ASWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
LW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-Mom | 10A (AC) | 125 V | - | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
