RF Transceiver Modules and Modems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate | Power - Output | Sensitivity | Serial Interfaces | Antenna Type | Utilized IC / Part | Memory Size | Voltage - Supply | Current - Receiving | Current - Transmitting | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESP32-SOLO-1-N4RF TXRX MOD BT WIFI TH SMD |
9,967 |
|
Datasheet |
ESP32 | 38-SMD Module | Tape & Reel (TR) | Not For New Designs | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3 | - | 2.4GHz ~ 2.5GHz | 150Mbps | 20dBm | -98dBm | ADC, GPIO, I2C, I2S, SDIO, SPI, PWM, UART | Integrated, Trace | ESP32-S0WD | 4MB Flash, 448kB ROM, 536kB SRAM | 2.3V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C |
|
EYSLCNZWWRF TXRX MODULE BLUETOOTH SMD |
468 |
|
Datasheet |
- | 49-SMD Module | Tape & Reel (TR) | Obsolete | Not Verified | Bluetooth | Bluetooth v5.0 | - | 2.4GHz ~ 2.48GHz | - | 6dBm | -96dBm | I2C, SPI, UART | - | nRF52810 | 192kB Flash, 24kB RAM | 1.7V ~ 3.6V | 4.6mA | 7mA | Surface Mount | -40°C ~ 85°C |
|

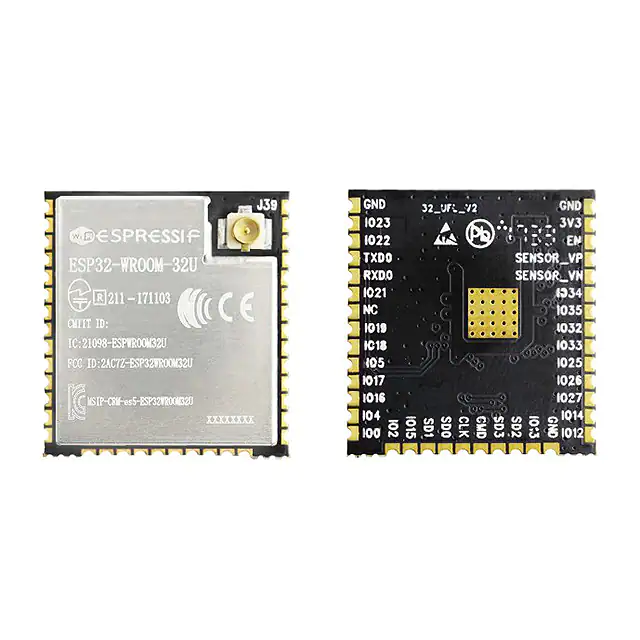

ESP32-WROOM-32U-N4RF TXRX MOD BT WIFIU.FL SMD |
1,565 |
|
Datasheet |
ESP32 | 38-SMD Module | Tape & Reel (TR) | Not For New Designs | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3 | CCK, DSSS, OFDM | 2.4GHz ~ 2.5GHz | 150Mbps | 20.5dBm | -98dBm | GPIO, I2C, I2S, PWM, SDIO, SPI, UART | Antenna Not Included, U.FL | ESP32-D0WD | 4MB Flash, 448kB ROM, 536kB SRAM | 3V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C |
|
ESP32-WROOM-DA-N4RF TXRX MOD BT WIFI PCB TH SMD |
656 |
|
Datasheet |
ESP32 | 43-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3 | 8DPSK, DQPSK | 2.4GHz | 150Mbps | 19.5dBm | -97dBm | ADC, GPIO, I2C, I2S, JTAG, PWM, SDIO, SPI, UART | PCB Trace | ESP32-D0WD-V3 | 4MB Flash, 448kB ROM, 520kB SRAM | 3V ~ 3.6V | 112mA ~ 118mA | 211mA ~ 379mA | Surface Mount | -40°C ~ 85°C (TA) |
|
ESP32-WROVER-B-N4R8RF TXRX MODULE 32MBIT SMD |
143 |
|
Datasheet |
* | - | Tape & Reel (TR) | Not For New Designs | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ESP32-WROOM-DA-N8RF TXRX MOD BT WIFI PCB TH SMD |
1,221 |
|
Datasheet |
ESP32 | 43-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3 | 8DPSK, DQPSK | 2.4GHz | 150Mbps | 19.5dBm | -97dBm | ADC, GPIO, I2C, I2S, JTAG, PWM, SDIO, SPI, UART | PCB Trace | ESP32-D0WD-V3 | 8MB Flash, 448kB ROM, 520kB SRAM | 3V ~ 3.6V | 112mA ~ 118mA | 211mA ~ 379mA | Surface Mount | -40°C ~ 85°C (TA) |
|
RYB080IRF TXRX MODULE BT |
454 |
|
Datasheet |
- | 22-SMD Module | Case | Active | - | Bluetooth | Bluetooth v4.2, Bluetooth v5.0 | - | 2.4GHz | 115.2kbps | 5dBm | - | GPIO, JTAG, UART | Integrated, Ceramic Patch | CC2640R2F | - | 1.8V ~ 3.8V | - | - | Surface Mount | -40°C ~ 85°C |
|
|
MDBT42T-P192KRF TXRX MOD 802.15.4 BT TH SMD |
192 |
|
Datasheet |
- | 31-SMD Module | Bag | Active | - | 802.15.4, Bluetooth | Bluetooth v5.4, Zigbee® | - | 2.4GHz | 2Mbps | 8dBm | -103dBm | GPIO, I2C, SPI, UART, USB | PCB Trace | nRF52805 | 192kB Flash, 24kB RAM | 1.7V ~ 3.6V | 3.4mA ~ 10.9mA | 2.3mA ~ 30mA | Surface Mount | -40°C ~ 105°C |
|
MDBT42T-PATRF TXRX MOD BT PCB TH SMD |
166 |
|
Datasheet |
- | 19-SMD Module | Bag | Active | Not Verified | Bluetooth | Bluetooth v5.4 | - | 2.36GHz ~ 2.5GHz | 2Mbps | 4dBm | -97dBm | GPIO, UART | PCB Trace | nRF52805 | 192kB Flash, 24kB RAM | 1.7V ~ 3.6V | 3.5mA ~ 11.2mA | 2.1mA ~ 15.4mA | Surface Mount | -40°C ~ 85°C |
|
|
NM1800100RF TXRX MODULE LORA/BLE 5 |
363 |
|
- |
* | - | Bulk | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MDBT42T-ATRF TXRX MOD BLUETOOTH CHIP SMD |
200 |
|
Datasheet |
- | 19-SMD Module | Bag | Active | Not Verified | Bluetooth | Bluetooth v5.4 | - | 2.36GHz ~ 2.5GHz | 2Mbps | 4dBm | -97dBm | GPIO, UART | Integrated, Chip | nRF52805 | 192kB Flash, 24kB RAM | 1.7V ~ 3.6V | 3.5mA ~ 11.2mA | 2.1mA ~ 15.4mA | Surface Mount | -40°C ~ 85°C |
|
|
MDBT42T-192KRF TXRX MOD 802.15.4 BT CHIP SMD |
180 |
|
Datasheet |
- | 31-SMD Module | Bag | Active | - | 802.15.4, Bluetooth | Bluetooth v5.4, Zigbee® | - | 2.4GHz | 2Mbps | 8dBm | -103dBm | GPIO, I2C, SPI, UART, USB | Integrated, Chip | nRF52805 | 192kB Flash, 24kB RAM | 1.7V ~ 3.6V | 3.4mA ~ 10.9mA | 2.3mA ~ 30mA | Surface Mount | -40°C ~ 105°C |
|
|
DA14592-01000O92MULTI-CORE BLE 5.2 SOC WITH EMBE |
2,850 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DA14592-010006F2MULTI-CORE BLE 5.2 SOC WITH EMBE |
1,971 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MDBT42Q-PAT2RF TXRX MOD BT PCB TH SMD |
200 |
|
Datasheet |
MDBT42Q-PAT2 | 39-SMD Module | Retail Package | Active | Not Verified | Bluetooth | Bluetooth v5.4 | - | 2.36GHz ~ 2.5GHz | 2Mbps | 4dBm | -96dBm | GPIO, UART | PCB Trace | nRF52810 | 192kB Flash, 24kB RAM | 1.7V ~ 3.6V | 3.5mA ~ 11.2mA | 2.1mA ~ 15.4mA | Surface Mount | -40°C ~ 85°C (TA) |
|
|
MDBT42Q-192KV2RF TXRX MOD BLUETOOTH CHIP SMD |
200 |
|
Datasheet |
MDBT42Q | 41-SMD Module | Retail Package | Active | Not Verified | Bluetooth | Bluetooth v5.4 | - | 2.36GHz ~ 2.5GHz | 2Mbps | 4dBm | -104dBm | GPIO, I2C, PWM, SPI, UART | Integrated, Chip | nRF52811 | 192kB Flash, 24kB RAM | 1.7V ~ 3.6V | 3.5mA ~ 11.2mA | 2.1mA ~ 15.4mA | Surface Mount | -40°C ~ 85°C (TA) |
|
MDBT50-256RRF TXRX MOD 802.15.4 BT CHIP SMD |
194 |
|
Datasheet |
- | 31-SMD Module | Bag | Active | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.4, Thread, Zigbee® | - | 2.36GHz ~ 2.5GHz | 2Mbps | 8dBm | -103dBm | ADC, GPIO, I2C, SPI, UART, USB | Integrated, Chip | nRF52820 | 256kB Flash, 32kB RAM | 1.7V ~ 5.5V | 3.4mA ~ 10.9mA | 2.3mA ~ 30mA | Surface Mount | -40°C ~ 105°C |
|
ZM4102AJ-CME3RRF TXRX MOD ISM<1GHZ SMD |
1,000 |
|
- |
Z-Wave® | Module | Tape & Reel (TR) | Obsolete | Not Verified | General ISM < 1GHz | Z-Wave® | - | 951MHz | 100Kbps | - | -99dBm | - | - | - | 64B Flash, 64kB ROM, 16kB RAM | 2.1V ~ 3.6V | 29mA | 34mA | Surface Mount | -30°C ~ 85°C |
|
|
BT680TRF TXRX MOD BT PCB TH SMD |
208 |
|
- |
- | 40-SMD Module | Cut Tape (CT) | Active | Not Verified | Bluetooth | Bluetooth v5.0 | - | - | 2Mbps | 8dBm | -105dBm | ADC, GPIO, I2C, PWM, SPI, UART | PCB Trace | TC35681FSG-002 | 144kB RAM | 1.9V ~ 3.6V | 5.1mA ~ 5.5mA | 6mA ~ 11.5mA | Surface Mount | -40°C ~ 85°C |
|
ZGM230SB27HGN2RRF TXRX MOD ISM<1GHZSMD |
799 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Obsolete | Not Verified | General ISM < 1GHz | Z-Wave® | FSK, GFSK, O-QPSK | 868MHz, 915MHz | 100kbps | 14dBm | -110.9dBm | ADC, GPIO, I2C, I2S, IrDA, PWM, SPI, UART | Antenna Not Included | - | 512kB Flash, 64kB RAM | 1.8V ~ 3.6V | 4.8mA ~ 5.1mA | 10.7mA ~ 30mA | Surface Mount | -40°C ~ 85°C |
