RF Transceiver Modules and Modems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate | Power - Output | Sensitivity | Serial Interfaces | Antenna Type | Utilized IC / Part | Memory Size | Voltage - Supply | Current - Receiving | Current - Transmitting | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
113990816RF TXRX MOD WIFI TH SMD |
845 |
|
Datasheet |
Wio | Module | Tape & Reel (TR) | Active | Not Verified | WiFi | 802.11b/g/n | - | 2.4GHz ~ 2.5GHz | - | - | - | I2C, I2S, SPI, UART | Integrated, Trace | ESP8266 | 4MB Flash | 3V ~ 3.6V | 80mA | 80mA | Surface Mount | -40°C ~ 125°C |
|
BGM123N256V1RRF TXRX MOD BLUETOOTH CHIP SMD |
759 |
|
Datasheet |
- | 56-SMD Module | Tape & Reel (TR) | Obsolete | Not Verified | Bluetooth | Bluetooth v4.2 | GFSK | 2.4GHz | 1Mbps | 8dBm | -90dBm | I2C, I2S, SPI, UART | Integrated, Chip | - | 256kB Flash, 32kB RAM | 1.85V ~ 3.8V | 9mA | 8.2mA | Surface Mount | -40°C ~ 85°C |
|
370100621RF TXRX MOD ISM<1GHZSMD |
3,274 |
|
Datasheet |
Z-Wave® | Module | Tray | Obsolete | Not Verified | General ISM < 1GHz | - | FSK | 908.42MHz | 40kbps | 0dBm | -102dBm | SPI, UART | Antenna Not Included | ZW0201 | - | 2.1V ~ 3.6V | 23mA | 36mA | Surface Mount | -15°C ~ 85°C |
|
ZM5304AH-CME3RRF TXRX MOD ISM<1GHZ SMD |
315 |
|
Datasheet |
Z-Wave® | Module | Tape & Reel (TR) | Obsolete | Not Verified | General ISM < 1GHz | Z-Wave® | - | 921MHz | 100Kbps | 4dBm | -103dBm | SPI, UART, USB | - | SD3503 | - | 2.3V ~ 3.6V | 33mA | 36mA | Surface Mount | - |
|
MDBT50-P512KRF TXRX MOD 802.15.4 BT TH SMD |
200 |
|
Datasheet |
- | 31-SMD Module | Bag | Active | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.4, Thread, Zigbee® | - | 2.36GHz ~ 2.5GHz | 2Mbps | 8dBm | -103dBm | ADC, GPIO, I2C, I2S, NFC, PDM, PWM, SPI, UART, USB | PCB Trace | nRF52833 | 64kB Flash, 16kB RAM | 1.7V ~ 3.6V | 3.4mA ~ 10.7mA | 2.3mA ~ 30.4mA | Surface Mount | -40°C ~ 85°C (TA) |
|
MDBT50Q-P512KRF TXRX MOD 802.15.4 BT TH SMD |
196 |
|
Datasheet |
- | 61-SMD Module | Bag | Active | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.4, Zigbee® | - | 2.36GHz ~ 2.5GHz | 2Mbps | 8dBm | -103dBm | ADC, GPIO, I2C, I2S, SPI, PDM, PWM, UART, USB | PCB Trace | nRF52833 | 512kB Flash, 128kB RAM | 1.7V ~ 5.5V | 3.4mA ~ 10.7mA | 2.3mA ~ 30.4mA | Surface Mount | -40°C ~ 105°C (TA) |
|
MDBT50Q-U512KRF TXRX MOD 802.15.4 BTU.FL SMD |
195 |
|
Datasheet |
- | 61-SMD Module | Bag | Active | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.4, Thread, Zigbee® | - | 2.36GHz ~ 2.5GHz | 2Mbps | 8dBm | -103dBm | GPIO, I2C, SPI, UART, USB | Antenna Not Included, U.FL | nRF52833 | 64kB Flash, 16kB RAM | 1.7V ~ 3.6V | 3.4mA ~ 10.7mA | 2.3mA ~ 30.4mA | Surface Mount | -40°C ~ 85°C (TA) |
|

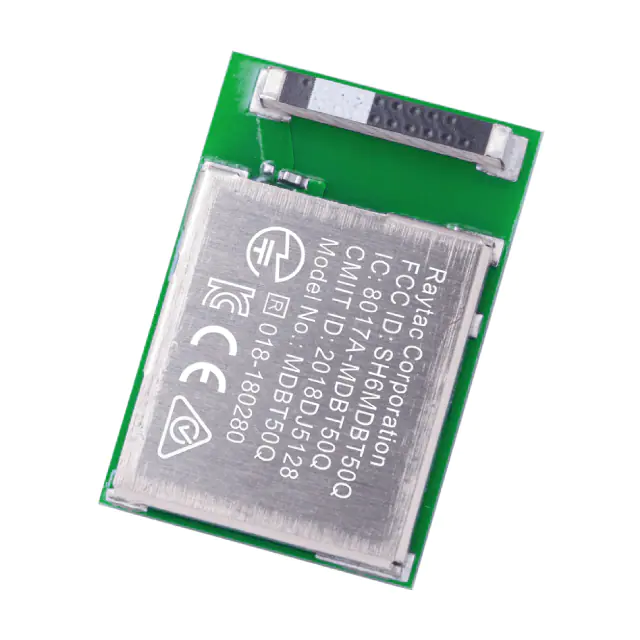

MDBT50Q-512KRF TXRX MOD 802.15.4 BT CHIP SMD |
180 |
|
Datasheet |
- | 61-SMD Module | Bag | Active | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.4, Zigbee® | - | 2.36GHz ~ 2.5GHz | 2Mbps | 8dBm | -103dBm | ADC, GPIO, I2C, I2S, SPI, PDM, PWM, UART, USB | Integrated, Chip | nRF52833 | 512kB Flash, 128kB RAM | 1.7V ~ 5.5V | 3.4mA ~ 10.7mA | 2.3mA ~ 30.4mA | Surface Mount | -40°C ~ 105°C (TA) |
|
MDBT50-512KRF TXRX MOD 802.15.4 BT CHIP SMD |
171 |
|
Datasheet |
- | 31-SMD Module | Bag | Active | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.4, Thread, Zigbee® | - | 2.36GHz ~ 2.5GHz | 2Mbps | 8dBm | -103dBm | ADC, GPIO, I2C, I2S, NFC, PDM, PWM, SPI, UART, USB | Integrated, Chip | nRF52833 | 512kB Flash, 128kB RAM | 1.7V ~ 5.5V | 3.4mA ~ 10.7mA | 2.3mA ~ 30.4mA | Surface Mount | -40°C ~ 105°C |
|
MGM210PB22JIA2RRF TXRX MOD 802.15.4 BT CHIP SMD |
0 |
|
Datasheet |
Mighty Gecko | 31-SMD Module | Tape & Reel (TR) | Active | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.3, Thread, Zigbee® | DSSS, GFSK, O-QPSK | 2.4GHz ~ 2.4835GHz | 2Mbps | 10dBm | -104.5dBm | ADC, GPIO, I2C, I2S, IrDA, PWM, SPI, UART | Integrated, Chip | EFR32MG21 | 1MB Flash, 96kB RAM | 1.71V ~ 3.8V | 9.1mA ~ 9.9mA | 16.1mA ~ 34.1mA | Surface Mount | -40°C ~ 125°C (TA) |
|
|
WFM200S022XNA3RRF TXRX MODULE WIFI CHIP SMD |
0 |
|
- |
WFM200S | 58-SMD Module | Tape & Reel (TR) | Active | Not Verified | WiFi | 802.11b/g/n | DSSS | 2.412GHz ~ 2.484GHz | 72.2Mbps | 15.1dBm | -96.3dBm | SDIO, SPI | Integrated, Chip | WFM200S | - | 1.62V ~ 3.6V | 42.3mA ~ 48.3mA | 45.4mA ~ 99.4mA | Surface Mount | -40°C ~ 105°C (TA) |
|
NINA-W101-00BRF TXRX MOD BLUETOOTH WIFISMD |
1,456 |
|
Datasheet |
NINA-W10 | 36-SMD Module | Tape & Reel (TR) | Obsolete | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 | CCK, DSSS, GFSK, QDPSK, QPSK, OFDM | 2.4GHz | 72Mbps | 16dBm | -96dBm | ADC, GPIO, I2C, SPI, UART | Antenna Not Included | ESP32-D0WDQ6 | 16Mb Flash, 448kB ROM, 520kB SRAM | 3V ~ 3.6V | 95mA | 130mA | Surface Mount | -40°C ~ 85°C |
|
SPBTLE-1SRF TXRX MOD BLUETOOTH CHIP SMD |
1,816 |
|
- |
BlueNRG | Module | Tray | Obsolete | Not Verified | Bluetooth | Bluetooth v4.2 | - | 2.4GHz | - | 5dBm | -84dBm | I2C, SPI, UART | Integrated, Chip | BlueNRG-1 | 160kB Flash, 20kB SRAM | 1.7V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C |
|

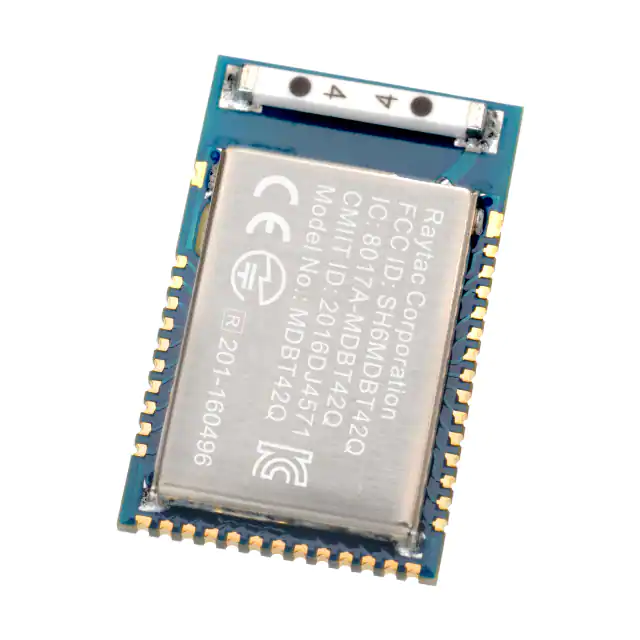

MDBT42Q-512KV2RF TXRX MOD 802.15.4 BT CHIP SMD |
200 |
|
Datasheet |
- | 41-SMD Module | Bag | Active | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.4, Zigbee® | - | 2.36GHz ~ 2.5GHz | 2Mbps | 4dBm | -96dBm | ADC, GPIO, I2C, I2S, SPI, PDM, PWM, UART, USB | Integrated, Chip | nRF52832 | 512kB Flash, 64kB RAM | 1.7V ~ 3.6V | 3.5mA ~ 12.9mA | 2.7mA ~ 16.6mA | Surface Mount | -40°C ~ 85°C (TA) |
|
|
MDBT42V-512KV2RF TXRX MOD BLUETOOTH CHIP SMD |
184 |
|
Datasheet |
MDBT42V | 29-SMD Module | Retail Package | Active | Not Verified | Bluetooth | Bluetooth v5.4 | - | 2.4GHz | - | 4dBm | -96dBm | GPIO, I2C, I2S, PWM, SPI, UART | Integrated, Chip | nRF52832 | 512kB Flash, 64kB RAM | 1.7V ~ 3.6V | 3.5mA ~ 12.9mA | 2.7mA ~ 16.6mA | Surface Mount | -40°C ~ 85°C (TA) |
|

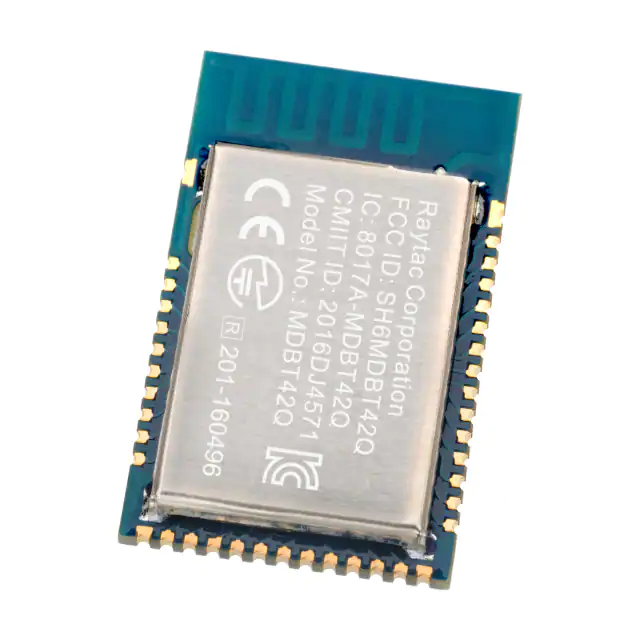

MDBT42Q-P512KV2RF TXRX MOD 802.15.4 BT TH SMD |
167 |
|
Datasheet |
- | 41-SMD Module | Bag | Active | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.4, Zigbee® | - | 2.36GHz ~ 2.5GHz | 2Mbps | 4dBm | -96dBm | ADC, GPIO, I2C, I2S, SPI, PDM, PWM, UART | PCB Trace | nRF52832 | 512kB Flash, 64kB RAM | 1.7V ~ 3.6V | 3.5mA ~ 12.9mA | 2.7mA ~ 16.6mA | Surface Mount | -40°C ~ 85°C (TA) |
|

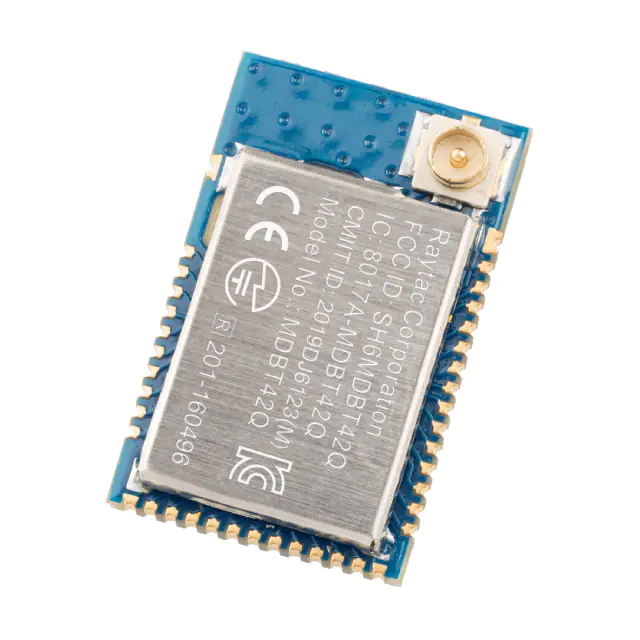

MDBT42Q-U512KV2RF TXRX MOD 802.15.4 BTU.FL SMD |
145 |
|
Datasheet |
- | 41-SMD Module | Bag | Active | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.4, Thread, Zigbee® | - | 2.36GHz ~ 2.5GHz | 2Mbps | 8dBm | -103dBm | GPIO, I2C, SPI, UART, USB | Antenna Not Included, U.FL | nRF52832 | 64kB Flash, 8kB RAM | 1.7V ~ 3.6V | 3.5mA ~ 12.9mA | 2.7mA ~ 16.6mA | Surface Mount | -40°C ~ 85°C (TA) |
|
|
MDBT42-512KV2RF TXRX MOD BLUETOOTH CHIP SMD |
104 |
|
Datasheet |
MDBT42 | 41-SMD Module | Retail Package | Active | Not Verified | Bluetooth | Bluetooth v5.4 | - | 2.36GHz ~ 2.5GHz | - | 4dBm | -96dBm | GPIO, I2C, I2S, PWM, SPI, UART | Integrated, Chip | nRF52832 | 512kB Flash, 64kB RAM | 1.7V ~ 3.6V | 3.5mA ~ 12.9mA | 2.7mA ~ 16.6mA | Surface Mount | -40°C ~ 85°C (TA) |
|
|
MDBT42V-P512KV2RF TXRX MOD BT PCB TH SMD |
104 |
|
Datasheet |
MDBT42V-P | 29-SMD Module | Retail Package | Active | Not Verified | Bluetooth | Bluetooth v5.4 | - | 2.4GHz | - | 4dBm | -96dBm | GPIO, I2C, I2S, PWM, SPI, UART | PCB Trace | nRF52832 | 512kB Flash, 64kB RAM | 1.7V ~ 3.6V | 3.5mA ~ 12.9mA | 2.7mA ~ 16.6mA | Surface Mount | -40°C ~ 85°C (TA) |
|
IS2083BM-232-TRAYRF TXRX MODULE BLUETOOTH SMD |
1,415 |
|
Datasheet |
- | 82-VFBGA | Tray | Active | Not Verified | Bluetooth | Bluetooth v5.0 | 8DPSK, DQPSK, GFSK | 2.4GHz | 3Mbps | - | -92dBm | GPIO, I2C, I2S, PWM, UART, USB | Antenna Not Included | IS2083BM | 16MB Flash, 512kB RAM, 832kB ROM | 3.2V ~ 4.2V | - | - | Surface Mount | -40°C ~ 85°C (TA) |
