RF Transceiver Modules and Modems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate | Power - Output | Sensitivity | Serial Interfaces | Antenna Type | Utilized IC / Part | Memory Size | Voltage - Supply | Current - Receiving | Current - Transmitting | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IS2083BM-232RF TXRX MODULE BLUETOOTH SMD |
819 |
|
Datasheet |
- | 82-VFBGA | Tape & Reel (TR) | Active | Not Verified | Bluetooth | Bluetooth v5.0 | 8DPSK, DQPSK, GFSK | 2.4GHz | 3Mbps | - | -92dBm | GPIO, I2C, I2S, PWM, UART, USB | Antenna Not Included | IS2083BM | 16MB Flash, 512kB RAM, 832kB ROM | 3.2V ~ 4.2V | - | - | Surface Mount | -40°C ~ 85°C (TA) |
|
NINA-W102-00BRF TXRX MOD BT STAMPED MET SMD |
3,783 |
|
Datasheet |
NINA-W10 | 36-SMD Module | Tape & Reel (TR) | Obsolete | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 | CCK, DSSS, GFSK, QDPSK, QPSK, OFDM | 2.4GHz | 72Mbps | 16dBm | -96dBm | ADC, GPIO, I2C, SPI, UART | Stamped Metal | ESP32-D0WDQ6 | 16Mb Flash, 448kB ROM, 520kB SRAM | 3V ~ 3.6V | 95mA | 130mA | Surface Mount | -40°C ~ 85°C |
|

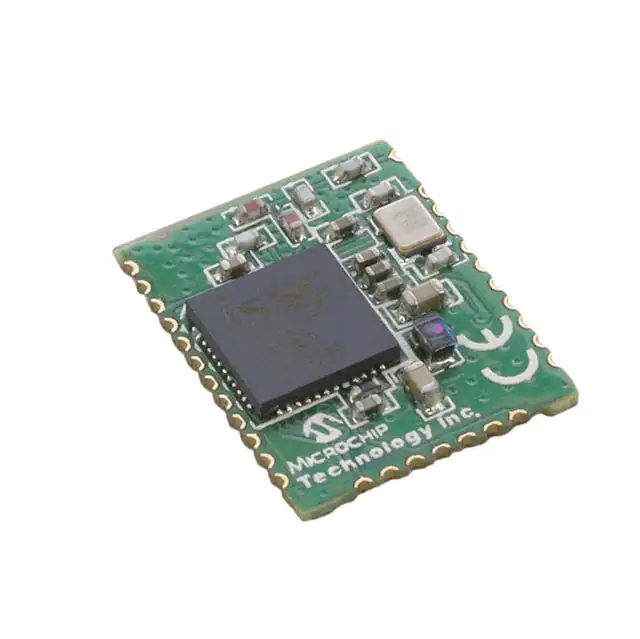

BM70BLE01FC2-0B05BARF TXRX MODULE BLUETOOTH SMD |
130 |
|
- |
- | 30-SMD Module | Tray | Active | Not Verified | Bluetooth | Bluetooth v5.0 | - | 2.402GHz ~ 2.48GHz | - | 0dBm | -90dBm | ADC, GPIO, I2C, PWM, SPI, UART | Antenna Not Included | - | 256kB Flash, 32kB ROM, 24kB SRAM | 1.9V ~ 3.6V | 10mA | 10mA | Surface Mount | -40°C ~ 85°C (TA) |
|
BW16 WITH PCB ANTENNA-2MBRF TXRX MODULE BT PCB TRACE SMD |
267 |
|
Datasheet |
- | 16-SMD Module | Cut Tape (CT) | Active | Not Verified | Bluetooth, WiFi | 802.11a/b/g/n, Bluetooth v5.0 | 64-QAM, BPSK, CCK | 2.4GHz, 5GHz | 54Mbps | 16dBm | -92dBm | ADC, GPIO, I2C, PWM, SPI, UART | PCB Trace, Antenna Not Included, I-PEX | RTL8720DN | - | 3V ~ 3.6V | - | - | Surface Mount | -20°C ~ 70°C |
|
450-0177CRF TXRX MOD BT PCB TH SMD |
8,563 |
|
Datasheet |
Sable-x-R2™ | Module | Strip | Obsolete | Not Verified | Bluetooth | Bluetooth v5.0 | - | 2.4GHz | - | 5dBm | -96dBm | I2C, SPI, UART | PCB Trace | CC2640 | 128kB Flash, 20kB SRAM | 1.8V ~ 3.8V | - | - | Surface Mount | -40°C ~ 85°C |
|
|
450-0177RRF TXRX MOD BT PCB TH SMD |
5,055 |
|
Datasheet |
Sable-x-R2™ | Module | Tape & Reel (TR) | Obsolete | Not Verified | Bluetooth | Bluetooth v5.0 | - | 2.4GHz | - | 5dBm | -96dBm | I2C, SPI, UART | PCB Trace | CC2640 | 128kB Flash, 20kB SRAM | 1.8V ~ 3.8V | - | - | Surface Mount | -40°C ~ 85°C |
|
|
450-0178RRF TXRX MOD BLUETOOTHU.FL SMD |
1,124 |
|
Datasheet |
Sable-x-R2™ | Module | Tape & Reel (TR) | Obsolete | Not Verified | Bluetooth | Bluetooth v5.0 | - | 2.4GHz | - | 5dBm | -96dBm | I2C, SPI, UART | Antenna Not Included, U.FL | CC2640 | 128kB Flash, 20kB SRAM | 1.8V ~ 3.8V | - | - | Surface Mount | -40°C ~ 85°C |
|
BT24RF TXRX MOD BLUETOOTH CHIP SMD |
3,664 |
|
Datasheet |
- | 22-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth | Bluetooth v3.0, Class 2 | - | 2.4GHz ~ 2.4835GHz | 400kbps | 6dBm | -90dBm | ADC, GPIO, I2C, PCM, SPI, UART | Integrated, Chip | - | - | 3V ~ 3.6V | - | - | Surface Mount | -20°C ~ 60°C |
|
BM833ARF TXRX MOD 802.15.4 BT TH SMD |
1,947 |
|
Datasheet |
- | 47-SMD Module | Tape & Reel (TR) | Discontinued at Digi-Key | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.1 | - | 2.4GHz | 2Mbps | 4.1dBm | -104dBm | ADC, GPIO, I2C, PWM, SPI, UART | PCB Trace | nRF52811 | 192kB Flash, 24kB RAM | 1.7V ~ 3.6V | 4.6mA | 4.6mA | Surface Mount | -40°C ~ 85°C |
|

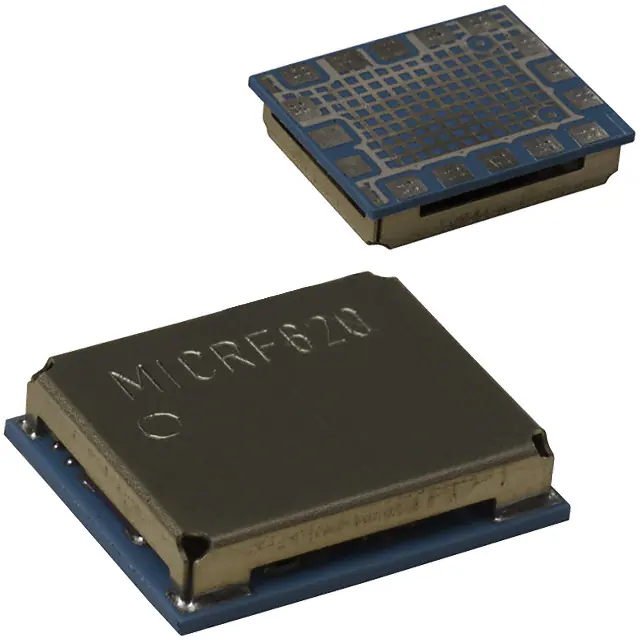

MICRF620Z TRRF TXRX MOD ISM < 1GHZ TRACE SMD |
1,400 |
|
Datasheet |
- | Module | Bulk | Active | Not Verified | General ISM < 1GHz | - | FSK | 433MHz | 20kbps | 9dBm | -111dBm | - | Integrated, Trace | - | - | 2V ~ 2.5V | 12mA | 24mA | Surface Mount | -20°C ~ 75°C |
|
|
MICRF620ZRF TXRX MOD ISM < 1GHZ TRACE SMD |
387 |
|
Datasheet |
RadioWire® | Module | Bulk | Active | Not Verified | General ISM < 1GHz | - | FSK | 433MHz | 20kbps | 9dBm | -111dBm | - | Integrated, Trace | - | - | 2V ~ 2.5V | 12mA | 24mA | Surface Mount | -20°C ~ 75°C |
|

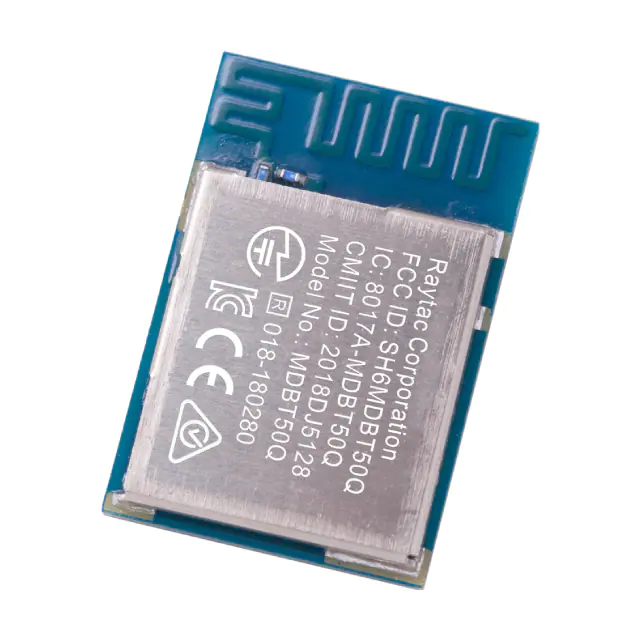

MDBT50Q-P1MV2RF TXRX MOD 802.15.4 BT TH SMD |
175 |
|
Datasheet |
- | 61-SMD Module | Bag | Active | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.4, Zigbee® | - | 2.36GHz ~ 2.5GHz | 2Mbps | 8dBm | -103dBm | ADC, GPIO, I2C, I2S, SPI, PDM, PWM, UART, USB | PCB Trace | nRF52840 | 1MB Flash, 256kB RAM | 1.7V ~ 5.5V | 3.7mA ~ 11.1mA | 2.7mA ~ 32.7mA | Surface Mount | -40°C ~ 85°C (TA) |
|

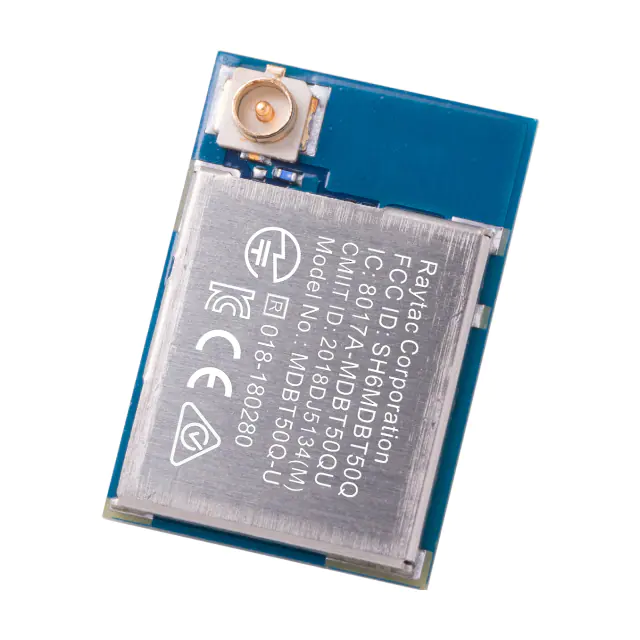

MDBT50Q-U1MV2RF TXRX MOD 802.15.4 BTU.FL SMD |
108 |
|
Datasheet |
- | 61-SMD Module | Bag | Active | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.4, Thread, Zigbee® | - | 2.36GHz ~ 2.5GHz | 2Mbps | 8dBm | -103dBm | GPIO, I2C, SPI, UART, USB | Antenna Not Included, U.FL | nRF52840 | 1MB Flash, 32kB RAM | 1.7V ~ 3.6V | 3.7mA ~ 11.1mA | 2.8mA ~ 32.7mA | Surface Mount | -40°C ~ 85°C (TA) |
|
|
MAX2835ETM+TRF TXRX MODULE 2.4-2.5GHZ |
15,000 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

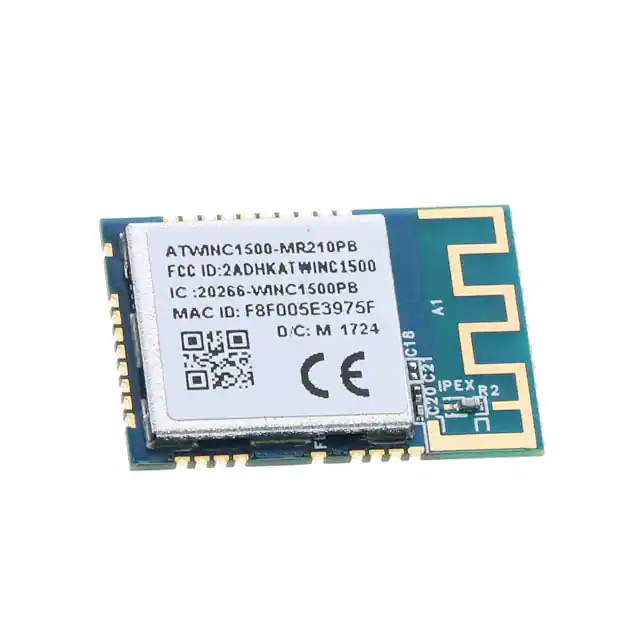

ATWINC1500-MR210PB1172RF TXRX MOD WIFI TH SMD |
150 |
|
Datasheet |
- | Module | Tray | Active | Not Verified | WiFi | 802.11b/g/n | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK | 2.4GHz | 72.2Mbps | 18.5dBm | -95dBm | I2C, SPI, UART | Integrated, Trace | ATWINC1500B | 4MB Flash, 128kB RAM | 2.7V ~ 3.6V | 61mA | 265mA | Surface Mount | -40°C ~ 85°C |
|
MDBT53V-1MRF TXRX MOD 802.15.4 BT CHIP SMD |
200 |
|
Datasheet |
MDBT53V | 39-SMD Module | Bulk | Active | Not Verified | 802.15.4, Bluetooth | ANT+, Bluetooth v5.4, Thread, Zigbee® | - | 2.4GHz | 2Mbps | 3dB | -104dBm | ADC, GPIO, I2C, I2S, PWM, SPI, UART | Chip | nRF5340 | 1MB Flash, 512kB RAM | 1.7V ~ 5.5V | 2.7mA ~ 7.9mA | 1.5mA ~ 11.3mA | Surface Mount | -40°C ~ 105°C |
|

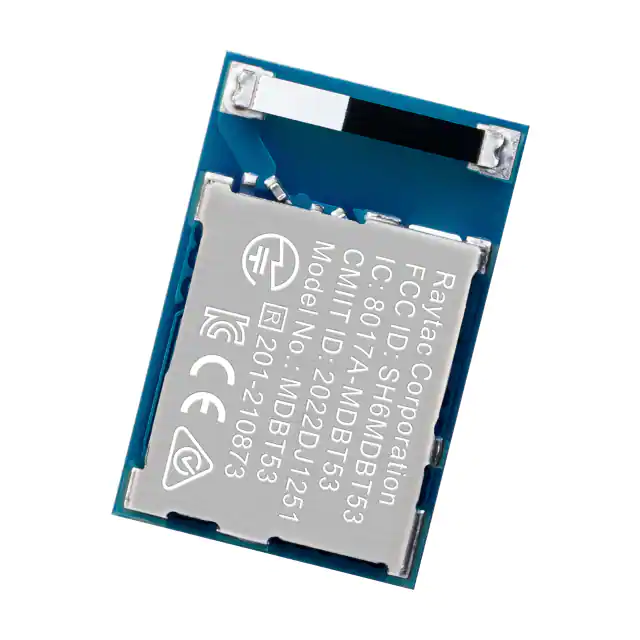

MDBT53-1MRF TXRX MOD 802.15.4 BT CHIP SMD |
194 |
|
Datasheet |
MDBT53 | 65-SMD Module | Bulk | Active | Not Verified | 802.15.4, Bluetooth | ANT+, Bluetooth v5.4, Thread, Zigbee® | - | 2.4GHz | 2Mbps | 3dB | -104dBm | ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB | Chip | nRF5340 | 1MB Flash, 512kB RAM | 1.7V ~ 5.5V | 2.7mA ~ 7.9mA | 1.5mA ~ 11.3mA | Surface Mount | -40°C ~ 105°C |
|

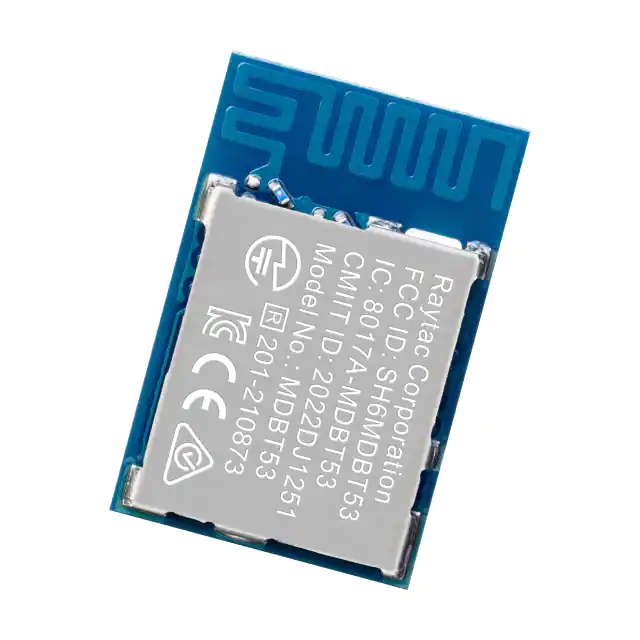

MDBT53-P1MRF TXRX MOD 802.15.4 BT TH SMD |
192 |
|
Datasheet |
MDBT53 | 65-SMD Module | Bulk | Active | Not Verified | 802.15.4, Bluetooth | ANT+, Bluetooth v5.4, Thread, Zigbee® | - | 2.4GHz | 2Mbps | 3dB | -104dBm | ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB | PCB Trace | nRF5340 | 1MB Flash, 512kB RAM | 1.7V ~ 5.5V | 2.7mA ~ 7.9mA | 1.5mA ~ 11.3mA | Surface Mount | -40°C ~ 105°C |
|

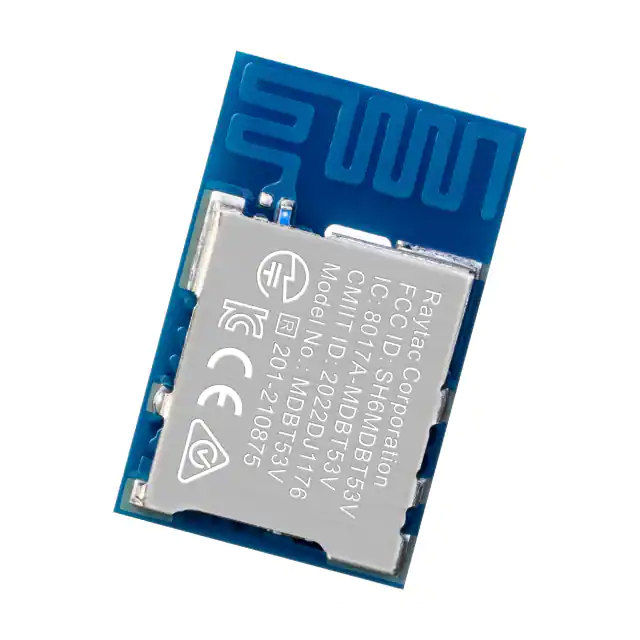

MDBT53V-P1MRF TXRX MOD 802.15.4 BT TH SMD |
150 |
|
Datasheet |
MDBT53V | 39-SMD Module | Bulk | Active | Not Verified | 802.15.4, Bluetooth | ANT+, Bluetooth v5.4, Thread, Zigbee® | - | 2.4GHz | 2Mbps | 3dB | -104dBm | ADC, GPIO, I2C, I2S, PWM, SPI, UART | PCB Trace | nRF5340 | 1MB Flash, 512kB RAM | 1.7V ~ 5.5V | 2.7mA ~ 7.9mA | 1.5mA ~ 11.3mA | Surface Mount | -40°C ~ 105°C |
|

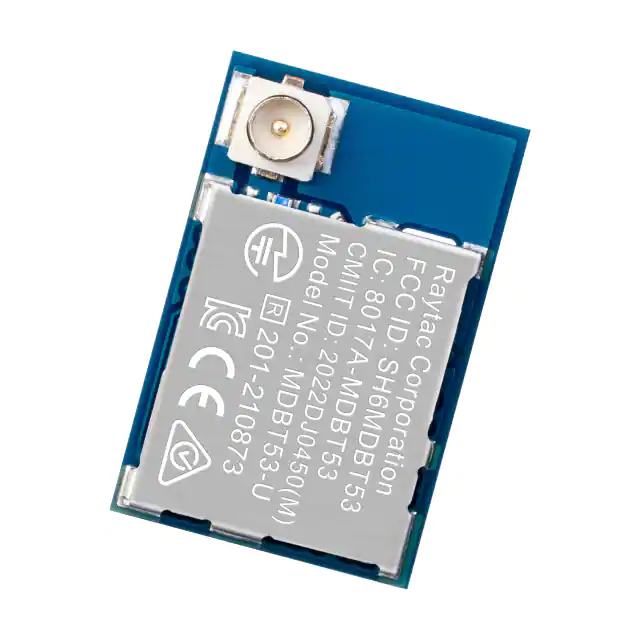

MDBT53-U1MRF TXRX MOD 802.15.4 BTU.FL SMD |
147 |
|
Datasheet |
MDBT53 | 65-SMD Module | Bulk | Active | Not Verified | 802.15.4, Bluetooth | ANT+, Bluetooth v5.4, Thread, Zigbee® | - | 2.4GHz | 2Mbps | 3dB | -104dBm | ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB | Antenna Not Included, U.FL | nRF5340 | 1MB Flash, 512kB RAM | 1.7V ~ 5.5V | 2.7mA ~ 7.9mA | 1.5mA ~ 11.3mA | Surface Mount | -40°C ~ 105°C |
