RF Transceiver Modules and Modems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate | Power - Output | Sensitivity | Serial Interfaces | Antenna Type | Utilized IC / Part | Memory Size | Voltage - Supply | Current - Receiving | Current - Transmitting | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NL-SW-LTE-TC4NAGRF TXRX MOD CELL THROUGH HOLE |
0 |
|
Datasheet |
- | 20-DIP Module | Tube | Obsolete | Not Verified | Cellular | 4G LTE CAT-4 (AT&T/Verzion) | - | 600MHz, 700MHz, 850MHz, 1.7GHz, 1.9GHz | - | - | - | UART, USB | - | - | - | 1.65V ~ 5.5V | - | - | Through Hole | -40°C ~ 85°C |
|
NL-SW-LTE-S7588-V-BRF TXRX MOD CELL U.FL TH |
0 |
|
Datasheet |
Skywire® LTE CAT 4 | 20-DIP Module | Tube | Obsolete | Not Verified | Cellular | 4G LTE CAT-4 (Verizon), 3G Fallback | - | 700MHz, 850MHz, 1.7GHz, 1.9GHz | 150Mbps | - | - | UART, USB | Antenna Not Included, U.FL | - | - | 3V ~ 5.5V | - | - | Through Hole | -40°C ~ 85°C |
|
SC686ANAPA-E53-UGADASC686ANAPA-E53-UGADA |
0 |
|
Datasheet |
- | - | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | Qualcomm® Snapdragon QCM4290 | - | - | - | - | - | - |
|
|
SG368ZWFNA-G83-UNNNA8+64GB - CONSUMER |
0 |
|
Datasheet |
SG368Z | 453-BLGA Module | Tape & Reel (TR) | Active | - | Bluetooth, Navigation, WiFi | 802.11a/b/g/n/ac, Bluetooth v4.2 + EDR, GNSS | - | 2.4GHz, 5GHz | - | - | - | ADC, GPIO, I2S, PWM, SDIO, SPI, UART | Antenna Not Included | - | - | 3.3V ~ 3.5V | - | - | Surface Mount | -40°C ~ 85°C |
|

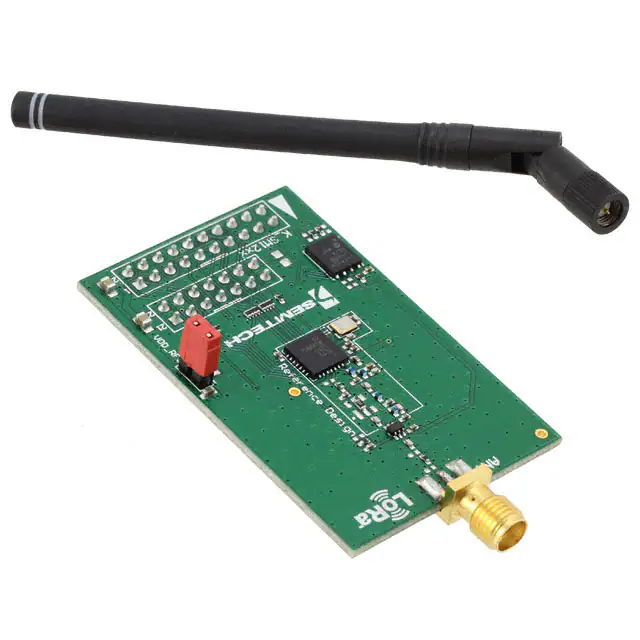

SX1272RF1BASRF TXRX MOD ISM<1GHZU.FL TH |
1 |
|
- |
LoRa™ | Module | Bag | Obsolete | Not Verified | General ISM < 1GHz | - | FSK, GFSK, GMSK, MSK, OOK | 860MHz ~ 1.02GHz | 300kbps | 20dBm | -137dBm | SPI | Antenna Not Included, U.FL | - | - | 1.8V ~ 3.7V | 11.2mA | 125mA | Through Hole | -40°C ~ 85°C |
|
SX1276RF1JASRF TXRX MOD ISM<1GHZU.FL TH |
0 |
|
Datasheet |
LoRa™ | Module | Bag | Obsolete | Not Verified | General ISM < 1GHz | - | FSK, GFSK, GMSK, MSK, OOK | 433MHz, 915MHz | 300kbps | 20dBm | -148dBm | SPI | Antenna Not Included, U.FL | - | - | 1.8V ~ 3.7V | 10.8mA ~ 12mA | 20mA ~ 120mA | Through Hole | -40°C ~ 85°C |
|

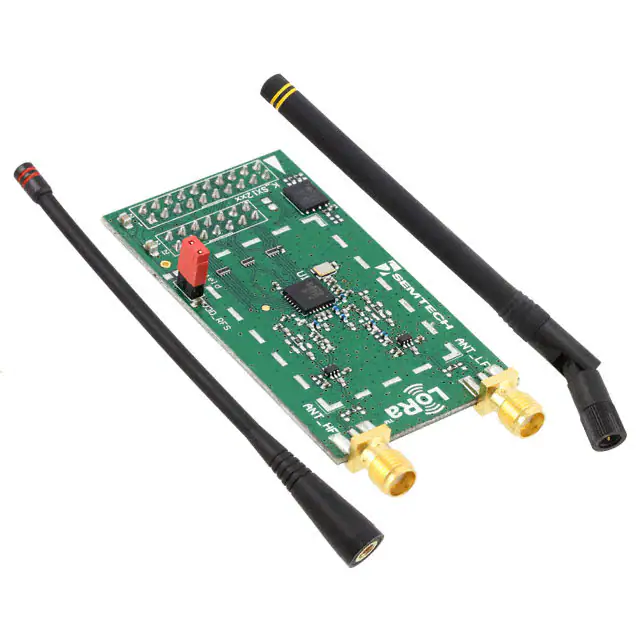

SX1276RF1KASRF TXRX MOD ISM<1GHZU.FL TH |
0 |
|
Datasheet |
LoRa™ | Module | Bag | Obsolete | Not Verified | General ISM < 1GHz | - | FSK, GFSK, GMSK, MSK, OOK | 433MHz, 868MHz | 300kbps | 20dBm | -148dBm | SPI | Antenna Not Included, U.FL | - | - | 1.8V ~ 3.7V | 10.8mA ~ 12mA | 20mA ~ 120mA | Through Hole | -40°C ~ 85°C |
|

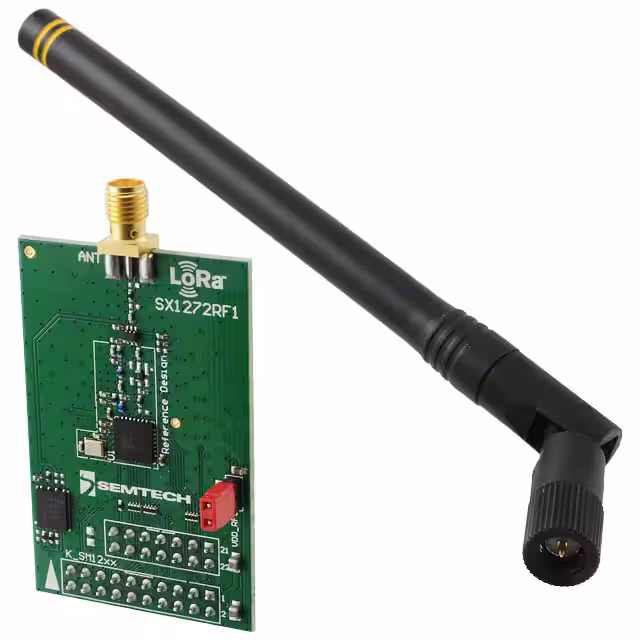

SX1272RF1CASRF TXRX MOD ISM<1GHZU.FL TH |
0 |
|
- |
LoRa™ | Module | Bag | Obsolete | Not Verified | General ISM < 1GHz | - | FSK, GFSK, GMSK, MSK, OOK | 860MHz ~ 1.02GHz | 300kbps | 20dBm | -137dBm | SPI | Antenna Not Included, U.FL | - | - | 1.8V ~ 3.7V | 11.2mA | 125mA | Through Hole | -40°C ~ 85°C |
|
|
SIM8230GRF TXRX MOD CELL NAV SMD |
0 |
|
- |
- | Module | Bulk | Active | - | Cellular, Navigation | GNSS, LTE | - | - | 220Mbps | - | - | GPIO, I2C, PCM, USB | Antenna Not Included | - | - | 3.3V ~ 4.4V | - | - | Surface Mount | -40°C ~ 85°C |
|
MPLAS9-WRF TXRX MOD CELL U.FL CARD EDGE |
0 |
|
Datasheet |
Cinterion®, mPCle | Module | Tray | Obsolete | Not Verified | Cellular | EDGE, GLONASS, GPS, GPRS, GSM, HSDPA, HSUPA, LTE, UMTS | 64-QAM | 700MHz, 800MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.6GHz | 300Mbps | 33dBm | - | mPCIe | Antenna Not Included, U.FL | Qualcom MDM9230 | - | 3.3V | - | 1A | Card Edge | -40°C ~ 90°C |
|
EP06ELA-512-SGARF TXRX MOD CEL/NAV CARD |
0 |
|
- |
- | Module | Tray | Obsolete | Not Verified | Cellular, Navigation | BeiDou, Galileo, GLONASS, GPS, GNSS, HSPA+, LTE, WCDMA | - | - | 300Mbps | - | - | I2C, PCM, USB | Antenna Not Included | MDM9240-1 | - | 3.1V ~ 4.4V | 31.3mA | 31.3mA | Card Edge | -35°C ~ 75°C |
|

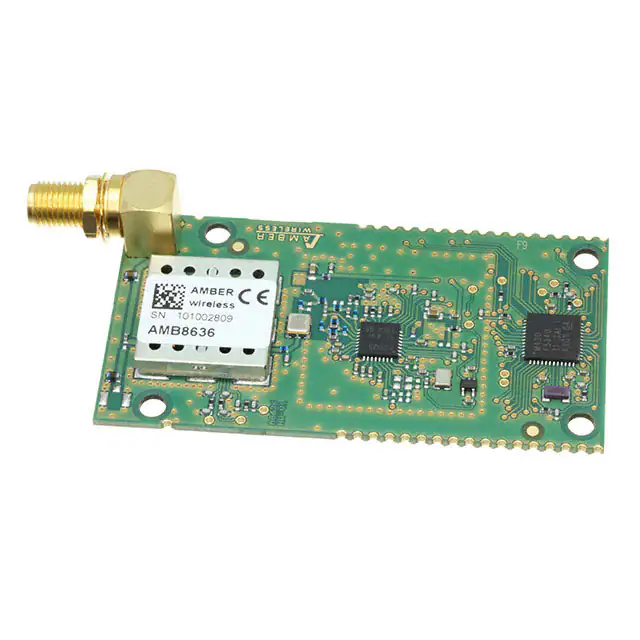

AMB8636RF TXRX MOD ISM<1GHZ CAST SMD |
0 |
|
Datasheet |
WIRL-PRO8 | Module | Tray | Obsolete | Not Verified | General ISM < 1GHz | - | 2-GFSK | 869MHz | 50kbps | 27dBm | -113dBm | UART | Antenna Not Included, Castellation | - | - | 2V ~ 3.6V | 48mA | 500mA | Surface Mount | -40°C ~ 85°C |
|
|
CC-WMX-PE47-JTRF TXRX MOD WIFIU.FL CARD EDGE |
0 |
|
Datasheet |
ConnectCore® i.MX28 | Module | Bulk | Not For New Designs | Not Verified | WiFi | 802.11a/b/g/n | 16QAM, 64QAM, BPSK, CCK, DBPSK, DQPSK, QPSK | 2.4GHz, 5GHz | 150Mbps | 17dBm | - | I2C, I2S, JTAG, PWM, SPI, UART, USB | Antenna Not Included, U.FL | - | 128MB Flash, 128MB RAM | 5V | 100mA | 406mA | Card Edge | -40°C ~ 85°C |
|
|
MTQ-MNA1-B02.R1-SPRF TXRX MOD CELL NAV IGATIONCHAS |
0 |
|
- |
MultiTech Dragonfly™ | Module | Box | Not For New Designs | Not Verified | Cellular, Navigation | GNSS, GPS, LTE | - | 700MHz, 1.7GHz, 1.9GHz | 375kbps | - | - | UART, USB | Antenna Not Included | STM32F411RET | 512kB Flash, 96kB SRAM | 3.3V, 5V | 37mA | 37mA | Chassis Mount | -40°C ~ 85°C |
|
|
317070464RF TXRX MOD CELL CHIP+IPEX CARD |
0 |
|
- |
- | Module | Bulk | Active | - | Cellular | LoRaWAN, LTE | - | 902MHz ~ 928MHz | - | 25dBm | -139dBm | SPI | Integrated, Chip + I-PEX | - | - | - | 470mA | 440mA | Card Edge | -40°C ~ 85°C |
|
|
317070463RF TXRX MOD CELL CHIP+IPEX CARD |
0 |
|
- |
- | Module | Bulk | Active | - | Cellular | LoRaWAN, LTE | - | 868MHz ~ 870MHz | - | 25dBm | -139dBm | SPI | Integrated, Chip + I-PEX | - | - | - | 470mA | 440mA | Card Edge | -40°C ~ 85°C |
|
|
MTQ-MNA1-B01.R2-SPRF TXRX MOD CEL/NAV U.FL CHAS |
0 |
|
- |
MultiTech Dragonfly™ | Module | Bulk | Active | Not Verified | Cellular, Navigation | GNSS, GPS, LTE | - | 700MHz, 1.7GHz, 1.9GHz | 375kbps | - | - | GPIO, I2C, SPI, UART, USB | Antenna Not Included, U.FL | STM32F411RET | 512kB Flash, 96kB SRAM | 3.3V, 5V | 57mA | 57mA | Chassis Mount | -40°C ~ 85°C |
|
|
RG255CGL00AB-4M2-SGASA5G R17 REDCAP, 5G SA ONLY, LTE C |
0 |
|
Datasheet |
- | 52-SMD Module | Tape & Reel (TR) | Active | - | Cellular, Navigation | BeiDou, Galileo, GLONASS, GNSS, GPS, LTE | - | 6GHz | 223Mbps | - | - | PCM, USB | Antenna Not Included | - | - | 3.1V ~ 4.3V | - | - | Surface Mount | -40°C ~ 85°C |
|
|
MT100EOCG-GPRF TXRX MOD CELL U.FL CHAS MNT |
0 |
|
Datasheet |
MultiConnect® OCG-E | Module | Tray | Obsolete | Not Verified | Cellular | EV-DO, GPRS, GPS, HSPA+ | - | 850MHz, 900MHz, 1.8GHz, 1.9GHz | - | - | -161dBm | I2C, SPI, UART, USB | Antenna Not Included, U.FL | - | 256MB Flash, 64MB SDRAM | 5V | - | - | Chassis Mount | -35°C ~ 85°C |
|
|
RG500UEAAB-D11-SNASA5G SUB-6 (AB VERSION) |
0 |
|
Datasheet |
- | - | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | UDX710M1 | - | - | - | - | - | - |
