RF Transceiver Modules and Modems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate | Power - Output | Sensitivity | Serial Interfaces | Antenna Type | Utilized IC / Part | Memory Size | Voltage - Supply | Current - Receiving | Current - Transmitting | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MTQ-LAT3-B02.R3RF TXRX MOD CELL U.FL CHAS MNT |
0 |
|
Datasheet |
MultiTech Dragonfly™ | Module | Bulk | Active | Not Verified | Cellular | 4G LTE CAT-1 (AT&T/T-Mobile) | - | 700MHz, 850MHz, 1.7GHz, 1.9GHz | 10Mbps | - | - | UART, USB | Antenna Not Included, U.FL | STM32F411RET | 512kB Flash, 96kB SRAM | 3.3V, 5V | 38mA | 38mA | Chassis Mount | -40°C ~ 85°C |
|
|
SC686ANAPA-E56-UGADARF TXRX MOD BT CELLSMD |
0 |
|
Datasheet |
- | 324-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth, Cellular | Bluetooth v5.0, EDGE, Galileo, GLONASS, GNSS, GPRS, GPS, GSM, HSPA+, LTE | - | - | 300Mbps | - | - | ADC, GPIO, I2C, PWM, SPI, UART, USB | Antenna Not Included | Qualcomm® Snapdragon QCM4290 | - | 3.55V ~ 4.4V | - | - | Surface Mount | -35°C ~ 75°C |
|
|
SC680ANAPA-E56-UGADARF TXRX MOD BT CELL NAV WIFISMD |
0 |
|
Datasheet |
- | 324-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth, Cellular, Navigation, WiFi | 802.11a/b/g/n/ac/ax, BeiDou, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.2, Bluetooth v5.0, CDMA, EDGE, Galileo, GLONASS, GPRS, GPS, LTE | - | 2.4GHz, 5GHz | 42Mbps | - | - | ADC, GPIO, I2C, PWM, SPI, UART, USB | Antenna Not Included | Qualcomm® Snapdragon QCM4290 | - | 3.55V ~ 4.4V | - | - | Surface Mount | -35°C ~ 75°C |
|
|
SC20JSB-16GB-UGADRF TXRX MOD BT CELL NAV WIFISMD |
0 |
|
Datasheet |
SC20 | Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, Cellular, Navigation, WiFi | 802.11a/b/g/n, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.1, Bluetooth v4.2, BeiDou, Galileo, GLONASS, GPS, GNSS | - | 2.4GHz, 5GHz | 150Mbps | - | - | ADC, GPIO, I2C, PCM, PWM, UART, USB | Antenna Not Included | Qualcomm® Snapdragon MSM8909-2 | - | 3.5V ~ 4.2V | - | - | Surface Mount | -35°C ~ 75°C |
|
|
SC66WNB-64GB-UNNRF TXRX MOD CELL NAV SMD |
0 |
|
- |
- | 324-SMD Module | Tape & Reel (TR) | Not For New Designs | - | Cellular, Navigation | BeiDou, CDMA, EDGE, GLONASS, GNSS, GPRS, GPS, GSM, HSPA+, LTE, UMTS | - | - | 300Mbps | - | - | I2C, SPI, UART, USB | Antenna Not Included | Qualcomm® Snapdragon SDM660 | - | 3.55V ~ 4.4V | - | - | Surface Mount | -35°C ~ 75°C |
|
BGS5TRF TXRX MODULE CELL DIN RAIL |
0 |
|
Datasheet |
Cinterion BGS5T | Module | Box | Obsolete | Not Verified | Cellular | GPRS, GSM | GMSK | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 85kbps | 33dBm | -103dBm | GPIO, I2C, PCM, PWM, RS232, USB | Antenna Not Included | Intel XMM 1180 | 10MB Flash, 10MB RAM | 8V ~ 30V | - | 60mA ~ 530mA | DIN Rail | -40°C ~ 90°C |
|
|
EM7421_1104681RF TXRX MOD CEL/NAV CARD |
0 |
|
Datasheet |
EM742x | Module | Tray | Active | - | Cellular, Navigation | BeiDou, Galileo, GLONASS, GNSS, GPS, HSPA, LTE | DSSS | - | 300Mbps | - | - | USB | Antenna Not Included | EM7421 | - | - | - | - | Card Edge | -40°C ~ 85°C |
|
|
SC20ESA-16GB-UGADRF TXRX MOD BT CELL NAV WIFISMD |
0 |
|
Datasheet |
SC20 | Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, Cellular, Navigation, WiFi | 802.11a/b/g/n, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.1, Bluetooth v4.2, BeiDou, Galileo, GLONASS, GPS, GNSS | - | 800MHz, 900MHz, 1.8GHz, 1.9GHz, 2.4GHz, 5GHz | 150Mbps | - | - | ADC, GPIO, I2C, PCM, PWM, UART, USB | Antenna Not Included | Qualcomm® Snapdragon MSM8909-2 | - | 3.5V ~ 4.2V | - | - | Surface Mount | -35°C ~ 75°C |
|
|
MTQ-LNA7-B02.R1A-SPRF TXRX MOD CELL U.FL CHAS MNT |
0 |
|
Datasheet |
MultiTech Dragonfly™ | Module | Box | Active | Not Verified | Cellular | 4G LTE CAT-1 (AT&T/Verizon), HSPA+ | - | 700MHz, 850MHz, 1.7GHz, 1.9GHz | 150Mbps | - | - | UART, USB | Antenna Not Included, U.FL | - | - | 3.3V, 5V | 28mA | 28mA | Chassis Mount | -40°C ~ 85°C |
|

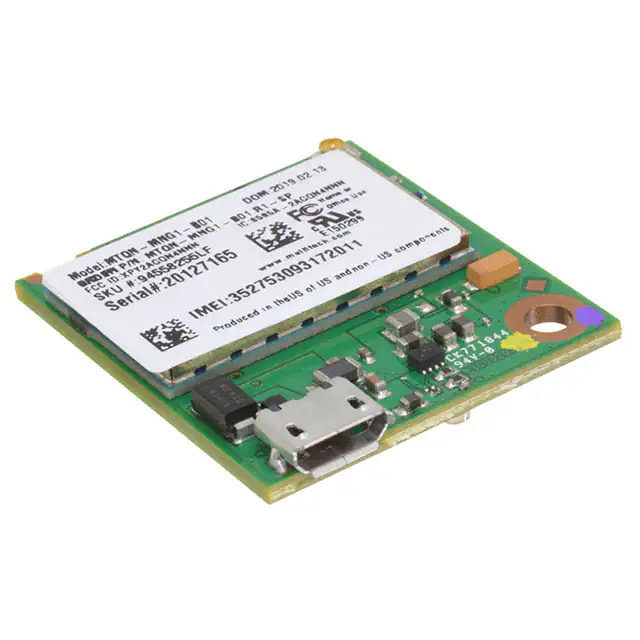

MTQN-MNG1-B01.R1-SPRF TXRX MOD CELL U.FL CHAS MNT |
1 |
|
Datasheet |
MultiTech Dragonfly™ Nano | Module | Bag | Obsolete | Not Verified | Cellular | LTE | - | 700MHz, 850MHz, 1.7GHz, 1.9GHz | 375kbps | - | - | I2S, SPI, UART, USB | Antenna Not Included, U.FL | STM32L471QG | 1MB Flash, 128kB SRAM | 3.3V, 5V | - | - | Chassis Mount | -40°C ~ 85°C |
|
|
MTSMC-MNG2-U.R1-SPRF TXRX MODULE CELL/NAV U.FL TH |
0 |
|
- |
SocketModem® Cell | Module | Box | Not For New Designs | Not Verified | Cellular, Navigation | GNSS, GPS, LTE | - | 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz | 375kbps | - | - | USB | Antenna Not Included, U.FL | - | - | 5V | 27mA | 27mA | Through Hole | -40°C ~ 85°C |
|
|
MTSMC-MNG2.R1-SPRF TXRX MODULE CELL/NAV U.FL TH |
0 |
|
- |
SocketModem® Cell | Module | Box | Not For New Designs | Not Verified | Cellular, Navigation | GNSS, GPS, LTE | - | 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz | 375kbps | - | - | Serial | Antenna Not Included, U.FL | - | - | 3.3V, 5V | 14mA | 14mA | Through Hole | -40°C ~ 85°C |
|
CC-WMX-PF47-VMRF TXRX MOD WIFIU.FL CARD EDGE |
0 |
|
Datasheet |
ConnectCore® i.MX28 | Module | Bulk | Obsolete | Not Verified | WiFi | 802.11a/b/g/n | 16QAM, 64QAM, BPSK, CCK, DBPSK, DQPSK, QPSK | 2.4GHz, 5GHz | 150Mbps | 17dBm | - | I2C, I2S, JTAG, PWM, SPI, UART, USB | Antenna Not Included, U.FL | - | 128MB Flash, 128MB RAM | 5V | 100mA | 406mA | Card Edge | -40°C ~ 85°C |
|
|
SC20AUSA-16GB-UGADRF TXRX MOD BT CELL NAV WIFISMD |
0 |
|
Datasheet |
SC20 | Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, Cellular, Navigation, WiFi | 802.11a/b/g/n, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.1, Bluetooth v4.2, BeiDou, Galileo, GLONASS, GPS, GNSS | - | 850MHz, 1.9GHz, 2.4GHz, 5GHz | 150Mbps | - | - | ADC, GPIO, I2C, PCM, PWM, UART, USB | Antenna Not Included | Qualcomm® Snapdragon MSM8909-2 | - | 3.5V ~ 4.2V | - | - | Surface Mount | -35°C ~ 75°C |
|
MTQ-LVW3-B02-SPRF TXRX MOD CELL U.FL CHAS MNT |
0 |
|
Datasheet |
MultiConnect® Dragonfly™ | Module | Bulk | Obsolete | Not Verified | Cellular | 4G LTE CAT-1 (AT&T/T-Mobile) | - | 700MHz, 850MHz, 1.7GHz, 1.9GHz | 10Mbps | - | - | I2C, SPI, UART, USB | Antenna Not Included, U.FL | - | - | 5V | 58mA | 58mA | Chassis Mount | -40°C ~ 85°C |
|
MC7455_1103578RF TXRX MOD CELLULARCARD EDGE |
0 |
|
Datasheet |
MC - AirPrime® | Module | Box | Obsolete | Not Verified | Cellular | 4G LTE CAT-6 (Americas/EMEA) | - | - | 300Mbps | - | - | mPCIe, USB | Antenna Not Included | - | - | - | - | - | Card Edge | -40°C ~ 85°C |
|
MC7430_1103730RF TXRX MOD CELLULARCARD EDGE |
0 |
|
Datasheet |
MC - AirPrime® | Module | Box | Obsolete | Not Verified | Cellular | 4G LTE CAT-6 (APAC) | - | - | 300Mbps | - | - | mPCIe, USB | Antenna Not Included | - | - | - | - | - | Card Edge | -40°C ~ 85°C |
|
|
1105039RF TXRX MOD CELL NAV SMD |
0 |
|
- |
- | Module | Retail Package | Active | - | Cellular, Navigation | BeiDou, Galileo, GLONASS, GPS, LTE, QZSS, UMTS | - | - | 150Mbps | - | - | ADC, GPIO, I2C, UART, USB | Antenna Not Included | - | - | - | - | - | Surface Mount | -40°C ~ 85°C |
|
|
MTQ-LAT3-B01.R2ARF TXRX MOD CELL U.FL CHAS MNT |
0 |
|
Datasheet |
MultiTech Dragonfly™ | Module | Bag | Active | Not Verified | Cellular | 4G LTE CAT-1 (AT&T/T-Mobile) | - | 700MHz, 850MHz, 1.7GHz, 1.9GHz | 10Mbps | - | - | I2C, SPI, UART, USB | Antenna Not Included, U.FL | STM32F411RET | 512kB Flash, 96kB SRAM | 3.3V, 5V | 58mA | 58mA | Chassis Mount | -40°C ~ 85°C |
|
|
MTQ-LAT3-B01.R3RF TXRX MOD CELL U.FL CHAS MNT |
0 |
|
- |
MultiTech Dragonfly™ | Module | Bulk | Active | Not Verified | Cellular | 4G LTE CAT-1 (AT&T/T-Mobile) | - | 700MHz, 850MHz, 1.7GHz, 1.9GHz | 10Mbps | - | - | GPIO, I2C, SPI, UART, USB | Antenna Not Included, U.FL | STM32F411RET | 512kB Flash, 96kB SRAM | 3.3V, 5V | 58mA | 58mA | Chassis Mount | -40°C ~ 85°C |
RF Transceiver Modules and Modems Electronic Components
Explore RF Transceiver Modules and Modems electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
