RF Transceiver Modules and Modems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate | Power - Output | Sensitivity | Serial Interfaces | Antenna Type | Utilized IC / Part | Memory Size | Voltage - Supply | Current - Receiving | Current - Transmitting | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC686AWFPA-E56-UGADARF TXRX MOD BT CELLSMD |
0 |
|
Datasheet |
- | 324-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth, Cellular | Bluetooth v5.0, EDGE, Galileo, GLONASS, GNSS, GPRS, GPS, GSM, HSPA+, LTE | - | - | 300Mbps | - | - | ADC, GPIO, I2C, PWM, SPI, UART, USB | Antenna Not Included | Qualcomm® Snapdragon QCM4290 | - | 3.55V ~ 4.4V | - | - | Surface Mount | -35°C ~ 75°C |
|

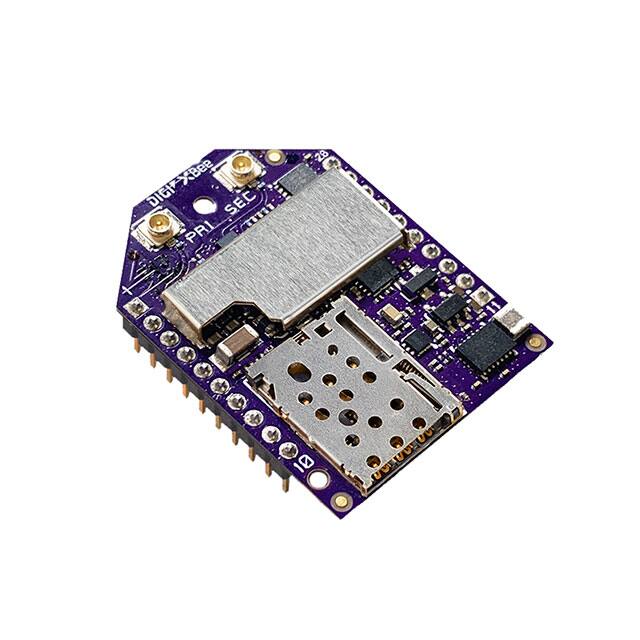

XB3-C-A1-UT-001RF TXRX MOD CELL CHIP + U.FL TH |
0 |
|
Datasheet |
XBee® 3 Cellular | 20-SMD Module | Tray | Obsolete | Verified | Cellular | 4G LTE CAT-1 (AT&T) | - | - | - | 23dBm | -102dBm | SPI, UART, USB | Integrated, Chip + U.FL | LE866AA-NA | 32kB Flash, 32kB RAM | 3V ~ 5.5V | - | 850mA | Through Hole | -40°C ~ 85°C |
|
AC4424-100RF TXRX MOD ISM>1GHZ MMCX CHAS |
0 |
|
Datasheet |
- | Module | - | Obsolete | Not Verified | General ISM > 1GHz | - | FHSS, FSK | 2.4GHz | 288kbps | 20dBm | -90dBm | - | Antenna Not Included, MMCX | - | - | 5V | 85mA | 100mA ~ 235mA | Chassis Mount | -40°C ~ 80°C |
|
|
EM06ALA-512-SGADLinear IC |
0 |
|
- |
- | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | MDM9240-1 | - | - | - | - | - | - |
|
|
1104681RF TXRX MOD CEL/NAV CARD |
0 |
|
- |
EM | Module | Retail Package | Active | - | Cellular, Navigation | BeiDou, Galileo, GLONASS, GNSS, GPS, HSPA+, LTE | - | - | 400Mbps | - | - | USB | Antenna Not Included | - | - | - | - | - | Card Edge | -40°C ~ 85°C |
|
LT4424-200RF TXRX MOD ISM>1GHZMMCX SMD |
0 |
|
Datasheet |
- | Module | Bulk | Obsolete | Not Verified | General ISM > 1GHz | - | FHSS, FSK | 2.4GHz | 192kbps | 23dBm | -90dBm | - | Antenna Not Included, MMCX | - | - | 3V ~ 5V | 85mA | 235mA | Surface Mount | -40°C ~ 80°C |
|
|
SC200ECENA-E55-UGNDARF TXRX MOD BT CELL NAV WIFISMD |
0 |
|
Datasheet |
- | 274-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth, Cellular, Navigation, WiFi | 802.11a/b/g/n/ac, BeiDou, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.2, Bluetooth v5.0, CDMA, EDGE, Galileo, GLONASS, GPRS, GPS, GSM, LTE | - | 900MHz, 1.8GHz, 2.4GHz, 5GHz | 42Mbps | - | - | ADC, GPIO, I2C, SDIO, SPI, UART, USB | Antenna Not Included | - | - | 3.55V ~ 4.4V | - | - | Surface Mount | -35°C ~ 75°C |
|
NL-SW-LTE-TC1NAGRF TXRX MOD CELL U.FL TH |
0 |
|
Datasheet |
- | 20-DIP Module | Bulk | Obsolete | Not Verified | Cellular | 4G LTE CAT-1 (Verizon), HSPA+ | - | 600MHz, 700MHz, 850MHz, 1.7GHz, 1.9GHz | 150Mbps | 23.5dBm | -112dBm | UART, USB | Antenna Not Included, U.FL | - | - | 3.4V ~ 4.2V | - | - | Through Hole | -40°C ~ 85°C |
|
|
EG120KEABA-M22-SGADALinear IC |
0 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | SDX12-0 | - | - | - | - | - | - |
|
MTQ-MNA1-B02.R1RF TXRX MOD CELL NAV IGATIONCHAS |
0 |
|
- |
MultiTech Dragonfly™ | Module | Box | Not For New Designs | Not Verified | Cellular, Navigation | GNSS, GPS, LTE | - | 700MHz, 1.7GHz, 1.9GHz | 375kbps | - | - | UART, USB | Antenna Not Included | STM32F411RET | 512kB Flash, 96kB SRAM | 3.3V, 5V | 37mA | 37mA | Chassis Mount | -40°C ~ 85°C |
|
LISA-U200-01SRF TXRX MODULE CELL SMD |
0 |
|
Datasheet |
LISA-U2 | 76-SMD Module | Tape & Reel (TR) | Obsolete | Not Verified | Cellular | EDGE, GPRS, HSPA, UMTS | - | 800MHz, 850MHz, 900MHz, 1.7GHz, 1.9GHz, 2.1GHz | - | 35dBm | -106.7dBm | GPIO, I2C, SPI, UART, USB | Antenna Not Included | - | - | 3.3V ~ 4.4V | 550mA | 550mA | Surface Mount | -40°C ~ 85°C |
|
LISA-U200-03SRF TXRX MODULE CELL SMD |
0 |
|
Datasheet |
LISA-U2 | 76-SMD Module | Tape & Reel (TR) | Obsolete | Not Verified | Cellular | EDGE, GPRS, HSPA, UMTS | - | 800MHz, 850MHz, 900MHz, 1.7GHz, 1.9GHz, 2.1GHz | - | 35dBm | -112dBm | GPIO, I2C, SPI, UART, USB | Antenna Not Included | - | - | 3.3V ~ 4.4V | 550mA | 550mA | Surface Mount | -40°C ~ 85°C |
|
|
SC200ENANA-E61-UGNDALinear IC |
0 |
|
Datasheet |
- | 274-SMD Module | Tape & Reel (TR) | Active | - | Cellular | CDMA, CDMA2000, GSM, LTE, UMTS, WCDMA | - | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 150Mbps | - | - | ADC, GPIO, I2C, PWM, SDIO, SPI, UART, USB | Antenna Not Included | Qualcomm® Snapdragon QCM2290 | - | 3.55V ~ 4.4V | - | - | Surface Mount | -35°C ~ 75°C |
|
|
SC20WSD-16GB-UNNRF TXRX MOD BLUETOOTH WIFISMD |
0 |
|
Datasheet |
SC20 | Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11a/b/g/n, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.1, Bluetooth v4.2 | - | 2.4GHz, 5GHz | - | - | - | ADC, GPIO, I2C, PCM, PWM, UART, USB | Antenna Not Included | Qualcomm® Snapdragon MSM8909-2 | - | 3.5V ~ 4.2V | - | - | Surface Mount | -35°C ~ 75°C |
|
|
96PD-EG25GGBQUECTEL 4G(CAT.4),MINIPCIE, GLOB |
0 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MTQ-MNA1-B01.R1RF TXRX MOD CELL NAV IGATIONCHAS |
0 |
|
Datasheet |
MultiTech Dragonfly™ | Module | Box | Active | Not Verified | Cellular, Navigation | GNSS, GPS, LTE | - | 700MHz, 1.7GHz, 1.9GHz | 375kbps | - | - | I2C, SPI, UART, USB | Antenna Not Included | STM32F411RET | 512kB Flash, 96kB SRAM | 3.3V, 5V | 57mA | 57mA | Chassis Mount | -40°C ~ 85°C |
|
|
MTQ-MNA1-B01.R2RF TXRX MOD CEL/NAV U.FL CHAS |
0 |
|
Datasheet |
MultiTech Dragonfly™ | Module | Bulk | Active | Not Verified | Cellular, Navigation | GNSS, GPS, LTE | - | 700MHz, 1.7GHz, 1.9GHz | 375kbps | - | - | GPIO, I2C, SPI, UART, USB | Antenna Not Included, U.FL | STM32F411RET | 512kB Flash, 96kB SRAM | 3.3V, 5V | 57mA | 57mA | Chassis Mount | -40°C ~ 85°C |
|
|
1104680RF TXRX MOD CEL/NAV CARD |
0 |
|
- |
EM | Module | Retail Package | Active | - | Cellular, Navigation | BeiDou, Galileo, GLONASS, GNSS, GPS, HSPA+, LTE | - | - | 2Gbps | - | - | USB | Antenna Not Included | - | - | - | - | - | Card Edge | -40°C ~ 85°C |
|
LTE910CF V6.00 TEUVNCAT 1 CF Modem - Verizon |
0 |
|
Datasheet |
- | 49-DIP Module | Tape & Reel (TR) | Obsolete | Not Verified | Cellular | LTE, WCDMA | - | 700MHz, 1.7GHz, 1.9GHz | 10Mbps | 24dBm | - | GPIO, UART | Antenna Not Included, U.FL | - | - | 4.75V ~ 5.25V | - | - | Through Hole | -40°C ~ 85°C |
|
|
MTSMC-MNA1.R1RF TXRX MOD CELL U.FL TH |
0 |
|
- |
SocketModem® Cell | Module | Box | Not For New Designs | Not Verified | Cellular | 4G LTE CAT-1 (AT&T/T-Mobile) | - | 700MHz, 1.7GHz, 1.9GHz | 375kbps | - | - | Serial | Antenna Not Included, U.FL | - | - | 3.3V, 5V | 14mA | 14mA | Through Hole | -40°C ~ 85°C |
RF Transceiver Modules and Modems Electronic Components
Explore RF Transceiver Modules and Modems electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
