RF Transceiver Modules and Modems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate | Power - Output | Sensitivity | Serial Interfaces | Antenna Type | Utilized IC / Part | Memory Size | Voltage - Supply | Current - Receiving | Current - Transmitting | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EM060KGLAA-M22-SGADARF TXRX MOD CEL/NAV CARD |
0 |
|
Datasheet |
- | Module | Tray | Active | - | Cellular, Navigation | BeiDou, Galileo, GLONASS, GPS, LTE, WCDMA | - | - | 300Mbps | - | - | GPIO, I2C, UART, USB | Antenna Not Included | SDX12-2 | - | 3.135V ~ 4.4V | - | - | Card Edge | -25°C ~ 70°C |
|

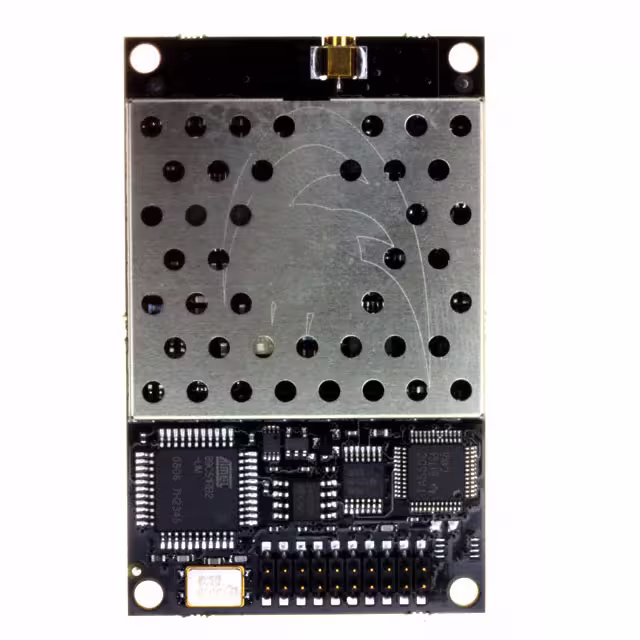

AC4424-10RF TXRX MOD ISM>1GHZ MMCX CHAS |
0 |
|
Datasheet |
- | Module | - | Obsolete | Not Verified | General ISM > 1GHz | - | FHSS, FSK | 2.4GHz | 288kbps | 10dBm | -90dBm | - | Antenna Not Included, MMCX | - | - | 5V | 85mA | 90mA ~ 140mA | Chassis Mount | -40°C ~ 80°C |
|
|
SC206ENANA-E55-UGNDARF TXRX MOD BT CELL NAV SMD |
0 |
|
Datasheet |
- | 274-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth, Cellular, Navigation | BeiDou, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.2, Bluetooth v5.0, CDMA, EDGE, Galileo, GLONASS, GPRS, GPS, LTE | - | 2.4GHz, 5GHz | 42Mbps | - | - | ADC, GPIO, I2C, PWM, SDIO, SPI, UART, USB | Antenna Not Included | - | - | 3.55V ~ 4.4V | - | - | Surface Mount | -35°C ~ 75°C |
|
|
SC668SWFNA-E61-UNNNALinear IC |
0 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | Qualcomm® Snapdragon QCM6125 | - | - | - | - | - | - |
|
|
SDC-WB40NBTRF TXRX MOD BT WIFIU.FL SMD |
0 |
|
Datasheet |
- | 120-SMD Module | Tray | Obsolete | Not Verified | Bluetooth, WiFi | 802.11a/b/g/n, Bluetooth v4.0 | 16QAM, 4DQPSK, 64QAM, 8DPSK, BPSK, CCK, DSSS, GFSK, QPSK OFDM | 2.4GHz | 72.2Mbps | 17dBm | -96dBm | I2C, SPI, UART | Antenna Not Included, U.FL | BCM4329 | 64MB Flash, 32MB SDRAM | 3.3V | 167mA | 324mA ~ 392mA | Surface Mount | -30°C ~ 80°C |
|

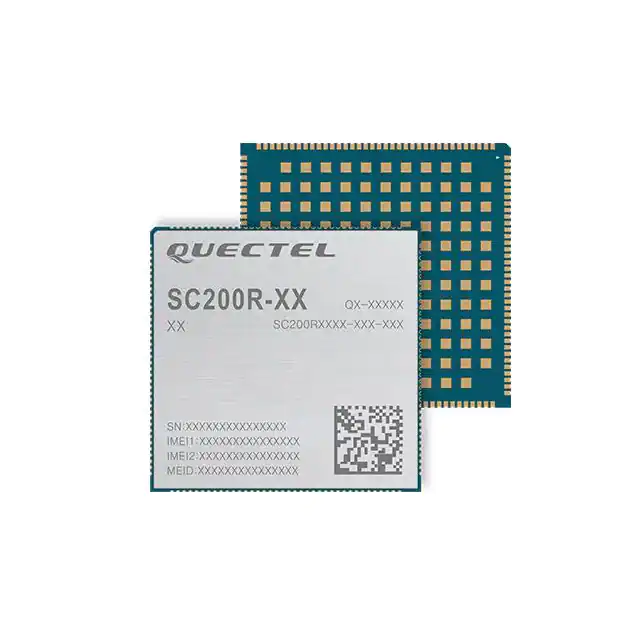

SC200REMNA-E51-UGNDARF TXRX MOD BT NAV WIFISMD |
0 |
|
Datasheet |
SC200R | Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, Navigation, WiFi | 802.11a/b/g/n, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.1, Bluetooth v4.2, BeiDou, Galileo, GLONASS, GPS, GNSS | - | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.4GHz, 5GHz | 150Mbps | - | - | ADC, GPIO, I2C, I2S, SDIO, UART, SPI, USB | Antenna Not Included | Qualcomm® Snapdragon QCM2151 | - | 3.55V ~ 4.2V | - | - | Surface Mount | -35°C ~ 75°C |
|
|
SC600TWFPC-E56-UNNNARF TXRX MOD BT CELL NAV WIFISMD |
0 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Active | - | Bluetooth, Cellular, Navigation, WiFi | 802.11a/b/g/n/ac, BeiDou, Bluetooth v2.1 + EDR, GLONASS, GNSS, GPS, HSPA+, LTE, UMTS, WCDMA | - | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 433Mbps | 33dBm | - | ADC, GPIO, I2C, LCM, PWM, SDIO, SPI, UART, USB | Antenna Not Included | Qualcomm® Snapdragon MSM8953-B | - | 3.55V ~ 4.4V | - | - | Surface Mount | -35°C ~ 75°C |
|
|
SC600YNAPC-E56-UGADARF TXRX MOD BT NAV WIFISMD |
0 |
|
Datasheet |
- | Module | Retail Package | Active | - | Bluetooth, Navigation, WiFi | 802.11a/b/g/n/ac, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.1, Bluetooth v4.2, BeiDou, GLONASS, GPS, GNSS | - | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 300Mbps | 33dBm | -101.5dBm | ADC, GPIO, I2C, I2S, SDIO, SPI, UART, USB | Antenna Not Included | Qualcomm® Snapdragon SDM450 | - | 3.55V ~ 4.4V | - | - | Surface Mount | -35°C ~ 65°C |
|
LARA-R280-02BRF TXRX MOD CELL CAST IOT SMD |
0 |
|
Datasheet |
LARA-R2 | 100-SMD Module | Tape & Reel (TR) | Obsolete | Not Verified | Cellular | 3G, 4G LTE | QPSK | 700MHz, 900MHz, 1.8GHz, 2.1GHz | 10.3Mbps | - | -111.5dBm | GPIO, I2C, SDIO, UART, USB | Antenna Not Included, Castellation | - | - | 3.3V ~ 4.4V | 540mA | 540mA | Surface Mount | -40°C ~ 85°C |
|
LARA-R220-62BRF TXRX MOD CELL CAST IOT SMD |
0 |
|
Datasheet |
LARA-R2 | 100-SMD Module | Tape & Reel (TR) | Obsolete | Not Verified | Cellular | 4G LTE | QPSK | 850MHz, 2.1GHz | 10.3Mbps | - | -111.5dBm | GPIO, I2C, SDIO, UART, USB | Antenna Not Included, Castellation | - | - | 3.3V ~ 4.4V | 540mA | 540mA | Surface Mount | -40°C ~ 85°C |
|
|
SC668SEMNA-E56-UGNDALinear IC |
0 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | Qualcomm® Snapdragon QCM6125 | - | - | - | - | - | - |
|
|
MTSMC-MNA1.R2-SPRF TXRX MODULE CELL/NAV U.FL TH |
0 |
|
Datasheet |
SocketModem® Cell | 64-DIP Module, 45 Leads | Box | Not For New Designs | Not Verified | Cellular, Navigation | 4G LTE CAT- M1 (AT&T/Verizon-Mobile), GNSS | - | 700MHz, 1.7GHz, 1.9GHz | 375kbps | - | - | Serial | Antenna Not Included, U.FL | - | - | 3.3V ~ 5V | 14mA | 14mA | Through Hole | -40°C ~ 85°C |
|
|
MTSMC-MNA1-U.R2-SPRF TXRX MODULE CELL/NAV U.FL TH |
0 |
|
Datasheet |
SocketModem® Cell | 64-DIP Module, 45 Leads | Box | Not For New Designs | Not Verified | Cellular, Navigation | 4G LTE CAT- M1 (AT&T/Verizon-Mobile), GNSS | - | 700MHz, 1.7GHz, 1.9GHz | 375kbps | - | - | USB | Antenna Not Included, U.FL | - | - | 3.3V ~ 5V | 28mA | 28mA | Through Hole | -40°C ~ 85°C |
|

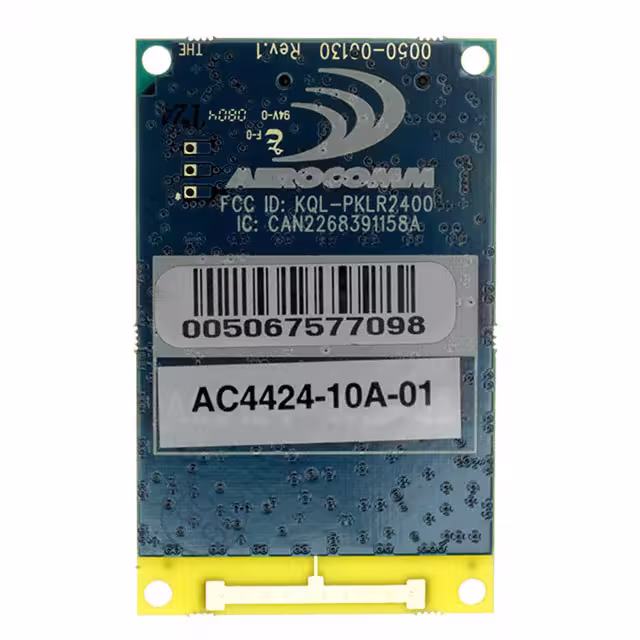

AC4424-10ARF TXRX MOD ISM>1GHZ CHIP CHAS |
0 |
|
Datasheet |
- | Module | - | Obsolete | Not Verified | General ISM > 1GHz | - | FHSS, FSK | 2.4GHz | 288kbps | 10dBm | -90dBm | - | Integrated, Chip | - | - | 5V | 85mA | 90mA ~ 140mA | Chassis Mount | -40°C ~ 80°C |
|
|
LE910C4NF12R127200RF TXRX MODULE AT&T/VZW/TMO |
0 |
|
Datasheet |
- | - | Tape & Reel (TR) | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SC200EGLNA-E55-UGNDARF TXRX MOD BT CELL NAV WIFISMD |
0 |
|
Datasheet |
- | 274-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth, Cellular, Navigation, WiFi | 802.11a/b/g/n/ac, BeiDou, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.2, Bluetooth v5.0, CDMA, EDGE, Galileo, GLONASS, GPRS, GPS, GSM, LTE | - | 900MHz, 1.8GHz, 2.4GHz, 5GHz | 42Mbps | - | - | ADC, GPIO, I2C, SDIO, SPI, UART, USB | Antenna Not Included | - | - | 3.55V ~ 4.4V | - | - | Surface Mount | -35°C ~ 75°C |
|
|
SC668SNANA-E56-UGNDALinear IC |
0 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | Qualcomm® Snapdragon QCM6125 | - | - | - | - | - | - |
|
MPCI-L200-03S-03RF TXRX MOD CELLULARCARD EDGE |
0 |
|
Datasheet |
MPCI-L2 | Module | Tray | Active | Not Verified | Cellular | EDGE, GSM, GPRS, HSDPA, HSUPA, LTE, UMTS | 8PSK, GMSK | 700MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz | 150Mbps | 33dBm | - | USB | Antenna Not Included | - | - | 3V ~ 3.6V | 245mA ~ 880mA | 245mA ~ 880mA | Card Edge | -40°C ~ 85°C |
|
|
MPCI-L201-02S-03RF TXRX MOD CELLULARCARD EDGE |
0 |
|
Datasheet |
MPCI-L2 | Module | Tray | Obsolete | Not Verified | Cellular | HSDPA, HSUPA, LTE, UMTS | - | 700MHz, 750MHz, 850MHz, 1.7GHz, 1.9GHz | 150Mbps | 23dBm | - | USB | Antenna Not Included | - | - | 3V ~ 3.6V | 245mA ~ 880mA | 245mA ~ 880mA | Card Edge | -40°C ~ 85°C |
|
|
SC680AWFPA-E56-UNNNARF TXRX MOD BT CELL NAV WIFISMD |
0 |
|
Datasheet |
- | 324-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth, Cellular, Navigation, WiFi | 802.11a/b/g/n/ac/ax, BeiDou, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.2, Bluetooth v5.0, CDMA, EDGE, Galileo, GLONASS, GPRS, GPS, LTE | - | 2.4GHz, 5GHz | 42Mbps | - | - | ADC, GPIO, I2C, PWM, SPI, UART, USB | Antenna Not Included | Qualcomm® Snapdragon QCM4290 | - | 3.55V ~ 4.4V | - | - | Surface Mount | -35°C ~ 75°C |
