RF Transceiver Modules and Modems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate | Power - Output | Sensitivity | Serial Interfaces | Antenna Type | Utilized IC / Part | Memory Size | Voltage - Supply | Current - Receiving | Current - Transmitting | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

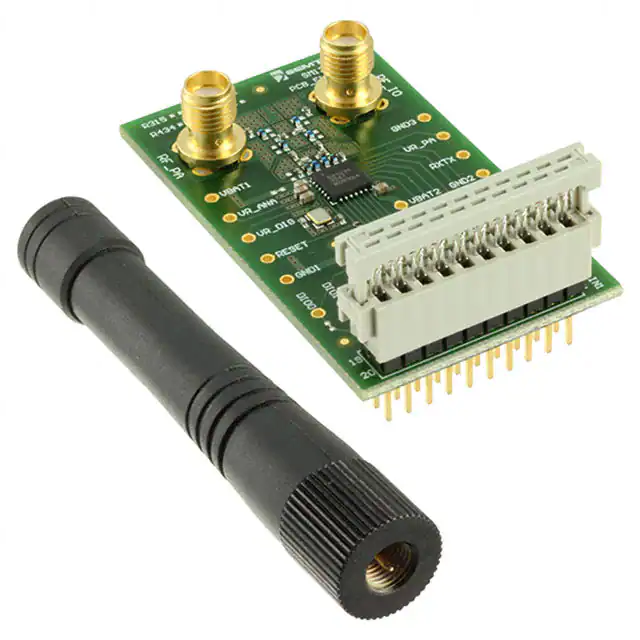

SM1231E433ARF TXRX MOD ISM<1GHZSMD |
0 |
|
Datasheet |
- | Module | Tray | Obsolete | Not Verified | General ISM < 1GHz | - | FSK, GFSK, GMSK, MSK, OOK | 433MHz | 300kbps | 17dBm | -120dBm | SPI | Antenna Not Included | SX1231 | - | 1.8V ~ 3.6V | 16mA | 16mA ~ 95mA | Surface Mount | -40°C ~ 85°C |
|

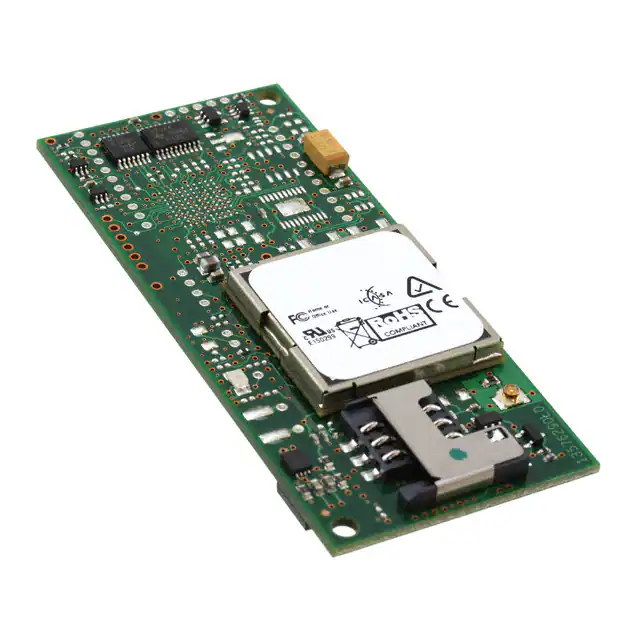

MTSMC-G2-V-ED.R1RF TXRX MOD CELL U.FL TH |
1 |
|
Datasheet |
SocketModem® Cell | Module | Tray | Obsolete | Not Verified | Cellular | GPRS, GSM | - | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 85.6kbps | 33dBm | -108dBm | UART | Antenna Not Included, U.FL | - | - | 5V | 113mA | 113mA | Through Hole | -40°C ~ 85°C |
|
SC686AWFPA-E53-UNNNASC686AWFPA-E53-UNNNA |
0 |
|
Datasheet |
- | - | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | Qualcomm® Snapdragon QCM4290 | - | - | - | - | - | - |
|
|
SC200ENANA-E56-UGNDARF TXRX MOD BT CELL NAV WIFISMD |
0 |
|
Datasheet |
- | 274-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth, Cellular, Navigation, WiFi | 802.11a/b/g/n/ac, BeiDou, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.2, Bluetooth v5.0, CDMA, EDGE, Galileo, GLONASS, GPRS, GPS, GSM, LTE | - | 900MHz, 1.8GHz, 2.4GHz, 5GHz | 42Mbps | - | - | ADC, GPIO, I2C, SDIO, SPI, UART, USB | Antenna Not Included | Qualcomm® Snapdragon QCM2290 | - | 3.55V ~ 4.4V | - | - | Surface Mount | -35°C ~ 75°C |
|
|
QT00EC25ERF TXRX MOD CEL/NAV CARD |
0 |
|
Datasheet |
HummingBoard Pro | Module | Bulk | Active | - | Cellular, Navigation | BeiDou, Galileo, GLONASS, GNSS, GPS, HSPA+, LTE, UMTS | - | - | 150Mbps | 33dBm | -110dBm | ADC, SDIO, UART, USB | Antenna Not Included | EC25 | - | 3.3V ~ 4.3V | - | - | Card Edge | -40°C ~ 85°C |
|
|
QT00EC25ARF TXRX MOD CEL/NAV CARD |
0 |
|
Datasheet |
HummingBoard Pro | Module | Bulk | Active | - | Cellular, Navigation | BeiDou, Galileo, GLONASS, GNSS, GPS, HSPA+, LTE, UMTS | - | - | 150Mbps | 33dBm | -110dBm | ADC, SDIO, UART, USB | Antenna Not Included | EC25 | - | 3.3V ~ 4.3V | - | - | Card Edge | -40°C ~ 85°C |
|
|
QT00EC25AURF TXRX MOD CEL/NAV CARD |
0 |
|
Datasheet |
HummingBoard Pro | Module | Bulk | Active | - | Cellular, Navigation | BeiDou, Galileo, GLONASS, GNSS, GPS, HSPA+, LTE, UMTS | - | - | 150Mbps | 33dBm | -110dBm | ADC, SDIO, UART, USB | Antenna Not Included | EC25 | - | 3.3V ~ 4.3V | - | - | Card Edge | -40°C ~ 85°C |
|
|
EG120KEAAA-M22-SGADARF TXRX MODULE CELL SMD |
0 |
|
Datasheet |
- | 299-SMD Module | Tape & Reel (TR) | Active | - | Cellular | LTE, WCDMA | - | - | 600Mbps | - | - | GPIO, I2C, SPI, UART, USB | Antenna Not Included | SDX12-0 | - | 3.3V ~ 4.3V | - | - | Surface Mount | -30°C ~ 75°C |
|
|
MTQ-MNA1-B02.R2-SPRF TXRX MOD CEL/NAV U.FL CHAS |
0 |
|
Datasheet |
MultiTech Dragonfly™ | Module | Bulk | Not For New Designs | Not Verified | Cellular, Navigation | GNSS, GPS, LTE | - | 700MHz, 1.7GHz, 1.9GHz | 375kbps | - | - | UART, USB | Antenna Not Included, U.FL | STM32F411RET | 512kB Flash, 96kB SRAM | 3.3V, 5V | 37mA | 37mA | Chassis Mount | -40°C ~ 85°C |
|
|
MTQN-MNG3-B02-SPRF TXRX MODULE CELL CHAS MNT |
0 |
|
Datasheet |
MultiTech Dragonfly™ Nano | Module | Bulk | Active | - | Cellular | GPRS, GSM, LTE | - | 700MHz, 750MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz | 375kbps | - | - | I2C, SPI, UART, USB | Antenna Not Included | - | - | 3.3V, 5V | - | - | Chassis Mount | -40°C ~ 85°C |
|
|
WP7608_1104194RF TXRX MOD CELL NAV SMD |
0 |
|
- |
AirPrime® | Module | Tape & Reel (TR) | Last Time Buy | - | Cellular, Navigation | BeiDou, EDGE, Galileo, GLONASS, GNSS, GPRS, GPS, GSM, HSPA, LTE, UMTS | - | 900MHz, 1.8GHz | 150Mbps | - | - | ADC, GPIO, I2C, UART, USB | Antenna Not Included | WP7608 | - | - | - | - | Surface Mount | -40°C ~ 85°C |
|
|
AIW-152BQ-001RF TXRX MOD BT WIFICARD EDGE |
0 |
|
- |
AIW | Module | Bulk | Active | - | Bluetooth, WiFi | 802.11 a/b/g/n/ac, Bluetooth | - | - | 867Mbps | - | - | PCIe, USB | Antenna Not Included | - | - | 3.3V | - | - | Card Edge | -40°C ~ 85°C |
|
|
SC200EGLNA-E56-UGNDARF TXRX MOD BT CELL NAV WIFISMD |
0 |
|
Datasheet |
- | 274-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth, Cellular, Navigation, WiFi | 802.11a/b/g/n/ac, BeiDou, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.2, Bluetooth v5.0, CDMA, EDGE, Galileo, GLONASS, GPRS, GPS, GSM, LTE | - | 900MHz, 1.8GHz, 2.4GHz, 5GHz | 42Mbps | - | - | ADC, GPIO, I2C, SDIO, SPI, UART, USB | Antenna Not Included | Qualcomm® Snapdragon QCM2290 | - | 3.55V ~ 4.4V | - | - | Surface Mount | -35°C ~ 75°C |
|
|
SG368ZAPNK-G57-UNNNA4+32GB - INDUSTRIAL |
0 |
|
Datasheet |
SG368Z | 453-BLGA Module | Tape & Reel (TR) | Active | - | Bluetooth, Navigation, WiFi | 802.11a/b/g/n/ac, Bluetooth v4.2 + EDR, GNSS | - | 2.4GHz, 5GHz | - | - | - | ADC, GPIO, I2S, PWM, SDIO, SPI, UART | Antenna Not Included | - | - | 3.3V ~ 3.5V | - | - | Surface Mount | -40°C ~ 85°C |
|
|
SC200EEMNA-E61-UGNDALinear IC |
0 |
|
Datasheet |
- | 274-SMD Module | Tape & Reel (TR) | Active | - | Cellular | CDMA, CDMA2000, GSM, LTE, UMTS, WCDMA | - | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 150Mbps | - | - | ADC, GPIO, I2C, PWM, SDIO, SPI, UART, USB | Antenna Not Included | Qualcomm® Snapdragon QCM2290 | - | 3.55V ~ 4.4V | - | - | Surface Mount | -35°C ~ 75°C |
|
|
MTQN-MNG1-B02.R1RF TXRX MOD CELL U.FL CHAS MNT |
0 |
|
Datasheet |
MultiTech Dragonfly™ Nano | Module | Tray | Obsolete | Not Verified | Cellular | LTE | - | 700MHz, 850MHz, 1.7GHz, 1.9GHz | 375kbps | - | - | UART, USB | Antenna Not Included, U.FL | STM32L471QG | - | 3.3V, 5V | - | - | Chassis Mount | -40°C ~ 85°C |
|
NL-SW-LTE-QBG96-BRF TXRX MODULE CELL/NAV U.FL TH |
0 |
|
Datasheet |
Skywire® CAT M1/NBIOT | 20-DIP Module | Tray | Obsolete | Not Verified | Cellular, Navigation | 4G LTE CAT M1/NB-IoT (Global), 2G Fallback | - | 700MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz | 300kbps | - | - | UART, USB | Antenna Not Included, U.FL | - | - | 3.4V ~ 4.3V | - | - | Through Hole | -40°C ~ 85°C |
|
|
SC200ENANA-E55-UGNDARF TXRX MOD BT CELL NAV WIFISMD |
0 |
|
Datasheet |
- | 274-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth, Cellular, Navigation, WiFi | 802.11a/b/g/n/ac, BeiDou, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.2, Bluetooth v5.0, CDMA, EDGE, Galileo, GLONASS, GPRS, GPS, GSM, LTE | - | 900MHz, 1.8GHz, 2.4GHz, 5GHz | 42Mbps | - | - | ADC, GPIO, I2C, SDIO, SPI, UART, USB | Antenna Not Included | - | - | 3.55V ~ 4.4V | - | - | Surface Mount | -35°C ~ 75°C |
|
SYNTRAC-PLN-410RF TXRX MOD CELL NAVIGATION CHIP |
0 |
|
Datasheet |
SynTRAC™ PLx, SARA-N | Module | Bulk | Obsolete | Not Verified | Cellular, Navigation | 4G LTE NB-IoT, BeiDou, Galileo, GLONASS, GNSS, GPS | - | 700MHz, 850MHz, 1.7GHz, 1.9GHz | - | - | -107.5dBm | USB | Integrated, Chip | SARA-N410, ATXMEGA128 | - | 3.6V ~ 5V | - | 100mA ~ 490mA | - | -40°C ~ 85°C |
|
|
SC600YJPPC-E56-UGADARF TXRX MOD BT CELL NAV WIFISMD |
0 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Active | - | Bluetooth, Cellular, Navigation, WiFi | 802.11a/b/g/n/ac, BeiDou, Bluetooth v2.1 + EDR, GLONASS, GNSS, GPS, HSPA+, LTE, UMTS, WCDMA | - | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 300Mbps | 33dBm | - | ADC, GPIO, I2C, LCM, PWM, SDIO, SPI, UART, USB | Antenna Not Included | Qualcomm® Snapdragon SDM450 | - | 3.55V ~ 4.4V | - | - | Surface Mount | -35°C ~ 75°C |
