BOM Upload
RF Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HMC986A-SXIC RF SWITCH SPDT 50GHZ DIE |
2 |
|
Datasheet |
- | Die | Tray | Active | Radar | Reflective | SPDT | 100MHz ~ 50GHz | 34dB | 2.1dB | 40GHz | 28dBm | 40dBm | - | 50Ohm | - | -55°C ~ 85°C | - | - | - | Die |
|
R570823000IC RF SWITCH SPDT 40GHZ MODULE |
2 |
|
Datasheet |
- | Module, SMA Connectors | Bulk | Active | General Purpose | - | SPDT | 0Hz ~ 40GHz | 50dB | 0.8dB | 40GHz | - | - | - | 50Ohm | 24V ~ 30V | -40°C ~ 85°C | - | - | - | Module |
|

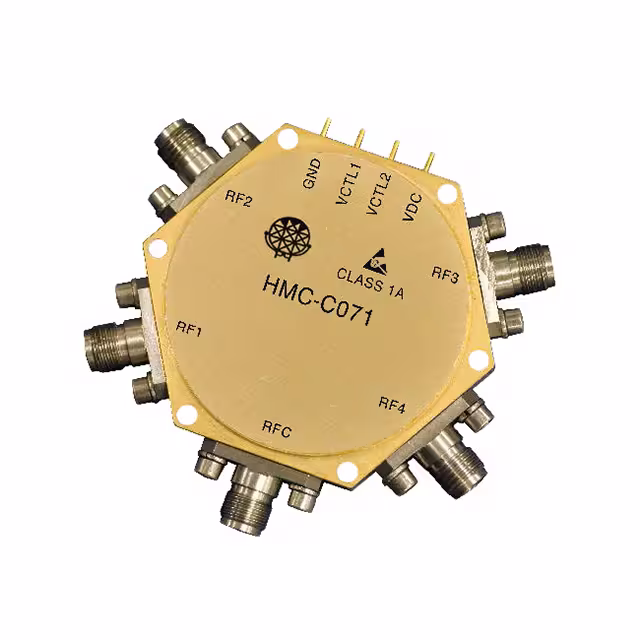

HMC-C071IC RF SWITCH SP4T 20GHZ MODULE |
1 |
|
Datasheet |
- | Module, SMA Connectors | Bulk | Active | General Purpose | Absorptive | SP4T | 0Hz ~ 20GHz | 38dB | - | 20GHz | 24dBm | 40dBm | - | 50Ohm | 5V | -55°C ~ 85°C | - | - | - | Module |
|
HMC646LP2EIC RF SWITCH SPDT 2.1GHZ 6DFN |
69 |
|
Datasheet |
- | 6-TDFN Exposed Pad | Strip | Active | Cellular, TD-SCDMA | Reflective | SPDT | 100MHz ~ 2.1GHz | 32dB | 1.3dB | 2.025GHz | - | 34dBm | - | 50Ohm | 3V ~ 8V | -40°C ~ 85°C | - | - | Surface Mount | 6-DFN (2x2) |
|
MASW-003102-13590WIC RF SWITCH SP3T 18GHZ DIE |
100 |
|
Datasheet |
HMIC™ | Die | Tray | Active | ISM | - | SP3T | 2GHz ~ 18GHz | 40dB | 1.3dB | 18GHz | - | - | - | 50Ohm | - | -65°C ~ 125°C | - | - | - | Die |
|
|
MASW6010GIC RF SWITCH SPDT 6GHZ DIE |
50 |
|
Datasheet |
- | Die | Tray | Active | General Purpose | - | SPDT | 0Hz ~ 6GHz | 22dB (min) | 1.4dB (max) | 6GHz | 33dBm | 46dBm | - | 50Ohm | - | 175°C | - | - | - | Die |
|
MASW-005102-13600WIC RF SWITCH SP5T 18GHZ |
25 |
|
Datasheet |
HMIC™ | - | Bulk | Active | General Purpose | Reflective | SP5T | 2GHz ~ 18GHz | 35dB | 1.8dB | 18GHz | - | - | - | - | - | -65°C ~ 125°C | - | - | - | - |
|
HMC347B-SXIC RF SWITCH SPDT 20GHZ DIE |
4 |
|
Datasheet |
- | Die | Tray | Active | VSAT | Absorptive | SPDT | 100MHz ~ 20GHz | 45dB | 1.7dB | 20GHz | 25dBm | 41dBm | - | 50Ohm | - | -55°C ~ 85°C | - | - | - | Die |
|
SW05-0311IC RF SWITCH SPST 3GHZ CR-9 |
6 |
|
Datasheet |
- | CR-9 | Tray | Active | General Purpose | - | SPST | 0Hz ~ 3GHz | 29dB | 1dB | 3GHz | - | 46dBm | - | 50Ohm | - | -40°C ~ 125°C | - | - | Surface Mount | CR-9 |
|
R516731100IC RF SWITCH |
3 |
|
- |
* | - | Strip | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
R516733100IC RF SWITCH SPDT 26.5GHZ MODULE |
5 |
|
Datasheet |
- | Module | Strip | Active | General Purpose | - | SPDT | 0Hz ~ 26.5GHz | 40dB (min) | 1.6dB (max) | 26.5GHz | - | - | - | 50Ohm | 20.5V ~ 30V | -40°C ~ 85°C | - | - | - | Module |
|
ARD25105QIC RF SWITCH 18GHZ |
4 |
|
Datasheet |
ARD | Module, Pin Contacts | Tube | Active | General Purpose | Reflective | - | 0Hz ~ 18GHz | 60dB (min) | 0.5dB (max) | 18GHz | - | - | - | 50Ohm | 5V | -55°C ~ 85°C | - | - | - | - |
|
TS8242FKIC RF SWITCH SP4T 5GHZ 16QFN |
10 |
|
Datasheet |
Symmetric | 16-VFQFN Exposed Pad | Strip | Active | Cellular, LTE | Reflective | SP4T | 30MHz ~ 5GHz | 20dB | 0.5dB | 4GHz | - | 74dBm | - | 50Ohm | 2.6V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|
|
QPB9362SR3.1-4.2 GHZ SINGLE-CHANNEL SWITC |
50 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TS8329KIC RF SWITCH SPDT 5GHZ 16QFN |
8 |
|
Datasheet |
Asymmetric | 16-VFQFN Exposed Pad | Strip | Active | 4G/5G, Cellular | Reflective | SPDT | 500MHz ~ 5GHz | 21dB | 0.45dB | 5GHz | - | 71dBm | - | 50Ohm | 2.6V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|
|
TS84410LIC RF SWITCH SP4T 4GHZ 32QFN |
10 |
|
Datasheet |
Symmetric | 32-VFQFN Exposed Pad | Strip | Active | Cellular, LTE | Reflective | SP4T | 30MHz ~ 4GHz | 20dB | 1dB | 4GHz | - | 70dBm | - | 50Ohm | 2.6V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 32-QFN (4x4) |
|
HMC344ATCPZ-EP-PTIC RF SWITCH SP4T 8GHZ 16LFCSP |
15 |
|
Datasheet |
- | 16-VFQFN Exposed Pad, CSP | Strip | Active | General Purpose | - | SP4T | 100MHz ~ 8GHz | 32dB | 2.1dB | 8GHz | 25dBm | 44dBm | - | 50Ohm | -3V ~ -5V | -55°C ~ 125°C | - | - | Surface Mount | 16-LFCSP (3x3) |
|
HMC641ATCPZ-EP-PTIC RF SWITCH SP4T 20GHZ 24LFCSP |
5 |
|
Datasheet |
- | 24-VFQFN Exposed Pad, CSP | Strip | Active | General Purpose | Absorptive | SP4T | 100MHz ~ 20GHz | 40dB | 3dB | 20GHz | 24dBm | 41dBm | - | 50Ohm | - | -55°C ~ 125°C | - | - | Surface Mount | 24-LFCSP (4x4) |
|
|
FMSW6391EM RELAY SWITCH 18 GHZ 28 V SMA |
10 |
|
Datasheet |
- | - | Bulk | Active | General Purpose | - | SPDT | 0Hz ~ 18GHz | 80dB | 0.15dB | 18GHz | - | - | - | 50Ohm | 26V ~ 30V | -25°C ~ 70°C | - | - | Chassis Mount | - |
|
|
SEMS-4050-SPDT-SMAEM RELAY SWITCH 18 GHZ 28 V SMA |
9 |
|
Datasheet |
- | - | Bulk | Active | General Purpose | - | SPDT | 0Hz ~ 18GHz | 60dB | 0.35dB | 18GHz | - | - | - | 50Ohm | 24V ~ 30V | -40°C ~ 85°C | - | - | Chassis Mount | - |
RF Switches Electronic Components
Explore RF Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
