RF Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE71S6385IC RF SWITCH DPDT 12GHZ MODULE |
12 |
|
Datasheet |
- | Module | Bag | Active | General Purpose | - | DPDT | DC ~ 12GHz | 80dB | 0.2dB | 12GHz | - | - | - | 50Ohm | 26V ~ 30V | -25°C ~ 70°C | - | - | - | Module |
|
PE71S6363IC RF SWITCH SP4T 18GHZ MODULE |
18 |
|
Datasheet |
- | Module, SMA Connectors | Bag | Active | General Purpose | - | SP4T | DC ~ 18GHz | 80dB | 0.15dB | 18GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 70°C | - | - | - | Module |
|
FMSM1000AMANUAL SWITCH 22 GHZ 50 W SMA |
9 |
|
Datasheet |
- | - | Bulk | Obsolete | SATCOM | - | SPDT | 0Hz ~ 22GHz | 55dB | 0.6dB | 22GHz | - | - | - | 50Ohm | - | -35°C ~ 85°C | - | - | Chassis Mount | - |
|
PE71S6374IC RF SWITCH SP6T 18GHZ MODULE |
8 |
|
Datasheet |
- | Module, SMA Connectors | Bag | Active | General Purpose | - | SP6T | DC ~ 18GHz | 80dB | 0.15dB | 18GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 70°C | - | - | - | Module |
|
|
PE71S6483Transfer Electromechanical Relay |
4 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | - | 0Hz ~ 40GHz | 85dB | 0.5dB | 40GHz | - | - | - | 50Ohm | 28V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
PE71S6384IC RF SWITCH SP8T 18GHZ MODULE |
8 |
|
Datasheet |
- | Module, SMA Connectors | Bag | Active | General Purpose | - | SP8T | DC ~ 18GHz | 80dB | 0.25dB | 18GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 70°C | - | - | - | Module |
|
|
R574F11601IC RF SWITCH SP6T 26.5GHZ |
2 |
|
Datasheet |
SPnT | Module, SMA Connectors | Bulk | Active | General Purpose | - | SP6T | 0Hz ~ 26.5GHz | 60dB (min) | 0.3dB (max) | 26.5GHz | - | - | - | 50Ohm | 5V | -25°C ~ 75°C | - | - | - | - |
|
|
NL11512EG6400IC RF SWITCH |
0 |
|
- |
* | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PE71S1102Reflective SPDT GaN High Power P |
2 |
|
Datasheet |
- | - | Retail Package | Active | VSAT | Reflective | SPDT | 0Hz ~ 18GHz | 35dB | 1.3dB | 18GHz | - | 55dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
SS142DHTSIC RF SWITCH SP4T 18GHZ MODULE |
4 |
|
Datasheet |
Super-Slim | Module, SMA Connectors | Box | Active | General Purpose | Absorptive | SP4T | 500MHz ~ 18GHz | 45dB (min) | 3.4dB (max) | 12GHz ~ 18GHz | - | - | - | - | - | -54°C ~ 95°C | - | - | - | Module |
|
|
HMC349AMS8GIC RF SWITCH SPDT 4GHZ |
0 |
|
Datasheet |
- | - | Strip | Active | General Purpose | - | SPDT | - | - | - | - | 34dBm | 53dBm (min) | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | - | - |
|
|
SAC3203AIC RF SWITCH SPDT 12GHZ DIE |
50 |
|
Datasheet |
- | Die | Tape & Box (TB) | Active | Radar | Reflective | SPDT | DC ~ 12GHz | -48dB | -0.8dB | 12GHz | 25dBm | 42dBm | - | 50Ohm | 3V ~ 5V | -55°C ~ 85°C | - | - | Surface Mount | Die |
|
|
NLA12512H12600B1NLA12512H12600B1 |
23 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

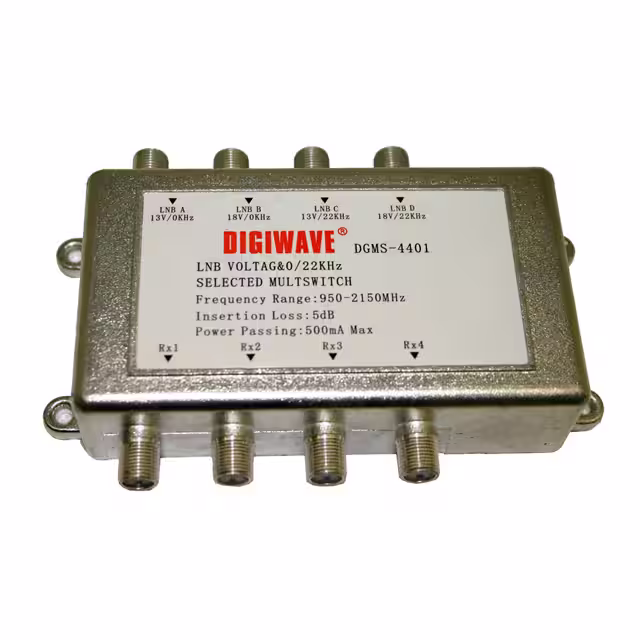

DGS4401IC RF SWITCH |
11 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PE71S6413SPDT Electromechanical Relay Lat |
5 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | SPDT | 0Hz ~ 8GHz | 40dB (min) | 0.5dB (max) | 8GHz | - | - | - | 50Ohm | 10.2V ~ 13V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
PE71S6351IC RF SWITCH SPDT 18GHZ MODULE |
5 |
|
Datasheet |
- | Module, SMA Connectors | Bag | Active | General Purpose | - | SPDT | DC ~ 18GHz | 85dB | 0.15dB | 18GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 70°C | - | - | - | Module |
|
|
PE71S6414SPDT Electromechanical Relay Lat |
5 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | SPDT | 0Hz ~ 8GHz | 50dB | 0.3dB | 8GHz | - | - | - | 50Ohm | 20.5V ~ 30V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6416SPDT Electromechanical Relay Lat |
5 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | SPDT | 0Hz ~ 18GHz | 40dB (min) | 0.6dB | 18GHz | - | - | - | 50Ohm | 20.5V ~ 30V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6092SPDT Electromechanical Relay Fai |
5 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Reflective | SPDT | 0Hz ~ 8GHz | 30dB (min) | 0.8dB (max) | 8GHz | - | - | - | 50Ohm | 20.5V ~ 30V | -25°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6415SPDT Electromechanical Relay Lat |
5 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | SPDT | 0Hz ~ 18GHz | 40dB (min) | 1dB (max) | 18GHz | - | - | - | 50Ohm | 10.2V ~ 13V | -40°C ~ 85°C | - | - | Chassis Mount | - |
RF Switches Electronic Components
Explore RF Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
