RF Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADRF5144BCCZN10W SPDT IN SOI, 500MHZ TO 20GHZ |
2 |
|
Datasheet |
- | 20-VFLGA Exposed Pad | Strip | Active | Radar | Reflective | SPDT | 1GHz ~ 20GHz | 43dB | 1.1dB | 26GHz | - | 70dBm | DC Blocked | 50Ohm | 3.15V ~ 3.45V | -40°C ~ 85°C | - | - | Surface Mount | 20-LGA (3x3) |
|
ARD10012IC RF SWITCH SPDT 18GHZ |
3 |
|
Datasheet |
ARD | Module, Pin Contacts | Bulk | Active | General Purpose | Reflective | SPDT | 0Hz ~ 18GHz | 60dB (min) | 0.5dB (max) | 18GHz | - | - | - | 50Ohm | 12V | -55°C ~ 85°C | - | - | - | - |
|
ZYSWA-2-50DR+IC RF SWITCH SPDT 5GHZ |
10 |
|
Datasheet |
- | Module, SMA Connectors | Tray | Active | Cellular, ISM, WCDMA, WiMAX | Absorptive | SPDT | DC ~ 5GHz | 20dB | 1.9dB | 5GHz | 24dBm | - | - | 50Ohm | 5V | -20°C ~ 85°C | - | - | - | - |
|
R570432000IC RF SWITCH SPDT 18GHZ MODULE |
6 |
|
Datasheet |
- | Module, SMA Connectors | Bulk | Active | General Purpose | - | SPDT | 0Hz ~ 18GHz | 60dB (min) | 0.35dB (max) | 18GHz | - | - | - | 50Ohm | 10.2V ~ 13V | -40°C ~ 85°C | - | - | - | Module |
|
R570312100IC RF SWITCH SPDT 3GHZ MODULE |
16 |
|
Datasheet |
- | Module, SMA Connectors | Bulk | Active | General Purpose | - | SPDT | 0Hz ~ 3GHz | 80dB | 0.2dB | 3GHz | - | - | - | 50Ohm | 10.2V ~ 13V | -40°C ~ 85°C | - | - | - | Module |
|
|
ZSDR-425+REFLECTIVE SP4T, PIN DIODE SWITC |
9 |
|
Datasheet |
- | Module | Tray | Active | General Purpose | Reflective | SP4T | 10MHz ~ 2.5GHz | 35dB | 1.5dB | 2.5GHz | 19dBm | - | - | 50Ohm | 5V | -55°C ~ 100°C | - | - | Chassis Mount | - |
|
HMC641ALC4IC RF SWITCH SP4T 20GHZ 24QFN |
24 |
|
Datasheet |
- | 24-TFQFN Exposed Pad | Strip | Active | VSAT | Absorptive | SP4T | 0Hz ~ 20GHz | 40dB | 2.3dB | 20GHz | 25dBm | 41dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 24-QFN (4x4) |
|
|
ZASWA-2-50DRA+SS SWITCH, DC - 5000 MHZ, 50 OHM |
25 |
|
Datasheet |
- | Module, SMA Connectors | Tray | Active | Cellular, ISM, WCDMA, WiMAX | Absorptive | SPDT | 0Hz ~ 5GHz | 65dB | 3dB | 5GHz | 24dBm | - | - | 50Ohm | 5V | -20°C ~ 85°C | - | - | Chassis Mount | - |
|
ZSDR-230+IC RF SWITCH SPDT 3GHZ |
24 |
|
Datasheet |
- | Module | Bag | Active | General Purpose | Reflective | SPDT | 10MHz ~ 3GHz | 35dB | 1.8dB | 3GHz | 19dBm (min) | - | - | 50Ohm | 5V | -55°C ~ 100°C | - | - | - | - |
|
R570013000IC RF SWITCH SPDT 3GHZ MODULE |
25 |
|
Datasheet |
- | Module | Bulk | Active | General Purpose | - | SPDT | 0Hz ~ 3GHz | 75dB (min) | 0.25dB (max) | 3GHz | - | - | - | 50Ohm | 24V ~ 30V | -40°C ~ 85°C | - | - | - | Module |
|
R570012000IC RF SWITCH SPDT 3GHZ MODULE |
10 |
|
Datasheet |
- | Module | Bulk | Active | General Purpose | - | SPDT | 0Hz ~ 3GHz | 75dB (min) | 0.25dB (max) | 3GHz | - | - | - | 50Ohm | 10.2V ~ 13V | -40°C ~ 85°C | - | - | - | Module |
|
R570463100IC RF SWITCH SPDT 18GHZ MODULE |
8 |
|
Datasheet |
- | Module, SMA Connectors | Bulk | Active | General Purpose | - | SPDT | 0Hz ~ 18GHz | 60dB (min) | 0.35dB (max) | 18GHz | - | - | - | 50Ohm | 24V ~ 30V | -40°C ~ 85°C | - | - | - | Module |
|
R570813000IC RF SWITCH SPDT 40GHZ MODULE |
22 |
|
Datasheet |
- | Module, SMA Connectors | Bulk | Active | General Purpose | - | SPDT | 0Hz ~ 40GHz | 50dB (min) | 0.8dB (max) | 40GHz | - | - | - | 50Ohm | 24V ~ 30V | -40°C ~ 85°C | - | - | - | Module |
|
R577413000IC RF SWITCH DPDT 18GHZ MODULE |
3 |
|
Datasheet |
- | Module, SMA Connectors | Bulk | Active | General Purpose | - | DPDT | 0Hz ~ 18GHz | 60dB (min) | 0.5dB (max) | 18GHz | - | - | - | 50Ohm | 24V ~ 30V | -40°C ~ 85°C | - | - | - | Module |
|

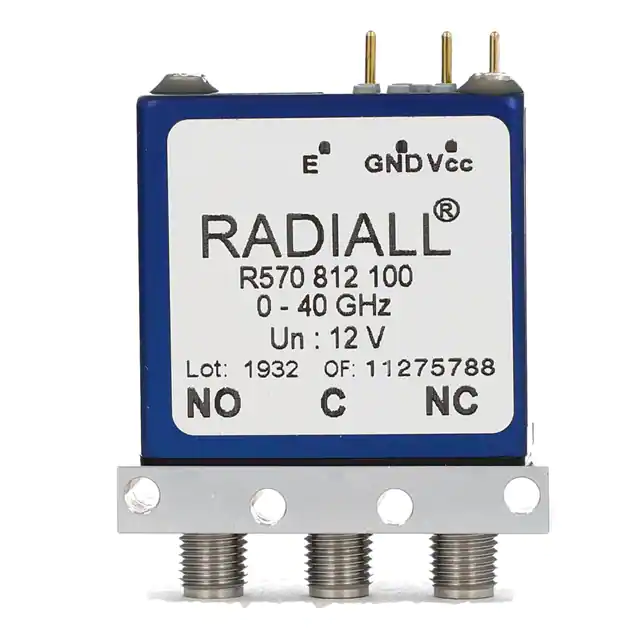

R570812100IC RF SWITCH SPDT 40GHZ |
18 |
|
Datasheet |
- | Module | Box | Active | General Purpose | - | SPDT | 0Hz ~ 40GHz | 50dB | 0.8dB | 40GHz | - | - | - | 50Ohm | 10.2V ~ 13V | -40°C ~ 85°C | - | - | - | - |
|
|
FMSW6392EM RELAY SWITCH 18 GHZ 12 V SMA |
5 |
|
Datasheet |
- | - | Bulk | Active | General Purpose | - | SPDT | 0Hz ~ 18GHz | 80dB | 0.15dB | 18GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 70°C | - | - | Chassis Mount | - |
|
|
R583423141IC RF SWITCH SP6T 18GHZ |
4 |
|
Datasheet |
RAMSES | Module, SMA Connectors | Bulk | Active | General Purpose | - | SP6T | 0Hz ~ 18GHz | 60dB (min) | 0.5dB (max) | 18GHz | - | - | - | 50Ohm | 24V ~ 30V | -273°C ~ 85°C | - | - | - | - |
|

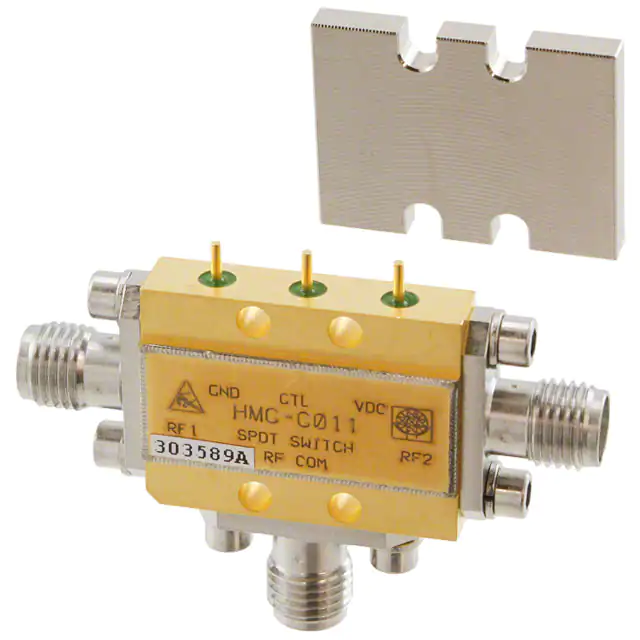

HMC-C011IC RF SWITCH SPDT 20GHZ |
3 |
|
Datasheet |
- | Module, SMA Connectors | Bulk | Active | General Purpose | Absorptive | SPDT | 0Hz ~ 20GHz | 35dB | 4dB | 20GHz | 23dBm | 45dBm | - | 50Ohm | 5V | -55°C ~ 85°C | - | - | - | - |
|
HMC-C058IC RF SWITCH SPDT 18GHZ |
5 |
|
Datasheet |
- | Module, SMA Connectors | Bulk | Active | General Purpose | Absorptive | SPDT | 0Hz ~ 18GHz | 55dB | 3dB | 18GHz | 27dBm | 46dBm | - | 50Ohm | 5V | -55°C ~ 85°C | - | - | - | - |
|

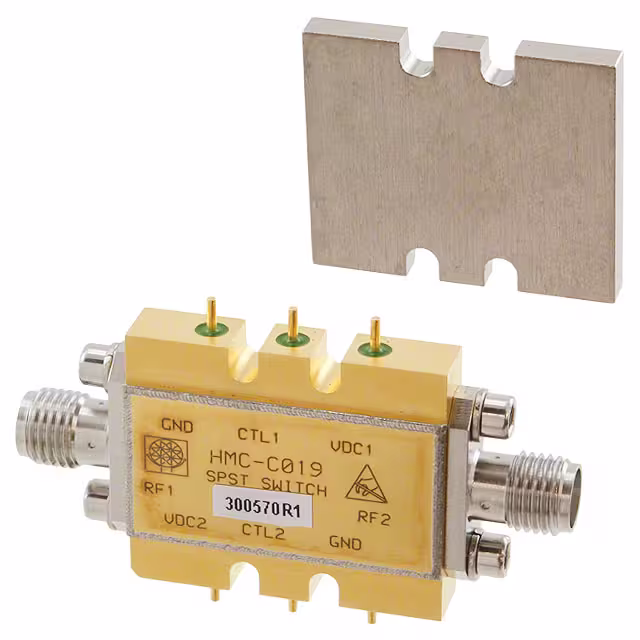

HMC-C019IC RF SWITCH SPST 20GHZ |
1 |
|
Datasheet |
- | Module, SMA Connectors | Bulk | Active | General Purpose | Absorptive | SPST | 0Hz ~ 20GHz | 65dB | 6dB | 20GHz | 23dBm | 43dBm | - | 50Ohm | 5V | -55°C ~ 85°C | - | - | - | - |
RF Switches Electronic Components
Explore RF Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
