RF Multiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE1791-2237DB53461741.75-1841.75 MHZ / 2187.5-228 |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 1.74175GHz ~ 1.84175GHz / 2.1875GHz ~ 2.2875GHz | - | - | 16.0dB / 16.0dB | - | - | Chassis Mount |
|
|
AE897-942D479880-915 MHZ / 925-960 MHZ LTE FR |
100 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 880MHz ~ 915MHz / 925MHz ~ 960MHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|

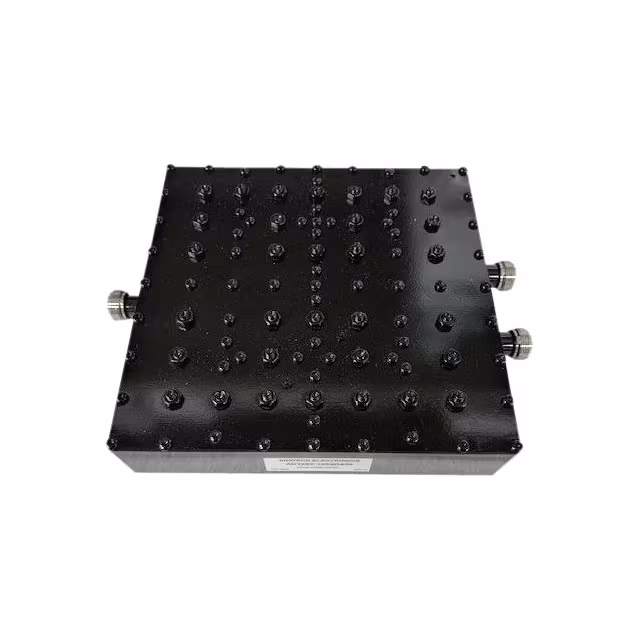

AD1882-1962D4391850-1915/1930-1995 MHZ LTE FREQ |
100 |
|
- |
- | Module | Box | Active | Duplexer | 1.85GHz ~ 1.915GHz / 1.93GHz ~ 1.995GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AE1801-2250DB52441761-1842 MHZ/ 2200-2300 MHZ CAV |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Diplexer | 1.761GHz ~ 1.842GHz / 2.2GHz ~ 2.3GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AD836-881D430836.5 MHZ / 881.5 MHZ CAVITY DUP |
100 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 824MHz ~ 849MHz / 869MHz ~ 894MHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AD2000-2185D3001985-2015 /2170-2200 MHZ CAVITY |
96 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 2.17GHz ~ 2.2GHz / 1.985GHz ~ 2.015GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AD902-947D211890-915 MHZ, 935-960 MHZ CAVITY |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 890MHz ~ 915MHz / 935MHz ~ 960MHz | - | - | - | - | - | Chassis Mount |
|
|
AE4300-4700DB5452DC-4300 / 4700-9000 MHZ DIPLEXER |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Diplexer | 0Hz ~ 4.3GHz / 4.7GHz ~ 9GHz | - | - | 10.88dB / 10.88dB | - | - | Chassis Mount |
|
|
AD836-881D430-S836.5 MHZ / 881.5 MHZ CAVITY DUP |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | Duplexer | 824MHz ~ 849MHz / 869MHz ~ 894MHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AD2395-2465D3722365-2425 MHZ / 2435-2 495 MHZ C |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 2.365GHz ~ 2.425GHz / 2.435GHz ~ 2.495GHz | - | - | 17.0dB / 17.0dB | - | - | Chassis Mount |
|
|
AD4512-4887D2324512-4887 MHZ CAVITY DUPLEXER |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 4.4GHz ~ 4.625GHz / 4.775GHz ~ 5GHz | - | - | - | - | - | Chassis Mount |
|

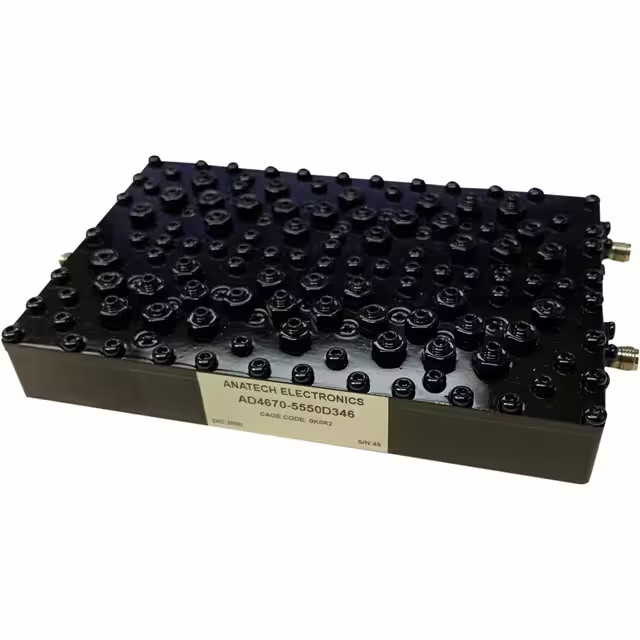

AD4670-5550D3464400-4940 MHZ / 5250-5850 MHZ CA |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Diplexer | 4.4GHz ~ 4.94GHz / 5.25GHz ~ 5.85GHz | - | - | 16.0dB / 16.0dB | - | - | Chassis Mount |
|
|
AD2650-5300-7950TR3022650 MHZ / 5300 MHZ / 7950 MHZ T |
100 |
|
Datasheet |
- | Module | Box | Active | Triplexer | 2.61GHz ~ 2.69GHz / 7.89GHz ~ 8.01GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
AE2215-2485D4932200-2230 MHZ / 2470-2500 MHZ CA |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 2.2GHz ~ 2.23GHz / 2.47GHz ~ 2.5GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|

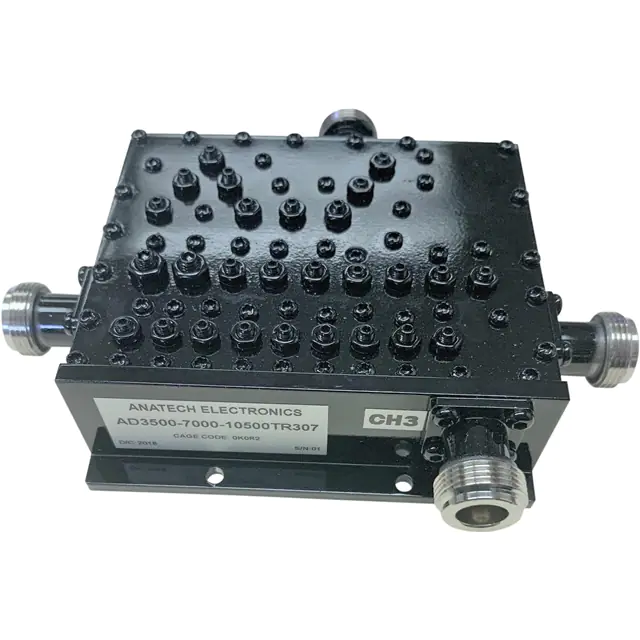

AD3500-7000-10500TR3073500 MHZ / 7000 MHZ / 10500 MHZ |
100 |
|
Datasheet |
- | Module | Box | Active | Triplexer | 3.43GHz ~ 3.57GHz / 10.4GHz ~ 10.6GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|

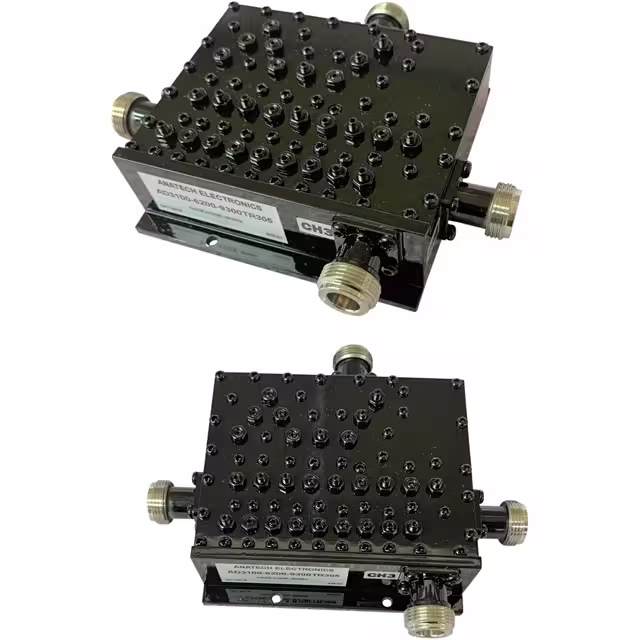

AD3100-6200-9300TR3053100 MHZ / 6200 MHZ / 9300 MHZ T |
100 |
|
Datasheet |
- | Module | Box | Active | Triplexer | 3.03GHz ~ 3.17GHz / 9.2GHz ~ 9.4GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
AE1745-2155DB54721745 MHZ / 2155 MHZ CAVITY DUPLE |
100 |
|
- |
- | Module | Box | Active | Duplexer | 1.71GHz ~ 1.78GHz / 2.11GHz ~ 2.2GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AD800-1600-2400TR295800 MHZ / 1600 MHZ / 2400 MHZ TR |
100 |
|
Datasheet |
- | Module | Box | Active | Triplexer | 783MHz ~ 817MHz / 2.37GHz ~ 2.43GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
AE1950-2140DB54561950 MHZ / 2140 MHZ CAVITY DUPLE |
100 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 1.92GHz ~ 1.98GHz / 2.11GHz ~ 2.17GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AD1747-1842D3351710-1785 MHZ / 1805-1880 MHZ LT |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 1.71GHz ~ 1.785GHz / 1.805GHz ~ 1.88GHz | - | - | 14.0dB / 14.0dB | - | - | Chassis Mount |
