RF Multiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD815-860D197-N851-869 MHZ 806-824 MHZ CAVITY D |
100 |
|
Datasheet |
- | Module | Box | Active | Diplexer | 806MHz ~ 824MHz / 851MHz ~ 869MHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AD897-942D437880-915 / 925-960 MHZ LTE FREQUE |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | Duplexer | 880MHz ~ 915MHz / 925MHz ~ 960MHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AE4400-5150DB54644200-4600 MHZ / 5100-5200 MHZ CA |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Diplexer | 4.2GHz ~ 4.6GHz / 5.1GHz ~ 5.2GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
AE182-440DB5375121-243 MHZ / 380-500 MHZ DUPLEX |
100 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 121MHz ~ 243MHz / 380MHz ~ 500MHz | - | - | - | - | - | Chassis Mount |
|

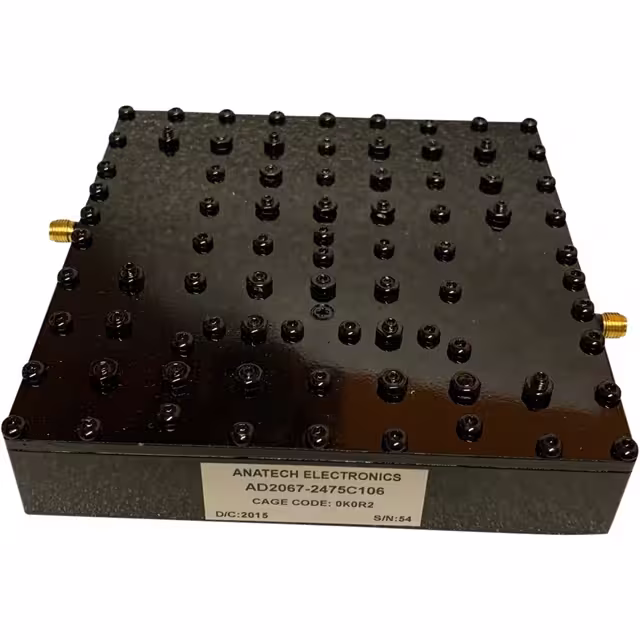

AD2067-2475C1062067.5 MHZ / 2475 MHZ SINGLE IN/ |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | Duplexer | 2.0255GHz ~ 2.1095GHz / 2.45GHz ~ 2.5GHz | - | - | 14.0dB / 14.0dB | - | - | Chassis Mount |
|
AD1950-2140D269-N1950 MHZ / 2140 MHZ CAVITY DUPLE |
100 |
|
- |
- | Module | Box | Active | Duplexer | 1.92GHz ~ 1.98GHz / 2.11GHz ~ 2.17GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AD1950-2140D3061920-1980/2110-2170 MHZ LTE FREQ |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 1.92GHz ~ 1.98GHz / 2.11GHz ~ 2.17GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AD1950-2140D2691920-1980 MHZ, 2110-2170 MHZ LTE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 1.92GHz ~ 1.98GHz / 2.11GHz ~ 2.17GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
AE4700-5550DB54704700 MHZ / 5550 MHZ CAVITY DUPLE |
100 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 4.4GHz ~ 5GHz / 5.25GHz ~ 5.85GHz | - | - | 16.0dB / 16.0dB | - | - | Chassis Mount |
|
|
AD2230-2050D3482020-2080 MHZ, 2200-2260 MHZ CAV |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | Duplexer | 2.02GHz ~ 2.08GHz / 2.2GHz ~ 2.26GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AD7500-8150D4457250-7750 MHZ / 7900-8400 MHZ CA |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 7.25GHz ~ 7.75GHz / 7.9GHz ~ 8.4GHz | - | - | 13.0dB / 13.0dB | - | - | Chassis Mount |
|
|
AE137-322DB5183200 MHZ LC DUPLEXER/DIPLEXER |
100 |
|
Datasheet |
- | Module | Box | Active | Duplexer, Diplexer | 100MHz ~ 175MHz / 225MHz ~ 420MHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AE754-785DB5479754 MHZ / 785 MHZ CAVITY DUPLEXE |
100 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 746MHz ~ 763MHz / 777MHz ~ 793MHz | - | - | 14.0dB / 14.0dB | - | - | Chassis Mount |
|
AD4700-5550D4244700 MHZ / 5550 MHZ CAVITY DUPLE |
100 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 4.4GHz ~ 5GHz / 5.25GHz ~ 5.85GHz | - | - | 16.0dB / 16.0dB | - | - | Chassis Mount |
|
|
AD865-820D247862-869 MHZ 817-824 MHZ CAVITY D |
100 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 817MHz ~ 824MHz / 862MHz ~ 869MHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AE634-698DB5448634 / 698 MHZ CAVITY DUPLEXER |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 617MHz ~ 652MHz / 663MHz ~ 698MHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AE634-698DB5448-N634 / 698 MHZ CAVITY DUPLEXER WI |
100 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 617MHz ~ 652MHz / 663MHz ~ 698MHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AD4700-5550D4294700 MHZ / 5550 MHZ CAVITY DUPLE |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | Duplexer | 4.395GHz ~ 5.005GHz / 5.245GHz ~ 5.855GHz | - | - | 16.0dB / 16.0dB | - | - | Chassis Mount |
|
AD1542-1643D2961542 MHZ / 1643 MHZ CAVITY DUPLE |
100 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 1.524GHz ~ 1.56GHz / 1.6265GHz ~ 1.6605GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AE831-876DB5475LTE BAND 26/EXTENDED CELLULAR BA |
100 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 814MHz ~ 849MHz / 859MHz ~ 894MHz | - | - | 14.0dB / 14.0dB | - | - | Chassis Mount |
