RF Multiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD2510-2680D2212.50-2.52 GHZ / 2.67-2.69 GHZ CA |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | Diplexer | 2.5GHz ~ 2.52GHz / 2.67GHz ~ 2.69GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AE1550-5000DB54891450-1650 MHZ / 4000-6000 MHZ D |
100 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 1.45GHz ~ 1.65GHz / 4GHz ~ 6GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AE1090-1030D54051085-1095 / 1025-1035 MHZ CAVITY |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 1.085GHz ~ 1.095GHz / 1.025GHz ~ 1.035GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AE1030-1090D4831025-1035 / 1085-1095 MHZ CAVITY |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 1.025GHz ~ 1.035GHz / 1.085GHz ~ 1.095GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AD5180-5240D3125180-5240 MHZ CAVITY DUPLEXER |
100 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 5.165GHz ~ 5.195GHz / 5.225GHz ~ 5.255GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AM836-881D263-C824-849 / 869-894 LTE FREQUENCY |
38 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 824MHz ~ 849MHz / 869MHz ~ 894MHz | - | - | - | - | - | Chassis Mount |
|
|
AD5765-5805D265S5.755-5.77 5 GHZ, 5.795-5.81 5 G |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | Duplexer | 5.755GHz ~ 5.775GHz / 5.795GHz ~ 5.815GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AD3237-3337D4773212.5-3262.5 MHZ / 3312.5-3362. |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 3.2125GHz ~ 3.2625GHz / 3.3125GHz ~ 3.3625GHz | 35.00dB / 50.00dB | 15.00dB / 80.00dB | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AE1030-1090D4901018-1042 MHZ / 1078-1102 MHZ CA |
100 |
|
Datasheet |
- | Module | Box | Active | Diplexer | 1.018GHz ~ 1.042GHz / 1.078GHz ~ 1.102GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|

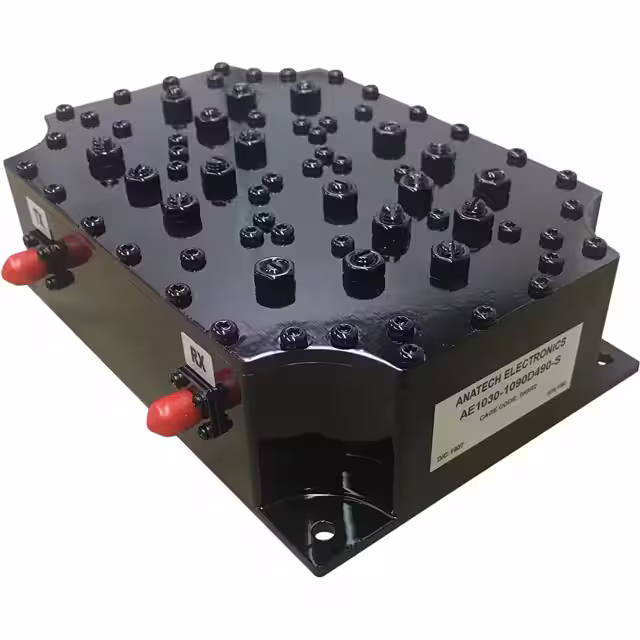

AE1030-1090D490-S1018-1042 MHZ / 1078-1102 MHZ CA |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | Diplexer | 1.018GHz ~ 1.042GHz / 1.078GHz ~ 1.102GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AD5520-5680D313-S5470-5570 MHZ / 5630-5730 MHZ CA |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 5.47GHz ~ 5.57GHz / 5.63GHz ~ 5.73GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
AM1950-2140D1112-C1920-1980 MHZ / 2110-2170 MHZ LT |
38 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 1.92GHz ~ 1.98GHz / 2.11GHz ~ 2.17GHz | - | - | - | - | - | Chassis Mount |
|
|
AE1625-2495D4851600-1650 / 2470-2520 MHZ CAVITY |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 1.6GHz ~ 1.65GHz / 2.47GHz ~ 2.52GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AD5785-5350D2985735 - 5835 MHZ, 5100 - 5600 M |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | Duplexer | 5.735GHz ~ 5.835GHz / 5.1GHz ~ 5.6GHz | - | - | 10.0dB / 10.0dB | - | - | Chassis Mount |
|
|
AM1732-2132D1136-C1710-1755 / 2110-2155 MHZ LTE FR |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 1.71GHz ~ 1.755GHz / 2.11GHz ~ 2.155GHz | - / 50.00dB | 40.00dB / 50.00dB | - | - | - | Chassis Mount |
|
|
AM751-782D1071-C751 / 782 MHZ CONNECTORIZED CERA |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 746MHz ~ 756MHz / 777MHz ~ 787MHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AE1445-1493DB54491445 / 1493 MHZ CAVITY DUPLEXER |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 1.4279GHz ~ 1.4629GHz / 1.4759GHz ~ 1.5109GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AD849-894D266849.75 MHZ 894.75 MHZ CAVITY DUP |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 848.25MHz ~ 849.75MHz / 893.25MHz ~ 894.75MHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AD5745-5805D3575725-5765 MHZ / 5785-5825 MHZ CA |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 5.725GHz ~ 5.765GHz / 5.785GHz ~ 5.825GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AD5745-5785D264N5735-5755/5775-5795 MHZ CAVITY D |
100 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 5.735GHz ~ 5.755GHz / 5.755GHz ~ 5.795GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
