RF Multiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE1950-2140DB21101920-1980 MHZ / 2110-2170 MHZ CA |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 1.92GHz ~ 1.98GHz / 2.11GHz ~ 2.17GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AD3688-3738D2673.677-3.699 GHZ 3.727-3.749 GHZ |
100 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 3.677GHz ~ 3.699GHz / 3.727GHz ~ 3.749GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AE450-1800DB5348405-495 MHZ / 800-3000 MHZ CAVIT |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | Diplexer | 405MHz ~ 495MHz / 800MHz ~ 3GHz | - | - | 20.0dB / 20.0dB | - | - | Chassis Mount |
|
|
BK-747EDual Dplx PCS/AWS+WCS 4.3-10 |
88 |
|
Datasheet |
- | Module | Tape & Box (TB) | Active | Diplexer | 1.695GHz ~ 1.78GHz / 2.11GHz ~ 2.36GHz | - | - | - | - | - | Chassis Mount |
|
|
AD1880-1960D4171850-1910 MHZ / 1930-1990 MHZ LT |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 1.85GHz ~ 1.91GHz / 1.93GHz ~ 1.99GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AD2210-2287D4152205-2215/2274.5-2299.5 MHZ CAVI |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 2.205GHz ~ 2.215GHz / 2.2745GHz ~ 2.2995GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AD897-942D208885-909/930-954 MHZ CAVITY DUPLE |
100 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 885MHz ~ 909MHz / 930MHz ~ 945MHz | - | - | 20.0dB / 20.0dB | - | - | Chassis Mount |
|
|
AD815-860D260806-824 MHZ, 851-869 MHZ CAVITY |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Diplexer | 806MHz ~ 824MHz / 851MHz ~ 869MHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AE7-113DB5402DC-14 MHZ / 26-200 MHZ LC DIPLEX |
100 |
|
Datasheet |
- | 9-DIP Module | Box | Active | Diplexer | 0Hz ~ 14MHz / 26MHz ~ 200MHz | - | - | - | - | - | Through Hole |
|
|
AD6981-9800C1316875-7087.5 / 9600-10000 MHZ COM |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | - | 6.875GHz ~ 7.0875GHz / 9.6GHz ~ 10GHz | - | - | - | - | - | Chassis Mount |
|
|
AE2000-2185DB54011985-2015 MHZ / 2170-2200 MHZ CA |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 1.985GHz ~ 2.015GHz / 2.17GHz ~ 2.2GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AE1732-2132DB52951710-1755 MHZ / 2110-2155 MHZ DU |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 1.71GHz ~ 1.755GHz / 2.11GHz ~ 2.155GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AE892-1850D478824-960 MHZ / 1710-1990 MHZ CAVI |
100 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 824MHz ~ 960MHz / 1.71GHz ~ 1.99GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AE225-1500DB53240-450 MHZ / 900-2100 MHZ CAVITY |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Diplexer | 0Hz ~ 450MHz / 900MHz ~ 2.1GHz | - | - | 20.0dB / 20.0dB | - | - | Chassis Mount |
|
|
AE2203-2263DB54872199-2207 MHZ / 2225-2301 MHZ CA |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 2.199GHz ~ 2.207GHz / 2.225GHz ~ 2.301GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AD3437-3537D2513412.5-3462.5 MHZ / 3512.5-3562. |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 3.4125GHz ~ 3.4625GHz / 3.5125GHz ~ 3.5625GHz | 35.00dB / 50.00dB | 15.00dB / 80.00dB | 15.0dB / 15.0dB | - | - | Chassis Mount |
|

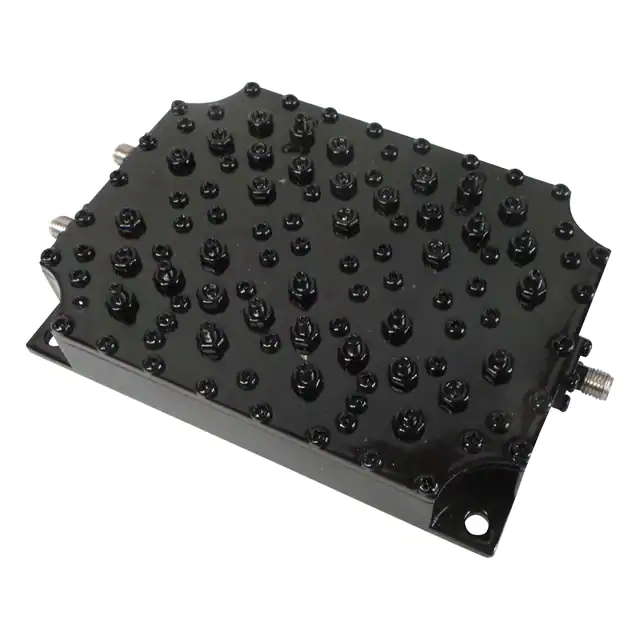

AE4512-4887DB54884512MHZ / 4887 MHZ CAVITY DUPLEX |
100 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 4.4GHz ~ 4.625GHz / 4.775GHz ~ 5GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
BT512297Wideband Quadraplexer |
28 |
|
Datasheet |
* | - | Tape & Box (TB) | Active | Quadplexer | 698MHz ~ 806MHz / 2.11GHz ~ 2.17GHz | - | - | - | - | - | - |
|
|
AE5795-5915D54035785-5805 MHZ / 5905-5925 MHZ CA |
100 |
|
Datasheet |
- | Module | Box | Active | Diplexer | 5.7815GHz ~ 5.8085GHz / 5.9015GHz ~ 5.9285GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AE5745-5885D54045735-5755 MHZ / 5875-5895 MHZ CA |
100 |
|
Datasheet |
- | Module | Box | Active | Diplexer | 5.7615GHz ~ 5.7885GHz / 5.9015GHz ~ 5.9285GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
