RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLF-1700+RF FILTER LOW PASS 2.05GHZ SMA |
9 |
|
Datasheet |
VLF-1700+ | SMA In line Module | Box | Active | 2.05GHz (Cutoff) | - | Low Pass | - | 3.98dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VHF-2700+RF FILTER HIGH PASS 2.5GHZ SMA |
8 |
|
Datasheet |
VHF-2700+ | SMA In line Module | Box | Active | 2.5GHz (Cutoff) | 3.85GHz | High Pass | - | 4.8dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VHF-4400+RF FILTER HIGH PASS 7.55GHZ SMA |
8 |
|
Datasheet |
VHF-4400+ | SMA In line Module | Box | Active | 7.55GHz Center | 5.1GHz | High Pass | - | 2dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VLF-105+RF FILTER LOW PASS 180MHZ SMA |
8 |
|
Datasheet |
VLF-105+ | SMA In line Module | Box | Active | 180MHz (Cutoff) | - | Low Pass | - | 3.1dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VLF-800+RF FILTER LOW PASS 1.075GHZ SMA |
8 |
|
Datasheet |
VLF-800+ | SMA In line Module | Box | Active | 1.075GHz (Cutoff) | - | Low Pass | - | 3.38dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VLF-2850+RF FILTER LOW PASS 3.3GHZ SMA |
7 |
|
Datasheet |
VLF-2850+ | SMA In line Module | Box | Active | 3.3GHz (Cutoff) | - | Low Pass | - | 3.09dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VLF-190+RF FILTER LOW PASS 280MHZ SMA |
6 |
|
Datasheet |
VLF-190+ | SMA In line Module | Box | Active | 280MHz (Cutoff) | - | Low Pass | - | - | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VHF-1600+RF FILTER HIGH PASS 1.6GHZ SMA |
6 |
|
Datasheet |
VHF-1600+ | SMA In line Module | Box | Active | 1.6GHz (Cutoff) | 3.35GHz | High Pass | - | 2.63dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VLF-5850+RF FILTER LOW PASS 6.54GHZ SMA |
6 |
|
Datasheet |
VLF-5850+ | SMA In line Module | Box | Active | 6.54GHz (Cutoff) | - | Low Pass | - | 2dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VLFG-490+RF FILTER LOW PASS 590MHZ SMA |
13 |
|
Datasheet |
VLFG-490 | SMA In line Module | Bulk | Active | 590MHz (Cutoff) | - | Low Pass | - | 3.26dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VLFG-400+RF FILTER LOW PASS 520MHZ SMA |
7 |
|
Datasheet |
VLFG-400 | SMA In line Module | Bulk | Active | 520MHz (Cutoff) | - | Low Pass | - | 2.71dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VLFG-3500+RF FILTER LOW PASS 3.97GHZ SMA |
6 |
|
Datasheet |
VLFG-3500 | SMA In line Module | Box | Active | 3.97GHz (Cutoff) | - | Low Pass | - | 3dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
CHPFL-0080-BNCRF FILTER HIGH PASS 80MHZ INLINE |
9 |
|
Datasheet |
CHPFL | Inline, BNC Connection, F and M | Bulk | Active | 80MHz | - | High Pass | - | - | Free Hanging (In-Line) | 0.550" Dia x 2.590" L (13.97mm x 65.79mm) | - |
|
CHPFL-0100-BNCRF FILTER HI PASS 100MHZ INLINE |
6 |
|
Datasheet |
CHPFL | Inline, BNC Connection, F and M | Bulk | Active | 100MHz | - | High Pass | - | - | Free Hanging (In-Line) | 0.550" Dia x 2.590" L (13.97mm x 65.79mm) | - |
|

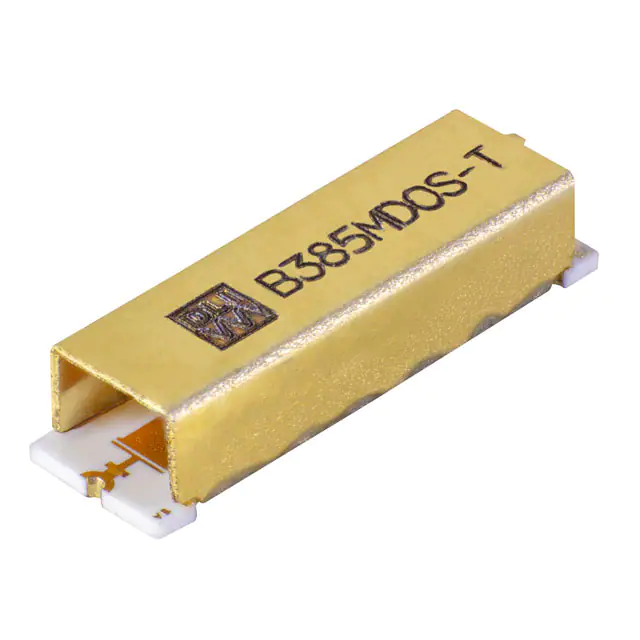

B385MD0SRF FILTER BAND PASS 38.5GHZ 2SMD |
22 |
|
Datasheet |
- | 2-SMD, No Lead | Bulk | Active | 38.5GHz Center | - | Band Pass | - | 2.75dB | Surface Mount | - | - |
|
|
VBF-1445+RF FILTER BAND PASS 1.445GHZ SMA |
5 |
|
Datasheet |
VBF-1445+ | SMA In line Module | Box | Active | 1.445GHz Center | 50MHz | Band Pass | - | 3dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VBF-1945+RF FILTER BAND PASS 1.945GHZ SMA |
4 |
|
Datasheet |
VBF-1945+ | SMA In line Module | Box | Active | 1.945GHz Center | 190MHz | Band Pass | - | 3dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VBF-1560+RF FILTER BAND PASS 1.56GHZ SMA |
2 |
|
Datasheet |
VBF-1560+ | SMA In line Module | Box | Active | 1.56GHz Center | 120MHz | Band Pass | - | 2.61dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VXLF-172H+RF FILTER LOW PASS 2.35GHZ SMA |
23 |
|
Datasheet |
VXLF-172H | SMA In line Module | Bulk | Active | 2.35GHz (Cutoff) | - | Low Pass | - | 3.01dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
B274MB1SRF FILTER BAND PASS 28GHZ 2SMD |
6 |
|
Datasheet |
- | 2-SMD, No Lead | Bulk | Active | 28GHz | - | Band Pass | - | 3.5dB | Surface Mount | - | 0.089" (2.26mm) |
