RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BPF-A475+LUMPED LC BPF, 400-550 MHZ, 50 |
15 |
|
Datasheet |
- | 14-SMD Module | Strip | Active | 475MHz Center | 150MHz | Band Pass | - | 2dB | Surface Mount | 1.360" L x 0.365" W (34.54mm x 9.27mm) | 0.220" (5.59mm) |
|
VBFZ-4000-S+RF FILTER BAND PASS 4GHZ SMA |
12 |
|
Datasheet |
VBFZ-4000-S+ | SMA In line Module | Box | Active | 4GHz Center | 1GHz | Band Pass | - | 1.29dB | Chassis Mount | 0.410" Dia x 1.910" L (10.41mm x 48.51mm) | - |
|
|
VBFZ-1400-S+RF FILTER BAND PASS 1.4GHZ SMA |
10 |
|
Datasheet |
VBFZ-1400-S+ | SMA In line Module | Box | Active | 1.4GHz Center | 100MHz | Band Pass | - | 1.97dB | Chassis Mount | 0.410" Dia x 1.910" L (10.41mm x 48.51mm) | - |
|
ZFHP-0R055-S+RF FILTER HIGH PASS 55KHZ MODULE |
9 |
|
Datasheet |
- | Module | Tray | Active | 55kHz (Cutoff) | 999.93MHz | High Pass | - | 3dB | Chassis Mount | 1.250" L x 1.250" W (31.75mm x 31.75mm) | 0.780" (19.81mm) |
|
|
BSF-108+LUMPED LC BSF, 90 - 105 MHZ |
20 |
|
Datasheet |
- | 8-SMD, No Lead | Strip | Active | 98MHz Center | 20MHz | Band Stop | - | 1.5dB | Surface Mount | 0.740" L x 0.440" W (18.80mm x 11.18mm) | 0.270" (6.86mm) |
|
|
SHP-200+LUMPED LC HPF, 185 - 3000 MHZ |
25 |
|
Datasheet |
- | SMA In line Module | Box | Active | 164MHz (Cutoff) | - | High Pass | - | 1dB | Chassis Mount | 0.700" Dia (17.78mm) | - |
|
SIF-50+RF FILTER BAND PASS 50MHZ SMA |
17 |
|
Datasheet |
SIF-50+ | SMA In line Module | Tray | Active | 50MHz Center | 17MHz | Band Pass | - | 0.1dB | Chassis Mount | 0.700" Dia x 1.980" L (17.78mm x 50.29mm) | - |
|
|
CBP-1300A+RF FILTER BAND PASS 1.3GHZ 16SMD |
22 |
|
Datasheet |
CBP-1300A+ | 16-SMD, No Lead | Strip | Active | 1.3GHz Center | 200MHz | Band Pass | - | 2dB | Surface Mount | 1.040" L x 0.550" W (26.42mm x 13.97mm) | 0.225" (5.72mm) |
|
|
BBP-10.7+LUMPED LC BPF, 9.5 - 11.5 MHZ |
17 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 10.7MHz Center | 2MHz | Band Pass | - | 1.5dB | Chassis Mount | 0.570" Dia (14.47mm) | - |
|
|
BBP-70+RF FILTER BAND PASS 70MHZ BNC |
10 |
|
Datasheet |
BBP | BNC In-Line Module | Box | Active | 70MHz Center | 14MHz | Band Pass | - | 1.5dB | Chassis Mount | 0.570" Dia x 0.570" L (14.47mm x 14.47mm) | - |
|
|
ADMV8505ACCZ225 TO 520 MHZ TUNABLE BPF |
0 |
|
- |
- | 40-BFLGA Exposed Pad | Strip | Active | 372.5MHz Center | 295MHz | Band Pass | - | 4.5dB | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.117" (2.96mm) |
|
|
SLP-1650+RF FILTER LOWPASS 1.65GHZ INLINE |
6 |
|
Datasheet |
- | Inline, SMA Connection, F and M | Box | Active | 1.65GHz (Cutoff) | - | Low Pass | - | 1dB | Free Hanging (In-Line) | 0.670" Dia x 0.670" L (17.02mm x 17.02mm) | - |
|
VXHF-482M+RF FILTER HIGH PASS 4.39GHZ SMA |
9 |
|
Datasheet |
VXHF-482M | SMA In line Module | Bulk | Active | 4.39GHz (Cutoff) | 4.2GHz | High Pass | - | 3dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
SBP-10.7+LUMPED LC BPF, 9.5-11.5 MHZ, 50 |
6 |
|
Datasheet |
- | Inline, SMA Connection, F and M | Tray | Active | 10.7MHz Center | 2MHz | Band Pass | - | 1.5dB | Free Hanging (In-Line) | 0.670" Dia (17.02mm) | - |
|
|
ADMV8513ACCZRF FILTER BANDPASS 910MHZ 40FLGA |
24 |
|
Datasheet |
ADMV8513 | 40-FLGA Exposed Pad | Strip | Active | 910MHz Center | 780MHz | Band Pass | - | 5.5dB | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.087" (2.20mm) |
|

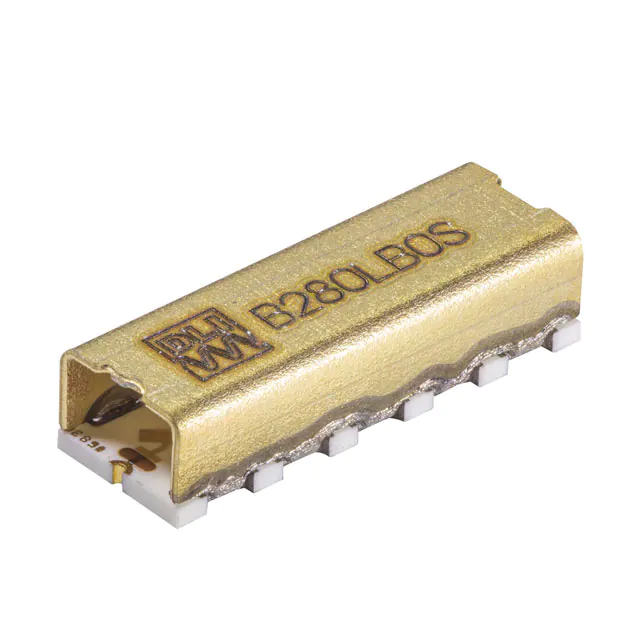

B280LB0SRF FILTER BAND PASS 28GHZ 10SMD |
25 |
|
Datasheet |
- | 10-SMD, No Lead | Bulk | Active | 28GHz | 2GHz | Band Pass | - | 1.5dB | Surface Mount | 0.350" L x 0.120" W (8.89mm x 3.05mm) | 0.098" (2.49mm) |
|
|
SBP-140+RF FILTER BAND PASS 140MHZ SMA |
14 |
|
Datasheet |
SBP | SMA In line Module | Tray | Active | 140MHz Center | 20MHz | Band Pass | - | 3.5dB | Chassis Mount | 0.700" Dia x 0.700" L (17.78mm x 17.78mm) | - |
|
|
ZX75LP-105-S+RF FILTER LOW PASS 4MHZ INLINE |
12 |
|
Datasheet |
ZX75LP | Inline, SMA Connection, F and M | Tray | Active | 115MHz (Cutoff) | 105MHz | Low Pass | - | 2dB | Free Hanging (In-Line) | 0.740" L x 0.750" W (18.80mm x 19.05mm) | 0.490" (12.45mm) |
|
BPF-F100+RF FILTER BAND PASS 100MHZ 18SMD |
12 |
|
Datasheet |
- | 18-SMD, No Lead | Tape & Reel (TR) | Active | 100MHz Center | 10MHz | Band Pass | - | 6dB | Surface Mount | 1.360" L x 0.730" W (34.54mm x 18.54mm) | 0.350" (8.89mm) |
|
|
ZX75LP-2000-S+RF FILTER LOWPASS 2000MHZ INLINE |
11 |
|
Datasheet |
ZX75LP | Inline, SMA Connection, F and M | Tray | Active | - | 2GHz | Low Pass | - | 2.3dB | Free Hanging (In-Line) | 1.200" L x 0.750" W (30.48mm x 19.05mm) | 0.490" (12.45mm) |
