RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L185XF4S-TRF FILTER LOW PASS 18GHZ 3SMD |
3 |
|
Datasheet |
- | 3-SMD, No Lead | Tape & Reel (TR) | Active | 18GHz | - | Low Pass | - | 2.2dB | Surface Mount | 0.220" L x 0.140" W (5.59mm x 3.56mm) | 0.098" (2.49mm) |
|
|
CBP-1490A+RF FILTER BANDPASS 1.49GHZ 16SMD |
12 |
|
Datasheet |
CBP-1490A+ | 16-SMD, No Lead | Strip | Active | 1.49GHz Center | 50MHz | Band Pass | - | 4.5dB | Surface Mount | 1.040" L x 0.550" W (26.42mm x 13.97mm) | 0.225" (5.72mm) |
|
B099NC4SRF FILTER BANDPASS 10.25GHZ 2SMD |
14 |
|
Datasheet |
- | 2-SMD, No Lead | Bulk | Active | 10.25GHz | 2.25GHz | Band Pass | - | 2.25dB | Surface Mount | 0.400" L x 0.150" W (10.16mm x 3.81mm) | 0.103" (2.62mm) |
|
|
ZX75BP-B70-S+RF FILTER BAND PASS 70MHZ MODULE |
15 |
|
Datasheet |
ZX75BP | Module, SMA Connectors | Tray | Active | 70MHz Center | 36MHz | Band Pass | - | 1.6dB | - | 1.200" L x 0.750" W (30.48mm x 19.05mm) | 0.490" (12.45mm) |
|
|
ZX75BP-A70-S+RF FILTER BAND PASS 70MHZ MODULE |
11 |
|
Datasheet |
ZX75BP | Module, SMA Connectors | Tray | Active | 70MHz Center | 16MHz | Band Pass | - | 1.6dB | - | 1.200" L x 0.750" W (30.48mm x 19.05mm) | 0.490" (12.45mm) |
|
|
B192NB2SAFL09128 |
21 |
|
Datasheet |
- | 3-SMD, No Lead | Bulk | Active | 19.2GHz Center | 4GHz | Band Pass | - | 4.25dB | Surface Mount | 0.450" L x 0.140" W (11.43mm x 3.56mm) | 0.088" (2.24mm) |
|
B097MB0SRF FILTER BAND PASS 9.7GHZ 2SMD |
17 |
|
Datasheet |
- | 2-SMD, No Lead | Bulk | Active | 9.7GHz | 800MHz | Band Pass | - | 2.75dB | Surface Mount | 0.400" L x 0.150" W (10.16mm x 3.81mm) | 0.103" (2.62mm) |
|
B138MB1SRF FILTER BANDPASS 13.75GHZ 2SMD |
14 |
|
Datasheet |
- | 2-SMD, No Lead | Bulk | Active | 13.75GHz | 1GHz | Band Pass | - | 3dB | Surface Mount | 0.400" L x 0.200" W (10.16mm x 5.08mm) | 0.098" (2.49mm) |
|
|
B230LA0SAFL08614 |
9 |
|
Datasheet |
- | 3-SMD, No Lead | Bulk | Active | 23GHz Center | 1GHz | Band Pass | - | 4dB | Surface Mount | 0.450" L x 0.140" W (11.43mm x 3.56mm) | 0.088" (2.24mm) |
|
|
ZX75BP-4700-S+RF FILTER BANDPASS 4.7GHZ INLINE |
11 |
|
Datasheet |
ZX75BP | Inline, SMA Connection, F and M | Tray | Active | 4.7GHz Center | 600MHz | Band Pass | - | 3dB | Free Hanging (In-Line) | 0.740" L x 0.750" W (18.80mm x 19.05mm) | 0.490" (12.45mm) |
|
|
ZX75BP-840-S+RF FILTER BANDPASS 840MHZ MODULE |
9 |
|
Datasheet |
ZX75BP | Module, SMA Connectors | Tray | Active | 840MHz Center | 100MHz | Band Pass | - | 2dB | Chassis Mount | 1.200" L x 0.750" W (30.48mm x 19.05mm) | 0.490" (12.45mm) |
|
|
ZX75BP-750-S+RF FILTER BANDPASS 750MHZ MODULE |
10 |
|
Datasheet |
ZX75BP | Module, SMA Connectors | Tray | Active | 750MHz Center | 300MHz | Band Pass | - | 2.5dB | - | 1.200" L x 0.750" W (30.48mm x 19.05mm) | 0.490" (12.45mm) |
|
|
ZX75BP-960-S+RF FILTER BANDPASS 960MHZ MODULE |
9 |
|
Datasheet |
ZX75BP | Module, SMA Connectors | Tray | Active | 960MHz Center | 1.86GHz | Band Pass | - | 1dB | - | 1.200" L x 0.750" W (30.48mm x 19.05mm) | 0.490" (12.45mm) |
|

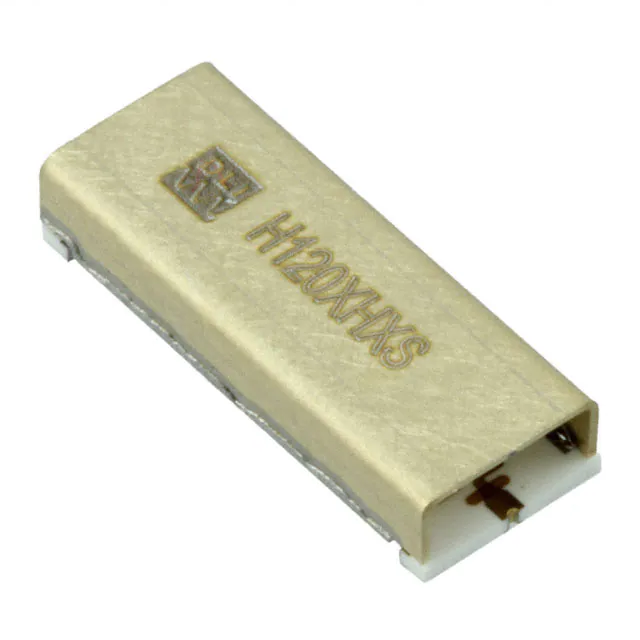

H120XHXSRF FILTER HI PASS 21.25GHZ 2SMD |
6 |
|
Datasheet |
- | 2-SMD, No Lead | Bulk | Active | 21.25GHz Center | - | High Pass | - | 2dB | Surface Mount | 0.450" L x 0.175" W (11.43mm x 4.45mm) | 0.083" (2.11mm) |
|
|
B350NB2SAFL10189 |
20 |
|
- |
- | 12-SMD, No Lead | Bulk | Active | 35GHz Center | 10GHz | Band Pass | - | 4.5dB | Surface Mount | 0.275" L x 0.080" W (6.99mm x 2.03mm) | 0.070" (1.78mm) |
|
B161LA0SRF FILTER BAND PASS 16GHZ 4SMD |
12 |
|
Datasheet |
- | 4-SMD, No Lead | Bulk | Active | 16GHz | 1GHz | Band Pass | - | 6dB | Surface Mount | 0.695" L x 0.250" W (17.65mm x 6.35mm) | 0.093" (2.36mm) |
|
B058MD7SRF FILTER BAND PASS 5.7GHZ 2SMD |
23 |
|
Datasheet |
- | 2-SMD, No Lead | Bulk | Active | 5.7GHz | 600MHz | Band Pass | - | 2.8dB | Surface Mount | 0.475" L x 0.275" W (12.07mm x 6.99mm) | 0.103" (2.62mm) |
|
|
ZXLF-K42M+RF FILTER LOW PASS 410MHZ MODULE |
8 |
|
- |
ZXLF | Module | Tray | Active | 410MHz (Cutoff) | - | Low Pass | - | 3.5dB | Chassis Mount | 0.700" L x 0.500" W (17.78mm x 12.70mm) | 0.444" (11.27mm) |
|
|
ZLFW-K113+LTCC LPF, DC - 11000 MHZ, 50 |
3 |
|
Datasheet |
- | Module | Tray | Active | 11.9GHz (Cutoff) | 11GHz | Low Pass | - | 3.1dB | Chassis Mount | 0.673" L x 0.598" W (17.10mm x 15.20mm) | 0.394" (10.00mm) |
|
|
ZLSS-6R9G-S+RF FILTER LOW PASS 6.9GHZ MODULE |
11 |
|
Datasheet |
- | Module, SMA Connectors | Bulk | Active | 6.9GHz (Cutoff) | - | Low Pass | - | 2dB | Chassis Mount | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.650" (16.51mm) |
RF Filters Electronic Components
Explore RF Filters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
