RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZHSS-4G-S+SS HPF, 4000-24000 MHZ |
8 |
|
Datasheet |
- | Module, SMA Connectors | Bulk | Active | 14GHz Center | 20GHz | High Pass | - | 2dB | Chassis Mount | 0.700" L x 0.500" W (17.78mm x 12.70mm) | 0.500" (12.70mm) |
|
ZLSS-6G-S+RF FILTER LOW PASS 6GHZ MODULE |
4 |
|
Datasheet |
ZLSS-6G-S+ | Module, SMA Connectors | Bulk | Active | 6GHz (Cutoff) | - | Low Pass | - | 2dB | Chassis Mount | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.650" (16.51mm) |
|
ZVBP-1420-N+RF FILTER BAND PASS 1.42GHZ MOD |
4 |
|
Datasheet |
ZVBP-1420-N+ | Module | Tray | Active | 1.42GHz Center | 10MHz | Band Pass | - | 2.5dB | Chassis Mount | 7.250" L x 1.425" W (184.15mm x 36.20mm) | 2.725" (69.22mm) |
|
DEA202484HT-8002A1RF FILTER HI PASS 2.442GHZ 0805 |
497 |
|
Datasheet |
DEA | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 2.442GHz Center | 84MHz | High Pass | - | 0.65dB | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
DEA252450BT-2063C1RF FILTER BAND PASS 2.45GHZ 1008 |
760 |
|
Datasheet |
DEA | 1008 (2520 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 2.45GHz Center | 100MHz | Band Pass | 1dB | 2.5dB | Surface Mount | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
BP0805A4320ASTRRF FILTER BAND PASS 4.32GHZ 0805 |
102 |
|
Datasheet |
BP | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 4.32GHz | 400MHz | Band Pass | - | 1.2dB | Surface Mount | 0.080" L x 0.061" W (2.03mm x 1.55mm) | 0.035" (0.90mm) |
|
XLF-73+RF FILTER LOW PASS 9.9GHZ 12VQFN |
92 |
|
Datasheet |
- | 12-VQFN Exposed Pad | Tape & Reel (TR) | Active | 9.9GHz (Cutoff) | - | Low Pass | - | 1.9dB | Surface Mount | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.035" (0.89mm) |
.jpg)
|
HF0BA1440A700RF FILT HIGH PASS 1.44GHZ 19ULGA |
91 |
|
Datasheet |
HF | 19-ULGA | Bulk | Active | 1.44GHz | - | High Pass | - | 1.2dB | Surface Mount | 0.306" L x 0.156" W (7.79mm x 3.98mm) | 0.022" (0.56mm) |
|

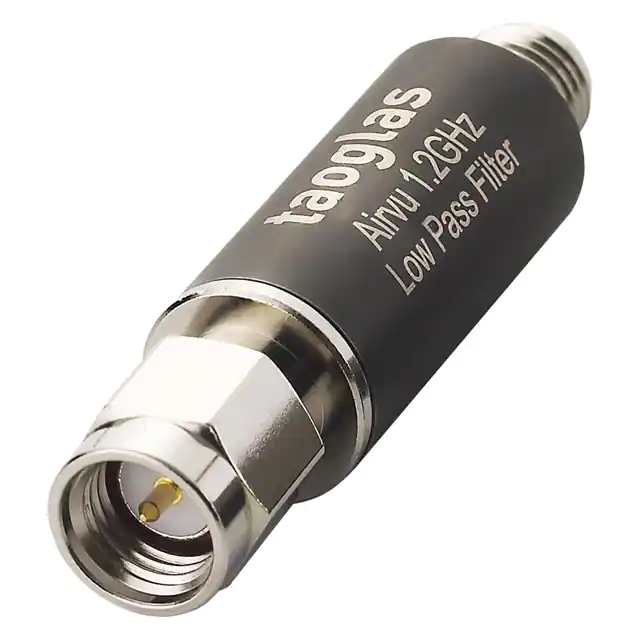

LPF.12.01RF FILTER LOW PASS 1.2GHZ INLINE |
33 |
|
Datasheet |
Airvu | Inline, SMA Connection, F and M | Tray | Active | 1.2GHz | 1.1GHz | Low Pass | 1dB | 1.1dB | Free Hanging (In-Line) | 0.394" Dia x 1.535" L (10.00mm x 39.00mm) | - |
|
VHF-1810+RF FILTER HIGH PASS 1.81GHZ SMA |
20 |
|
Datasheet |
VHF-1810+ | SMA In line Module | Box | Active | 1.81GHz (Cutoff) | 2.85GHz | High Pass | - | 2.86dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VHF-1760+RF FILTER HIGH PASS 1.76GHZ SMA |
15 |
|
Datasheet |
VHF-1760+ | SMA In line Module | Box | Active | 1.76GHz (Cutoff) | 3.6GHz | High Pass | - | 1.91dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VHF-1300+RF FILTER HIGH PASS 1.3GHZ SMA |
13 |
|
Datasheet |
VHF-1300+ | SMA In line Module | Box | Active | 1.3GHz (Cutoff) | 3.6GHz | High Pass | - | 3dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VHF-740+RF FILTER HIGH PASS 740MHZ SMA |
12 |
|
Datasheet |
VHF-740+ | SMA In line Module | Box | Active | 740MHz (Cutoff) | 2.02GHz | High Pass | - | 2.07dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VHF-650+RF FILTER HIGH PASS 650MHZ SMA |
12 |
|
Datasheet |
VHF-650+ | SMA In line Module | Box | Active | 650MHz (Cutoff) | 1.78GHz | High Pass | - | 3.57dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VLF-1450+RF FILTER LOW PASS 1.825GHZ SMA |
11 |
|
Datasheet |
VLF-1450+ | SMA In line Module | Box | Active | 1.825GHz (Cutoff) | - | Low Pass | - | 10.28dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VHF-2000+RF FILTER HIGH PASS 2GHZ SMA |
10 |
|
Datasheet |
VHF-2000+ | SMA In line Module | Box | Active | 2GHz (Cutoff) | 3.99GHz | High Pass | - | 3dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VHF-3800+RF FILTER HIGH PASS 7.125GHZ SMA |
10 |
|
Datasheet |
VHF-3800+ | SMA In line Module | Box | Active | 7.125GHz Center | 5.75GHz | High Pass | - | 2dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VLF-160+RF FILTER LOW PASS 230MHZ SMA |
10 |
|
Datasheet |
VLF-160+ | SMA In line Module | Box | Active | 230MHz (Cutoff) | - | Low Pass | - | - | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VHF-8400+RF FILTER HIGH PASS 8.4GHZ SMA |
10 |
|
Datasheet |
VHF-8400+ | SMA In line Module | Box | Active | 8.4GHz (Cutoff) | 4GHz | High Pass | - | 3dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VLF-530+RF FILTER LOW PASS 700MHZ SMA |
9 |
|
Datasheet |
VLF-530+ | SMA In line Module | Box | Active | 700MHz (Cutoff) | - | Low Pass | - | 3.52dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
RF Filters Electronic Components
Explore RF Filters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
