RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE3537B1362RF FILTER BANDPASS 3.5375GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 3.5375GHz Center | 50MHz | Band Pass | - | 1dB | Chassis Mount | 3.858" L x 2.638" W (98.00mm x 67.00mm) | 0.984" (25.00mm) |
|
|
AE3337B1364RF FILTER BANDPASS 3.3375GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 3.3375GHz Center | 50MHz | Band Pass | - | 1dB | Chassis Mount | 3.858" L x 2.638" W (98.00mm x 67.00mm) | 0.984" (25.00mm) |
|
|
AB2436B480RF FILTER BANDPASS 2.4365GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.4365GHz Center | 70MHz | Band Pass | 0.2dB | 1.1dB | Chassis Mount | 4.843" L x 2.795" W (123.00mm x 71.00mm) | 1.220" (31.00mm) |
|
|
AE1775B10824RF FILTER BAND PASS 1.775GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.775GHz Center | 150MHz | Band Pass | - | 2dB | Chassis Mount | 1.750" L x 0.500" W (44.45mm x 12.70mm) | 0.400" (10.16mm) |
|
|
AE3437B1361RF FILTER BANDPASS 3.4375GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 3.4375GHz Center | 50MHz | Band Pass | - | 1dB | Chassis Mount | 3.858" L x 2.638" W (98.00mm x 67.00mm) | 0.984" (25.00mm) |
|
|
AE70B9056RF FILTER BAND PASS 70MHZ 16SMD |
178 |
|
Datasheet |
- | 16-SMD Module | Box | Active | 70MHz Center | 20MHz | Band Pass | - | - | Surface Mount | 1.500" L x 0.500" W (38.10mm x 12.70mm) | 0.400" (10.16mm) |
|
|
AE9L8840RF FILTER LOW PASS 9MHZ BNC |
100 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 9MHz (Cutoff) | 4.5MHz | Low Pass | - | 3.5dB | Chassis Mount | 2.500" L x 1.125" W (63.50mm x 28.58mm) | 0.750" (19.05mm) |
|
|
AE769B11300RF FILTER BANDPASS 769MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 769MHz Center | 27MHz | Band Pass | - | 1.3dB | Chassis Mount | 5.437" L x 3.071" W (138.10mm x 78.00mm) | 0.886" (22.50mm) |
|
|
AE290B10529RF FILTER BANDPASS 290MHZ MODULE |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | 290MHz Center | 3MHz | Band Pass | - | 4dB | Chassis Mount | 5.750" L x 3.000" W (146.05mm x 76.20mm) | 1.200" (30.48mm) |
|
AE1825B11638RF FILTER BANDPASS 1.8255GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.8255GHz Center | 350.5MHz | Band Pass | - | 1dB | Chassis Mount | 3.602" L x 1.575" W (91.50mm x 40.00mm) | 0.799" (20.30mm) |
|
|
AE5B10714RF FILTER BAND PASS 5MHZ BNC |
100 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 5MHz Center | 800kHz | Band Pass | 0.5dB | 10dB | Chassis Mount | 4.000" L x 2.000" W (101.60mm x 50.80mm) | 1.000" (25.40mm) |
|
|
AB5775B785RF FILTER BAND PASS 5.775GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 5.775GHz Center | 40MHz | Band Pass | - | - | Chassis Mount | 3.500" L x 3.500" W (88.90mm x 88.90mm) | 1.500" (38.10mm) |
|
|
AB5592B786RF FILTER BANDPASS 5.5925GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 5.5925GHz Center | 205MHz | Band Pass | - | 3dB | Chassis Mount | 3.500" L x 3.500" W (88.90mm x 88.90mm) | 1.500" (38.10mm) |
|
|
AE30B10499RF FILTER BAND PASS 30MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 30MHz Center | 1.5MHz | Band Pass | - | - | Chassis Mount | 4.000" L x 1.000" W (101.60mm x 25.40mm) | 1.000" (25.40mm) |
|
AE1437B11861RF FILTER BANDPASS 1.4375GHZ MOD |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | 1.4375GHz Center | 125MHz | Band Pass | - | 1dB | Chassis Mount | 4.488" L x 2.362" W (114.00mm x 60.00mm) | 1.654" (42.00mm) |
|
|
AE485B11280RF FILTER BAND PASS 485MHZ 8DIP |
100 |
|
Datasheet |
- | 8-DIP Module | Box | Active | 485MHz Center | 10MHz | Band Pass | - | 7dB | Through Hole | 2.250" L x 0.340" W (57.15mm x 8.64mm) | 0.687" (17.45mm) |
|
|
AE495B11258RF FILTER BAND PASS 495MHZ 8DIP |
100 |
|
Datasheet |
- | 8-DIP Module | Box | Active | 495MHz Center | 10MHz | Band Pass | - | 7dB | Through Hole | 2.250" L x 0.340" W (57.15mm x 8.64mm) | 0.687" (17.45mm) |
|
|
AE127B11874RF FILTER BAND PASS 127.5MHZ MOD |
100 |
|
- |
- | Module | Box | Active | 127.5MHz Center | 19MHz | Band Pass | - | - | Chassis Mount | - | - |
|

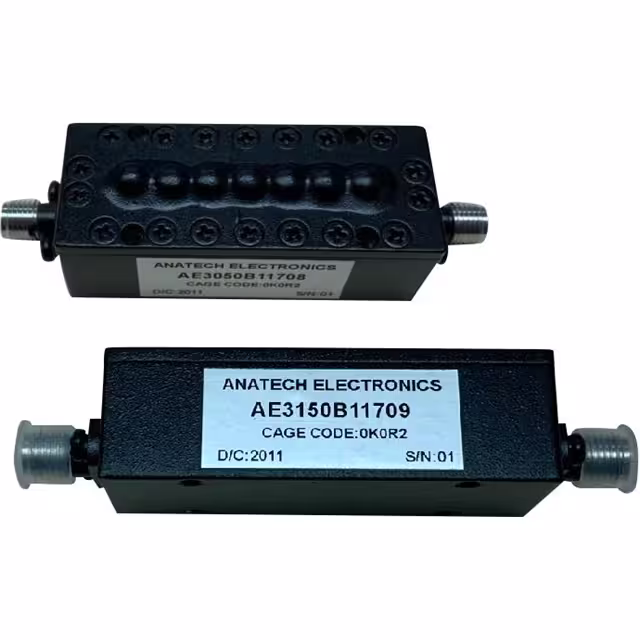

AE3150B11709RF FILTER BAND PASS 3.15GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 3.15GHz Center | 100MHz | Band Pass | - | 0.7dB | Chassis Mount | 1.969" L x 0.787" W (50.00mm x 20.00mm) | 0.748" (19.00mm) |
|
AE2400H9903RF FILTER HI PASS 2.4GHZ MODULE |
100 |
|
- |
- | Module | Box | Active | 2.4GHz (Cutoff) | 3.6GHz | High Pass | - | 1dB | Chassis Mount | 1.350" L x 1.250" W (34.29mm x 31.75mm) | 0.750" (19.05mm) |
