RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AB907B1099RF FILTER BANDPASS 907MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 907MHz Center | 5MHz | Band Pass | 0.2dB | 1.75dB | Chassis Mount | 5.512" L x 3.150" W (140.00mm x 80.00mm) | 2.094" (53.20mm) |
|
|
AE76H9850RF FILTER HIGH PASS 76MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 76MHz (Cutoff) | 924MHz | High Pass | - | 1dB | Chassis Mount | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.400" (10.16mm) |
|
|
AB917B1101RF FILTER BANDPASS 917MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 917MHz Center | 5MHz | Band Pass | 0.2dB | 1.75dB | Chassis Mount | 5.512" L x 3.150" W (140.00mm x 80.00mm) | 2.094" (53.20mm) |
|
|
AE713B9135RF FILTER BANDPASS 713MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 713MHz Center | 18MHz | Band Pass | 0.2dB | 1.2dB | Chassis Mount | 4.250" L x 2.500" W (107.95mm x 63.50mm) | 0.737" (18.72mm) |
|
|
AE5865B1394RF FILTER BANDPASS 5.865GHZ TNC |
100 |
|
Datasheet |
- | TNC In-Line Module | Box | Active | 5.865GHz Center | 20MHz | Band Pass | 0.2dB | 1.75dB | Chassis Mount | 5.394" L x 3.858" W (137.00mm x 98.00mm) | 1.276" (32.40mm) |
|
|
AE1450B10339RF FILTER BAND PASS 1.45GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 1.45GHz Center | 500MHz | Band Pass | - | 3dB | Chassis Mount | 2.000" L x 0.500" W (50.80mm x 12.70mm) | 0.400" (10.16mm) |
|
AE100H9835RF FILTER HI PASS 100MHZ MODULE |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | 100MHz (Cutoff) | 900MHz | High Pass | - | 3dB | Chassis Mount | 2.500" L x 0.750" W (63.50mm x 19.05mm) | 0.500" (12.70mm) |
|
AE105B11862RF FILTER BANDPASS 105MHZ MODULE |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | 105MHz Center | 140MHz | Band Pass | 0.5dB | 1dB | Chassis Mount | 2.500" L x 0.750" W (63.50mm x 19.05mm) | 0.500" (12.70mm) |
|
|
AB4700B526RF FILTER BANDPASS 4.7GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 4.7GHz Center | 120MHz | Band Pass | 0.1dB | 0.8dB | Chassis Mount | 6.535" L x 2.197" W (166.00mm x 55.80mm) | 0.720" (18.30mm) |
|
AE310B10542RF FILTER BANDPASS 310MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 310MHz Center | 380MHz | Band Pass | - | 3dB | Chassis Mount | 1.500" L x 0.750" W (38.10mm x 19.05mm) | 0.500" (12.70mm) |
|
|
AE2507B1403RF FILTER BAND PASS 2.507GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 2.507GHz Center | 10MHz | Band Pass | - | 1dB | Chassis Mount | 4.125" L x 1.500" W (104.78mm x 38.10mm) | 1.000" (25.40mm) |
|
|
AB5505B732RF FILTER BAND PASS 5.55GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 5.55GHz Center | 40MHz | Band Pass | - | 1.75dB | Chassis Mount | 3.500" L x 3.500" W (88.90mm x 88.90mm) | 1.500" (38.10mm) |
|
|
AB5555B1052RF FILTER BAND PASS 5.555GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 5.555GHz Center | 20MHz | Band Pass | - | 1.75dB | Chassis Mount | 3.283" L x 3.283" W (83.40mm x 83.40mm) | 1.354" (34.40mm) |
|
|
AB5575B1047RF FILTER BAND PASS 5.575GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 5.575GHz Center | 20MHz | Band Pass | - | 1.75dB | Chassis Mount | 3.283" L x 3.283" W (83.40mm x 83.40mm) | 1.354" (34.40mm) |
|
WIFI2462-11RF FILTER BAND PASS 2.462GHZ MOD |
100 |
|
- |
- | Module | Box | Active | 2.462GHz Center | 22MHz | Band Pass | 1.2dB | 3dB | Chassis Mount | 4.252" L x 2.205" W (108.00mm x 56.00mm) | 1.024" (26.00mm) |
|
WIFI2437-6RF FILTER BAND PASS 2.437GHZ MOD |
100 |
|
- |
- | Module | Box | Active | 2.437GHz Center | 22MHz | Band Pass | 1.2dB | 3dB | Chassis Mount | 4.252" L x 2.205" W (108.00mm x 56.00mm) | 1.024" (26.00mm) |
|
WIFI2412-1RF FILTER BAND PASS 2.412GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 2.412GHz Center | 22MHz | Band Pass | 1.2dB | 3dB | Chassis Mount | 4.252" L x 2.205" W (108.00mm x 56.00mm) | 1.024" (26.00mm) |
|

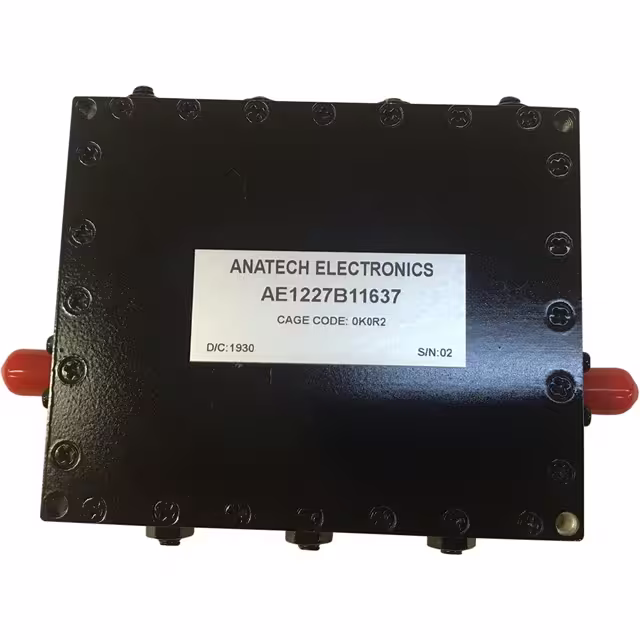

AE1227B11637RF FILTER BANDPASS 1.2275GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.2275GHz Center | 354.5MHz | Band Pass | - | 1dB | Chassis Mount | 3.055" L x 2.677" W (77.60mm x 68.00mm) | 0.799" (20.30mm) |
|
|
AE455B11272RF FILTER BAND PASS 455MHZ 8DIP |
100 |
|
Datasheet |
- | 8-DIP Module | Box | Active | 455MHz Center | 10MHz | Band Pass | 0.2dB | 5.75dB | Through Hole | 2.500" L x 0.380" W (63.50mm x 9.65mm) | 0.690" (17.53mm) |
|
|
AB2492B1246RF FILTER BAND PASS 2.492GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 2.492GHz Center | 22MHz | Band Pass | 1.2dB | 3dB | Chassis Mount | 4.252" L x 2.205" W (108.00mm x 56.00mm) | 1.024" (26.00mm) |
RF Filters Electronic Components
Explore RF Filters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
