RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE250B8813RF FILTER BAND PASS 250MHZ BNC |
100 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 250MHz Center | - | Band Pass | 0.1dB | 2dB | Chassis Mount | 2.380" L x 1.000" W (60.45mm x 25.40mm) | 1.000" (25.40mm) |
|
|
AB2440B1163RF FILTER BAND PASS 2.44GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 2.44GHz Center | 22MHz | Band Pass | 1.2dB | 3dB | Chassis Mount | 4.252" L x 2.205" W (108.00mm x 56.00mm) | 1.024" (26.00mm) |
|
|
AB2410B1162RF FILTER BAND PASS 2.41GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 2.41GHz Center | 22MHz | Band Pass | 1.2dB | 3dB | Chassis Mount | 4.252" L x 2.205" W (108.00mm x 56.00mm) | 1.024" (26.00mm) |
|
|
AB2470B1164RF FILTER BAND PASS 2.47GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 2.47GHz Center | 22MHz | Band Pass | 1.2dB | 3dB | Chassis Mount | 4.252" L x 2.205" W (108.00mm x 56.00mm) | 1.024" (26.00mm) |
|
|
AE390B10236RF FILTER BANDPASS 390MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 390MHz Center | - | Band Pass | - | 2dB | Chassis Mount | 1.500" L x 0.750" W (38.10mm x 19.05mm) | 0.500" (12.70mm) |
|
|
AE608B9621RF FILTER BAND PASS 608MHZ BNC |
100 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 608MHz Center | 60MHz | Band Pass | - | 1dB | Chassis Mount | 4.000" L x 1.250" W (101.60mm x 31.75mm) | 0.750" (19.05mm) |
|
|
AE500B10400RF FILTER BAND PASS 500MHZ BNC |
100 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 500MHz Center | 60MHz | Band Pass | - | 1dB | Chassis Mount | 4.000" L x 1.250" W (101.60mm x 31.75mm) | 0.750" (19.05mm) |
|
|
AB913B488RF FILTER BANDPASS 913MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 913MHz Center | 20MHz | Band Pass | 1dB | 1.6dB | Chassis Mount | 5.512" L x 4.450" W (140.00mm x 113.02mm) | 2.213" (56.20mm) |
|
|
AB5290B1165RF FILTER BAND PASS 5.29GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 5.29GHz Center | 80MHz | Band Pass | - | 0.7dB | Chassis Mount | 2.382" L x 1.760" W (60.50mm x 44.70mm) | 0.906" (23.00mm) |
|
|
AB5540B1166RF FILTER BAND PASS 5.54GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 5.54GHz Center | 100MHz | Band Pass | - | 0.9dB | Chassis Mount | 3.307" L x 1.760" W (84.00mm x 44.70mm) | 0.906" (23.00mm) |
|

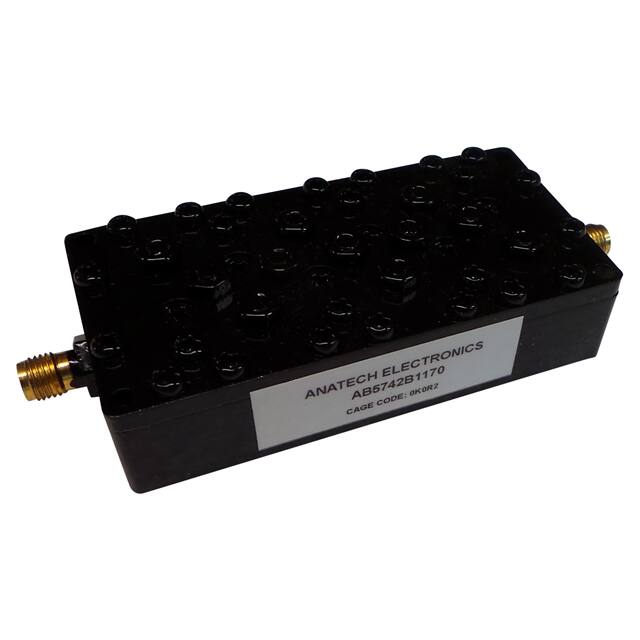

AB5742B1170RF FILTER BANDPASS 5.7425GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 5.7425GHz Center | 185MHz | Band Pass | - | 1dB | Chassis Mount | 2.827" L x 1.417" W (71.80mm x 36.00mm) | 0.827" (21.00mm) |
|
AE1780B11642RF FILTER BAND PASS 1.78GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.78GHz Center | 140MHz | Band Pass | - | 1dB | Chassis Mount | 3.701" L x 1.969" W (94.00mm x 50.00mm) | 1.457" (37.00mm) |
|

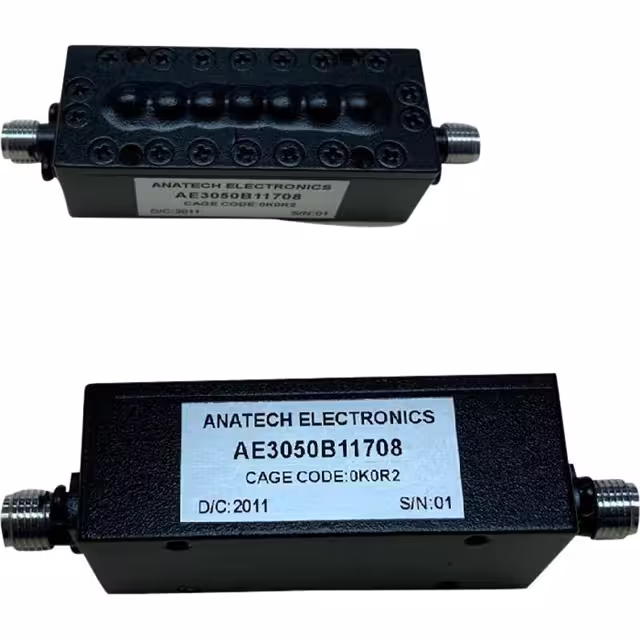

AE3050B11708RF FILTER BAND PASS 3.05GHZ MOD |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | 3.05GHz Center | 100MHz | Band Pass | - | 0.7dB | Chassis Mount | 1.969" L x 0.787" W (50.00mm x 20.00mm) | 0.748" (19.00mm) |
|
|
AE1200B11286RF FILTER BANDPASS 1.2GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.2GHz Center | 400MHz | Band Pass | - | 1dB | Chassis Mount | 1.500" L x 0.750" W (38.10mm x 19.05mm) | 0.500" (12.70mm) |
|
|
AB914B1098RF FILTER BAND PASS 914.5MHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 914.5MHz Center | 20MHz | Band Pass | - | 1.5dB | Chassis Mount | 5.512" L x 3.150" W (140.00mm x 80.00mm) | 2.098" (53.30mm) |
|
|
AB5640B961RF FILTER BAND PASS 5.64GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 5.64GHz Center | 20MHz | Band Pass | 0.2dB | 1.75dB | Chassis Mount | 3.283" L x 3.283" W (83.40mm x 83.40mm) | 1.354" (34.40mm) |
|
AE8H9790RF FILTER HIGH PASS 8MHZ BNC |
100 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 8MHz (Cutoff) | 232MHz | High Pass | - | 0.5dB | Chassis Mount | 2.500" L x 1.125" W (63.50mm x 28.58mm) | 0.750" (19.05mm) |
|
AB5510B563RF FILTER BAND PASS 5.51GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 5.51GHz Center | 20MHz | Band Pass | - | 1.75dB | Chassis Mount | 3.283" L x 3.283" W (83.40mm x 83.40mm) | 1.276" (32.40mm) |
|
|
AB5550B565RF FILTER BAND PASS 5.55GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 5.55GHz Center | 20MHz | Band Pass | 0.2dB | 1.75dB | Chassis Mount | 3.283" L x 3.283" W (83.40mm x 83.40mm) | 1.354" (34.40mm) |
|
|
AB5835B1257RF FILTER BAND PASS 5.835GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 5.835GHz Center | 20MHz | Band Pass | 0.2dB | 1.75dB | Chassis Mount | 5.394" L x 3.858" W (137.00mm x 98.00mm) | 1.276" (32.40mm) |
RF Filters Electronic Components
Explore RF Filters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
