RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE3.10B10718RF FILTER BAND PASS 3.1MHZ BNC |
100 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 3.1MHz Center | 81kHz | Band Pass | 0.5dB | 10dB | Chassis Mount | 4.000" L x 2.000" W (101.60mm x 50.80mm) | 1.000" (25.40mm) |
|

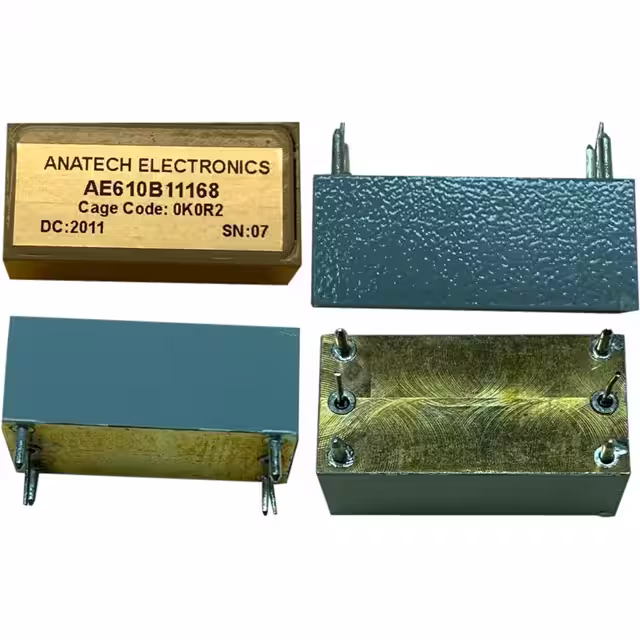

AE610B11168RF FILTER BAND PASS 610MHZ 6DIP |
100 |
|
Datasheet |
- | 6-DIP Module | Box | Active | 610MHz Center | 8MHz | Band Pass | 0.25dB | 9.5dB | Through Hole | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.400" (10.16mm) |
|
|
AB5310B969RF FILTER BAND PASS 5.31GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 5.31GHz Center | 40MHz | Band Pass | - | 1.75dB | Chassis Mount | 3.500" L x 3.500" W (88.90mm x 88.90mm) | 1.500" (38.10mm) |
|

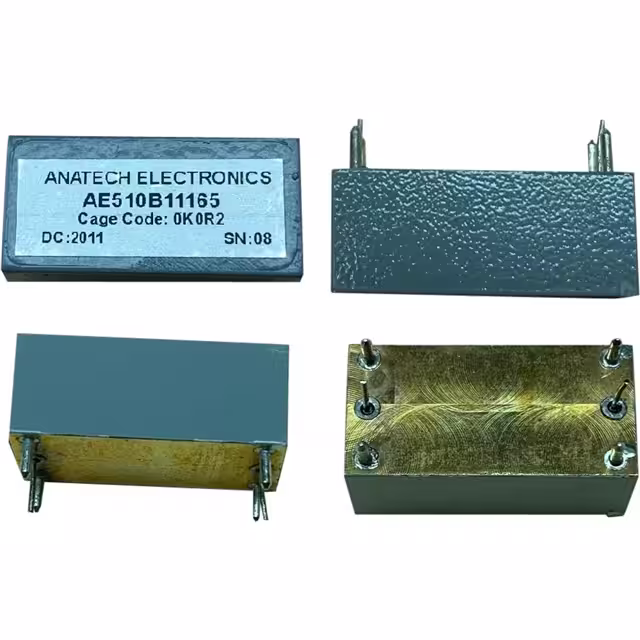

AE510B11165RF FILTER BAND PASS 510MHZ 6DIP |
100 |
|
Datasheet |
- | 6-DIP Module | Box | Active | 510MHz Center | 8MHz | Band Pass | 0.25dB | 9.5dB | Through Hole | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.400" (10.16mm) |
|
|
AB912B485RF FILTER BAND PASS 912.5MHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 912.5MHz Center | 21MHz | Band Pass | - | 1.5dB | Chassis Mount | 5.512" L x 3.150" W (140.00mm x 80.00mm) | 2.098" (53.30mm) |
|

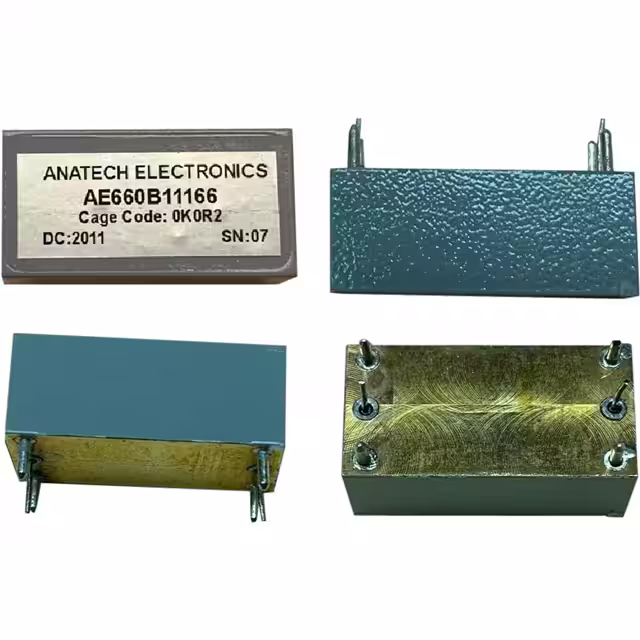

AE660B11166RF FILTER BAND PASS 660MHZ 6DIP |
100 |
|
Datasheet |
- | 6-DIP Module | Box | Active | 660MHz Center | 8MHz | Band Pass | 0.25dB | 9.5dB | Through Hole | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.400" (10.16mm) |
|

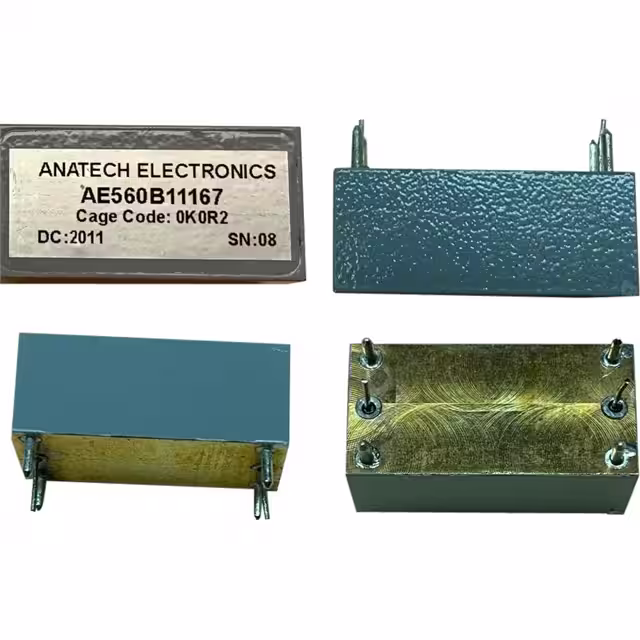

AE560B11167RF FILTER BAND PASS 560MHZ 6DIP |
100 |
|
Datasheet |
- | 6-DIP Module | Box | Active | 560MHz Center | 8MHz | Band Pass | 0.25dB | 9.5dB | Through Hole | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.400" (10.16mm) |
|

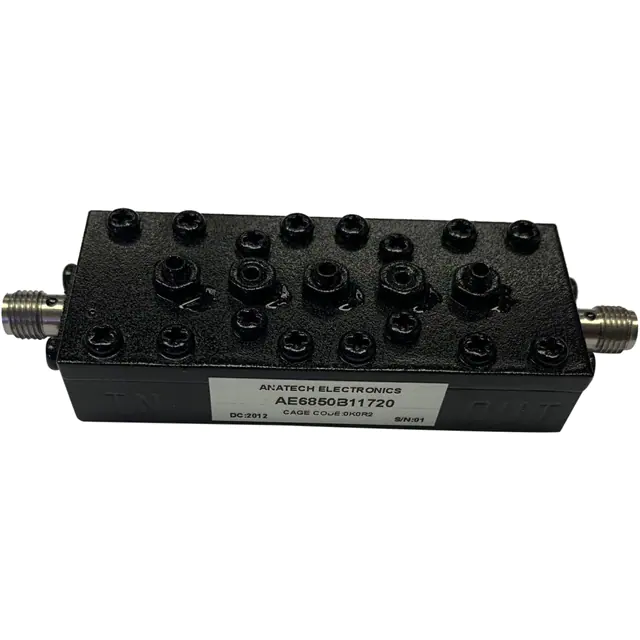

AE6850B11720RF FILTER BAND PASS 6.85GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 6.85GHz Center | 20MHz | Band Pass | - | 2dB | Chassis Mount | 2.402" L x 0.984" W (61.00mm x 25.00mm) | 0.709" (18.00mm) |
|
|
AB907B781RF FILTER BANDPASS 907MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 907MHz Center | 18MHz | Band Pass | - | 1dB | Chassis Mount | 5.512" L x 3.150" W (140.00mm x 80.00mm) | 2.098" (53.30mm) |
|
|
AE745L9115RF FILTER LOW PASS 745MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 745MHz (Cutoff) | - | Low Pass | - | 1.5dB | Chassis Mount | 1.000" L x 1.000" W (25.40mm x 25.40mm) | 0.900" (22.86mm) |
|
AB1880B1221RF FILTER BAND PASS 1.88GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.88GHz Center | 20MHz | Band Pass | - | 2dB | Chassis Mount | 4.122" L x 1.000" W (104.70mm x 25.40mm) | 1.500" (38.10mm) |
|
|
AB922B1102RF FILTER BANDPASS 922MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 922MHz Center | 5MHz | Band Pass | 0.2dB | 1.75dB | Chassis Mount | 5.512" L x 3.150" W (140.00mm x 80.00mm) | 2.094" (53.20mm) |
|
|
AE45B6758RF FILTER BAND PASS 45MHZ 6DIP |
100 |
|
Datasheet |
- | 6-DIP Module | Box | Active | 45MHz Center | 10MHz | Band Pass | 0.1dB | - | Through Hole | 1.500" L x 0.750" W (38.10mm x 19.05mm) | 0.500" (12.70mm) |
|
|
AB5800B772RF FILTER BANDPASS 5.8GHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 5.8GHz Center | 10MHz | Band Pass | 0.2dB | 1.75dB | Chassis Mount | 5.394" L x 3.858" W (137.00mm x 98.00mm) | 1.276" (32.40mm) |
|
|
AE6250B11304RF FILTER BAND PASS 6.25GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 6.25GHz Center | 20MHz | Band Pass | - | 1.75dB | Chassis Mount | 3.283" L x 3.283" W (83.40mm x 83.40mm) | 1.354" (34.40mm) |
|
|
AE5750B11307RF FILTER BAND PASS 5.75GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 5.75GHz Center | 20MHz | Band Pass | - | 1.75dB | Chassis Mount | 3.283" L x 3.283" W (83.40mm x 83.40mm) | 1.354" (34.40mm) |
|
|
AB5745B579RF FILTER BAND PASS 5.745GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 5.745GHz Center | 40MHz | Band Pass | - | 1.75dB | Chassis Mount | 3.500" L x 3.500" W (88.90mm x 88.90mm) | 1.500" (38.10mm) |
|
|
AB915B662-SRF FILTER BANDPASS 915MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 915MHz Center | 26MHz | Band Pass | - | 1.5dB | Chassis Mount | 5.512" L x 3.150" W (140.00mm x 80.00mm) | 2.098" (53.30mm) |
|
|
AE8016B6885RF FILTER BAND PASS 8.016GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 8.016GHz Center | 901MHz | Band Pass | - | 1dB | Chassis Mount | 1.100" L x 0.500" W (27.94mm x 12.70mm) | 0.500" (12.70mm) |
|
|
AE5787B11499RF FILTER BANDPASS 5.7875GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 5.7875GHz Center | 135MHz | Band Pass | 0.25dB | 0.75dB | Chassis Mount | 3.000" L x 2.000" W (76.20mm x 50.80mm) | 1.339" (34.00mm) |
