RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE4010B11635RF FILTER BAND PASS 4.01GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 4.01GHz Center | 15MHz | Band Pass | - | 3.5dB | Chassis Mount | 2.638" L x 1.654" W (67.00mm x 42.00mm) | 0.984" (25.00mm) |
|
AE10B5953RF FILTER BAND PASS 10MHZ MODULE |
97 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 10MHz Center | 150kHz | Band Pass | - | - | Chassis Mount | 3.750" L x 1.000" W (95.25mm x 25.40mm) | 0.500" (12.70mm) |
|
AE1000L8871RF FILTER LOW PASS 1GHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 1GHz (Cutoff) | 1GHz | Low Pass | - | 1dB | Chassis Mount | 2.500" L x 1.250" W (63.50mm x 31.75mm) | 1.000" (25.40mm) |
|
|
AB1370B1263RF FILTER BAND PASS 1.37GHZ MOD |
99 |
|
Datasheet |
- | Module | Box | Active | 1.37GHz Center | 20MHz | Band Pass | - | 3dB | Chassis Mount | 3.346" L x 2.094" W (85.00mm x 53.20mm) | 1.732" (44.00mm) |
|
AB915B475RF FILTER BANDPASS 915MHZ MODULE |
93 |
|
Datasheet |
- | Module | Box | Active | 915MHz Center | 26MHz | Band Pass | 0.2dB | 1.5dB | Chassis Mount | 4.724" L x 2.362" W (120.00mm x 60.00mm) | 1.902" (48.30mm) |
|
AB10700B1324RF FILTER BAND PASS 10.7GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 10.7GHz Center | 2.6GHz | Band Pass | - | 1.5dB | Chassis Mount | 3.030" L x 0.590" W (76.96mm x 14.99mm) | 0.350" (8.89mm) |
|
|
AE10000B10625RF FILTER BAND PASS 10GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 10GHz Center | 200MHz | Band Pass | - | 1.7dB | Chassis Mount | 0.400" L x 1.500" W (10.16mm x 38.10mm) | 0.750" (19.05mm) |
|
|
AE2170L9092-SRF FILTER LOWPASS 2.17GHZ MODULE |
98 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.17GHz (Cutoff) | 370MHz | Low Pass | - | 0.5dB | Chassis Mount | 1.500" L x 0.500" W (38.10mm x 12.70mm) | 0.400" (10.16mm) |
|
|
AB4940B525RF FILTER BAND PASS 4.94GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 4.94GHz Center | 20MHz | Band Pass | 0.1dB | 0.8dB | Chassis Mount | 6.535" L x 2.197" W (166.00mm x 55.80mm) | 0.720" (18.30mm) |
|
AE24840WB11805RF FILTER BAND PASS 24.84GHZ MOD |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | 24.84GHz Center | 1GHz | Band Pass | 0.3dB | 1.5dB | Chassis Mount | 2.362" L x 0.630" W (60.00mm x 16.00mm) | 0.433" (11.00mm) |
|
|
AB1176B1209RF FILTER BAND PASS 1.176GHZ MOD |
99 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.176GHz Center | 20MHz | Band Pass | 0.2dB | 1dB | Chassis Mount | 2.933" L x 1.870" W (74.50mm x 47.50mm) | 1.732" (44.00mm) |
|
|
AE0.6L8835RF FILTER LOW PASS 600KHZ BNC |
100 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 600kHz (Cutoff) | 300kHz | Low Pass | - | 3.5dB | Chassis Mount | 2.500" L x 1.125" W (63.50mm x 28.58mm) | 0.750" (19.05mm) |
|
AE15000SSL1028RF FILTER LOW PASS 15GHZ MODULE |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | 15GHz (Cutoff) | - | Low Pass | - | 2.5dB | Chassis Mount | 0.827" L x 0.669" W (21.00mm x 17.00mm) | 0.394" (10.00mm) |
|
AE2725B11625RF FILTER BAND PASS 2.725GHZ MOD |
98 |
|
Datasheet |
- | Module | Box | Active | 2.725GHz Center | 20MHz | Band Pass | - | 3dB | Chassis Mount | 4.685" L x 3.189" W (119.00mm x 81.00mm) | 1.181" (30.00mm) |
|
|
AE659B1372RF FILTER BANDPASS 659MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 659MHz Center | 18MHz | Band Pass | - | 1dB | Chassis Mount | 4.094" L x 2.795" W (104.00mm x 71.00mm) | 2.520" (64.00mm) |
|
|
AB3700B1344RF FILTER BANDPASS 3.7GHZ MODULE |
99 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 3.7GHz Center | 200MHz | Band Pass | - | 2.5dB | Chassis Mount | 4.134" L x 3.150" W (105.00mm x 80.00mm) | 0.984" (25.00mm) |
|
|
AE4000L8873RF FILTER LOW PASS 4GHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 4GHz (Cutoff) | 4GHz | Low Pass | - | 1dB | Chassis Mount | 2.500" L x 1.250" W (63.50mm x 31.75mm) | 1.000" (25.40mm) |
|

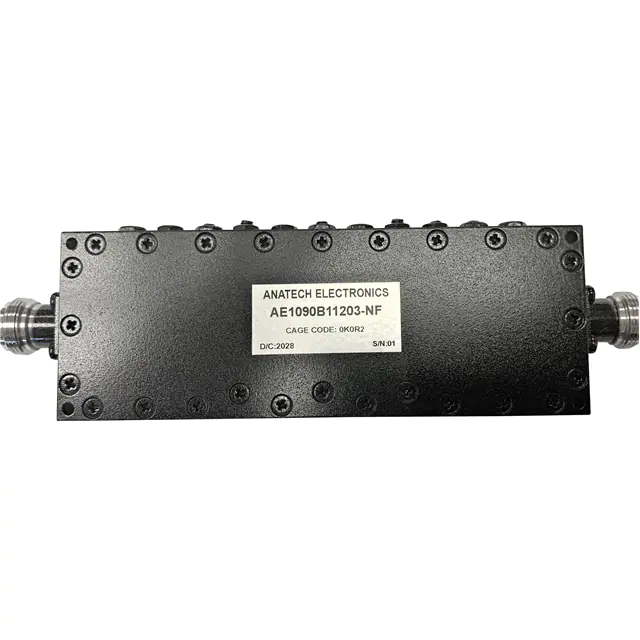

AE1090B11203-NFRF FILTER BAND PASS 1.09GHZ MOD |
98 |
|
Datasheet |
- | Module | Box | Active | 1.09GHz Center | 60MHz | Band Pass | 0.4dB | 1.2dB | Chassis Mount | 5.276" L x 2.126" W (134.00mm x 54.00mm) | 0.937" (23.80mm) |
|
AE1500B11711RF FILTER BANDPASS 1.5GHZ MODULE |
97 |
|
- |
- | Module | Box | Active | 1.5GHz Center | 140MHz | Band Pass | - | 1.25dB | Chassis Mount | - | - |
|
|
AB15285B677RF FILTER BANDPASS 15.285GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 15.285GHz Center | 120MHz | Band Pass | 0.2dB | 3dB | Chassis Mount | 2.500" L x 0.500" W (63.50mm x 12.70mm) | 0.500" (12.70mm) |
RF Filters Electronic Components
Explore RF Filters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
