RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP0AA3160A700RF FILTER LOWPASS 3.16GHZ 16ULGA |
280 |
|
Datasheet |
LP | 16-ULGA | Bulk | Obsolete | 3.16GHz | - | Low Pass | - | - | Surface Mount | 0.259" L x 0.156" W (6.58mm x 3.98mm) | 0.022" (0.56mm) |
.jpg)
|
HF0AA6380A700RF FILT HIGH PASS 6.38GHZ 16ULGA |
113 |
|
Datasheet |
HF | 16-ULGA | Bulk | Active | 6.38GHz | - | High Pass | - | 1.2dB | Surface Mount | 0.259" L x 0.156" W (6.58mm x 3.98mm) | 0.022" (0.56mm) |
|
LP0AA3160A7TR\250RF FILTER LOWPASS 3.16GHZ 16ULGA |
619 |
|
Datasheet |
LP | 16-ULGA | Tape & Reel (TR) | Obsolete | 3.16GHz | - | Low Pass | - | - | Surface Mount | 0.259" L x 0.156" W (6.58mm x 3.98mm) | 0.022" (0.56mm) |
.jpg)
|
HF0AA6510A700RF FILT HIGH PASS 6.51GHZ 16ULGA |
280 |
|
Datasheet |
HF | 16-ULGA | Bulk | Obsolete | 6.51GHz | - | High Pass | - | 1.2dB | Surface Mount | 0.259" L x 0.156" W (6.58mm x 3.98mm) | 0.022" (0.56mm) |
|
HF0AA3460A700RF FILT HIGH PASS 3.46GHZ 16ULGA |
260 |
|
Datasheet |
HF | 16-ULGA | Bulk | Obsolete | 3.46GHz | - | High Pass | - | 1.2dB | Surface Mount | 0.259" L x 0.156" W (6.58mm x 3.98mm) | 0.022" (0.56mm) |
|
LP0AA6160A700RF FILTER LOWPASS 6.16GHZ 16ULGA |
246 |
|
Datasheet |
LP | 16-ULGA | Bulk | Obsolete | 6.16GHz | - | Low Pass | - | - | Surface Mount | 0.259" L x 0.156" W (6.58mm x 3.98mm) | 0.022" (0.56mm) |
|
LP0AA1670A700RF FILTER LOWPASS 1.67GHZ 16ULGA |
218 |
|
Datasheet |
LP | 16-ULGA | Bulk | Active | 1.67GHz | - | Low Pass | - | - | Surface Mount | 0.259" L x 0.156" W (6.58mm x 3.98mm) | 0.022" (0.56mm) |
|
HF0BA1550A700RF FILT HIGH PASS 1.55GHZ 19ULGA |
219 |
|
Datasheet |
HF | 19-ULGA | Bulk | Active | 1.55GHz | - | High Pass | - | 1.2dB | Surface Mount | 0.306" L x 0.156" W (7.79mm x 3.98mm) | 0.022" (0.56mm) |
|
|
LP0BA1010A700RF FILTER LOWPASS 1.01GHZ 19ULGA |
125 |
|
Datasheet |
LP | 19-ULGA | Bulk | Obsolete | 1.01GHz | - | Low Pass | - | - | Surface Mount | 0.306" L x 0.156" W (7.79mm x 3.98mm) | 0.022" (0.56mm) |
|
LP0DA1780A700RF FILTER LOWPASS 1.78GHZ 25ULGA |
163 |
|
Datasheet |
LP | 25-ULGA | Bulk | Active | 1.78GHz | - | Low Pass | - | - | Surface Mount | 0.401" L x 0.156" W (10.20mm x 3.98mm) | 0.022" (0.56mm) |
|
|
LP0DA1880A700RF FILTER LOWPASS 1.88GHZ 25ULGA |
138 |
|
Datasheet |
LP | 25-ULGA | Bulk | Active | 1.88GHz | - | Low Pass | - | - | Surface Mount | 0.401" L x 0.156" W (10.20mm x 3.98mm) | 0.022" (0.56mm) |
|
|
LP0DA2200A700RF FILTER LOW PASS 2.2GHZ 25ULGA |
171 |
|
Datasheet |
LP | 25-ULGA | Bulk | Active | 2.2GHz | - | Low Pass | - | - | Surface Mount | 0.401" L x 0.156" W (10.20mm x 3.98mm) | 0.022" (0.56mm) |
.jpg)
|
LP0FA0057A700RF FILTER LOW PASS 57MHZ 31ULGA |
270 |
|
Datasheet |
LP | 31-ULGA | Bulk | Obsolete | 57MHz | - | Low Pass | - | - | Surface Mount | 0.511" L x 0.206" W (12.99mm x 5.25mm) | 0.022" (0.56mm) |
.jpg)
|
LP0FA0600A700RF FILTER LOW PASS 600MHZ 31ULGA |
142 |
|
Datasheet |
LP | 31-ULGA | Bulk | Active | 600MHz | - | Low Pass | - | - | Surface Mount | 0.511" L x 0.206" W (12.99mm x 5.25mm) | 0.022" (0.56mm) |
|

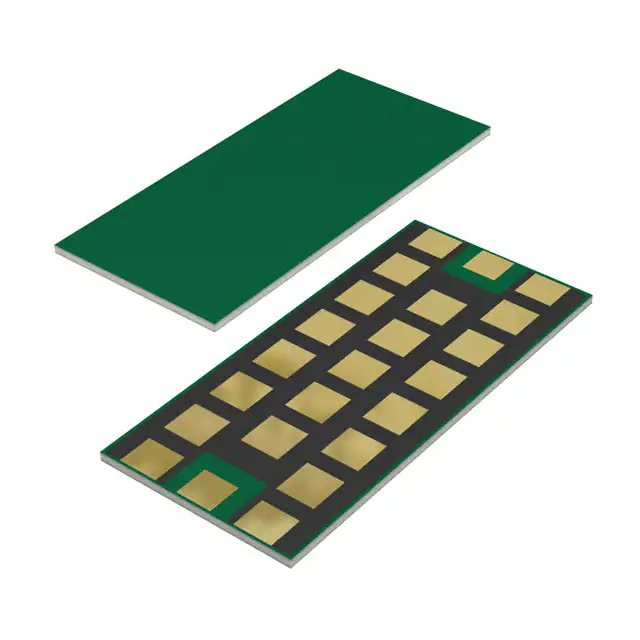

BP0CA1100A7TRRF FILTER BANDPASS 1.1GHZ 23ULGA |
392 |
|
Datasheet |
BP | 23-ULGA | Tape & Reel (TR) | Active | 1.1GHz | 530MHz | Band Pass | - | 1.18dB | Surface Mount | 0.340" L x 0.156" W (8.64mm x 3.98mm) | 0.022" (0.56mm) |
|
|
BP0EA1950A7TRRF FILT BAND PASS 1.95GHZ 30ULGA |
229 |
|
Datasheet |
BP | 30-ULGA | Tape & Reel (TR) | Active | 1.95GHz | 1.2GHz | Band Pass | - | 0.96dB | Surface Mount | 0.460" L x 0.170" W (11.68mm x 4.32mm) | 0.022" (0.56mm) |
|
|
EQY-5-283+RF FILTER LOW PASS 28GHZ 6TDFN |
445 |
|
Datasheet |
- | 6-TDFN Exposed Pad | Tape & Reel (TR) | Active | 28GHz (Cutoff) | - | Low Pass | - | 5.9dB | Surface Mount | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.041" (1.05mm) |
|
EQY-3-453+RF FILTER 6TDFN |
302 |
|
Datasheet |
- | 6-TDFN Exposed Pad | Tape & Reel (TR) | Active | - | - | - | - | - | Surface Mount | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.041" (1.05mm) |
|
|
EQY-9-453+RF FILTER 8.9DB 6TDFN |
292 |
|
Datasheet |
- | 6-TDFN Exposed Pad | Tape & Reel (TR) | Active | - | - | - | - | - | Surface Mount | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.041" (1.05mm) |
|
|
EQY-4-453+RF FILTER 6TDFN |
267 |
|
Datasheet |
- | 6-TDFN Exposed Pad | Tape & Reel (TR) | Active | - | - | - | - | - | Surface Mount | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.041" (1.05mm) |
RF Filters Electronic Components
Explore RF Filters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
