RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE10L8931RF FILTER LOW PASS 10MHZ MODULE |
99 |
|
Datasheet |
- | Module | Box | Active | 10MHz (Cutoff) | 10MHz | Low Pass | - | 0.5dB | Chassis Mount | 8.000" L x 2.000" W (203.20mm x 50.80mm) | 1.500" (38.10mm) |
|

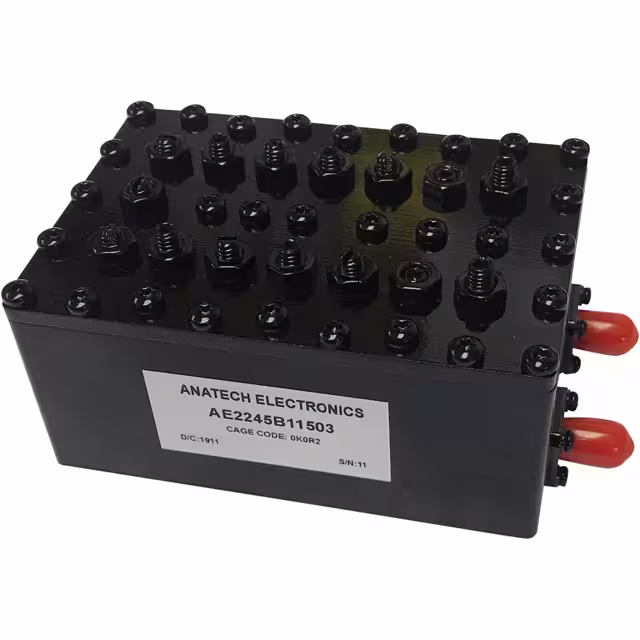

AE2245B11503RF FILTER BAND PASS 2.245GHZ MOD |
97 |
|
- |
- | Module, SMA Connectors | Box | Active | 2.245GHz Center | 90MHz | Band Pass | 1.5dB | 1.5dB | Chassis Mount | 3.228" L x 2.205" W (82.00mm x 56.00mm) | 1.772" (45.00mm) |
|
|
AE100L9174RF FILTER LOW PASS 100MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 100MHz (Cutoff) | 100MHz | Low Pass | - | 0.6dB | Chassis Mount | 6.000" L x 1.500" W (152.40mm x 38.10mm) | 1.000" (25.40mm) |
|
|
AE40B4949RF FILTER BAND PASS 40MHZ MODULE |
97 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 40MHz Center | 2MHz | Band Pass | - | 2dB | Chassis Mount | 1.500" L x 0.750" W (38.10mm x 19.05mm) | 0.500" (12.70mm) |
|
|
AB14560B676RF FILTER BAND PASS 14.56GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 14.56GHz Center | 120MHz | Band Pass | - | 1.5dB | Chassis Mount | 2.500" L x 0.500" W (63.50mm x 12.70mm) | 0.500" (12.70mm) |
|
|
PE8703RF FILTER BAND PASS 1.575GHZ MOD |
26 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 1.575GHz Center | 20MHz | Band Pass | - | 1.5dB | Chassis Mount | 2.252" L x 1.551" W (57.20mm x 39.40mm) | 0.531" (13.50mm) |
|
AE13120B11046RF FILTER BAND PASS 13.12GHZ MOD |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | 13.12GHz Center | 2.02GHz | Band Pass | 1dB | 2dB | Chassis Mount | 1.720" L x 0.500" W (43.69mm x 12.70mm) | 0.390" (9.91mm) |
|
AB2440B520RF FILTER BAND PASS 2.44GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.44GHz Center | 80MHz | Band Pass | 0.2dB | 2dB | Chassis Mount | 6.732" L x 1.161" W (171.00mm x 29.50mm) | 0.787" (20.00mm) |
|
AE420L8961RF FILTER LOW PASS 420MHZ MODULE |
96 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 420MHz (Cutoff) | 320MHz | Low Pass | - | 0.6dB | Chassis Mount | 2.380" L x 1.000" W (60.45mm x 25.40mm) | 1.000" (25.40mm) |
|
|
PE87FL1014RF FILTER LOW PASS 2.2GHZ MODULE |
196 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 2.2GHz Center | 4.4GHz | Low Pass | - | 1.5dB | Chassis Mount | 1.598" L x 0.551" W (40.60mm x 14.00mm) | 0.451" (11.45mm) |
|
AE2000H9800RF FILTER HIGH PASS 2GHZ MODULE |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | 2GHz (Cutoff) | 8GHz | High Pass | - | 2dB | Chassis Mount | 1.000" L x 0.750" W (25.40mm x 19.05mm) | 0.750" (19.05mm) |
|
AE174L9206-SMAFRF FILTER LOW PASS 174MHZ MODULE |
98 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 174MHz (Cutoff) | - | Low Pass | - | 1dB | Chassis Mount | 4.000" L x 1.250" W (101.60mm x 31.75mm) | 0.750" (19.05mm) |
|
AB2350B1204RF FILTER BAND PASS 2.35GHZ MOD |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | 2.35GHz Center | 320MHz | Band Pass | - | 1dB | Chassis Mount | 5.217" L x 0.984" W (132.50mm x 25.00mm) | 0.945" (24.00mm) |
|
|
AB995B517RF FILTER BANDPASS 995MHZ MODULE |
97 |
|
- |
- | Module, SMA Connectors | Box | Active | 995MHz Center | 20MHz | Band Pass | 0.2dB | 2dB | Chassis Mount | 6.457" L x 3.307" W (164.00mm x 84.00mm) | 2.244" (57.00mm) |
|
|
AE2250B1366RF FILTER BAND PASS 2.25GHZ MOD |
95 |
|
Datasheet |
- | Module | Box | Active | 2.25GHz Center | 100MHz | Band Pass | 0.4dB | 0.8dB | Chassis Mount | 4.567" L x 2.520" W (116.00mm x 64.00mm) | 1.575" (40.00mm) |
|
|
AB3000B509RF FILTER BAND PASS 3GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 3GHz Center | 80MHz | Band Pass | 0.2dB | 3dB | Chassis Mount | 3.307" L x 3.307" W (84.00mm x 84.00mm) | 1.024" (26.00mm) |
|
AE8750.55B11379RF FILTER BANDPSS 8.75055GHZ MOD |
97 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 8.75055GHz Center | 25MHz | Band Pass | 0.05dB | 2dB | Chassis Mount | 4.000" L x 1.000" W (101.60mm x 25.40mm) | 0.720" (18.30mm) |
|
|
AB1737B1203RF FILTER BANDPASS 1.7375GHZ MOD |
95 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.7375GHz Center | 245MHz | Band Pass | - | 1dB | Chassis Mount | 4.724" L x 1.220" W (120.00mm x 31.00mm) | 0.957" (24.30mm) |
|
|
AE9350B11463RF FILTER BAND PASS 9.35GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 9.35GHz Center | 300MHz | Band Pass | - | 2dB | Chassis Mount | 3.031" L x 1.437" W (77.00mm x 36.50mm) | 0.906" (23.00mm) |
|

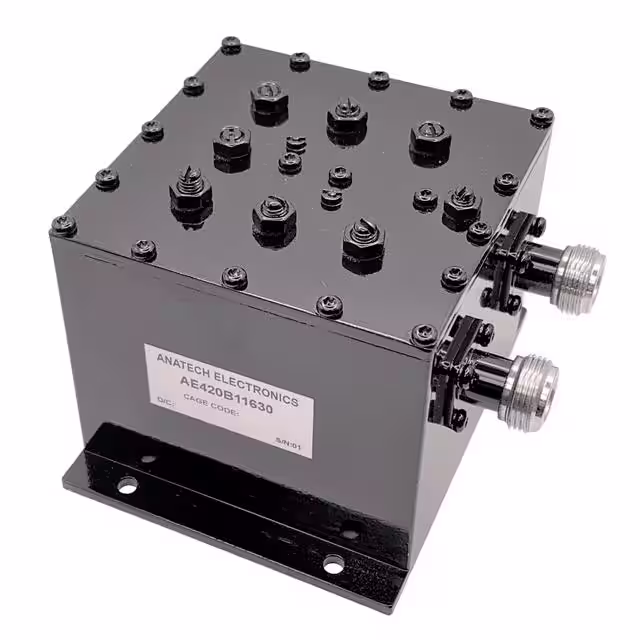

AE420B11630RF FILTER BANDPASS 420MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 420MHz Center | 20MHz | Band Pass | - | 1dB | Chassis Mount | 3.190" L x 3.980" W (81.03mm x 101.09mm) | 3.030" (76.96mm) |
