RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE510B11442RF FILTER BANDPASS 510MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 510MHz Center | 12MHz | Band Pass | 0.5dB | 1dB | Chassis Mount | 3.976" L x 3.189" W (101.00mm x 81.00mm) | 2.559" (65.00mm) |
|
|
AE500B6194RF FILTER BANDPASS 500MHZ MODULE |
98 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 500MHz Center | 200MHz | Band Pass | - | 3dB | Chassis Mount | 4.000" L x 1.125" W (101.60mm x 28.58mm) | 0.750" (19.05mm) |
|
AB1800B492RF FILTER BANDPASS 1.8GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.8GHz Center | 100MHz | Band Pass | - | 0.25dB | Chassis Mount | 4.600" L x 4.600" W (116.84mm x 116.84mm) | 1.850" (46.99mm) |
|
|
AE1087.5B10562RF FILTER BANDPASS 1.0875GHZ MOD |
99 |
|
- |
- | Module | Box | Active | 1.0875GHz Center | 255MHz | Band Pass | 0.2dB | 0.5dB | Chassis Mount | 4.000" L x 1.000" W (101.60mm x 25.40mm) | 1.000" (25.40mm) |
|
|
AB2332B491RF FILTER BAND PASS 2.332GHZ MOD |
96 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.332GHz Center | 25MHz | Band Pass | 1.3dB | 6.5dB | Chassis Mount | 4.252" L x 2.205" W (108.00mm x 56.00mm) | 0.827" (21.00mm) |
|
|
AE9100B9470RF FILTER BANDPASS 9.1GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 9.1GHz Center | 250MHz | Band Pass | 0.2dB | 2dB | Chassis Mount | 2.500" L x 0.625" W (63.50mm x 15.88mm) | 0.500" (12.70mm) |
|
AE2097B1360RF FILTER BAND PASS 2.097GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.097GHz Center | 12MHz | Band Pass | 0.5dB | 2.5dB | Chassis Mount | 5.580" L x 2.610" W (141.73mm x 66.29mm) | 1.300" (33.02mm) |
|
AE5500SSH6558RF FILTER HI PASS 5.5GHZ MODULE |
99 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 5.5GHz (Cutoff) | 17.5GHz | High Pass | - | 2dB | Chassis Mount | 1.299" L x 0.945" W (33.00mm x 24.00mm) | 0.406" (10.30mm) |
|
AB1370B1238RF FILTER BAND PASS 1.37GHZ MOD |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | 1.37GHz Center | 140MHz | Band Pass | - | 1dB | Chassis Mount | 4.570" L x 1.500" W (116.08mm x 38.10mm) | 1.100" (27.94mm) |
|
AE1621B11345RF FILTER BAND PASS 1.621GHZ MOD |
91 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.621GHz Center | 10.5MHz | Band Pass | - | 1dB | Chassis Mount | 2.250" L x 2.250" W (57.15mm x 57.15mm) | 1.650" (41.91mm) |
|
|
AB2050B1211RF FILTER BAND PASS 2.05GHZ MOD |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | 2.05GHz Center | 900MHz | Band Pass | - | 1.5dB | Chassis Mount | 5.906" L x 1.693" W (150.00mm x 43.00mm) | 0.866" (22.00mm) |
|
|
AE1350B11692RF FILTER BAND PASS 1.35GHZ MOD |
98 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.35GHz Center | 500MHz | Band Pass | - | 0.5dB | Chassis Mount | 3.880" L x 2.360" W (98.55mm x 59.94mm) | 0.762" (19.35mm) |
|
|
AE3000H9865RF FILTER HIGH PASS 3GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 3GHz (Cutoff) | 15GHz | High Pass | - | 1dB | Chassis Mount | 1.500" L x 0.380" W (38.10mm x 9.65mm) | 0.380" (9.65mm) |
|
AE18000SSH6580RF FILTER HIGH PASS 18GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 18GHz (Cutoff) | 22GHz | High Pass | - | 2dB | Chassis Mount | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.394" (10.00mm) |
|

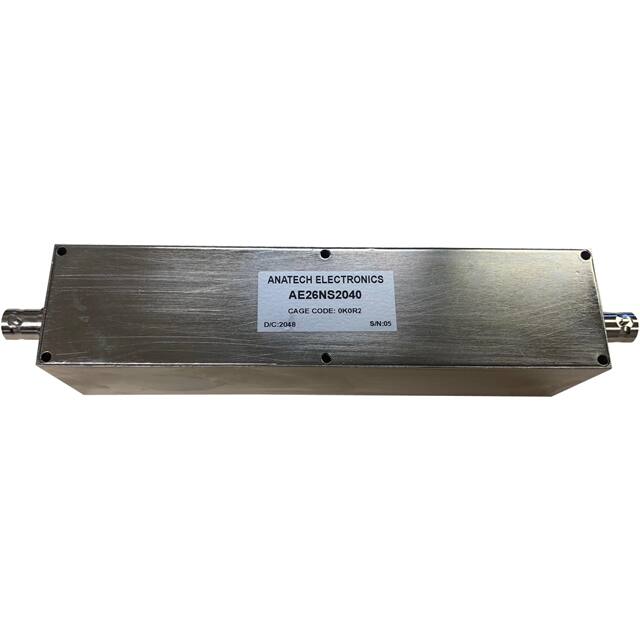

AE26NS2040RF FILTER BAND STOP 26MHZ BNC |
100 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 26MHz Center | 2.6MHz | Band Stop | - | 1dB | Chassis Mount | 6.000" L x 1.500" W (152.40mm x 38.10mm) | 1.400" (35.56mm) |
|
AE5500B11832RF FILTER BANDPASS 5.5GHZ MODULE |
100 |
|
- |
- | Module | Box | Active | 5.5GHz Center | 1.05GHz | Band Pass | - | 0.5dB | Chassis Mount | - | - |
|
AE1215L9221RF FILT LOW PASS 1.215GHZ N-TYPE |
98 |
|
Datasheet |
- | N-Type In-Line Module | Box | Active | 1.215GHz (Cutoff) | - | Low Pass | - | 0.3dB | Chassis Mount | 1.250" Dia x 8.630" L (31.75mm x 219.20mm) | - |
|

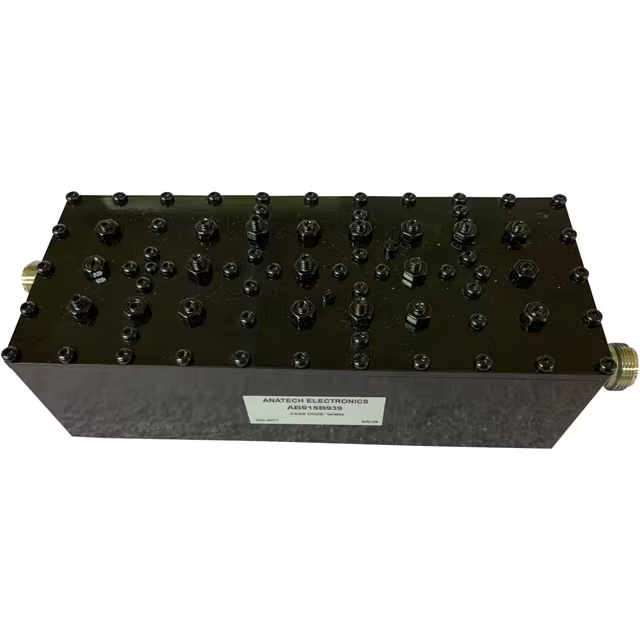

AB915B939RF FILTER BANDPASS 915MHZ MODULE |
95 |
|
Datasheet |
- | Module | Box | Active | 915MHz Center | 26MHz | Band Pass | - | 1.5dB | Chassis Mount | 6.693" L x 2.795" W (170.00mm x 71.00mm) | 2.165" (55.00mm) |
|

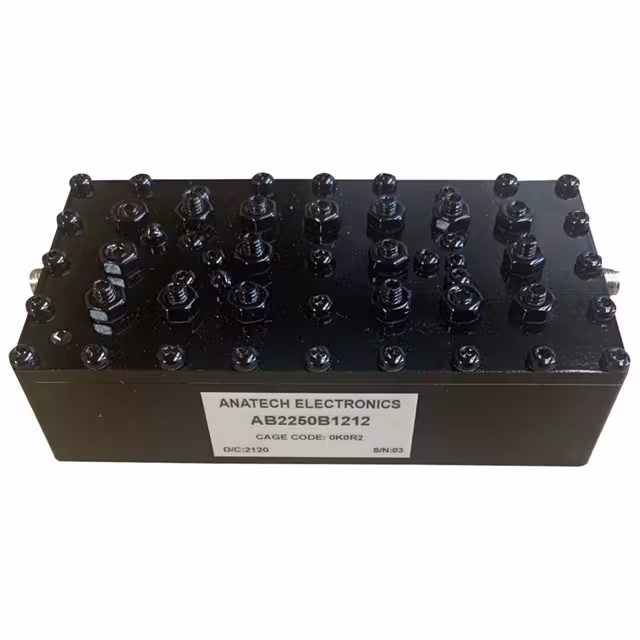

AB2250B1212RF FILTER BAND PASS 2.25GHZ MOD |
97 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.25GHz Center | 100MHz | Band Pass | - | 0.8dB | Chassis Mount | 4.134" L x 2.165" W (105.00mm x 55.00mm) | 1.299" (33.00mm) |
|
|
AE980L9051RF FILTER LOW PASS 980MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 980MHz (Cutoff) | 980MHz | Low Pass | - | 0.3dB | Chassis Mount | 7.500" L x 1.000" W (190.50mm x 25.40mm) | 1.000" (25.40mm) |
RF Filters Electronic Components
Explore RF Filters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
