RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AANI-CH-0070RF ANTENNA 2.4 GHz CERAMIC CHIP |
9,967 |
|
Datasheet |
AANI-CH | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | -6.5dB | 1.7dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ |
|
|
ACS0301UANTENNA UWB MULTI-LAYER CHIP |
2,913 |
|
Datasheet |
UWB | Tape & Reel (TR) | Active | Cellular | Wide Band | 7.1GHz | 6GHz ~ 8.2GHz | Chip | 1 | 2 | - | 2.2dBi | - | - | - | - | - | - | Surface Mount | 0.043" (1.10mm) | UWB |
|

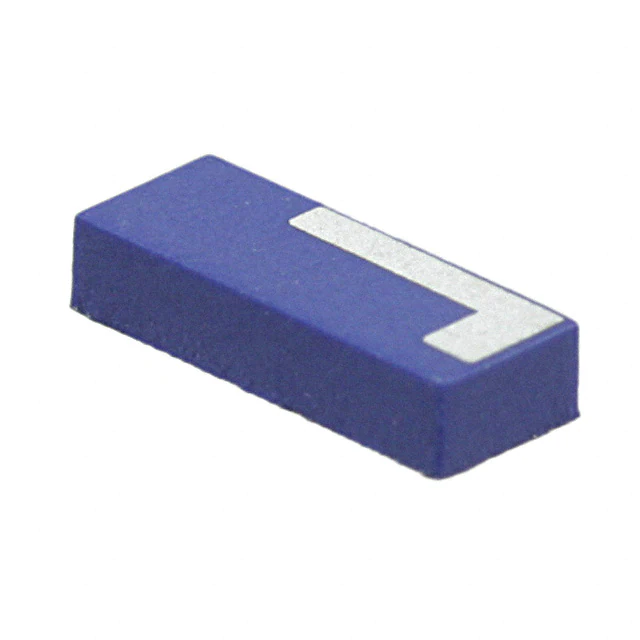

ANT5320LL24R2400ARF ANT 2.4GHZ CHIP SOLDER SMD |
9,152 |
|
Datasheet |
5320 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.408GHz ~ 2.492GHz | Chip | 1 | - | -19dB | 2.78dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, WLAN, Zigbee™ |
|
|
AC10300-01ANT WIFI6E WLAN 2.4/5/6GHZ CHP |
4,000 |
|
Datasheet |
- | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Chip | 3 | 3, 5, 4.5 | -6dB, -3.5dB, -3.9dB | 0.5dBi, 2.26dBi, 2.52dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | 4G, 5G, Cat-M1, CDMA, Cellular, GSM, LTE, LTE-M, NB-IoT, UMTS |
|
|
ANT162450TT-3001A1MULTILAYER CHIP ANTENNA FOR WIFI |
4,000 |
|
- |
ANT | Tape & Reel (TR) | Active | General ISM | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 6.137GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 7.125GHz | Chip | 2 | 1.7, 1.8 | - | 1.8dBi, 1.7dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.018" (0.45mm) | General Purpose |
|
|
ANT167250ST-1210A1MULTILAYER CHIP ANTENNA FOR UWB |
4,000 |
|
Datasheet |
ANT | Tape & Reel (TR) | Active | General ISM | SHF (f > 4GHz) | 7.25GHz | 6.2GHz ~ 8.3GHz | Chip | 1 | 1.58 | - | 8.1dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.018" (0.45mm) | General Purpose |
|
|
L000558-01FPC ANT, HDP, 50MM, MHF, LPWAN 8 |
2,000 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Flat Patch | 1 | 2 | - | 1.1dBi | 10 W | Cable - 50mm | MHF | - | - | - | Adhesive | 0.079" (2.00mm) | ISM, LoRaWAN |
|
|
L000550-01FPC ANT, HDP, 50MM, MHF, LPWAN 9 |
2,000 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Flat Patch | 1 | 2 | - | 1.5dBi | 10 W | Cable - 50mm | MHF | - | - | - | Adhesive | 0.079" (2.00mm) | ISM, LoRaWAN |
|
|
L000549-01FPC ANT, VDP, 50MM, MHF, LPWAN 9 |
2,000 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Flat Patch | 1 | 2 | - | 3.34dBi | 10 W | Cable - 50mm | MHF | - | - | - | Adhesive | 0.079" (2.00mm) | ISM, LoRaWAN |
|
|
L000551-01FPC ANT, VDP, 50MM, MHF, LPWAN 8 |
2,000 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Flat Patch | 1 | 2 | - | 2.2dBi | 10 W | Cable - 50mm | MHF | - | - | - | Adhesive | 0.079" (2.00mm) | ISM, LoRaWAN |
|
|
7200AT14A2000001TRF ANT 6200-8240MHZ CHIP SMD |
8,000 |
|
- |
- | Tape & Reel (TR) | Active | General ISM | Wide Band | 7.22GHz | 6.2GHz ~ 8.24GHz | Chip | 1 | - | 3.5dB | 3.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | General Purpose |
|
|
RFANT5220110A0TANTENNA |
1,780 |
|
Datasheet |
RFANT | Tape & Reel (TR) | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | - | 1 | 2 | - | 2dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.049" (1.25mm) | Bluetooth, ISM |
|
|
AANI-NI-0014STAMPED METAL NICHE UWB |
5,209 |
|
Datasheet |
AANI-NI | Tape & Reel (TR) | Active | Ultra Wide Band | Ultra Wide Band | - | 6.24GHz ~ 8.74GHz | Stamped Metal | 5 | - | -8.9dB, -7.5dB, -7.4dB, -7.7dB, 9.1dB | 2.8dBi, 3.4dBi, 2.2dBi, 2.5dBi, 2.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.019" (0.49mm) | UWB |
|
|
AANI-NI-0013STAMPED METAL NICHE 2.4GHz |
8,657 |
|
Datasheet |
AANI-NI | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | - | -10.1dB | 3.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.022" (0.55mm) | Bluetooth, Wi-Fi |
|
|
L000551-04FPC ANT, VDP, 50MM, MHF4, LPWAN |
2,000 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Flat Patch | 1 | 2 | - | 2.2dBi | 10 W | Cable - 50mm | MHF4L | - | - | - | Adhesive | 0.079" (2.00mm) | ISM, LoRaWAN |
|
|
L000549-02FPC ANT, VDP, 100MM, MHF, LPWAN |
2,000 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Flat Patch | 1 | 1.5 | - | 3.3dBi | 10 W | Cable - 100mm | MHF | - | - | - | Adhesive | 0.079" (2.00mm) | ISM, LoRaWAN |
|
|
L000550-04FPC ANT, HDP, 50MM, MHF4, LPWAN |
2,000 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Flat Patch | 1 | 2 | - | 1.5dBi | 10 W | Cable - 50mm | MHF4L | - | - | - | Adhesive | 0.079" (2.00mm) | ISM, LoRaWAN |
|
|
L000550-02FPC ANT, HDP, 100MM, MHF, LPWAN |
2,000 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Flat Patch | 1 | 1.5 | - | 1.5dBi | 10 W | Cable - 100mm | MHF | - | - | - | Adhesive | 0.079" (2.00mm) | ISM, LoRaWAN |
|
|
L000549-04FPC ANT, VDP, 50MM, MHF4, LPWAN |
2,000 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Flat Patch | 1 | 2 | - | 3.34dBi | 10 W | Cable - 50mm | MHF4L | - | - | - | Adhesive | 0.079" (2.00mm) | ISM, LoRaWAN |
|
|
L000551-02FPC ANT, VDP, 100MM, MHF, LPWAN |
2,000 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Flat Patch | 1 | 1.5 | - | 2.2dBi | 10 W | Cable - 100mm | MHF | - | - | - | Adhesive | 0.079" (2.00mm) | ISM, LoRaWAN |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
