BOM Upload
RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA963.A.BIVW.002.WMANT 5G/4G MIMO SUB 6GHZ WALL MNT |
46 |
|
- |
Guardian | Box | Active | Cellular, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz, 3.55GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.925GHz | Module | 10 | - | - | 1.93dBi, 2.76dBi, 3.56dBi, 3.62dBi, 4.71dBi, 4.71dBi, 4.32dBi, 4.76dBi, 3.06dBi, 3.84dBi | 2 W | Cable - 3m | SMA Male | IP67 | - | - | Adhesive | 1.024" (26.00mm) | 4G, 5G, GSM, LTE, UMTS, Wi-Fi |
|
MA285.LBICG.0015IN1 GNSS:3M RG174 FAKRA C LTE(M |
214 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 750.5MHz, 869MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.495GHz | 698MHz ~ 803MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2. | Module | 12 | - | -6dB, -10dB | 1.99dBi, 2.34dBi, 1.98dBi, 2.3dBi, 3.15dBi, 3.63dBi, 4.11dBi, 2.85dBi, -3.01dBi, -2.07dBi | - | Cable - 2m, LNA, Filter | RP-SMA Male (2), SMA Male (3) | IP67 | - | - | Adhesive | 0.512" (13.00mm) | Beidou, DCS, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, Wi-Fi |
|
MA950.W.A.LBICG.005GUARDIAN MA950.W 5IN1 ADHESIVE M |
40 |
|
Datasheet |
Guardian | Box | Active | Cellular, Navigation, WiFi | Wide Band | 750.5MHz, 859MHz, 920MHz, 1.574GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.3325GHz, 2.45GHz, 2.59GHz, 3.45GHz, 5.375GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.575GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz, 4.9GHz ~ 5.85GHz | Module | 15 | 2, 3 | 10dB | 3.18dBi, 3.6dBi, 2.14dBi, 3dBi, 1.98dBi, 3.01dBi, 3.98dBi, 4.37dBi, 4.37dBi, 4.35dBi, 3.7dBi, 4.49dBi, 4.84dBi | - | Cable - 1m, LNA, Filter | SMA Male | IP67 | - | - | Adhesive | 0.787" (20.00mm) | 2G, 3G, 4G, Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
GA400.A.305111WIDEBAND DIPOLE ANT 400-6000MHZ |
29 |
|
Datasheet |
Guardian | Bag | Active | Cellular, WiFi | Wide Band | 450MHz, 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.59GHz, 3.55GHz, 5.5375GHz | 430MHz ~ 470MHz, 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.925GHz | Module | 9 | - | - | 3.5dBi, 2.4dBi, 2.4dBi, 2.6dBi, 4dBi, 3.8dBi, 4.6dBi, 2.2dBi, 5.3dBi | 2 W | Cable - 3m | SMA Male | IP67 | - | - | Adhesive | 0.650" (16.50mm) | 4G, 5G, LTE, Wi-Fi |
|
MA912.W.A.BI.001MA912.W.A.BI.001 2IN1 WHITE ADHE |
51 |
|
Datasheet |
Guardian | Box | Active | Cellular, General ISM, WiFi | Wide Band | 750.5MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz, 3.45GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz | Module | 8 | 3 | - | 2.48dBi, 2.9dBi, 1.44dBi, 2.98dBi, 3.27dBi, 3.27dBi, 2.4dBi, 2.99dBi | - | Cable - 3m | SMA Male | IP67 | - | - | Adhesive | 0.787" (20.00mm) | DCS, GSM, LTE, PCS, UMTS, Wi-Fi |
|
2344721-3CEILING MOUNT ANTENNA MIMO 4X4 S |
1 |
|
Datasheet |
- | Bulk | Active | Cellular, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.45GHz | 2.4GHz ~ 2.485GHz, 4.9GHz ~ 6GHz | Dome | 2 | - | - | 4dBi, 6dBi | 10 W | Cable - 2m | RP-SMA | IP66 | - | - | Ceiling Mount | 1.181" (30.00mm) | LTE, UMTS, WCDMA, Wi-Fi |
|
MA931.A.LBICGH.008GUARDIAN MA931.W 6-IN-1 ADHESIVE |
73 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 752MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz, 3.4GHz, 5.5GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 5.15GHz ~ 5.85GHz, 5.1 | Module | 12 | - | - | 3.81dBi, 3.81dBi, 3.73dBi, 4.06dBi, 4.61dBi, 3.91dBi, 3.98dBi, 4.25dBi, 4.6dBi, 4.32dBi, 4.48dBi | 50 W | Cable - 2m | SMA Male | IP67 | - | - | Adhesive | 0.787" (20.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
DASUTCC500NFRF ANT 700MHZ/850MHZ FLAT PATCH |
38 |
|
Datasheet |
Clarity™ | Bulk | Active | Cellular, WiFi | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz | 608MHz ~ 960MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 3 | 2 | - | 7dBi, 7dBi, 5dBi | 40 W | Cable - 500mm | N Type Female | - | - | - | Panel Mount | 0.331" (8.40mm) | LTE, Wi-Fi |
|
GNSS1-TMG-26NMSCLRF ANT 1.5845GHZ DOME N TYPE F |
50 |
|
Datasheet |
GNSS1-TMG-26N | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.554GHz ~ 1.615GHz | Dome | 1 | 2 | - | 3dBic | - | LNA, Filter | N Type Female | - | - | - | Base Mount | 4.961" (126.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
MA352.A.LBI.0013IN1 MAGNET MNT ANT 3M SMA(M) |
44 |
|
- |
Steedan | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.495GHz, 3.75GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.925GHz | Module | 11 | - | -10dB | 1.1dBi, 3.5dBi, 5dBi, 5.1dBi, 1dBi, 1dBi, 1dBi, 6.6dBi, 6.9dBi, 5.9dBi, 3.3dBi | 10 W | Cable - 3m, LNA, Filter | SMA Male (2) | IP65 | - | - | Magnetic | 1.881" (47.78mm) | 3G, 4G, Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
MA9909.A.002GUARDIANX 3M 9IN1 1*ACTIVE GNSS |
47 |
|
Datasheet |
Guardian | Bag | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 752MHz, 859MHz, 920MHz, 1.592GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz | 698MHz ~ 960MHz, 1.574GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz | Module | 8 | 2 | - | 1.2dBi, 1.4dBi, 1.72dBi, -4.51dBi, 2.8dBi, 2.75dBi, 2.97dBi | - | Cable - 1m, LNA, Filter | SMA Male | IP67 | - | - | Adhesive | 0.650" (16.50mm) | DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi |
|
MA460.K.LBIC.002RF ANT 829MHZ/1.94GHZ FLAT BAR |
45 |
|
Datasheet |
Storm | Box | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.94GHz, 2.4GHz, 2.59GHz, 3.45GHz, 5.8GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz, 5.8GHz | Flat Bar | 6 | 2 | -10dB | 6.8dBi | - | - | RP-SMA Male, SMA Male | IP67 | - | - | Panel Mount | 1.220" (31.00mm) | BEIDOU, GLONASS, GPS, LTE, WLAN |
|
MA9908.A.001GUARDIANX 3M 8IN1 1*ACTIVE GNSS |
44 |
|
Datasheet |
Guardian | Bag | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 761MHz, 859MHz, 920MHz, 1.5785GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz, 5.5GHz | 698MHz ~ 960MHz, 1.547GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz, 5.15GHz ~ 5.85GHz | Ceramic Patch | 10 | 2 | - | 1.41dBi, 1.53dBi, 1.04dBi, 1.5dBic, 0dBic, 3.17dBi, 3.54dBi, 3.91dBi, 4.08dBi, 4.23dBi, 3.47dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Surface Mount | 0.650" (16.50mm) | DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi |
|
MA450.K.LBICG.004RF ANT 829MHZ/1.94GHZ FLAT BAR |
35 |
|
Datasheet |
Storm | Box | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.94GHz, 2.4GHz, 2.59GHz, 3.45GHz, 5.8GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz, 5.8GHz | Flat Bar | 6 | 2 | - | 6.8dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 1.220" (31.00mm) | BEIDOU, GLONASS, GPS, LTE, WLAN |
|
MA9929.A.0029-IN-1 GUARDIANX WITH GNSS, 4 5G |
32 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.495GHz, 3.75GHz, 5.5GHz, 5.5375GHz, 6.525GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.85GHz, | Module | 15 | 2 | - | 2.82dBi, 2.84dBi, 2.06dBi, 3.98dBi, 3dBi, 3.2dBi, 3.71dBi, 3.16dBi, 3.92dBi, 2.46dBi, 2.32dBi, 4.25dBi, 1.78dBi, 1.4dBi | 20 W | Cable - 3m, LNA, Filter | Fakra (3) | IP67 | - | - | Adhesive | 0.807" (20.50mm) | 3G, 4G, 5G, Beidou, GLONASS, GPS, GNSS, GSM, LTE, Wi-Fi |
|

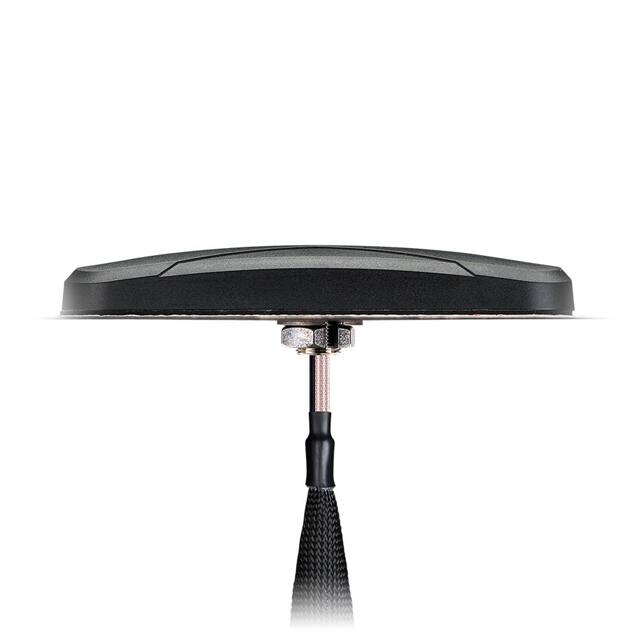

MA450.K.LBICG.003RF ANT 829MHZ/1.575GHZ FLAT BAR |
47 |
|
Datasheet |
Storm | Box | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.575GHz, 1.94GHz, 2.4GHz, 2.59GHz, 3.45GHz, 5.8GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz | Flat Bar | 7 | 2 | -10dB | 4.4dBi | - | - | RP-SMA Male, SMA Male | IP67 | - | - | Panel Mount | 1.219" (30.95mm) | BEIDOU, GLONASS, GPS, LTE, WLAN |
|
|
ANT8010LL05R1575AANTENNA CHIP GPS |
2,970 |
|
Datasheet |
8010 | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Chip | 1 | - | 10dB | 0.67dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | GPS |
|
ANT1608LL14R2460AANT 2.4/6GHZ WIFI 6 2.4G/5-7G |
23,928 |
|
Datasheet |
1608 | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 6.1375GHz | 5.15GHz ~ 7.125GHz | Chip | 2 | - | 7dB | 3.65dBi, 3.69dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | Wi-Fi 6E |
|
|
RFANT3216120A1TANTENNA |
2,000 |
|
Datasheet |
RFANT | Tape & Reel (TR) | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.45GHz | - | Chip | 1 | - | - | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.472" (12.00mm) | Bluetooth, ISM |
|
|
ANT3216A063R2455AANTENNA CHIP 2.4/5GHZ PIFA |
8,970 |
|
Datasheet |
3216 | Tape & Reel (TR) | Active | General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | - | Chip | 2 | - | 10dB | 1.59dBi, 2.23dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.022" (0.55mm) | ISM, Wi-Fi |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
