| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YG0021AAPATCH GNSS L1&B1&G1 ACTIVE 18X18 |
1,186 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.582GHz | 1.56GHz ~ 1.605GHz | Ceramic Patch | 1 | 2 | - | 2.5dBic | - | LNA | I-PEX | - | - | - | Surface Mount | 0.349" (8.86mm) | GNSS |
|
W1903ANT EXT STICK 824-960/1710-2170 |
267 |
|
Datasheet |
External Antenna | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Right Angle | 2 | - | - | 0dBi | 2 W | - | FME Female | - | - | - | Connector Mount | 1.969" (50.00mm) | 2G, 3G, 4G |
|
S131CL-6-PX-2450SRF ANT 2.4GHZ WHIP/TILT CONN 6" |
615 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 2dBi | - | Cable - 152mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 3.425" (87.00mm) | - |
|
|
2246667-1DUAL BAND PUCK ANTENNA ASSY, 1.3 |
0 |
|
Datasheet |
- | Tray | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 3.5 | -5dB | 1.2dBi, 4.7dBi | 10 W | Cable - 136.5mm | MHF | - | - | - | Panel Mount | 0.240" (6.10mm) | Wi-Fi |
|
|
2118308-24G WORLD BAND, METASPAN, PCB, W/ |
228 |
|
Datasheet |
- | Bag | Active | 802.15.4, Cellular, General ISM | Wide Band | 829MHz, 859MHz, 869MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.5GHz | 698MHz ~ 960MHz, 824MHz ~ 894MHz, 868MHz ~ 870MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | PCB Trace | 8 | 3 | - | 3.9dBi | - | Cable - 120mm | MHF4L | - | - | - | Adhesive | 0.052" (1.32mm) | CDMA, GSM, ISM, LTE, UMTS, ZigBee™ |
|
PC29.07.0100ARF ANT 850MHZ/900MHZ FLAT PATCH |
156 |
|
Datasheet |
TheStripe™ | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Flat Patch | 5 | 1.58, 1.78, 1.51, 1.38, 1.37 | -13dB, -11dB, -14dB, -16dB, -16dB | 0.01dBi, 1.2dBi, 2.66dBi, 1.25dBi, 1.43dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.031" (0.80mm) | CDMA, GSM, UMTS |
|
NMOQW700STAINLESS BASE / WHIP, 0 DB / 2 |
124 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 773MHz | 740MHz ~ 806MHz | Whip, Straight | 1 | - | - | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 3.000" (76.20mm) | - |
|
APAMP-124RF ANT 1.575GHZ DOME SMA ML MAG |
7 |
|
Datasheet |
APAMP | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Dome | 1 | 1.5 | - | 5dBic | - | - | SMA Male | - | - | - | Magnetic | 0.610" (15.50mm) | GPS |
|
GGBTP.35.3.A.40TERRABLAST GGBTP.35.3.A.40 GPS L |
113 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | - | -10dB | 4.12dBi, 4.03dBi, 4.33dBi | - | - | Pin | - | - | - | Adhesive | 0.146" (3.72mm) | Beidou, Galileo, GLONASS, GPS |
|
ANT-5GMWS1-SMARF ANT 3.3GHZ-5.0GHZ 5G TILT SMA |
813 |
|
Datasheet |
SMA | Bulk | Active | Cellular, Navigation | Wide Band | 3.625GHz, 3.95GHz, 4.965GHz | 3.55GHz ~ 3.7GHz, 3.7GHz ~ 4.2GHz, 4.94GHz ~ 4.99GHz | Whip, Tilt | 3 | 1.3, 3.3, 3.4 | - | 5.9dBi, 5.4dBi, 2.3dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 7.677" (195.00mm) | 5G, GPRS, LTE |
|
ANT-DB1-WRT-MHF4-100RF ANT 2.4/5GHZ WRT MHF4 -100 |
483 |
|
Datasheet |
WRT | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Dome | 3 | 1.9, 3.7, 4 | - | 3.2dBi, 6.8dBi, 7dBi | 5 W | Cable - 100mm | MHF4 | - | - | - | Panel Mount | 0.394" (10.00mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
ANT-916-MHW-RPS-LRF ANT 916MHZ WHIP CTR CAB 180" |
779 |
|
Datasheet |
MHW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 916MHz | 816MHz ~ 1.016GHz | Whip, Center-Fed Double | 1 | 1.9 | - | 5.4dBi | - | Cable - 4.6m | RP-SMA Male | - | - | - | Adhesive | 5.433" (138.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
SDCP.5900.12.4.A.405.9GHZ DSRC SMD PATCH ANTENNA 12 |
305 |
|
Datasheet |
- | Tape & Reel (TR) | Active | General ISM | SHF (f > 4GHz) | 5.888GHz | 5.85GHz ~ 5.925GHz | Ceramic Patch | 1 | 2 | - | 4.64dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | DSRC |
|

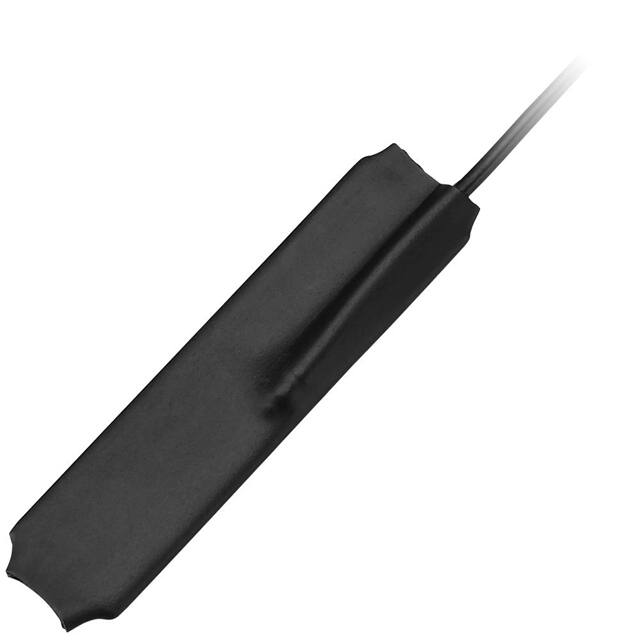

GSA.8830.A.201111GSA.8830 3G/2G CELLULAR ADHESIVE |
177 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 860MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz | 824MHz ~ 896MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz | Flat Bar | 5 | - | -8dB, -9dB, -10dB | -0.23dBi, 0.77dBi, 0.67dBi, 0.98dBi, 0.73dBi | - | Cable - 2m | SMA Male | IP67 | - | - | Adhesive | 0.181" (4.60mm) | 3G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, PCS, UMTS, WCDMA |
|
ANT-W63-WRT-MHF4RF ANT 2.4/5/6GHZ DOME PNL MT MH |
985 |
|
Datasheet |
WRT | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Dome | 3 | 1.5, 1.4, 2.2 | -14dB, -15.6dB, -8.5dB | 4.5dBi, 4.5dBi, 6.4dBi | 5 W | Cable - 131mm | MHF4 | IP67 | - | - | Panel Mount | 1.094" (27.79mm) | 802.11, 802.15.4, Bluetooth, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|
ALPHA3A/0.2M/MMCXM/S/S/26RF ANT 850MHZ/868MHZ BLADE MMCX |
112 |
|
Datasheet |
ALPHA 3A | Bulk | Active | 802.15.4, Bluetooth, Cellular, WiFi | Wide Band | 850MHz, 868MHz, 900MHz, 915MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | - | Blade | 8 | 2 | - | 3dBi | - | - | MMCX Male | - | - | - | Adhesive | 0.098" (2.50mm) | Bluetooth, GPRS, GSM, UMTS, WLAN, Zigbee™ |
|
|
YG0065AAMAG ACTIVE GNSS L1 3M FAKRA C |
958 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.592GHz | 1.575GHz ~ 1.61GHz | Dome | 1 | 2 | - | 2.8dBi | - | LNA, Filter | Fakra Female | IP66 | - | - | Adhesive | 0.492" (12.50mm) | GNSS, LTE |
|
AP-DIPOLE-W-I-S2-RP-BLANTENNA PLUS DIPOLE ANTENNA |
191 |
|
Datasheet |
- | Box | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.445GHz, 5.35GHz | 2.4GHz ~ 2.49GHz, 4.9GHz ~ 5.8GHz | Whip, Tilt | 2 | - | - | 4.03dBi, 4.58dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.980" (202.70mm) | 802.11a/b/g/-c |
|
AEACAC053010Z-S433ANTENNA AUTO 433MHZ EXT WHIP |
177 |
|
Datasheet |
AEAC | Bulk | Active | 802.15.4, General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Tilt | 1 | 2 | - | 2dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 2.102" (53.40mm) | ISM, LoRa, Sigfox |
|

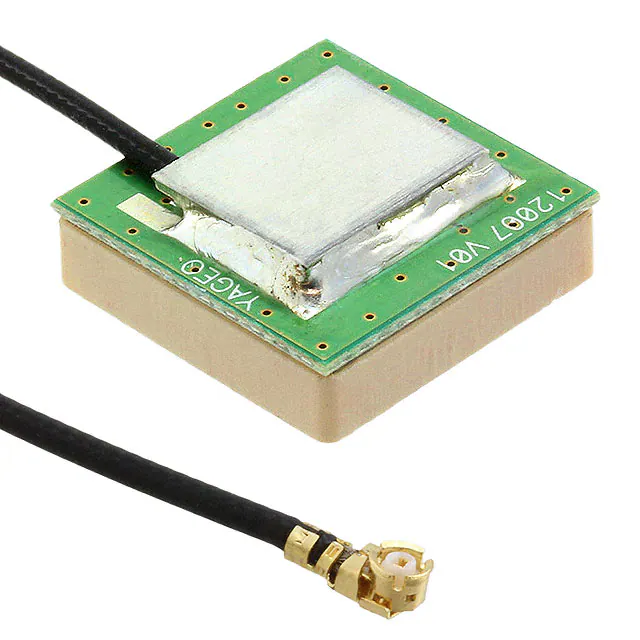

ANT1818JB30B1575ARF ANT 1.575GHZ CER PATCH CAB |
118 |
|
Datasheet |
1818 | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.561GHz ~ 1.589GHz | Ceramic Patch | 1 | 2 | - | -2.67dBic | - | Cable - 100mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.276" (7.00mm) | GPS |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
