RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA208.A.AB.007RF ANT 1.5GHZ FLAT BAR FAKRA ADH |
53 |
|
- |
Stream | Bag | Active | - | Wide Band | 1.5GHz | 700MHz ~ 2.2GHz | Flat Bar | 1 | 3.5 | - | - | - | - | SMB, Fakra | - | - | - | Adhesive | 0.354" (9.00mm) | - |
|
BMHO69027002NFRF ANT 825MHZ WHIP N TYP F POLE |
28 |
|
Datasheet |
- | Box | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 825MHz, 2.2GHz | 690MHz ~ 960MHz, 1.7GHz ~ 2.7GHz | Whip, Straight | 2 | 2.5 | - | 2dBi, 2dBi | 25 W | - | N Type Female | - | - | - | Pole Mount | 9.000" (228.60mm) | 2G, 3G, 5G, Cellular, LTE |
|
GPSDM08BLACK GPS DIRECT MOUNT, 1575.4 M |
46 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Dome | 1 | - | - | 5dBi, 28dBi | - | Cable - 431.8mm | SMA | - | - | - | Adhesive | 0.700" (17.78mm) | GPS |
|
YB0033AAEXTERNAL CELLULAR ANTENNA |
89 |
|
Datasheet |
- | Bag | Active | Navigation, WiFi | UHF (1GHz ~ 2GHz) | 1.55GHz, 1.575GHz | 700MHz ~ 2.7GHz, 1.572GHz ~ 1.578GHz | Module | 2 | 2, 3 | - | 3dBi, 20dBi | - | Cable - 2m | SMA Male | IP67 | - | - | Screw Mount | 1.693" (43.00mm) | GPS, LTE |
|
LP800NMOWWHITE NMO LOW PROFILE, UNITY 806 |
46 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 883MHz | 806MHz ~ 960MHz | Whip, Straight | 1 | - | - | 2dBi | 100 W | - | NMO | - | - | - | Magnetic | 1.500" (38.10mm) | - |
|
MA208.A.AB.001RF ANT 700MHZ/850MHZ FLAT BAR |
301 |
|
Datasheet |
Stream | Bag | Active | Cellular, Navigation | Wide Band | 700MHz, 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz | 700MHz, 824MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.17GHz | Flat Bar | 7 | 3.3, 3.6, 2.2 | - | 3.5dBic, 2.16dBi, 0.42dBi | - | Cable - 3m, LNA, Filter | SMA Male (2) | IP67 | - | - | Adhesive | 0.354" (9.00mm) | CDMA, DCS, GPS, GSM, LTE, PCS, UMTS |
|
VQJ69595B-92VC1ANTENNA AUTO 4PORT |
27 |
|
Datasheet |
VQJ | Box | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.165GHz, 2.45GHz, 2.66GHz, 5.4GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.62GHz, 2.4GHz ~ 2.5GHz, 2.62GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz | Module | 8 | 3.1 | - | 5dBi | 5 W | Cable - 914mm, LNA | SMA Male (3), RP-SMA Male | IP67 | - | - | Adhesive | 0.575" (14.60mm) | 2G, 3G, 4G, 5G, Beidou, GLONASS, GNSS, GPS, ISM, LTE, Wi-Fi |
|
AEACBA050018-SG4L2L5RF ANT GPS/GLONASS DOME |
54 |
|
Datasheet |
AEAC | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2015GHz, 1.5815GHz | 1.176GHz ~ 1.227GHz, 1.561GHz ~ 1.602GHz | Module | 2 | 1.5, 2 | - | 3dBic | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Adhesive, Magnetic | 0.709" (18.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
2205731000BOTTOM FEED 5 IN 1 ANTENNA HIGH |
300 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.581GHz, 2.2GHz, 2.45GHz, 3.75GHz, 4.7GHz, 5.5GHz, 6.525GHz | 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.5GHz, 2.4GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Module | 8 | - | -10dB, -8dB, -5dB, -4dB | - | - | Cable - 1m | SMA Male | - | - | - | Adhesive, Screw | 1.496" (38.00mm) | 5G, GPS, Wi-Fi |
|
MA252.A.LB.001RF ANT 750MHZ/892MHZ MOD SMA ADH |
42 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | Wide Band | 750MHz, 892MHz, 1.575GHz, 1.9GHz, 2.6GHz | 698MHz ~ 803MHz, 824MHz ~ 960MHz, 1575.42MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz | Module | 5 | 3, 2 | -10dB, -6dB | 28dBi | 5 W | Cable - 2m, LNA, Filter | SMA Male | IP67 | - | - | Adhesive | 0.551" (14.00mm) | BEIDOU, GLONASS, GPS, LTE |
|

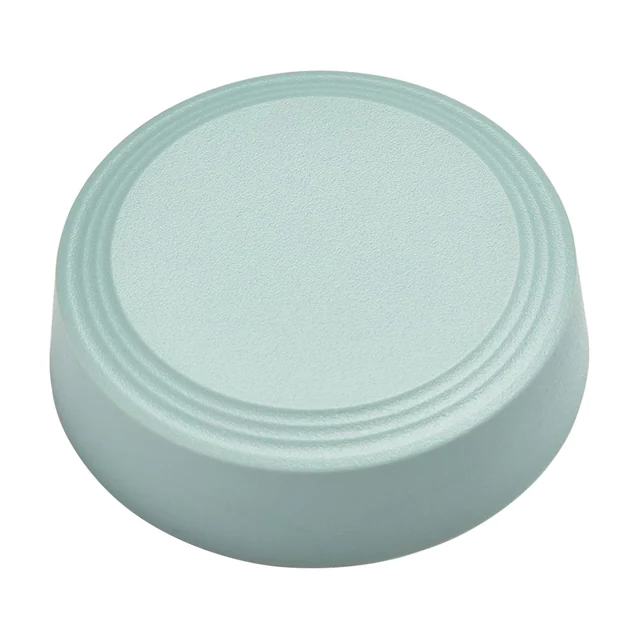

A.60.3A21GPS L1 DIRECT MOUNT MINIATURE EX |
43 |
|
Datasheet |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | - | - | 1.18dBi | - | - | MCX Female | IP67 | - | - | Surface Mount | 0.512" (13.00mm) | GPS |
|
AECW0801C09S-3000SANTENNA GNSS+LTE MIMO+WIFI |
99 |
|
Datasheet |
AECW | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.5815GHz, 2.2GHz, 2.44GHz, 5.3625GHz | 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.4835GHz, 4.9GHz ~ 5.825GHz | Module | 5 | 1.5, 2, 2.5, 3 | - | 2.5dBi, 2dBic, 2.5dBi, 3dBi, 3dBi | - | Cable - 3m, LNA | SMA Male (4) | IP67 | - | - | Screw Mount | 0.642" (16.30mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
AECR1808A20S-3000SRF ANT 7IN1 4X5G/ 2XWIFI/ GNSS D |
32 |
|
Datasheet |
AECR | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 1.5835GHz, 2.44175GHz, 3.3GHz, 5.4125GHz | 1.561GHz ~ 1.606GHz, 2.4GHz ~ 2.4835GHz, 600MHz ~ 6GHz, 4.9GHz ~ 5.925GHz | Dome | 4 | 2, 2.5, 4 | - | 3dBi, 4dBi, 4dBi, 4dBi | 10 W | Cable - 3m | SMA Male (7) | IP67 | - | - | Screw Mount | 3.346" (85.00mm) | 4G, 5G, Beidou, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
MA515.C.CG.001RF ANT 2.4GHZ DOME RP-SMA MALE |
238 |
|
Datasheet |
Hercules | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 2 | -10dB | 3dBi | 2 W | - | RP-SMA Male | IP69K | - | - | Panel Mount | 1.142" (29.00mm) | Bluetooth, WLAN, Zigbee™ |
|
MA131.A.LK.002RF ANT 915MHZ/1.575GHZ DOME CAB |
145 |
|
Datasheet |
Hercules | Bag | Active | Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 915MHz, 1.575GHz, 1.602GHz | 902MHz ~ 928MHz, 1.574GHz ~ 1.606GHz | Dome | 3 | 2 | -10dB, -32.19dB, -24.77dB | 0.83dB, -1.4dBi, -1.3dBi | 5 W | Cable - 200mm, LNA, Filter | SMA Male (2) | IP67, IP69K | - | - | Panel Mount | 1.122" (28.50mm) | GLONASS, GPS |
|

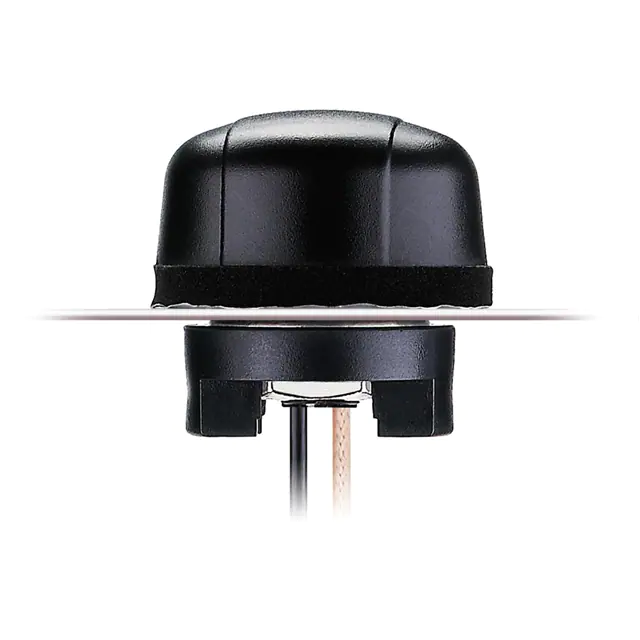

MA130.A.LP.002RF ANT 868MHZ/1.575GHZ DOME SMA |
65 |
|
Datasheet |
Hercules | Bag | Active | Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 868MHz, 1.575GHz | 868MHz, 1.574GHz ~ 1.606GHz | Dome | 2 | 2 | -10dB | 4.51dBi | 5 W | - | SMA Male | IP69K | - | - | Panel Mount | 1.122" (28.50mm) | GLONASS, GPS |
|
MA1045.A.ALBTX.0025IN1 300MM RG-174:GNSS FAKRA C: |
44 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | Wide Band | 750.5MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.3325GHz, 2.4GHz | 698MHz ~ 803MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.345GHz, 2.3GHz ~ 2.5GHz | Dome | 10 | - | -10dB | 0.6dBi, 2.7dBi, 2.7dBi, 4.4dBi, 2.2dBi, 1.2dBi, 4.6dBi, 5.4dBi, 3dBi | - | Cable - 300mm | BNC Female, SMB, Fakra | IP67 | - | - | Panel Mount | 2.419" (61.45mm) | Beidou, GPS, LTE |
|
DC-ANT-DBHGRF ANT 850MHZ/1.9GHZ WHIP STR |
32 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 1.9GHz | - | Whip, Straight | 2 | - | - | 4dBi | - | Cable - 4.27m | - | - | - | - | Magnetic | 14.370" (365.00mm) | - |
|
MA964.A.CGHM.0034*4MIMO WI-FI 6 PANEL ANTENNA |
43 |
|
Datasheet |
* | Bulk | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | - | 3 | - | - | 5.73dBi, 7.31dBi, 2.6dBi | 10 W | Cable - 3m | Fakra (4) | IP67 | - | - | Adhesive | 0.787" (20.00mm) | IoT, Wi-Fi 6 |
|
OMB.5900.B10F21OMB.5900.B10F21 BARRACUDA 5.9GHZ |
62 |
|
Datasheet |
Barracuda | Bulk | Active | General ISM | SHF (f > 4GHz) | 5.8875GHz | 5.85GHz ~ 5.925GHz | Whip, Straight | 1 | - | -15dB | 10.2dBi | 50 W | - | N Type Female | IP65 | - | - | Bracket Mount | 21.654" (550.00mm) | DSRC |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
