BOM Upload
RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6720005084WI-ANT-YGI-10-6 |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HG4971DP-30D-RSP4950 MHZ TO 7125 MHZ, 2-FOOT PAR |
0 |
|
Datasheet |
HG | Bulk | Active | Cellular, WiFi | Wide Band | 5.025GHz, 5.5GHz, 6.512GHz | 4.95GHz ~ 5.1GHz, 5.1GHz ~ 5.9GHz, 5.9GHz ~ 7.125GHz | Parabolic | 3 | 2, 2.5 | - | 29dBi, 30dBi, 31dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | RP-SMA Female (2) | - | - | - | Mast Mount | 8.510" (216.15mm) | 5G, Wi-Fi |
|
|
HG4971DP-30DC-RSP4950 MHZ TO 7125 MHZ, 2-FOOT COL |
0 |
|
Datasheet |
HG | Bulk | Active | General ISM, WiFi | Wide Band | 5.025GHz, 5.5GHz, 6.512GHz | 4.95GHz ~ 5.1GHz, 5.1GHz ~ 5.9GHz, 5.9GHz ~ 7.125GHz | Parabolic | 3 | 2, 2.5 | - | 29dBi, 30dBi, 31dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | RP-SMA Female (2) | - | - | - | Mast Mount | 8.120" (206.24mm) | ISM, UNII, Wi-Fi |
|
|
33-VSE6028L33-VSE6028L |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

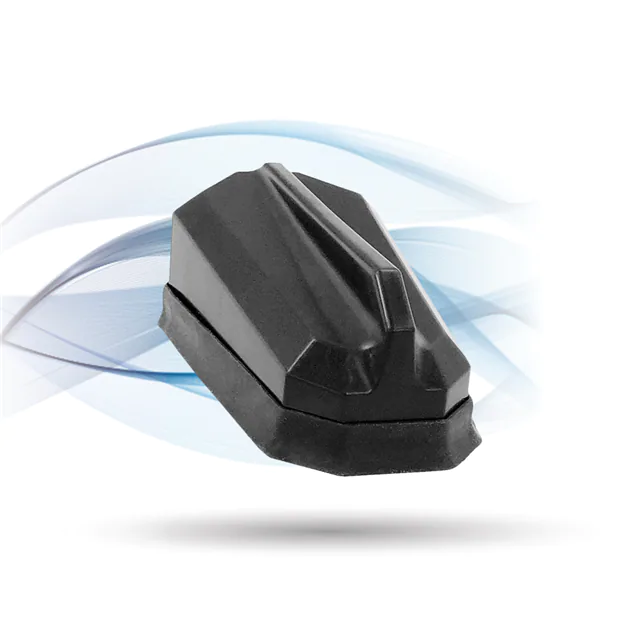

AP-CCWWG-Q-S22222-RP34-BLANTENNA PLUS ULTRAMAX MIMO ANTEN |
0 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.58GHz, 2.2GHz, 2.4GHz, 5.45GHz | 698MHz ~ 960MHz, 1.55GHz ~ 1.61GHz, 1.7GHz ~ 2.7GHz, 4.9GHz ~ 6GHz | Module | 5 | - | - | 2dBi, 30.5dBi, 6dBi, 7dBi, 5dBi | - | Cable - 4.572m | RP-SMA Male (1), SMA Male (2) | - | - | - | Panel Mount | 2.220" (56.40mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
71758908 ELEMENT YAGI 790-960 MHZ |
0 |
|
Datasheet |
- | Box | Active | Cellular | UHF (300MHz ~ 1GHz) | 875MHz | 790MHz ~ 960MHz | Yagi, 8-Element | 1 | 1.5 | - | 12.1dBi | 150 W | Cable - 1m | N Type Female | - | - | - | Bracket Mount | 38.189" (970.00mm) | - |
|
|
PEANOM10632400-2500 & 5150-7125MHZ 6DBI WI |
0 |
|
Datasheet |
PEANOM | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 6.137GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 7.125GHz | Dome | 2 | 2 | - | 6dBi, 6dBi | 50 W | Cable - 914.4mm | N Type Male (8) | IP54 | - | - | Pole Mount | 6.690" (169.93mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
PEANOM10642400-2500 & 5150-7125MHZ 6DBI WI |
0 |
|
Datasheet |
PEANOM | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 6.137GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 7.125GHz | Dome | 2 | 2 | - | 6dBi, 6dBi | 50 W | Cable - 914.4mm | N Type Female (8) | IP54 | - | - | Pole Mount | 6.690" (169.93mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
5607086RF ANT 400MHZ YAGI N FEM BRKT MT |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 400MHz | - | Yagi | 1 | - | - | 12.15dBi | - | - | N Type Female | IP65 | - | - | Bracket Mount | - | - |
|
|
FM51PD1008ANTENNA SMA4.95 MHZ-7.125 GHZ |
0 |
|
Datasheet |
- | Bag | Active | Cellular, WiFi | SHF (f > 4GHz) | 6.037GHz | 4.95GHz ~ 7.125GHz | Dish | 1 | 1.3 | - | 31dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | RP-SMA | - | - | - | Bracket Mount | 4.560" (115.82mm) | 5G, Wi-Fi |
|
|
FM51PD1010ANTENNA SMA4.95 MHZ-7.125 GHZ |
0 |
|
Datasheet |
- | Bag | Active | Cellular, WiFi | SHF (f > 4GHz) | 6.037GHz | 4.95GHz ~ 7.125GHz | Dish | 1 | 2, 2.5 | - | 31dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | RP-SMA | - | - | - | Bracket Mount | 4.200" (106.68mm) | 5G, Wi-Fi |
|
|
LCANGPS1003MINI-SURVEY GPS ACTIVE ANTENNA D |
0 |
|
- |
LCAN | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.41GHz | 1.205GHz ~ 1.615GHz | Dome | 1 | 2 | - | 47.5dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m, LNA | TNC Female | IP67 | - | - | Screw Mount | 1.300" (33.02mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
|
7940112633WI-ANT-900MHZ-12DB-2'YAGI NF |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HG4971DP-30DC-C5X4.9-6.4 GHZ 2-FEET MIMO DISH ANT |
0 |
|
Datasheet |
HG | Bulk | Active | General ISM, WiFi | Wide Band | 5GHz, 5.5GHz, 6.15GHz | 4.9GHz ~ 5.1GHz, 5.1GHz ~ 5.9GHz, 5.9GHz ~ 6.4GHz | Dish | 3 | 2, 2.5 | - | 29dBi, 30dBi, 31dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | B5X, C5X, C6X | - | - | - | Mast Mount | 8.900" (226.06mm) | ISM, UNII, Wi-Fi |
|
|
FM51244ANTENNA 4.3-10 JACK 617 MHZ-6 GH |
0 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 3.3085GHz | 617MHz ~ 6GHz | Panel | 1 | 1.7 | - | 10.5dBi | 100 W | Cable - 299.72mm | 4.3/10 - Female | - | - | - | Bracket Mount | 0.980" (24.89mm) | 5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M |
|
|
HG658710XXPPR-4310FINDOOR PANEL ANTENNA, 7/10 DBI H |
0 |
|
- |
HG | Bag | Active | Cellular | Wide Band | 788.5MHz, 2.197GHz, 3.65GHz, 5.4GHz | 617MHz ~ 6GHz | Panel | 1 | 1.7 | - | 10.5dBi | 100 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | 4.3/10 - Female (4) | - | - | - | Bracket Mount | 3.300" (83.82mm) | 5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M |
|
|
5607088RF ANT 400MHZ YAGI N FEM BRKT MT |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 400MHz | - | Yagi | 1 | - | - | 12.15dBi | - | - | N Type Female | IP65 | - | - | Bracket Mount | - | - |
|
|
HG2471-06DPU-4RTPWIFI 6E, 2400-2500/5150-7250 MHZ |
0 |
|
- |
HG | Bag | Active | 802.15.4, Bluetooth, Cellular | Wide Band | 2.45GHz, 6.2GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 7.25GHz | Dome | 2 | 2 | - | 6dBi, 6dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | RP-TNC Male (4) | - | - | - | Bracket Mount | 6.800" (172.72mm) | 802.11ax, Bluetooth, IoT, Wi-Fi, Zigbee™ |
|
|
HG2471-06DPU-4RSPWIFI 6E, 2400-2500/5150-7250 MHZ |
0 |
|
- |
HG | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 6.2GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 7.25GHz | Module | 2 | 2 | - | 6dBi, 6dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | RP-SMA Male (4) | - | - | - | Mast Mount | 6.800" (172.72mm) | 802.11ax, Bluetooth, Wi-Fi, Zigbee™ |
|
|
HG5829EG-5PKANTGRID 5.8GHZ 29DBI |
0 |
|
- |
HG | Bag | Obsolete | General ISM, WiFi | SHF (f > 4GHz) | 5.8GHz | - | Parabolic Grid | 1 | - | - | 29dBi | - | - | Screw-Mount | - | - | - | Mast Mount | 17.240" (437.90mm) | 802.11a/n, ISM, WLAN |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
