RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HG2414DP-090ANTPANEL 2.4GHZ 14DBI 90? |
0 |
|
- |
HG | Bag | Active | General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Sector | 1 | 1.5 | - | 14dBi | 200 W | - | N Type Female (2) | - | - | - | Bracket Mount | 18.300" (464.82mm) | 802.11b/g/n, ISM, WLAN |
|
|
FM51OM1047ANTENNA TYPE N JACK 3.3 MHZ-3.8 |
0 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (3GHz ~ 4GHz) | 3.55GHz | 3.3GHz ~ 3.8GHz | Whip, Straight | 1 | 2 | - | 8dBi | 100 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Bracket Mount | 22.400" (568.96mm) | 5G, CBRS, LTE |
|
|
HG3342DP-090-NF3.3-4.2 GHZ 16.7 DBI DUAL POL 45 |
0 |
|
Datasheet |
HG | Bulk | Active | Cellular | Wide Band | 3.75GHz | 3.3GHz ~ 4.2GHz | Sector | 1 | 2 | - | 16.5dBi | 100 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female (2) | - | - | - | Mast Mount | 3.480" (88.39mm) | 5G, CBRS, LTE, WISP |
|
|
FM51FP1017ANTENNA TYPE N JACK 4.95 MHZ-6.5 |
0 |
|
Datasheet |
- | Bag | Active | WiFi | SHF (f > 4GHz) | 5.725GHz | 4.95GHz ~ 6.5GHz | Panel | 1 | 2 | - | 18dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Bracket Mount | 0.870" (22.10mm) | Wi-Fi |
|
|
HG4971DP-18FP-8NF4950 MHZ TO 6500 MHZ, FLAT PANEL |
0 |
|
Datasheet |
HG | Bulk | Active | Cellular, WiFi | Wide Band | 5.725GHz | 4.95GHz ~ 6.5GHz | Flat Panel | 1 | 2 | - | 18dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female (8) | - | - | - | Mast Mount | 0.870" (22.10mm) | 5G, Wi-Fi |
|
|
5607085RF ANT 400MHZ YAGI N FEM BRKT MT |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 400MHz | - | Yagi | 1 | - | - | 8.5dBi | - | - | N Type Female | IP65 | - | - | Bracket Mount | - | - |
|
|
FMWAN102-15WG ANTENNA WR-102 7-11 GHZ |
0 |
|
Datasheet |
- | Bag | Active | General ISM | SHF (f > 4GHz) | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.3 | - | 15dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Waveguide Mount | 1.990" (50.55mm) | General Purpose |
|
|
HG5829DANTDISH 5.8GHZ 29DBI |
0 |
|
- |
HG | Bag | Active | General ISM, WiFi | SHF (f > 4GHz) | 5.787GHz | 5.725GHz ~ 5.85GHz | Dish | 1 | 1.5 | - | 29dBi | 100 W | - | N Type Female | - | - | - | Mast Mount | - | ISM, WLAN |
|
|
LCANGPS1000D-HELIX ACTIVE GPS ANTENNA DUAL |
0 |
|
- |
LCAN | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.237GHz, 1.587GHz | 1.217GHz ~ 1.257GHz, 1.565GHz ~ 1.61GHz | Whip, Straight | 2 | 2 | - | 37dBi, 37.5dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m, LNA | SMA Male | IP67 | - | - | Connector Mount | 2.320" (58.93mm) | Galileo, GLONASS, GPS, QZSS |
|
|
33-VSE6328L33-VSE6328L |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ARK2413DPU-0ANTRAD MNT KIT HG2413DPU |
0 |
|
- |
- | Bag | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Straight | 1 | - | - | 13dBi | - | Cable - 609.6mm | Connector | - | - | - | Bracket Mount | - | General Purpose |
|
|
1399.32.00031399.32.0003 |
0 |
|
Datasheet |
- | Bulk | Active | - | Wide Band | 2.595GHz, 3.55GHz, 4GHz | 2.5GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 3.8GHz ~ 4.2GHz | Whip, Straight | 3 | 2 | - | 4dBi, 7dBi, 7.5dBi | - | - | N Type Female (2) | IP66 | - | - | Connector Mount | 3.780" (96.00mm) | General Purpose |
|
|
HDDA3W-25-SPRF ANT 3.6GHZ DISH N FEM BRKT MT |
0 |
|
Datasheet |
HD | Bulk | Active | WiFi | UHF (3GHz ~ 4GHz) | 3.6GHz | 3.3GHz ~ 3.8GHz | Dish | 1 | 1.5 | - | 25dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 25.512" (648.00mm) | WiMax™, Wi-Fi |
|
|
HG5827EG-5PKANTGRID 5.8GHZ 27DBI |
0 |
|
- |
HG | Bag | Obsolete | General ISM, WiFi | SHF (f > 4GHz) | 5.8GHz | - | Parabolic Grid | 1 | - | - | 27dBi | - | - | Screw-Mount | - | - | - | Mast Mount | 12.900" (327.66mm) | 802.11a/n, ISM, WLAN |
|
|
6720005222WI-ANT-900MHZ-10DB-2'YAGI NM |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
60011216IN1 DOME ANTENNA - 2XLTE, GNSS, |
0 |
|
- |
AirLink® - Accessory | Box | Active | - | - | - | - | Dome | - | - | - | - | - | - | - | - | - | - | Bolt | - | - |
|
|
60012626IN1 SHARKFIN ANTENNA - 2XLTE, G |
0 |
|
Datasheet |
AirLink® - Accessory | Box | Active | Cellular, Navigation, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.249GHz, 2.4GHz, 5GHz | 698MHz ~ 3.8GHz | Panel | 3 | - | - | - | - | Cable - 4m | - | - | - | - | Panel Mount | - | GNSS, LTE, Wi-Fi |
|

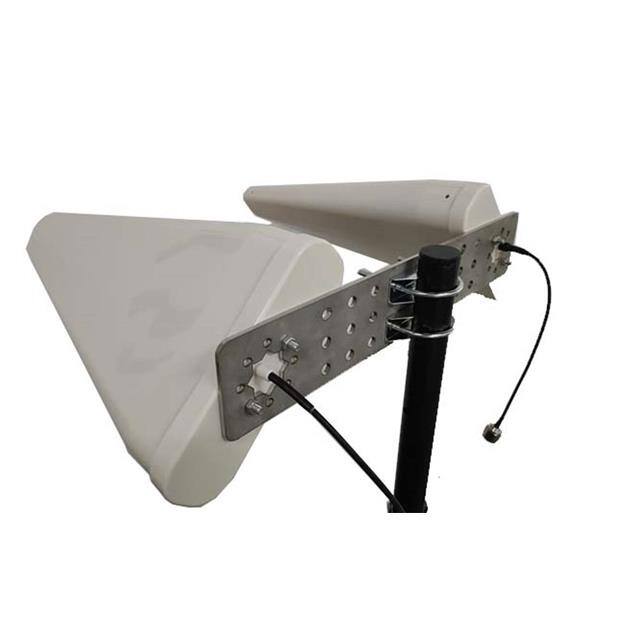

AN_MASTER_004MIMO2X2MIMO 5G LPDA Widebeam |
1 |
|
Datasheet |
- | Box | Active | - | Wide Band | 3.3GHz | 600MHz ~ 6GHz | Log Periodic | 1 | 2 | - | 6.8dBi | - | Cable - 4m | N Type Male, SMA Male | - | - | - | Bolt | 2.520" (64.00mm) | General Purpose |
|
|
1399.99.00371399.99.0037 |
0 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 798MHz, 838MHz, 915MHz, 1.584GHz, 2.025GHz, 5.6625GHz | 790MHz ~ 806MHz, 806MHz ~ 870MHz, 870MHz ~ 960MHz, 1.35GHz ~ 1.61GHz, 1.559GHz ~ 2.7GHz, 4.9GHz ~ 6.425GHz | Chip | 6 | 1.5, 1.8, 2, 2.2 | - | 5dBi, 5dBi, 5dBi, 5dBi, 8dBi | - | LNA | N Type Female, TNC Male | IP69 | - | - | Chassis Mount | 1.575" (40.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS, Wi-Fi |
|
|
33-7972XF-07ANTENNA |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
