RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
33-7972XF-00-3000ANTENNA |
0 |
|
Datasheet |
TW7972XF | Box | Active | General ISM, Navigation | UHF (1GHz ~ 2GHz) | 1.542GHz | 1.525GHz ~ 1.559GHz | Dome | 1 | - | - | 4dBic | - | Cable - 3m, LNA, Filter | Connector | IP67 | - | - | Connector Mount | 0.866" (22.00mm) | Beidou, Galileo, Globalstar, GLONASS, GNSS, GPS, Iridium, QZSS |
|
|
EAN0140YC1350-1454 MHZ, YAGI, 10 DBI 7 EL |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3285.000.00ANT.MUX.M4 HF MULTIPLEXER MODULE |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6GK57928DN000AA6SIMATIC NET, IWLAN ANTENNA ANT 7 |
0 |
|
Datasheet |
- | Box | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.55GHz | 2.4GHz ~ 2.7GHz | Module | 1 | 1.5 | - | 14dBi | - | - | N Type Female | IP23 | - | - | Wall Mount | 7.874" (200.00mm) | WLAN |
|
|
HG4958-27EG-5PKANTGRID 4.9-5.8GHZ 27DBI |
0 |
|
- |
HG | Bag | Obsolete | General ISM, WiFi | Wide Band | 5.35GHz | 4.9GHz ~ 5.8GHz | Parabolic Grid | 1 | - | - | 27dBi | - | - | Screw-Mount | - | - | - | Mast Mount | 12.900" (327.66mm) | ISM, UNII, WLAN |
|
|
K5022221-RK5022221-R |
0 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 165MHz | 152MHz ~ 178MHz | Module | 1 | 2 | - | - | - | - | N Type Female | IP66 | - | - | Chassis Mount | 8.858" (225.00mm) | General Purpose |
|
|
K5022211-RK5022211-R |
0 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 152.5MHz | 143MHz ~ 162MHz | Module | 1 | 2 | - | - | - | - | N Type Female | IP66 | - | - | Chassis Mount | 8.858" (225.00mm) | General Purpose |
|

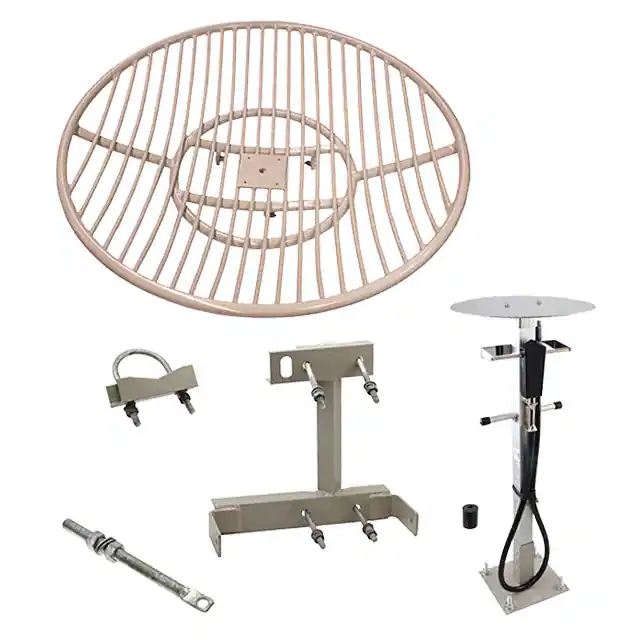

GD9-18RF ANT 914MHZ GRID N FEM BRK 10" |
0 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (300MHz ~ 1GHz) | 914MHz | 900MHz ~ 928MHz | Parabolic Grid | 1 | 1.5 | - | 18dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | - | WiMax™ |
|
|
HG4958-22EG-5PKANTGRID 4.9-5.8GHZ 22DBI |
0 |
|
- |
HG | Bag | Obsolete | General ISM, WiFi | Wide Band | 5.35GHz | 4.9GHz ~ 5.8GHz | Parabolic Grid | 1 | - | - | 22dBi | - | - | Screw-Mount | - | - | - | Mast Mount | 10.000" (254.00mm) | ISM, WLAN |
|
|
FMWAN102-20WG ANTENNA WR-102 7-11 GHZ |
0 |
|
Datasheet |
- | Bag | Active | General ISM | SHF (f > 4GHz) | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Waveguide Mount | 3.700" (93.98mm) | General Purpose |
|
|
HG4971DP-30DC-NF4950 MHZ TO 7125 MHZ, 2-FOOT COL |
0 |
|
- |
HG | Bag | Active | Cellular, WiFi | Wide Band | 5.025GHz, 5.5GHz, 6.512GHz | 4.95GHz ~ 5.1GHz, 5.1GHz ~ 5.9GHz, 5.9GHz ~ 7.125GHz | Parabolic Grid | 3 | 2, 2.5 | - | 29dBi, 30dBi, 31dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female (2) | - | - | - | Mast Mount | 8.150" (207.00mm) | 5G, Wi-Fi |
|
70422206 ELEMENT YAGI 208-232MHZ |
0 |
|
Datasheet |
- | Box | Active | - | VHF (f < 300MHz) | 220MHz | 215MHz ~ 225MHz | Yagi, 6-Element | 1 | 1.5 | - | 8.5dBd | 150 W | Cable - 3m | N Type Female | - | - | - | Bracket Mount | 149.606" (380.00cm) | - |
|
1330FWRF ANT 1.575GHZ DOME TNC FEM TH |
0 |
|
Datasheet |
1330FW | Box | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | 1.5 | - | 4.5dBic | - | - | TNC Female | - | - | - | Through Hole | 6.500" (165.10mm) | GPS |
|
ANT-MA741ABI001RF ANT 829MHZ/1.94GHZ DOME SMA |
0 |
|
Datasheet |
Pantheon | Bulk | Obsolete | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz, 3.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 2.9GHz ~ 3.5GHz | Dome | 4 | - | -7dB | 3.2dBi | - | - | SMA Male | IP67 | - | - | Panel Mount | 3.374" (85.70mm) | CDMA, HSPA, GPRS, GSM, LTE, UMTS |
|
|
FMANOM1094FAKRA JACK 7-IN-1 CELLULAR, WI-F |
0 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 788.5MHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.69GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Dome | 5 | 2 | - | 4dBi, 6dBi, 5dBi, 7dBi, 8dBi | 10 W | Cable - 5.18m | Fakra Female | IP69K | - | - | Panel Mount | 3.150" (80.01mm) | 4G/5G, GPS, Wi-Fi |
|
|
FMANOM1095FAKRA JACK 7-IN-1 CELLULAR, WI-F |
0 |
|
- |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 788.5MHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.69GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Dome | 5 | 2 | - | 4dBi, 6dBi, 5dBi, 7dBi, 8dBi | 10 W | Cable - 5.18m | Fakra Female | IP69K | - | - | Panel Mount | 3.150" (80.01mm) | 4G/5G, GPS, Wi-Fi |
|
|
LCANOM10944 CELLULAR, 2 WI-FI, 1 GPS COMBI |
0 |
|
Datasheet |
LCAN | Bulk | Active | General ISM | Wide Band | 788.5MHz, 1.587GHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.69GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Module | 6 | 2 | - | 4dBi, 26dBi, 6dBi, 5dBi, 7dBi, 8dBi | 10 W | Cable - 5.182m, LNA | Fakra | IP69K | - | - | Connector Mount | 3.150" (80.01mm) | General Purpose |
|
|
LCANOM10954 CELLULAR, 2 WI-FI, 1 GPS COMBI |
0 |
|
Datasheet |
LCAN | Bulk | Active | General ISM | Wide Band | 788.5MHz, 1.587GHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.69GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Module | 6 | 2 | - | 4dBi, 26dBi, 6dBi, 7dBi, 5dBi, 8dBi | 10 W | Cable - 5.182m, LNA | Fakra | IP69K | - | - | Connector Mount | 3.150" (80.01mm) | General Purpose |
|
|
LCANOM11354 CELLULAR, 2 WI-FI, 1 GPS COMBI |
0 |
|
Datasheet |
LCAN | Bulk | Active | General ISM | Wide Band | 788.5MHz, 1.587GHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.69GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Module | 6 | 2 | - | 4dBi, 26dBi, 6dBi, 7dBi, 5dBi, 8dBi | 10 W | Cable - 5.182m, LNA | N Type Male (4), RP-SMA Male (2), TNC Male | IP69K | - | - | Connector Mount | 3.150" (80.01mm) | General Purpose |
|
|
LCANOM11154 CELLULAR, 2 WI-FI, 1 GPS COMBI |
0 |
|
Datasheet |
LCAN | Bulk | Active | General ISM | Wide Band | 788.5MHz, 1.587GHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.69GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Module | 6 | 2 | - | 4dBi, 26dBi, 6dBi, 7dBi, 5dBi, 8dBi | 10 W | Cable - 5.182m, LNA | N Type Male (4), RP-SMA Male (2), SMA Male | IP69K | - | - | Connector Mount | 3.150" (80.01mm) | General Purpose |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
