RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PIS-1022GLASS FIBER LORA ANTENNA - 868MH |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Connector Mount | - | - |
|
|
TRA806-17103RF ANT 850MHZ/900MHZ DOME NMO |
0 |
|
Datasheet |
Phantom® | Bulk | Active | Cellular, General ISM | Wide Band | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | 806MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz | Dome | 7 | 2, 2.5 | - | 5.9dBi, 5.8dBi, 5.1dBi, 4.2dBi, 4.2dBi, 4.4dBi, 3dBi | 100 W | - | NMO | - | - | - | Base Mount | 2.300" (58.42mm) | AMPS, DCS, GPS, GSM, PCS, UMTS |
|
|
2J7583B-RB-SPJOYSTICK 5GNR/4GLTE/3G/2G SCREW |
0 |
|
Datasheet |
- | Active | Cellular | Wide Band | 788.5MHz, 2.06GHz, 4.15GHz, 5.54GHz | 617MHz ~ 960MHz, 1.43GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.93GHz | Whip, Straight | 4 | 1.7, 1.8, 2.5, 3.1 | -13.6dB, -11.7dB, -8.4dB, -8.1dB | 1.1dBi, 3.6dBi, 1.9dBi, 1.2dBi | 35 W | Cable - 3m | SMA Male | IP67, IP69 | - | - | Screw Mount | 3.189" (81.00mm) | 2G, 3G, 4G, 5G, CBRS, LPWA, LTE, NB-IoT | |
|
|
BB4302NRF ANT 440MHZ WHIP STR NMO BASE |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 440MHz | 430MHz ~ 450MHz | Whip, Straight | 1 | 2 | - | 2.4dBi | - | - | NMO | - | - | - | Base Mount | 12.500" (317.50mm) | - |
|
|
TRAB9023NRF ANT 915MHZ DOME NMO BASE MT |
0 |
|
Datasheet |
Phantom® | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Dome | 1 | 2 | - | 3dBi | 100 W | - | NMO | - | - | - | Base Mount | 2.700" (68.58mm) | GSM |
|
ETRAB4703RF ANT 480MHZ WHIP STR NMO BASE |
0 |
|
Datasheet |
Phantom Elite® | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 480MHz | 470MHz ~ 490MHz | Whip, Straight | 1 | 2 | - | 3dBi | 150 W | - | NMO | - | - | - | Base Mount | 3.400" (86.36mm) | - |
|
|
KD3FREQHQ4ANT HELIC 1-4 W SPEC FREQ 162- |
0 |
|
- |
- | Bag | Active | Cellular | VHF (f < 300MHz) | 168MHz | 162MHz ~ 174MHz | Helical | 1 | 2 | -10dB | - | - | - | TNC Male | - | - | - | Connector Mount | 9.500" (241.30mm) | DCS, ISM, GSM, PCS |
|
W771FL2-120-AMLTE DOME ANTENNA 120" SMA MALE |
0 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 829MHz, 2.205GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Dome | 2 | 2 | - | 2dBi | 10 W | Cable - 3.05m | SMA Male | - | - | - | Panel Mount | 3.039" (77.20mm) | ISM |
|
AEACBA050018-SG3RF ANT MULTIBAND MOD SMA ML ADH |
0 |
|
Datasheet |
AEAC | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.561GHz ~ 1.602GHz | Module | 3 | 1.5 | - | 5dBi | - | LNA | SMA | IP67 | - | - | Adhesive | 0.708" (18.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
NMOWBQCFTANTENNA WHIP 24 MHZ VHF-UHF |
0 |
|
Datasheet |
Willow Field Tunable | Bag | Active | - | UHF (300MHz ~ 1GHz) | 515.5MHz | 132MHz ~ 899MHz | Whip, Straight | 1 | 2 | -10dB | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 20.500" (520.70mm) | - |
|
H2MA301D100100LTE MIMO EXTERNAL ANTENNA |
0 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.35GHz, 2.585GHz, 3.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz | Flat Patch | 5 | 3, 5 | - | 1.1dBi, 1.2dBi, 1.4dBi, 1.5dBi, 2.4dBi, 3.1dBi, 3.2dBi | - | Cable - 2m | SMA Male | IP67 | - | - | Adhesive | 0.669" (17.00mm) | 4G, LTE |
|

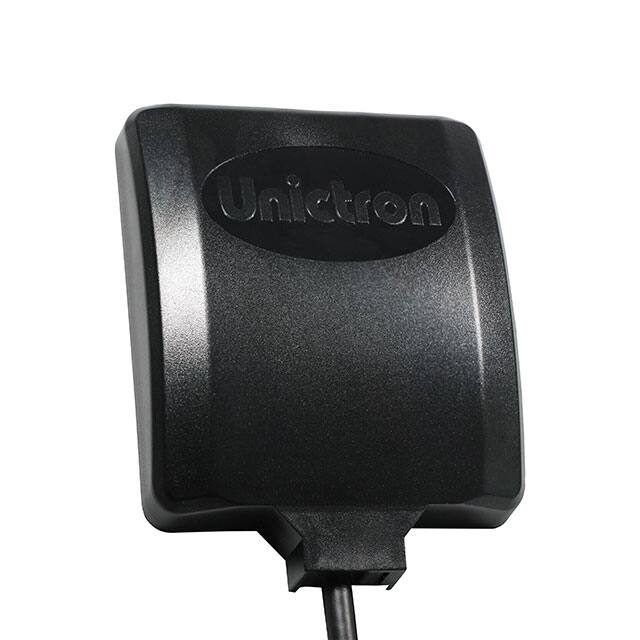

H2MA003D100100GPS L1+L5 EXTERNAL ANTENNA |
0 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.575GHz | - | Module | 2 | 2 | - | 2.3dBi, 3dBi | - | Cable - 2m, LNA | SMA Male | IP67 | - | - | Adhesive | 0.669" (17.00mm) | GPS |
|
|
16380.2GPS-ANTENNA |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LPS82403NT-61SMAMRF ANT 850MHZ/2.1GHZ MODULE CAB |
0 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 850MHz, 2.1GHz | 824MHz ~ 894MHz, 1.71GHz ~ 2.17GHz | Module | 2 | 3 | - | 2.39dBi, 5.48dBi | 10 W | Cable - 610mm | SMA Male | IP67 | - | - | Panel Mount | 1.024" (26.00mm) | CDMA, GSM |
|
|
GPS0002ANTENNA GPS 1575.4 MHZ |
0 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Dome | 1 | 2 | -10dB | 5dBic | - | Cable - 5.1816m | MCX | - | - | - | Magnetic | 0.500" (12.70mm) | GPS |
|
|
RFDPA252025AMLB801N MALE MP |
0 |
|
Datasheet |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FM51219ANTENNA TYPE N JACK 617 MHZ-6 GH |
0 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 657.5MHz, 829MHz, 2.205GHz, 3.8GHz, 5.45GHz | 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.4GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Dome | 5 | 1.8 | - | 1.8dBi, 2dBi, 3dBi, 4dBi, 4.5dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Ceiling Mount | 5.880" (149.35mm) | 5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M |
|
|
1565400INTERCONNECT MISC |
0 |
|
- |
ANT | Bulk | Active | General ISM | Wide Band | 788.5MHz, 2.2GHz, 5.2GHz, 5.3GHz, 5.597GHz, 5.787GHz, 5.872GHz, 6.175GHz, 6.475GHz, 6.7GHz, 7GHz | 617MHz ~ 960MHz, 1.7GHz ~ 2.7GHz, 5.15GHz ~ 5.25GHz, 5.25GHz ~ 5.35GHz, 5.47GHz ~ 5.725GHz, 5.725GHz ~ 5.85GHz, 5.85GHz ~ 5.895GHz, 5.925GHz ~ 6.425GHz, 6.425GHz ~ 6.525GHz, 6.525GHz ~ 6.875GHz, 6.875 | Whip, Tilt | 11 | - | - | 1.12dBi, 2.16dBi, 1.89dBi, 1.91dBi, 2.11dBi, 2.09dBi, 2.01dBi, 2.02dBi, 1.58dBi, 1.91dBi, 2.05dBi | - | - | SMA Male | IP67 | - | - | Connector Mount | 4.870" (123.70mm) | General Purpose |
|
3961DRF ANT 1.575GHZ CER PTCH MCX ADH |
0 |
|
Datasheet |
3961D | Box | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Ceramic Patch | 1 | 1.5 | - | -2dBic, 3dBic | - | Cable - 150mm, LNA | MCX | - | - | - | Adhesive | 0.315" (8.00mm) | GNSS, GPS |
|
LPS88213NT-61RTNMRF ANT 900MHZ/1.8GHZ MODULE CAB |
0 |
|
Datasheet |
- | Bulk | Obsolete | Cellular | Wide Band | 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 894MHz, 1.71GHz ~ 2.17GHz | Module | 4 | 3 | - | 2.5dBi, 5dBi, 3.9dBi, 3.9dBi | 10 W | Cable - 610mm | RP-TNC Male | IP67 | - | - | Panel Mount | 1.024" (26.00mm) | CDMA, GSM |
