RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3917D-5M-SMC3917, 5M RG-174, SMC PLUG |
0 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Module | 1 | - | - | 3dBic | - | Cable - 248.92mm, LNA, Filter | SMA Male | IP67 | - | - | Connector Mount | 0.540" (13.72mm) | GPS |
|
|
3917D-3M-SMB3917, 3M RG-174 TYPE, SMB CONNEC |
0 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Module | 1 | - | - | 3dBic | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic, Screw | 0.535" (13.60mm) | GPS |
|
|
3917D-76CM-SMA3917, 76CM RG-174, SMA PLUG |
0 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Module | 1 | - | - | 3dBic | - | Cable - 760mm, LNA, Filter | SMA Male | IP67 | - | - | Magnetic, Screw | 0.535" (13.60mm) | GPS |
|
|
SANT-2112ANTENNA SMA PLUG 2.4 MHZ-5 GHZ |
0 |
|
Datasheet |
- | Bag | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
EM-B40004-NJRF ANT 829MHZ/2.2GHZ DOME N FEM |
0 |
|
Datasheet |
- | Bulk | Active | - | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Dome | 2 | 1.8 | - | 2dBi, 5dBi | 50 W | - | N Type Female | - | - | - | Panel Mount | 4.500" (114.30mm) | - |
|
33-1421-09-0150RF ANT 1.575/1.602GHZ CER PATCH |
0 |
|
Datasheet |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.606GHz | Ceramic Patch | 2 | 1.5 | - | 28dB | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Chassis Mount | 0.344" (8.75mm) | GLONASS, GPS |
|
|
33-1421-03-0040RF ANT 1.575/1.602GHZ CER PATCH |
0 |
|
Datasheet |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.59GHz | 1.574GHz ~ 1.606GHz | Ceramic Patch | 1 | 1.8 | - | 4.5dBic | - | Cable - 40mm, LNA, Filter | - | - | - | - | Adhesive | 0.285" (7.25mm) | GLONASS, GPS |
|
|
33-1422-00-3000ANTENNA |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LPT825/19NMOHFWANT WHITE NMOHF TRANSIT ANTENN |
0 |
|
- |
- | Bag | Active | Cellular | Wide Band | 833MHz, 1.94GHz, 2.4GHz | 806MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Dome | 3 | - | -10dB | 3dBi, 4dBi | 10 W | - | NMO | - | - | - | Magnetic | 3.000" (76.20mm) | 4G, ISM, PCS, LTE |
|
ANT-2.4-OM-CM-01-NRF ANT 2.4GHZ WHIP STR N FEM |
0 |
|
Datasheet |
OM | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Whip, Straight | 1 | 1.5 | - | 7dBi | 20 W | - | N Type Female | - | - | - | Connector Mount | 25.079" (637.00mm) | - |
|
|
ASPC201LFIELD TUNABLE VHF/UHF WIDEBAND |
0 |
|
Datasheet |
ASPC | Bag | Obsolete | - | VHF (f < 300MHz), UHF (300MHz ~ 1GHz) | 310MHz | 108MHz ~ 512MHz | Whip, Straight | 1 | 1.5 | - | 1dBi | 100 W | - | UHF Male | - | - | - | Base Mount | 26.000" (660.40mm) | - |
|
EMFLX-M10007-GPIRF ANT 460MHZ WHIP STR NMO CONN |
0 |
|
Datasheet |
e/m-Flex™ | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 440MHz ~ 480MHz | Whip, Straight | 1 | 2 | - | 3dBd | 150 W | - | NMO | - | - | - | Connector Mount | 31.260" (794.00mm) | - |
|
|
ETRA821/18503RF ANT 858MHZ/1.9GHZ WHIP STR |
0 |
|
Datasheet |
Phantom Elite® | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 858MHz, 1.9GHz | 821MHz ~ 896MHz, 1.85GHz ~ 1.99GHz | Whip, Straight | 2 | 2 | -10dB | 3dBi | 100 W | - | NMO | - | - | - | Base Mount | 2.700" (68.58mm) | - |
|
|
LPT800/900NMOWWHITE NMO TRANSIT ANTENNA, 2 DBI |
0 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 883MHz | 806MHz ~ 960MHz | Dome | 1 | - | - | 2dBi | 100 W | - | NMO | - | - | - | Base Mount | 3.250" (82.55mm) | - |
|
|
NMOP5T900BANT WHIP 5DB 890-960MHZ BLACK |
0 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Whip, Straight | 1 | - | -10dB | 7.2dBi | 200 W | - | NMO | - | - | - | Magnetic | 18.000" (457.20mm) | - |
|
TANGO1/1M/FMEF/S/S/4RF ANT 850MHZ/900MHZ MODULE FME |
0 |
|
Datasheet |
TANGO 1 | Bulk | Active | Cellular, WiFi | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | - | Module | 6 | 1.5 | - | 2dBi | - | - | FME Female | - | - | - | Panel Mount | 0.669" (17.00mm) | GPRS, GSM, WLAN |
|

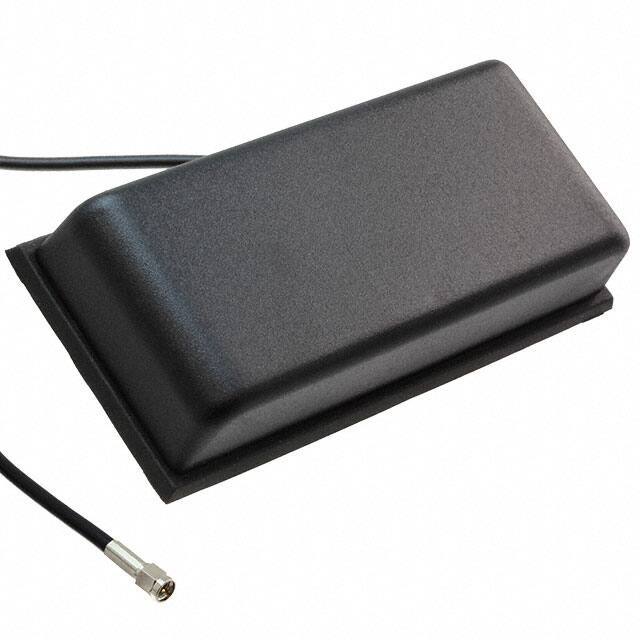

TANGO1/1M/SMAM/S/S/4RF ANT 850MHZ/900MHZ MODULE SMA |
0 |
|
Datasheet |
TANGO 1 | Bulk | Active | Cellular, WiFi | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | - | Module | 6 | 1.5 | - | 2dBi | - | - | SMA Male | - | - | - | Panel Mount | 0.669" (17.00mm) | GPRS, GSM, WLAN |
|
33-1027-05-0150RF ANT 1.575GHZ CER PATCH 15CM |
0 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1572.5MHz ~ 1.578GHz | Ceramic Patch | 1 | 1.5 | -10dB | 4.5dBic | - | LNA | MCX Male | - | - | - | Adhesive, Chassis Mount | 0.285" (7.25mm) | GPS |
|
|
NMOWBPQBANT WHIP UTY 150-170 MHZ BLK |
0 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 160MHz | 150MHz ~ 170MHz | Whip, Straight | 1 | - | -10dB | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 20.000" (508.00mm) | - |
|
ANT-W63-IPW2-NPRF ANT WIFI6/6E WLAN WHIP N PLUG |
0 |
|
Datasheet |
IPW | Bag | Obsolete | WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Straight | 3 | 1.7, 1.7, 2.8 | 11.7dB, -11.7dB, -6.5dB | 1.6dBi, 5dBi, 5.6dBi | 2 W | - | N Type Male | IP67 | - | - | Connector Mount | 5.200" (132.00mm) | Wi-Fi, Wi-Fi6, Wi-Fi6E, WLAN |
