RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EMFLX-M10003-GPIRF ANT 450MHZ WHIP STR NMO CONN |
0 |
|
- |
e/m-Flex™ | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 450MHz | 380MHz ~ 520MHz | Whip, Straight | 1 | 2 | - | 2dBi | 150 W | - | NMO | - | - | - | Connector Mount | 16.126" (409.60mm) | - |
|
2J6983MPPHOENIX 5GNR/4GLTE/3G/2G MIMO AD |
2 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 788.5MHz, 2.058GHz, 4.15GHz, 5.537GHz | 617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Module | 4 | 2.1, 3, 3.1 | -11.2dB, -7.1dB, -7dB, -6.4dB | 2.1dBi, 6.3dBi, 3.7dBi, 2.8dBi | 35 W | Cable - 3m | SMA Male | IP67, IP69 | - | - | Adhesive, Magnetic | 1.063" (27.00mm) | 2G, 3G, 4G, 5G, Cat-M, CBRS, IoT, LPWA, LTE, NB-IoT, NR |
|

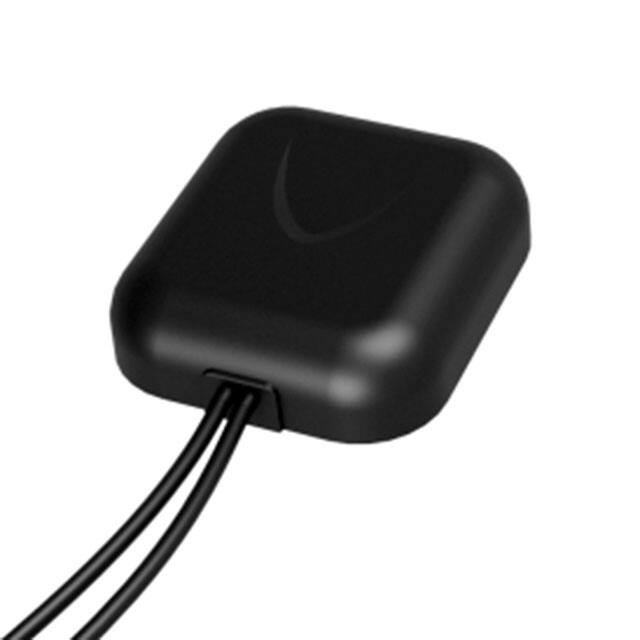

MIKE16/2.5M/SMAM/SMAM/S/S/26SMALL MAGNETIC MOUNT GPS/GLONASS |
0 |
|
Datasheet |
MIKE 16 | Bulk | Active | Cellular, Navigation | Wide Band | 892MHz, 1.575GHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Module | 3 | 1.5, 2.5 | - | 2dBi | - | Cable - 2.5m | SMA | - | - | - | Magnetic | 0.591" (15.00mm) | GPS, GSM, LTE, UMTS |
|
MIKROE-3377GPS/GLONASS/3G EXTERNAL ANTENNA |
0 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 883MHz, 1.575GHz, 1.61GHz, 1.94GHz | 806MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.6GHz ~ 1.62GHz, 1.71GHz ~ 2.17GHz | Module | 4 | 1.5, 2 | - | -1dBi, 1dBi, 5dBi | - | Cable - 3m, LNA | SMA Male (2) | - | - | - | Panel Mount | 0.555" (14.10mm) | 3G, GLONASS, GPS |
|
|
6001231PANEL ANTENNA - LTE, BOLT MOUNT, |
0 |
|
Datasheet |
AirLink® - Accessory | Box | Active | Cellular, Navigation | UHF (2GHz ~ 3GHz) | 2.249GHz | 698MHz ~ 3.8GHz | Panel | 1 | - | - | - | - | Cable - 2m | - | - | - | - | Panel Mount | - | GNSS, LTE |
|
|
SPHL23167ANT SP HELIC 1-4W 167M SMA |
0 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 167MHz | 160MHz ~ 174MHz | Helical | 1 | - | - | - | - | - | SMA Female | - | - | - | Connector Mount | 8.000" (203.20mm) | - |
|
|
BMLPVMBLTENGP-NLLinear IC's |
0 |
|
- |
- | Bulk | Active | Cellular | Wide Band | 825MHz, 2.205GHz | 690MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Whip, Straight | 2 | 2.5 | - | 3dBi, 3dBi | 150 W | - | Connector | IP66 | - | - | Panel Mount | 3.539" (89.90mm) | 4G, LTE |
|
|
KD3FREQHQ5ANT HELIC 1-4 W SPEC FREQ 220- |
0 |
|
- |
- | Bag | Active | Cellular | VHF (f < 300MHz) | 211MHz | 200MHz ~ 222MHz | Helical | 1 | 2 | -10dB | - | - | - | TNC Male | - | - | - | Connector Mount | 9.500" (241.30mm) | DCS, ISM, GSM, PCS |
|
|
KD3FREQHQ2ANT HELIC 1-4 W SPEC FREQ 142- |
0 |
|
- |
- | Bag | Active | Cellular | VHF (f < 300MHz) | 145.5MHz | 142MHz ~ 149MHz | Helical | 1 | 2 | -10dB | - | - | - | TNC Male | - | - | - | Connector Mount | 9.500" (241.30mm) | DCS, ISM, GSM, PCS |
|
|
SPWB24150ANTENNA SPWB24150 S |
0 |
|
- |
- | Tray | Active | - | VHF (f < 300MHz) | 155MHz | 136MHz ~ 174MHz | Whip, Straight | 1 | - | - | - | - | - | SMA Male | - | - | - | Connector Mount | 7.500" (190.50mm) | - |
|
|
NMOU155DANT BASE WHP-OPEN UTY 155-170 |
0 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 162.5MHz | 155MHz ~ 170MHz | Whip, Straight | 1 | - | -10dB | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 18.000" (457.20mm) | - |
|
TANGO12/2M/SMAM/SMAM/RP/S/17DUAL BAND MIMO WIFI 2.4/5GHZ THR |
0 |
|
Datasheet |
TANGO 12 | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Module | 2 | 2.6 | - | 2dBi, 3dBi | - | Cable - 2m | RP-SMA Male (2) | - | - | - | Screw Mount | 0.567" (14.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
SPHS21918ANT SP HELSH 1-4W 918M SMA F T |
0 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 913MHz | 872MHz ~ 954MHz | Helical | 1 | - | - | - | - | - | SMA Female | - | - | - | Connector Mount | 2.750" (69.85mm) | - |
|
|
SQ5153PG36RTNRF ANT 5.3GHZ PANEL CAB BRKT MT |
0 |
|
- |
Squint™ | Bulk | Obsolete | - | SHF (f > 4GHz) | 5.3GHz | 5.15GHz ~ 5.35GHz | Panel | 1 | 1.5 | - | 3dBi | - | Cable - 914mm | RP-TNC | - | - | - | Bracket Mount | 0.750" (19.05mm) | - |
|
TRA18503RF ANT 1.9GHZ DOME NMO BASE MT |
5 |
|
Datasheet |
Phantom® | Bulk | Obsolete | Cellular, General ISM | UHF (1GHz ~ 2GHz) | 1.9GHz | 1.85GHz ~ 1.99GHz | Dome | 1 | 2 | - | 3dBi | 100 W | - | NMO | - | - | - | Base Mount | 2.700" (68.58mm) | GSM, PCS |
|
|
BB-2J6024BA-150ANT LTE 2IN1 MIMO,LOW PROFILE SC |
0 |
|
- |
- | Bulk | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Module | 3 | 1.3, 2.1, 2.4 | -9.9dB, -8.1dBi, -19.5dB | 1.4dBi, 2.7dBi, 4.4dBi | 25 W | Cable - 1.5m | SMA Male | IP67 | - | - | Screw Mount | 0.618" (15.70mm) | 2G, 3G, 4G, LTE |
|
|
SB2400SMA3ANTENNA 2.4GHZ |
0 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Blade | 1 | - | - | 2.14dBi | 3 W | Cable - 914.4mm | SMA | - | - | - | - | 0.750" (19.05mm) | 4G, LTE |
|
|
YEGS001AATIMING SERVICE GNSS EXTERNAL ANT |
0 |
|
- |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58GHz | 1.56GHz ~ 1.61GHz | Module | 1 | - | - | - | - | Cable - 600mm | N Type Male | - | - | - | Screw | 0.984" (25.00mm) | GNSS |
|
|
ST0504-22-001-ARF EXTERNAL ANTENNA |
0 |
|
- |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.602GHz | 1.171GHz ~ 1.181GHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Module | 4 | - | -10dB | 2.3dBic, 3.1dBic, 3.5dBic, 3.3dBic | - | Cable - 1.5m, LNA | SMA Male | IP66 | - | - | Adhesive | 1.031" (26.20mm) | Beidou, GLONASS, GNSS, GPS |
|
|
FMAN51159ANTENNA SMA JACK 420 MHZ-450 MHZ |
0 |
|
Datasheet |
- | Bag | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
