RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B4503SRF ANT 460MHZ WHIP STR NMO BASE |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 2 | - | 3dBi | - | - | NMO | - | - | - | Base Mount | 13.000" (330.20mm) | - |
|
2108855-1ACTIVE ANT.,SMA,5M,L1+G1 & L2+L5 |
0 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.209GHz, 1.5845GHz | 1.164GHz ~ 1.255GHz, 1.559GHz ~ 1.61GHz | Flat Patch | 2 | 1.3 | - | 22.4dBic ~ 31.3dBic, 25.8dBic ~ 26.7dBic | - | LNA, Filter | RP-SMA Female | - | - | - | Magnetic | 0.886" (22.50mm) | GNSS |
|
|
MWV1322HDBASE LOADED-WB FIELD TUNE VHFUHF |
0 |
|
Datasheet |
MWV | Bag | Active | - | VHF (f < 300MHz) | 153MHz | 132MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 1dBi, 2.4dBi | 150 W | - | - | - | - | - | Base Mount | 48.000" (121.92cm) | - |
|
|
BB8965CNRF ANT 933MHZ WHIP STR NMO BASE |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 933MHz | 896MHz ~ 970MHz | Whip, Straight | 1 | - | - | 5dBi | - | - | NMO | IP67 | - | - | Base Mount | - | - |
|
|
MLBDC4700S47-50,UNITY,DC GND,W/SPR,CHR |
0 |
|
Datasheet |
MLB | Bulk | Active | General ISM | VHF (f < 300MHz) | 48.5MHz | 47MHz ~ 50MHz | Whip, Straight | 1 | 1.5 | - | 1dBi | 200 W | - | - | - | - | - | Threaded | 52.000" (132.10cm) | General Purpose |
|
|
MLBDC3700S37-40,UNITY,DC GND,W/SPR,CHR |
0 |
|
Datasheet |
MLB | Bulk | Active | General ISM | VHF (f < 300MHz) | 38.5MHz | 37MHz ~ 40MHz | Whip, Straight | 1 | 1.5 | - | 1dBi | 200 W | - | - | - | - | - | Threaded | 52.000" (132.10cm) | General Purpose |
|
|
B1323SRF ANT 153MHZ WHIP STR NMO BASE |
0 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 153MHz | 132MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 3dBi | - | - | NMO | IP67 | - | - | Base Mount | 59.000" (149.86cm) | - |
|
|
FMAN51165ANTENNA SMA JACK 880 MHZ-960 MHZ |
0 |
|
Datasheet |
- | Bag | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TLS.20.1F21RF ANT 450MHZ WHIP STR N FEM PAN |
0 |
|
Datasheet |
Shockwave | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 450MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | - | -3dB | -1.8dBi | 100 W | - | N Type Female | IP67, IP69K | - | - | Panel Mount | 3.128" (79.45mm) | CDMA |
|
|
MUF4505NGPSBASE LOADED -NO GROUND PLANE UHF |
0 |
|
Datasheet |
MUF NGP | Bag | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 1.5 | - | 5dBi | 200 W | - | - | - | - | - | Magnetic | 33.000" (838.20mm) | - |
|
DA-915-01SLEEVE DIPOLE ANTENNA |
0 |
|
- |
- | Box | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | - | - | 1 | - | - | 2.5dBi | 500 mW | - | - | - | - | - | Connector Mount | - | - |
|
|
FM51RD1032ANTENNA SMA PLUG 617 MHZ-5.85 GH |
0 |
|
Datasheet |
- | Bag | Active | Bluetooth, Cellular, WiFi | Wide Band | 3.233GHz | 617MHz ~ 5.85GHz | Whip, Tilt | 1 | 3.5 | - | 2dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Male | - | - | - | Connector Mount | 5.300" (134.62mm) | 4G, 5G, Bluetooth, IoT, LTE, Wi-Fi, Zigbee™ |
|
|
8161D-HRGNSS, HR, 26DB, EMBEDDED, 15CM, |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

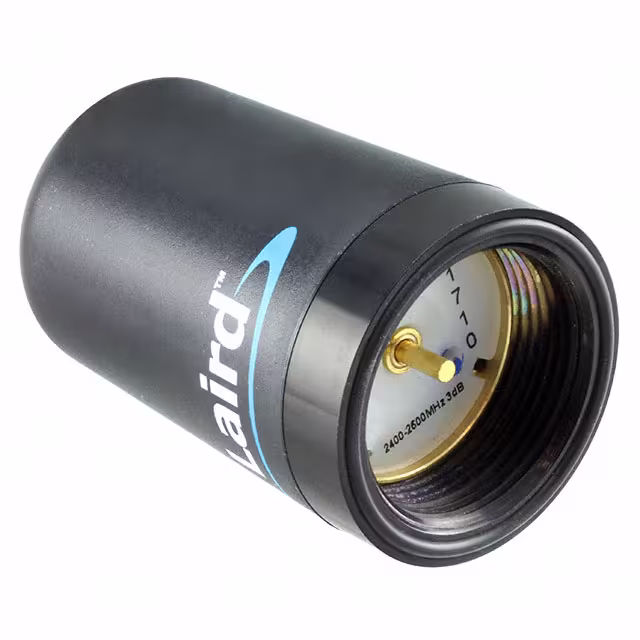

TRAB24003NRF ANT 2.4GHZ DOME NMO BASE 2.7" |
0 |
|
Datasheet |
Phantom® | Bulk | Obsolete | Cellular, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 2 | - | 3dBi | 100 W | - | NMO | - | - | - | Base Mount | 2.300" (58.42mm) | GSM, Wi-Fi |
|
|
LCSMA1007-50PK2400 - 2500 MHZ 2.3 DBI, STAMPED |
0 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | - | 2.3dBi | 1 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Surface Mount | 0.070" (1.78mm) | 802.11b/g/n, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ |
|
|
LCSMA1000-50PK2400 - 2500 MHZ 2 DBI, STAMPED M |
0 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | - | 2dBi | 1 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Surface Mount | 0.010" (0.25mm) | 802.11a/b/g/n/ac, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ |
|
|
LCSMA1005-50PK2400 - 2500 & 5150 - 5825 MHZ 2 |
0 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.487GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz | Stamped Metal | 2 | 2 | - | 2dBi, 3dBi | 1 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Surface Mount | 0.100" (2.54mm) | 802.11a/b/g/n/ac, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ |
|
|
LCSMA1002-50PK2400 - 2500 MHZ 2 DBI, STAMPED M |
0 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | - | 2dBi | 1 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Surface Mount | 0.160" (4.06mm) | 802.11b/g/n, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ |
|
|
LCSMA1004-50PK2400 - 2500 MHZ 2 DBI, STAMPED M |
0 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | - | 2dBi | 1 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Surface Mount | 0.085" (2.16mm) | 802.11b/g/n, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ |
|
|
3917D-3M-SMC3917, 3M RG-174, SMC PLUG |
0 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Module | 1 | - | - | 3dBic | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic, Screw | 0.535" (13.60mm) | GPS |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
