RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YA5740WANT YAGI 740-806MHZ 11DBI N-FEM |
9 |
|
Datasheet |
Yagi | Box | Active | - | UHF (300MHz ~ 1GHz) | 770MHz | 740MHz ~ 806MHz | Directional Antenna | 1 | 2 | - | 11.5dBi | 300 W | - | N Type Female | - | - | - | Pole Clamp | 32.756" (832.00mm) | General Purpose |
|
ARM32011DMRF ANT 829MHZ/1.582GHZ MOD PANEL |
2 |
|
Datasheet |
ARMADILLO | Bulk | Active | Cellular, Navigation | Wide Band | 829MHz, 1.582GHz, 2.2GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz | Module | 3 | 2, 2.5 | - | 4.9dBi, 5.3dBi, 4.6dBi, 6.6dBi | - | Cable - 5.18m, LNA | SMA Male (3) | IP67 | - | - | Panel Mount | 1.772" (45.00mm) | GPS, LTE |
|
FPMI2458-DP4RPSMARF ANT DUAL-BAND MIMO 2.4-2.5G |
18 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MA244.LBIC.0024IN1 ADHESIVE GNSS:1M RG174 SMA( |
14 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 752MHz, 892MHz, 1.4725GHz, 1.575GHz, 1.605GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.495GHz, 3.4GHz | 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.5GHz, 2.4GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.85GHz | Module | 11 | 2, 2, 5.8, 5.8 | 10 | 4.14dBi, 2.76dBi, -2.77dBi, 2.14dBi, 2.24dBi, 2.54dBi, 3.74dBi, 4.28dBi, 4.75dBi, 3.03dBi, 4.06dBi | - | Cable - 1m, LNA, Filter | RP-SMA Male (1), SMA Male (2) | IP65 | - | - | Adhesive | 0.488" (12.40mm) | Beidou, DCS, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, Wi-Fi |
|
MA413.A.B.004RF ANT 829MHZ/1.94GHZ DOM SMA 6M |
3 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Dome | 3 | 3 | - | 8dBi | - | - | SMA Male | IP67 | - | - | Panel Mount | 1.219" (30.95mm) | LTE |
|
GPS-TMG-26NCSRF ANT 1.575GHZ DOME N TYP F POL |
22 |
|
Datasheet |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | 1.5 | - | 3.5dBic | - | Filter | N Type Female | - | - | - | Pole Mount | 4.961" (126.00mm) | GNSS, GPS |
|
BGYD806KRF ANT 851MHZ YAGI N TYPE F POLE |
19 |
|
Datasheet |
BGYD | Bag | Active | - | UHF (300MHz ~ 1GHz) | 851MHz | 806MHz ~ 896MHz | Yagi, 7-Element | 1 | - | - | 10dBd | 200 W | Cable - 609.6mm | N Type Female | - | - | - | Pole Mount | 24.000" (609.60mm) | ISM, LoRa, LPWAN |
|
RAZ42111DMRF ANT 802MHZ/1.582GHZ MOD PANEL |
12 |
|
Datasheet |
RAZORBACK | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 802MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz | 644MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Module | 4 | 2 | - | 4.6dBi, 4.9dBi, 6dBi, 6.6dBi | 45 W | Cable - 5.18m, LNA | SMA Male (3), RP-SMA Male (1) | IP67 | - | - | Panel Mount | 3.644" (92.55mm) | GPS, LTE, Wi-Fi |
|
VMJ24493B-518RSMMMIMO-GNSS,ANT,802.11N,RP-SMA, BL |
5 |
|
Datasheet |
- | Bulk | Active | Navigation, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.45GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Module | 2 | 2 | - | 4.7dBi, 6.3dBi | 50 W | Cable - 5.18m | SMA Male (1), RP-SMA Male (2) | IP67 | - | - | Panel Mount | 1.516" (38.50mm) | GNSS, Wi-Fi |
|
ARM42112DMRF ANT 829MHZ/1.582GHZ MOD PANEL |
12 |
|
Datasheet |
ARMADILLO | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Module | 4 | 2, 2.5 | - | 4.9dBi, 5.3dBi, 4.6dBi, 6.6dBi | - | Cable - 5.18m, LNA | SMA Male (3), RP-SMA Male (1) | IP67 | - | - | Panel Mount | 1.772" (45.00mm) | GPS, LTE, Wi-Fi |
|
GPSMB301RF ANT 829MHZ/1.93GHZ DOME SMA |
5 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation | Wide Band | 829MHz, 1.93GHz, 2.5GHz, 3.25GHz | 698MHz ~ 960MHz, 1.695GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 2.9GHz ~ 3.6GHz | Dome | 4 | 1.5 | - | 6dBi | - | LNA | SMA Male | IP67 | - | - | Panel Mount | 2.992" (76.00mm) | GPS, LTE |
|
Y8963RF ANT 933MHZ YAGI N FEM BRKT MT |
2 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 933MHz | 896MHz ~ 970MHz | Yagi, 3-Element | 1 | 1.5 | - | 6dBd | - | - | N Type Female | - | - | - | Bracket Mount | 16.732" (425.00mm) | - |
|
GNSMB-COVRF ANT 657.5MHZ MOD RP-SMA ADH |
3 |
|
Datasheet |
GNSMB-COV | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 825MHz, 1.5845GHz, 2.205GHz, 2.5GHz, 2.4475GHz, 5.3675GHz | 1.561GHz ~ 1.608GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 2.4GHz ~ 2.495GHz, 4.91GHz ~ 5.825GHz | Module | 6 | 2 | - | 4dBi, 3dBic, -2dBic, 5dBi, 4dBi, 6dBi | 10 W | Cable - 5.1816m | RP-SMA (1), SMA (2) | IP67 | - | - | Adhesive | 0.984" (25.00mm) | 2G, 3G, 5G, Bluetooth, Cellular, ISM, LoRa, LPWAN, LTE, Wi-Fi |
|
GLPSF-5X1RF ANT 657.5MHZ MODULE SMA STUD |
19 |
|
Datasheet |
Trooper™ Max | Box | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 750MHz, 767.5MHz, 892MHz, 1.5835GHz, 1.955MHz, 2.0025GHz, 2.45GHz, 2.495GHz, 3.6GHz, 5.4GHz, 5.55GHz | 617MHz ~ 698MHz, 698MHz ~ 802MHz, 733MHz ~ 802MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 1.805GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.9GHz, 5.15G | Module | 12 | 1.7, 1.8, 1.9, 2, 2.1, 2.2, 2.3, 2.4, 3.1, 3.5, 3.8, 4.9, 5.1, 6.7 | - | 1.5dBi, 2.8dBi, 3.5dBi, 4.1dBi, 3dBic, 4.6dBi, 5.9dBi, 5.6dBi, 5.5dBi, 7.3dBi, 5.5dBi, 4.5dBi | 50 W | Cable - 304.8mm, LNA | SMA (2), SMA Male (1) | IP67 | - | - | Stud | 3.150" (80.00mm) | 2G, 3G, 5G, Bluetooth, Cellular, ISM, LoRa, LPWAN, LMR/TETRA/P25, LTE, Wi-Fi |
|
RAZ32012MMRF ANT 802MHZ/1.582GHZ MOD MAGNT |
2 |
|
Datasheet |
RAZORBACK | Bulk | Active | Cellular, Navigation | Wide Band | 802MHz, 1.582GHz, 2.2GHz | 644MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz | Module | 3 | 2 | - | 4.6dBi, 4.9dBi, 6dBi, 6.6dBi | 45 W | Cable - 5.18m, LNA | SMA Male (3) | IP67 | - | - | Magnetic | 3.727" (94.67mm) | GPS, LTE |
|
VFT69383W11JN-518LANT LOW PROFILE 3-PORT SHARKFIN |
3 |
|
Datasheet |
- | Bulk | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 752MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.745GHz, 2.45GHz, 5.45GHz | 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.69GHz ~ 3.8GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Dome | 9 | 2 | - | -0.3dBi, 0.6dBi, 1.6dBi, 3.4dBi, 4.5dBi, 5.6dBi, 4.3dBi, 3.4dBi, 4.6dBi | 10 W | Cable - 5.18m, LNA | SMA Male (2), RP-SMA | IP67 | - | - | Panel Mount | 1.890" (48.00mm) | 3G, 4G, 5G, Beidou, GLONASS, GNSS, GPS, ISM, LTE, Wi-Fi |
|
VHP69273B22J-518AANT 5-PORT 4G-WIFI-GNSS, BK,GNSS |
8 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.205GHz, 2.5GHz, 5.4GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 2.7GHz, 2.3GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz | Dome | 7 | 2 | - | 4.1dBi, 28dB, 5.9dBi, 6.2dBi, 6.5dBi | 50 W | Cable - 5.18m | RP-SMA Male, SMA Male (2) | IP67 | - | - | Panel Mount | 3.425" (87.00mm) | Beidou, GLONASS, GPS, LTE, Wi-Fi |
|
ARM62311DMRF ANT 829MHZ/1.582GHZ MOD PANEL |
4 |
|
Datasheet |
ARMADILLO | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Module | 6 | 2, 2.5 | - | 4.9dBi, 5.3dBi, 4.6dBi, 6.6dBi | - | Cable - 5.18m, LNA | SMA Male (3), RP-SMA Male (3) | IP67 | - | - | Panel Mount | 1.772" (45.00mm) | GPS, LTE, Wi-Fi |
.jpg)
|

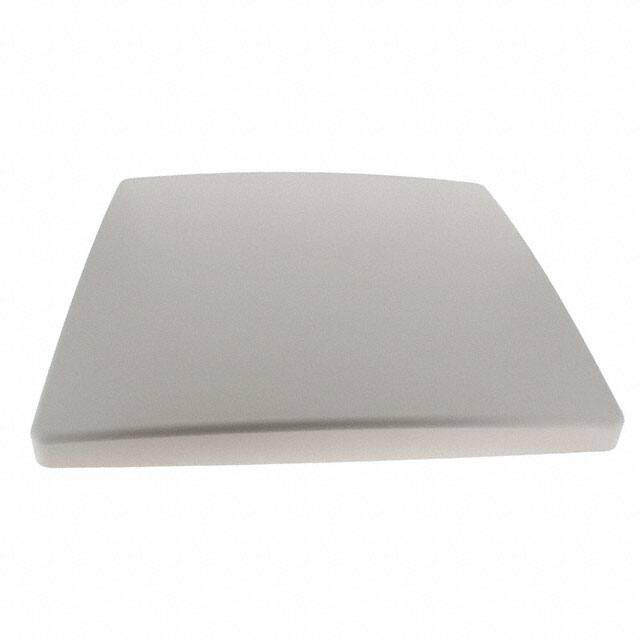

FP3637-18DPRF ANT 3.675GHZ PANEL N TYPE FEM |
17 |
|
Datasheet |
VenU® FP | Bulk | Active | Cellular | UHF (3GHz ~ 4GHz) | 3.675GHz | 3.6GHz ~ 3.75GHz | Panel | 1 | 2 | - | 18.5dBi | 20 W | - | N Type Female (2) | - | - | - | Pole Mount, Wall Mount | 1.575" (40.00mm) | 2G, 3G, 5G, Cellular, LTE |
|
ARM5G62312DMANT VHCL MULTIBAND W/DIRECT WHT |
11 |
|
Datasheet |
ARMADILLO | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 788.5MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.45GHz, 3.855GHz, 5.537GHz | 617MHz, 1.559GHz, 1.574GHz, 1.598GHz, 1.71GHz, 2.4GHz, 5.15GHz | Module | 7 | 2, 2.2, 2.5 | - | 2.2dBi, 5.4dBi, 4.6dBi, 6.3dBi | - | Cable - 5.18M, LNA | RP-SMA Male (3), SMA Male (3) | IP67 | - | - | Surface Mount | 1.772" (45.00mm) | 4G, 5G, BeiDou, GLONASS, GNSS, GPS, LTE |
