BOM Upload
RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA413.A.B.002RF ANT 829MHZ/1.94GHZ DOM SMA 3M |
100 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Dome | 3 | 3 | - | 8dBi | - | - | SMA Male | IP67 | - | - | Panel Mount | 1.219" (30.95mm) | LTE |
|
OD24-12RF ANT 2.4GHZ WHIP STR N FEM |
26 |
|
Datasheet |
- | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.485GHz | Whip, Straight | 1 | 1.5 | -14dB | 12dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 48.031" (122.00cm) | Wi-Fi |
|
WAG58302GRID PARABOLIC WIFI ANTENNA FOR |
77 |
|
- |
- | Bulk | Active | - | SHF (f > 4GHz) | 5.7875GHz | 5.725GHz ~ 5.85GHz | Parabolic Grid | 1 | - | - | 30dBi | - | - | N Type Female | - | - | - | Bracket Mount | 15.750" (400.05mm) | - |
|
|
PE51OM10262.4 GHz 8 dBi Omnidirectional An |
90 |
|
Datasheet |
- | Retail Package | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 8dBi | 100 W | Cable - 304.8mm | SMA | - | - | - | Bracket Mount | 16.800" (426.72mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN |
|
|
ANT7287Super DB8 Adjustable Multidirect |
95 |
|
- |
- | Tape & Box (TB) | Active | - | VHF (f < 300MHz), UHF (300MHz ~ 1GHz) | - | 47MHz ~ 862MHz | - | - | - | - | 17dBi ~ 22dBi | - | - | VHF, UHF | - | - | - | Bracket Mount | - | - |
|
2702273RF ANT 700MHZ/800MHZ WHIP STR 5M |
33 |
|
Datasheet |
- | Bulk | Obsolete | - | Wide Band | 700MHz, 800MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz | - | Whip, Straight | 8 | - | - | 3dBi, 4dBi, 5dBi | 30 W | Cable - 5m | SMA Male | - | - | - | Bracket Mount | 3.228" (82.00mm) | - |
|
2344721-1CEILING MOUNT ANTENNA MIMO 2X2 S |
14 |
|
Datasheet |
- | Bulk | Obsolete | Cellular, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.45GHz | 2.4GHz ~ 2.485GHz, 4.9GHz ~ 6GHz | Dome | 2 | - | - | 4dBi, 6dBi | 10 W | Cable - 2m | RP-SMA | IP66 | - | - | Ceiling Mount | 1.181" (30.00mm) | LTE, UMTS, WCDMA, Wi-Fi |
|
|
PE51066-1GPS PASSIVE ANTENNA OPERATES FRO |
47 |
|
Datasheet |
- | Retail Package | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Module | 1 | 1.5 | - | 3dBi | - | Cable - 4.88m | SMA Female | - | - | - | Connector Mount | 0.590" (14.99mm) | GPS |
|
FMA359.A.LBFCG.001FMA359 5-IN-1 GPS/GLONASS, LTE |
0 |
|
Datasheet |
- | Bulk | Obsolete | Cellular, Navigation, WiFi | Wide Band | 761MHz, 869MHz, 920MHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz, 5.375GHz | 698MHz ~ 824MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.601GHz ~ 1.603GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz, 4.9GHz ~ 5.85G | Module | 11 | - | -6dB, -10dB | -3.2dBi, -2.47dBi, -2.04dBi, 1dBic, -3.88dBi, -3.33dBi, -3.24dBi, -3.27dBi, -2.94dBi, -4.34dBi | - | Cable - 3m, LNA, Filter | RP-SMA Male (1), SMA Male (2) | IP67 | - | - | Surface Mount | 1.869" (47.48mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
|
2344721-2CEILING MOUNT ANTENNA MIMO 3X3 S |
5 |
|
Datasheet |
- | Bulk | Obsolete | Cellular, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.45GHz | 2.4GHz ~ 2.485GHz, 4.9GHz ~ 6GHz | Dome | 2 | - | - | 4dBi, 6dBi | 10 W | Cable - 2m | RP-SMA | IP66 | - | - | Ceiling Mount | 1.181" (30.00mm) | LTE, UMTS, WCDMA, Wi-Fi |
|
|
BT97482228dB High Gain Grid Parabolic |
176 |
|
Datasheet |
- | Retail Package | Active | Cellular | - | - | 600MHz ~ 6.5GHz | Parabolic | - | 2.5, 2, 2.5 | - | 8dBi ~ 15dBi, 20dBi ~ 28dBi, 10dBi ~ 26dBi | - | - | N Type Female | - | - | - | - | - | Signal Boosting |
|
2344721-5CEILING MOUNT ANTENNA MIMO 3X3 N |
3 |
|
Datasheet |
- | Bag | Obsolete | Cellular, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.45GHz | 2.4GHz ~ 2.485GHz, 4.9GHz ~ 6GHz | Dome | 2 | - | - | 4dBi, 6dBi | 10 W | Cable - 2m | N Type | IP66 | - | - | Ceiling Mount | 1.181" (30.00mm) | LTE, UMTS, WCDMA, Wi-Fi |
|
|
BT974976Crossbow 2X2 MIMO Antenna w/SMA |
94 |
|
Datasheet |
- | Retail Package | Active | Cellular | - | - | 617MHz ~ 894MHz, 1.71GHz ~ 2.7GHz, 3.4GHz ~ 3.8GHz | MIMO Cross Polarized | - | 1.5.1 Over 90% of the Band | - | 9dBi, 10dBi, 11dBi | - | - | SMA Male | - | - | - | Pole, Wall Mount | - | 5G, Signal Boosting |
|
|
BT974921The Arrow | LPDA Cellular Antenn |
28 |
|
Datasheet |
- | Retail Package | Active | Cellular | - | - | 600MHz ~ 960MHz, 1.71GHz ~ 2.2GHz | LPDA | - | 2 | - | 12dBi | - | - | N Type Female | - | - | - | Pole Mount | - | Signal Boosting |
|
|
M7HCT-A-SMA/100-00069-01Helical Multi-Frequency Active A |
38 |
|
Datasheet |
- | Tape & Box (TB) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.211GHz, 1.582GHz | 1.192GHz ~ 1.231GHz, 1.559GHz ~ 1.606GHz | Whip, Straight | 2 | - | - | 1.2dBi, 0.9dBi | - | - | SMA | IP67 | - | - | Screw | 2.008" (51.00mm) | GLONASS, GPS |
|
|
M8HCT-A-SMA/100-00124-01Helical Multi-Frequency Active A |
40 |
|
Datasheet |
- | Tape & Box (TB) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.211GHz, 1.549GHz, 1.582GHz | 1.164GHz ~ 1.189GHz, 1.192GHz ~ 1.231GHz, 1.539GHz ~ 1.559GHz, 1.559GHz ~ 1.606GHz | Whip, Straight | 4 | - | - | 1.3dBi, 0.5dBi, 0.5dBi, 1.5dBi | - | - | SMA | IP67 | - | - | Screw | 2.008" (51.00mm) | GLONASS, GPS |
|

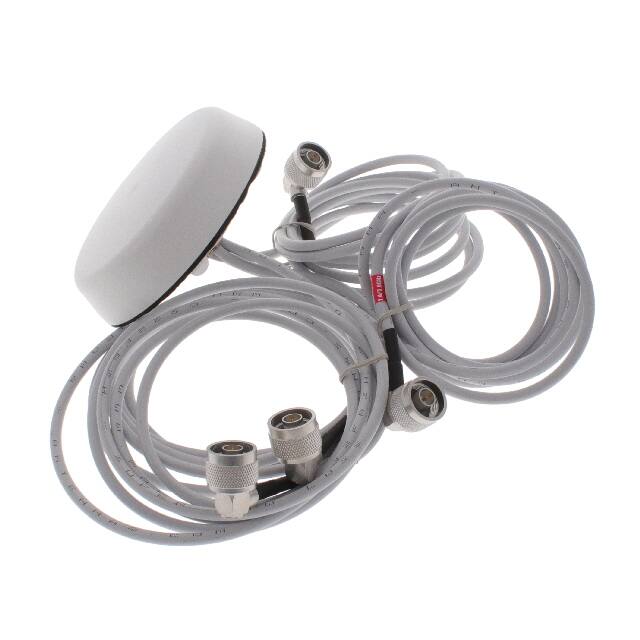

2344721-6CEILING MOUNT ANTENNA MIMO 4X4 N |
0 |
|
Datasheet |
- | Bulk | Obsolete | Cellular, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.45GHz | 2.4GHz ~ 2.485GHz, 4.9GHz ~ 6GHz | Dome | 2 | - | - | 4dBi, 6dBi | 10 W | Cable - 2m | N Type | IP66 | - | - | Ceiling Mount | 1.181" (30.00mm) | LTE, UMTS, WCDMA, Wi-Fi |
|
|
PE51024Patch Panel Antenna Operates Fro |
34 |
|
Datasheet |
- | Retail Package | Active | - | Wide Band | 915MHz | 902MHz ~ 928MHz | Panel | 1 | 1.2 | - | 8.5dBi | - | - | N Type Female | - | - | - | Bracket Mount | 1.740" (44.20mm) | - |
|
|
PEANGPS1007GPS Active Antenna, 1597 MHz to |
29 |
|
Datasheet |
- | Retail Package | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.602GHz | 1.597GHz ~ 1.607GHz | Module | 1 | 2.5 | - | 10dBi | - | - | SMA Male | IP67 | - | - | - | 1.750" (44.45mm) | Galileo, GLONASS, GNSS, GPS |
|
MPMI2458-3-NFRF ANT 3PORT DUAL BAND 2.4/5GHZ |
26 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
