RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BT151007The Cowboy 5G | 50 Ohm N Female |
35 |
|
Datasheet |
- | Tape & Box (TB) | Active | Cellular | - | - | 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.4GHz ~ 4GHz, 4.9GHz ~ 6GHz | Dome | - | 1.8, 1.8, 1.5, 1.7, 1.7 | - | 1.8dBi, 2dBi, 3dBi, 4dBi, 4.5dBi | 50 W | - | N Type Female | - | - | - | - | - | Signal Boosting |
|
ANT2112Triple-Boom Outdoor TV Antenna |
247 |
|
- |
- | Box | Active | - | - | - | - | Yagi | - | - | - | - | - | - | VHF, UHF | - | - | - | Bracket Mount | 20.000" (508.00mm) | - |
|
WAG24213GRID PARABOLIC WIFI ANTENNA FOR |
75 |
|
- |
- | Bulk | Active | General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.4415GHz | 2.4GHz ~ 2.483GHz | Parabolic Grid | 1 | 1.5 | - | 21dBi | 200 W | - | N Type Female | - | - | - | Bracket Mount | 15.750" (400.05mm) | ISM, UNII, WLAN |
|
|
GPX-026XNF2WANT 915 FLAT PANEL N JACK FEMALE |
42 |
|
Datasheet |
26 | Box | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 930MHz | Flat Panel | 1 | 1.2 | -20dB | 8.1dBi | 10 W | - | N Type Female | IP67 | - | - | Bracket Mount | 1.740" (44.00mm) | ISM, RFID |
|
|
PE51OM1017900 MHz 3 dBi Omni-directional A |
34 |
|
Datasheet |
- | Retail Package | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 914MHz | 900MHz ~ 928MHz | Whip, Straight | 1 | 1.6 | - | 3dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Bracket Mount | 13.780" (350.00mm) | GSM, ISM, LoRa, LPWAN, WLAN |
|
|
BT151014Indoor Board 5G Panel Antenna |
47 |
|
Datasheet |
- | Tape & Box (TB) | Active | Cellular | - | - | 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.4GHz ~ 4GHz, 4.9GHz ~ 6GHz | Panel | - | 2 | - | 4dBi, 5dBi, 7dBi, 5.5dBi, 7dBi | - | - | N Type Female | - | - | - | Wall Mount | - | Signal Boosting |
|

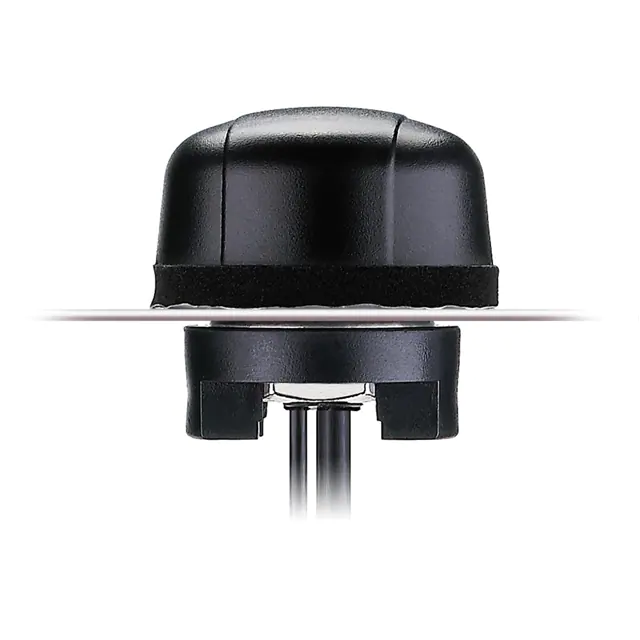

FMA103.A.AF.0012 IN 1 PERMANENT MOUNT GPS (1M R |
0 |
|
Datasheet |
- | Bulk | Obsolete | Navigation | Wide Band | 860MHz, 920MHz, 1.575GHz, 1.795GHz, 1.92GHz, 2.045GHz | 824MHz ~ 896MHz, 880MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz | Dome | 6 | 2, 3.5 | -13dB, -11dB, -21dB, -21dB, -19dB | 0.1dBi, 1.6dBi, -1dBi, 0.1dBi, 0.6dBi, -0.9dBi | 10 W | Cable - 3m, LNA | SMA Male | IP67, IP69K | - | - | Panel Mount | 1.142" (29.00mm) | GLONASS, GPS |
|
ANT2190UHF Outdoor TV Digital Antenna |
119 |
|
- |
- | Box | Active | - | UHF (300MHz ~ 1GHz) | 666MHz | 470MHz ~ 862MHz | Yagi, 15-Element | 1 | - | - | 10dBi, 14dBi | - | - | VHF, UHF | - | - | - | Bracket Mount | 0.075" (1.91mm) | - |
|
|
MM-ANT-NM-915-7.5dBi-LORALoRa Freqency External LoRaWAN |
6,521 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915.5MHz | 902MHz ~ 929MHz | Whip, Straight | 1 | 1.5 | - | 7.5dBi | 50 W | - | N Type Male | - | - | - | Bracket Mount | 44.882" (114.00cm) | LoRa |
|
|
MM-ANT-NM-915-7.5dBi-IOTIOT Tuned Mining External 7.5DBi |
6,521 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915.5MHz | 902MHz ~ 929MHz | Whip, Straight | 1 | 1.5 | - | 7.5dBi | 50 W | - | N Type Male | - | - | - | Bracket Mount | 1.496" (38.00mm) | General Purpose |
|
|
MM-ANT-NM-868-7.5dBi-LORALoRa Freqency External LoRaWAN |
5,267 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 867.5MHz | 865MHz ~ 870MHz | Whip, Straight | 1 | 1.5 | - | 7.5dBi | 50 W | - | N Type Male | - | - | - | Bracket Mount | 44.882" (114.00cm) | LoRa |
|
|
MM-ANT-NM-868-7.5dBi-IOTIOT Tuned Mining External 7.5DBi |
5,267 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 867.5MHz | 865MHz ~ 870MHz | Whip, Straight | 1 | 1.5 | - | 7.5dBi | 50 W | - | N Type Male | - | - | - | Bracket Mount | 44.882" (114.00cm) | General Purpose |
|
|
MM-ANT-NM-868-9dBi-IOTIOT Tuned Mining External 9DBi |
8,199 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 867.5MHz | 865MHz ~ 870MHz | Whip, Straight | 1 | 1.5 | - | 9dBi | 50 W | - | N Type Male | - | - | - | Bracket Mount | 62.992" (1600.00mm) | General Purpose |
|
|
MM-ANT-NM-868-9dBi-LORALoRa Freqency External LoRaWAN |
7,541 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 867.5MHz | 865MHz ~ 870MHz | Whip, Straight | 1 | 1.5 | - | 9dBi | 50 W | - | N Type Male | - | - | - | Bracket Mount | 62.992" (1600.00mm) | LoRa |
|
|
MM-ANT-NM-915-9dBi-IOTIOT Tuned Mining External 9DBi |
5,695 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915.5MHz | 902MHz ~ 929MHz | Whip, Straight | 1 | 1.5 | - | 9dBi | 50 W | - | N Type Male | - | - | - | Bracket Mount | 62.992" (1600.00mm) | General Purpose |
|
JCA228FGNSS MULTI-BAND SURVEYING ANTENN |
54 |
|
Datasheet |
- | Box | Active | Navigation | - | - | - | Dome | - | 1.5, 2 | - | 5.5dBi | - | LNA | TNC | IP67 | - | - | Screw Mount | 2.618" (66.50mm) | GNSS |
|
|
MM-ANT-FP-915-13dBi-IOTIOT Tuned Mining External 13DBi |
2,099 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915.5MHz | 902MHz ~ 929MHz | Panel | 1 | 1.5 | - | 13dBi | 50 W | - | N Type Female | - | - | - | - | 3.150" (80.00mm) | General Purpose |
|
|
MM-ANT-FP-915-13dBi-LORALoRa Freqency External LoRaWAN |
2,094 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915.5MHz | 902MHz ~ 929MHz | Panel | 1 | 1.5 | - | 13dBi | 50 W | - | N Type Female | - | - | - | - | 44.094" (1120.00mm) | LoRa |
|
|
MM-ANT-NM-868-13dBi-IOTIOT TUNED MINING EXTERNAL 13DBI |
1,924 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 867.5MHz | 865MHz ~ 870MHz | - | 1 | 1.5 | - | 13dBi | 50 W | - | N Type Female | - | - | - | - | 44.094" (1120.00mm) | General Purpose |
|
|
MM-ANT-NM-868-13dBi-LORALoRa Freqency External LoRaWAN |
1,920 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 867.5MHz | 865MHz ~ 870MHz | - | 1 | 1.5 | - | 13dBi | 50 W | - | N Type Female | - | - | - | - | 3.150" (80.00mm) | LoRa |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
