RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T614FC-7-PX-2.4/4.9/5.X-SRF ANT 2.4/5.5GHZ WHIP TILT 7" |
516 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | 2 | - | 4dBi, 5dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 6.083" (154.50mm) | - |
|
EXC902BNRF ANT 931MHZ WHIP STR BNC MALE |
129 |
|
Datasheet |
EXC | Bulk | Obsolete | Bluetooth, WiFi | UHF (300MHz ~ 1GHz) | 931MHz | 902MHz ~ 960MHz | Whip, Straight | 1 | 1.5 | - | - | 50 W | - | BNC Male | - | - | - | Connector Mount | 3.650" (92.71mm) | Bluetooth, Wi-Fi |
|
2108912-1ACTIVE ANT.,MHF,55MM,L1 |
531 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.576GHz | 1.574GHz ~ 1.578GHz | Flat Patch | 1 | 2:1 | - | 11.1dBic | - | LNA, Filter | RP-SMA Female | - | - | - | Adhesive | 0.205" (5.20mm) | GNSS |
|
PE51083RUBBER DUCK PORTABLE DUAL BAND A |
281 |
|
Datasheet |
- | Retail Package | Active | General ISM | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.36GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Whip, Tilt | 2 | 2 | - | 2dBi, 2dBi | 30 W | - | SMA Male | - | - | - | Connector Mount | 4.250" (107.95mm) | General Purpose |
|
ANT-GPS-SH2-SMARF ANT 1.575GHZ/1.602GHZ MOD 3M |
236 |
|
Datasheet |
- | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.570GHz ~ 1.580GHz, 1.597GHz ~ 1.607GHz | Module | 2 | 1.5 | - | 5dB | - | Cable - 3m, LNA | SMA Male | IP66 | - | - | Magnetic | 0.492" (12.50mm) | GPS |
|
|
ZGX-1023NF3WANT 5G FIBERGLASS N JACK FEMALE |
198 |
|
Datasheet |
1023 | Box | Active | Cellular | Wide Band | 657.5MHz, 829MHz, 2.2GHz, 3.75GHz, 4.7GHz, 5.5GHz, 6.525GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Fiberglass Radome | 8 | 2.2, 2.7, 2.3, 2.8, 2.4, 2.5 | -8.5dB, -6.8dB, -8.1dB, -6.5dB, -7.7dB, -7.4dB | 2.4dBi, 2.7dBi, 3.3dBi, 4.3dBi, 4.8dBi, 3.8dBi | 10 W | - | N Type Female | IP67 | - | - | Connector Mount | 5.709" (145.00mm) | 2G, 3G, 4G, 5G, LTE |
|
|
ZHX-3802NF3BANT 5G DOME N JACK FEMALE |
387 |
|
Datasheet |
3802 | Bag | Active | Cellular | Wide Band | 657.5MHz, 829MHz, 2.2GHz, 3.75GHz, 4.7GHz, 5.5GHz, 6.525GHz | 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Dome | 8 | 3.6, 2.8, 2.3, 2.5, 2, 2.8 | -5dB, -6.5dB, -8.1dB, -7.4dB, -9.5dB, -6.5dB | 4.1dBi, 7.1dBi, 6.8dBi, 6.2dBi, 10dBi, 8.9dBi | 10 W | - | N Type Female | IP67 | - | - | Panel Mount | 3.059" (77.70mm) | 2G, 3G, 4G, 5G, LTE |
|
|
ZGX-1123NX3WANT 5G FIBERGLASS N PLUG MALE |
192 |
|
Datasheet |
1123 | Box | Active | Cellular | Wide Band | 657.5MHz, 829MHz, 2.2GHz, 3.75GHz, 4.7GHz, 5.5GHz, 6.525GHz | 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Fiberglass Radome | 8 | 2.1, 2.5, 2.3, 3.0, 2.4, 2.0 | -9dB, -7.4dB, -8dB, -6dB, -7.7dB, -9.5dB | 2.7dBi, 3.4dBi, 2.2dBi, 3.6dBi, 4dBi, 4.5dBi | 10 W | - | N Type Male | IP67 | - | - | Connector Mount | 5.984" (152.00mm) | 2G, 3G, 4G, 5G, LTE |
|
|
FXUB63.01.0150CWIDE BAND FLEX ANTENNA |
568 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

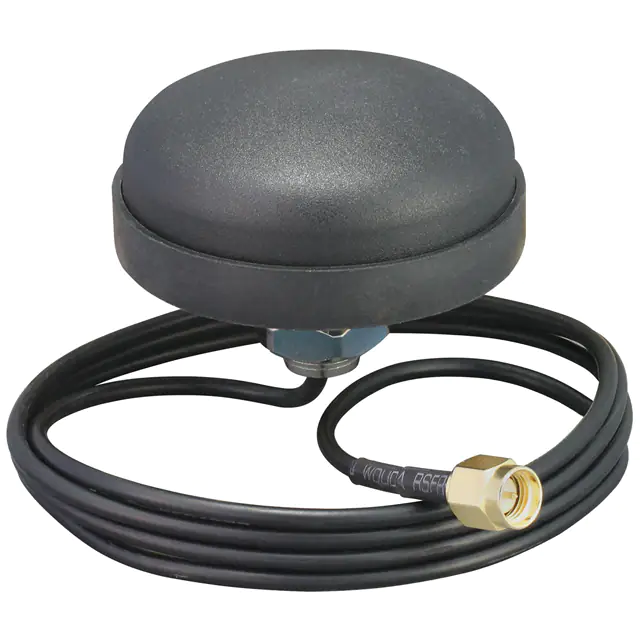

ANT-433-SPS1-1RF ANT 410/433 MHZ PUCK 1M SMA |
207 |
|
Datasheet |
ANT-433-SPS1 | Bag | Obsolete | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 430MHz ~ 435MHz | Dome | 1 | 1.7 | - | -1.3dBi | 15 W | Cable - 1m | SMA Male | IP67 | - | - | Panel Mount | 0.917" (23.30mm) | LoRaWAN, LPWA |
|
ATGGBL24138M-SMA-3RF ANT GPS L1+L2/GNSS SMA 3M |
283 |
|
Datasheet |
ATGGB | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.227GHz, 1.561GHz, 1.575GHz, 1.602GHz | 1.217GHz ~ 1.237GHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.594GHz ~ 1.61GHz | Module | 4 | 2 | -3.85dB, -15.41dB, -18.37dB, -39.62dB | 2.09dBi, -3.22dBi, 1.39dBi, 1.56dBi | - | Cable - 3m, LNA, Filter | SMA Male | - | - | - | Magnetic | 0.642" (16.30mm) | Beidou, Galileo, GLONASS, GPS |
|
|
PEANGPS101031 dBi Active GPS/GLONASS Magnet |
138 |
|
Datasheet |
- | Retail Package | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.59GHz | 1.574GHz ~ 1.607GHz | Module | 1 | 2 | - | 31dBi | - | Cable - 5m | SMA Male | IPX6 | - | - | Magnetic | 0.490" (12.44mm) | GLONASS, GNSS, GPS |
|
|
PEANGPS101331.5 DBI ACTIVE GPS MAGNET MOUNT |
117 |
|
Datasheet |
- | Retail Package | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.577GHz | Module | 1 | 2 | - | 31.5dBi | - | Cable - 1m | Fakra | IP66 | - | - | Magnetic | 0.669" (17.00mm) | GNSS, GPS |
|
2108840-1CERAMIC PATCH ANT, SMD, L1+G1 & |
142 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.559GHz ~ 1.61GHz | Flat Patch | 2 | 1.3, 1.4 | - | 5.1dBic, 5.6dBic | - | - | - | - | - | - | Adhesive | 0.512" (13.00mm) | GNSS |
|
|
AN240206-01HPATCH ARRAY 2400MHZ with Switch |
103 |
|
Datasheet |
AN240206 | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Patch, 4-Element | 1 | 1.43 | -15dB | 1.1dBi | 10 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Screw Mount | 0.079" (2.00mm) | Bluetooth LE 5.1/5.2, AoA |
|
|
MM-ANT-NM-915-3dBi-IOTIOT Tuned Mining External 3DBi |
13,499 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915.5MHz | 902MHz ~ 929MHz | Whip, Straight | 1 | 1.07 | - | 3dBi | 50 W | - | N Type Male | - | - | - | Bracket Mount | 11.811" (300.00mm) | General Purpose |
|
|
MM-ANT-NM-915-3dBi-LORALoRa Freqency External LoRaWAN |
13,493 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915.5MHz | 902MHz ~ 929MHz | Whip, Straight | 1 | 1.07 | - | 3dBi | 50 W | - | N Type Male | - | - | - | Bracket Mount | 11.811" (300.00mm) | LoRa |
|
|
MM-ANT-NM-868-3dBi-LORALoRa Freqency External LoRaWAN |
13,254 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 867.5MHz | 865MHz ~ 870MHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 50 W | - | N Type Male | - | - | - | Bracket Mount | 11.811" (300.00mm) | LoRa |
|
|
MM-ANT-NM-868-4dBi-LORALoRa Freqency External LoRaWAN |
6,699 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 867.5MHz | 865MHz ~ 870MHz | Whip, Straight | 1 | 1.5 | - | 4dBi | 50 W | - | N Type Male | - | - | - | Bracket Mount | 20.472" (520.00mm) | LoRa |
|

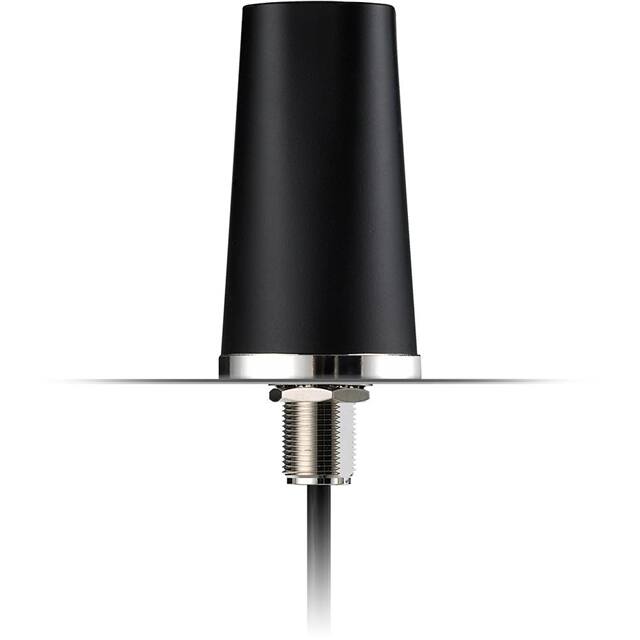

FNS.01.30WW111FIRSTNET BAND 14 TERMINAL SCREW |
9 |
|
Datasheet |
- | Bulk | Obsolete | Cellular | Wide Band | 752MHz, 860MHz, 920MHz, 1.575GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.3325GHz, 2.495GHz, 3.5GHz | 698MHz ~ 806MHz, 824MHz ~ 896MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 2.305GHz ~ 2.36GHz, 3.4GHz ~ 3.6GHz | Dome | 10 | - | -8dB, -10dB, -10dB, -10dB, -10dB, -10dB, -10dB, -10dB | 2.42dBi, 2.42dBi, 2.25dBi, 0.88dBi, 2.5dBi, 2.32dBi, 2.23dBi, 3.02dBi | 100 W | Cable - 3m | SMA Male | IP67, IP69K | - | - | Panel Mount | 3.128" (79.45mm) | DCS, GPS, GSM, LTE, PCS, WCDMA |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
