RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE51YA10064.9-5.8 GHz 17 dBi Dual Polarity |
35 |
|
Datasheet |
- | Retail Package | Active | Cellular, WiFi | Wide Band | 5.38GHz | 4.9GHz ~ 5.85GHz | Yagi | 1 | 1.5 | - | 17dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 13.900" (353.06mm) | 802.11a/n, Wi-Fi, WiMax, WLAN |
|
|
M1621HCT-P-UFL/100-00032-01Helical Iridium Certified Passiv |
37 |
|
Datasheet |
- | Tape & Box (TB) | Active | General ISM | UHF (1GHz ~ 2GHz) | 1.621GHz | 1.616GHz ~ 1.626GHz | Module | 1 | 1.5 | - | 2.8dBic | - | - | U.FL | - | - | - | Connector Mount | 1.299" (33.00mm) | Iridium™ |
|
|
M1590HCT-LP-SM/100-00183-01INMARSAT SCREW MOUNT LOW-PROFILE |
30 |
|
Datasheet |
- | Tape & Box (TB) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.542GHz, 1.642GHz | 1.525GHz ~ 1.56GHz, 1.625GHz ~ 1.66GHz | Dome | 2 | - | - | 2dBic, 2dBic | - | - | TNC | - | - | - | Screw | 1.496" (38.00mm) | GPS |
|
915-15NM-MKYAGI 915 MHZ ANT MOUNT KIT |
50 |
|
Datasheet |
- | Box | Active | - | - | 915MHz | 902MHz ~ 928MHz | Yagi, 15-Element | 1 | 1.2 | - | 13dBi | 50 W | Cable - 300mm | N Type Male | - | - | - | - | - | - |
|
|
M1621HCT-LP-MM/100-00101-02IRIDIUM SFX Magnet Mount LOW-PRO |
49 |
|
Datasheet |
- | Tape & Box (TB) | Active | General ISM | UHF (1GHz ~ 2GHz) | 1.621GHz | 1.616GHz ~ 1.626GHz | Dome | 1 | 2 | - | 2.5dBic | - | Cable - 1m | SMA | IP66 | - | - | Magnetic | 1.472" (37.40mm) | Iridium™ |
|
|
OMB.868.B10F21ANTENNA |
0 |
|
Datasheet |
- | Bulk | Obsolete | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 860MHz ~ 870MHz | Whip, Straight | 1 | 1.5 | - | 10dBi | 50 W | - | N Type Female | IP65 | - | - | Pole, Wall Mount | 88.189" (224.00cm) | ISM |
|
MA1270.A.LBICGTY.005ANTENNA RAPTORIII 7IN1 3M COMBO |
35 |
|
Datasheet |
Raptor III | Bag | Last Time Buy | Cellular, Navigation, WiFi | UHF (1GHz ~ 2GHz) | 1.07MHz, 98MHz, 425MHz, 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.45GHz, 2.59GHz, 3.55GHz, 5.5GHz, 5.5375GHz | 535kHz ~ 1.605MHz, 88MHz ~ 108MHz, 380MHz ~ 470MHz, 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 5.15G | Dome | 16 | 2, 3.7 | -11dB | -1.7dBi, -3.7dBi, -1.9dBi, -0.3dBi, 1.6dBi, 3.6dBi, 0dBi, 1.8dBi, 0.6dBi, 0.4dBi, 2.8dBi, 3.3dBi, 0.9dBi, 3.7dBi | 10 W | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 3.661" (92.98mm) | 3G, 4G, 5G, Beidou, Galileo, GLONASS, GNSS, GPS, HSPA, HSPA+, LTE, WCDMA, Wi-Fi |
|
|
915-15HNMHEAVY DUTY YAGI 915 MHZ ANTENNA |
49 |
|
Datasheet |
- | Box | Active | - | - | 915MHz | 902MHz ~ 928MHz | Yagi, 15-Element | 1 | 1.2 | - | 13dBi | 50 W | Cable - 300mm | N Type Male | - | - | - | Rear Mount | - | - |
|
|
33-3967-05-0200EMBEDDED, TRI-BAND ANTENNA + L-B |
135 |
|
Datasheet |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.209GHz, 1.5655GHz | 1.164GHz ~ 1.254GHz, 1.525GHz ~ 1.606GHz | Ceramic Patch | 2 | 1.8 | - | -1.5dBic, 2.5dBic, 4dBic | - | Cable - 200mm, LNA, Filter | MCX Male | - | - | - | Chassis Mount | 0.587" (14.90mm) | Beidou, Galileo, GLONASS, GPS |
|
ANT-81 KM EXTERNAL ANTENNA FOR SST-24 |
29 |
|
Datasheet |
- | Box | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | - | 8dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 16.535" (420.00mm) | General Purpose |
|
|
PE51028Fixed Antenna Operates From 902 |
26 |
|
Datasheet |
- | Retail Package | Active | - | Wide Band | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 2 | - | 5dBi | - | - | N Type Female | - | - | - | Connector Mount | 0.967" (24.55mm) | - |
|
ANT-159 KM EXTERNAL ANTENNA FOR SST-24 |
29 |
|
Datasheet |
- | Box | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 1.3 | - | 15dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 62.992" (160.00cm) | General Purpose |
|
IDAS.W.001IDAS LTE MIMO CEILING MOUNT ANTE |
0 |
|
Datasheet |
- | Bulk | Active | Cellular, General ISM | Wide Band | 727.5MHz, 892MHz, 1.795GHz, 1.92GHz, 1.94GHz, 2.595GHz | 699MHz ~ 756MHz, 824MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 2.5GHz ~ 2.17GHz 2.69GHz | Module | 6 | - | -17dB, -20dB, -21dB, -22dB, -23dB | 7.2dBi, 7.1dBi, 7dBi, 7.1dBi, 7dBi, 7.1dBi | 50 W | Cable - 300mm | Mini-DIN Female | IP54 | - | - | Panel Mount | 2.835" (72.00mm) | DCS, GSM, LTE, PCS, UMTS |
|
MA1280.K.LBICGRT.0017IN1 RAPTORIII STAGGERED RG174:G |
97 |
|
Datasheet |
Raptor III | Bulk | Last Time Buy | Cellular, Navigation, WiFi | Wide Band | 1.07MHz, 98MHz, 440MHz, 657.5MHz, 752MHz, 800MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.45GHz, 2.59GHz, 4.15GHz, 5.5GHz, 5.5375GHz | 535kHz ~ 1.605MHz, 88MHz ~ 108MHz, 400MHz ~ 480MHz, 617MHz ~ 698MHz, 698MHz ~ 806MHz, 700MHz ~ 900MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz, 3.3GH | Dome | 17 | 2, 3.8 | -11.5dB | -3.7dBi, -1.9dBi, -0.3dBi, 1.6dBi, 1.6dBi, 2.8dBi, 3.3dBi, 3.7dBi, 3.6dBi, 0dBi, 1.8dBi, 0.6dBi, 0.9dBi, 0.4dBi | 10 W | Cable - 5m, LNA, Filter | RP-SMA Male, SMA Male, UHF Male | IP67 | - | - | Panel Mount | 3.661" (92.98mm) | 4G/5G, AM, FM, Beidou, Galileo, GLONASS, GPS, GNSS, Wi-Fi |
|
915-6ESP-MKYAGI 915 MHZ ANT MOUNT KIT |
50 |
|
Datasheet |
- | Box | Active | - | - | 915MHz | 902MHz ~ 928MHz | Yagi, 6-Element | 1 | 1.2 | - | 9dBi | 50 W | Cable - 300mm | N Type Female | - | - | - | - | - | - |
|
FMA459.A.LBFCG.001FMA459 5IN1 PERMANENT MOUNT ANTE |
0 |
|
Datasheet |
- | Bulk | Obsolete | Cellular, Navigation, WiFi | Wide Band | 750.5MHz, 869MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz | 698MHz ~ 803MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2. | Dome | 13 | 2, 3 | 10dB | 1.25dBi, 0.07dBi, 1.16dBi, 1dBi, 0.9dBi, 0.6dBi, 5.48dBi, 4.22dBi, 3.31dBi, 4.17dBi, 3.77dBi, 3.01dB | - | Cable - 3m, LNA, Filter | RP-SMA Male (1), SMA Male (2) | IP67 | - | - | Panel Mount | 1.219" (30.95mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
|
M10HCT-A-TNC/100-00282-01L1 L2 L5 ACTIVE GNSS ANTENNA |
49 |
|
Datasheet |
- | Tape & Box (TB) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.232GHz, 1.574GHz | 1.164GHz ~ 1.3GHz, 1.539GHz ~ 1.61GHz | Module | 2 | - | - | 3.3dBic, 3.4dBic | - | - | TNC | IP67 | - | - | Screw | 1.480" (37.59mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
|
PEANGPS1001ANT 1.17-1.61GHz, 37.5 DBI, SMA |
28 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.222GHz, 1.565GHz | 1.166GHz ~ 1.278GHz, 1.52GHz ~ 1.61GHz | Whip, Straight | 3 | 2 | - | 39dBi, 40dBi | - | - | SMA Male | IP67 | - | - | Connector Mount | 3.250" (82.55mm) | Galileo, GLONASS, GNSS, GPS |
|

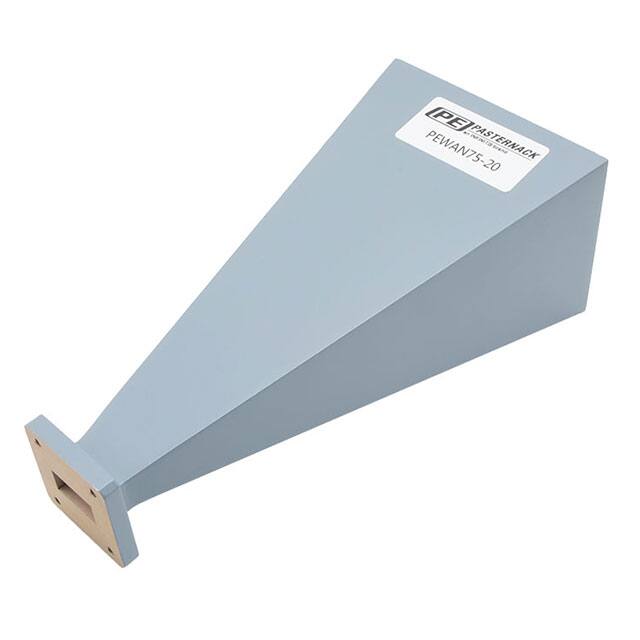

PEWAN075-20WR75 GAIN HORN 10-15GHZ 20DBI |
55 |
|
Datasheet |
- | Bulk | Active | Waveguide | X-Ku Band (8GHz ~ 18GHz) | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PEWAN075-20ELNFWR75 GAIN HRN 10-15GHZ 20DBI |
55 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.4 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 2.721" (69.11mm) | General Purpose |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
