RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CGGBP.25.4.A.02RF ANT 1.56/1.575GHZ CER PATCH |
3,427 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.56GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | 2.5, 2.5, 1.8 | -34dB | 4.96dBi, 4.99dBi, 5.48dBi | - | - | Pin | - | - | - | Connector Mount | 0.157" (4.00mm) | Beidou, GLONASS, GPS |
|
66089-2406RF ANT 2.4GHZ WHIP STR U.FL CONN |
8,729 |
|
Datasheet |
66089 | Bag | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Straight | 1 | 1.7 | - | 3dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 1.417" (36.00mm) | - |
|
ANT-2.4-CW-RH-SMARF ANT 2.4GHZ WHIP STR SMA MALE |
247 |
|
Datasheet |
RH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.39GHz ~ 2.49GHz | Whip, Straight | 1 | 2 | - | -0.9dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.063" (27.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
ANT-916-CW-RCLRF ANT 916MHZ WHIP RA RP-SMA MAL |
213 |
|
Datasheet |
RCL | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 840MHz ~ 990MHz | Whip, Right Angle | 1 | 1.7 | - | -2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.465" (88.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-868-CW-RCS-SMARF ANT 868MHZ WHIP RA SMA MALE |
2,519 |
|
Datasheet |
RCS | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 850MHz ~ 880MHz | Whip, Right Angle | 1 | 2 | - | 3.6dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.106" (53.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ACTPAT182-01-IPRF ANT 1.575GHZ CER PATCH CAB |
472 |
|
- |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.583GHz | Ceramic Patch | 1 | 1.5 | -10dB | 1dBic | - | Cable - 63mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.193" (4.90mm) | GPS |
|

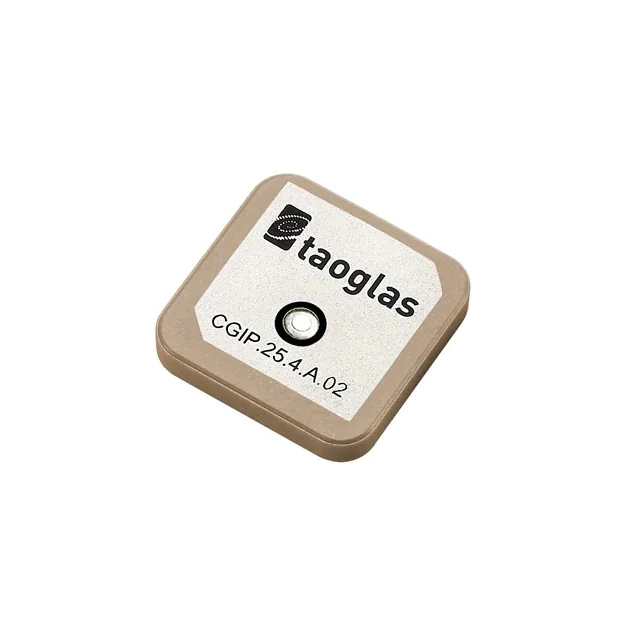

CGIP.25.4.A.02RF ANT 1.575/1.621GHZ CER PATCH |
273 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.621GHz | 1.575GHz ~ 1.626GHz | Ceramic Patch | 2 | 2 | - | 5dBi | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS, Iridium™ |
|
W1900RF ANT 850MHZ/900MHZ WHIP RA |
797 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Right Angle | 5 | - | -4dB, -6dB | 1dBi, 2dBi, 2.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.949" (49.50mm) | GSM, WCDMA |
|
YLY001CAGNSS L1&B1&G1 ACTVE, 2M,SMAM,MAG |
5,568 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.588GHz | 1.575GHz ~ 1.602GHz | Dome | 1 | 2 | - | 0.8dBi | - | LNA | SMA Male | IP66 | - | - | Magnetic | 0.511" (12.99mm) | GNSS |
|
|
YE0007AAEXTERNAL DIPOLE 5G ANTENNA SMAM |
1,360 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.43GHz, 3.3GHz, 3.65GHz, 4.5GHz, 5.5GHz | 600MHz ~ 960MHz, 698MHz ~ 1.28GHz, 1.176GHz ~ 1.61GHz, 1.4GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 4GHz, 3.3GHz ~ 5GHZ, 4GHz ~ 6GHz, 5GHz ~ 6GHz | Whip, Straight | 9 | 3.5 | - | 3dBi, 4.1dBi, 3.2dBi, 3.5dBi, 3.9dBi, 5.2dBi, 5.5dBi | - | - | SMA Male | IP55 | - | - | Connector Mount | 6.000" (152.40mm) | LTE |
|
CGGBP.18.4.A.02RF ANT 1.56/1.575GHZ CER PATCH |
10,133 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.56GHz, 1.575GHz, 1.602GHz | 1.548GHz ~ 1.615GHz | Ceramic Patch | 3 | 2.8, 2.8, 1.8 | -10dB | 3dBi, 2dBi, 4dBi | - | - | Pin | - | - | - | Connector Mount | 0.157" (4.00mm) | Beidou, GLONASS, GPS |
|
2128600011WI-FI/BLUETOOTH HINGED EXT ANTEN |
2,940 |
|
Datasheet |
212860 | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | - | -10dB | 5.3dBi, 4.5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.268" (108.40mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
W1696-MANT EXT 0.617-3.8GHZ SMA |
1,407 |
|
Datasheet |
Stubby Antenna | Tray | Active | Cellular | Wide Band | 788.5MHz, 2.2GHz, 3.6GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz | Whip, Straight | 3 | - | -5dB, -4dB | -0.5dBi, 1dBi, 0dBi | 5 W | - | SMA | IP65 | - | - | Connector Mount | 1.969" (50.00mm) | LTE |
|
EFD2455A3S-10MHF1RF ANT 2.44GHZ/5.4GHZ FLEXPIFA |
519 |
|
Datasheet |
FlexPIFA™ | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.4GHz | 2.4GHz ~ 2.485GHz, 4.9GHz ~ 5.9GHz | FlexPIFA | 2 | 2.5, 3 | - | 1.7dBi, 2.5dBi | - | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.175" (4.44mm) | Wi-Fi |
|
FXP74.07.0100ARF ANT 2.4GHZ FLAT PATCH CAB ADH |
1,470 |
|
Datasheet |
Black Diamond | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | Flat Patch | 1 | 2 | -10dB | 4dBi | 5 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
ANT-916-CW-RAH-SMARF ANT 916MHZ WHIP RA SMA LPWA |
1,477 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 916MHz | 850MHz ~ 970MHz | Whip, Right Angle | 1 | 1.9 | - | 2.2dBi | - | - | SMA | - | - | - | Connector Mount | 1.829" (46.46mm) | - |
|
FXUB66.01.0150CRF ANT 3.4GHZ FLAT PATCH SMA MAL |
792 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 3.4GHz | 700MHz ~ 6GHz | Flat Patch | 1 | 2.2 | -7dB | 6.4dBi | 5 W | - | SMA Male | - | - | - | Adhesive | 0.008" (0.20mm) | CDMA, GPS, GSM, LTE, UMTS, WLAN |
|
AEACAC053010-S868RF ANT 868MHZ WHIP STR SMA ML |
1,254 |
|
Datasheet |
AEAC | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 833MHz ~ 903MHz | Whip, Straight | 1 | 3 | - | 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.102" (53.40mm) | ISM, LoRa, LPWAN, Sigfox |
|
APAMBJ-135RF ANT 2.4GHZ/5GHZ WHIP STR SMA |
485 |
|
Datasheet |
APAMBJ | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | Whip, Straight | 2 | 1.5 | - | 2dBi | 20 W | - | SMA Male | - | - | - | Connector Mount | 2.165" (55.00mm) | Bluetooth, WLAN |
|
FXP840.07.0055BRF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
2,529 |
|
Datasheet |
Freedom | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.41GHz ~ 2.49GHz, 4.9GHz ~ 5.8GHz | Flat Patch | 2 | 2, 2.5 | -10dB, -7dB | 2dBi, 2.5dBi | 2 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, WLAN |
