RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W3906B0100RF ANT 2.15GHZ FLAT PATCH CAB |
1,435 |
|
Datasheet |
GEMINI | Bag | Active | Cellular | Wide Band | 2.15GHz | 698MHz ~ 3.6GHz | Flat Patch | 1 | - | -10dB | 4dBi | 3 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | LTE |
|
ANT-2.4-CW-RCSRF ANT 2.4GHZ WHIP RA RP-SMA MAL |
1,654 |
|
Datasheet |
RCS | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.5GHz | Whip, Right Angle | 1 | 1.9 | - | -0.2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.106" (53.50mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
ANT-916-CW-RAHRF ANT 916MHZ WHIP RA RP-SMA MAL |
687 |
|
Datasheet |
RAH | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 850MHz ~ 970MHz | Whip, Right Angle | 1 | 1.9 | - | 2.2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 1.850" (47.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|

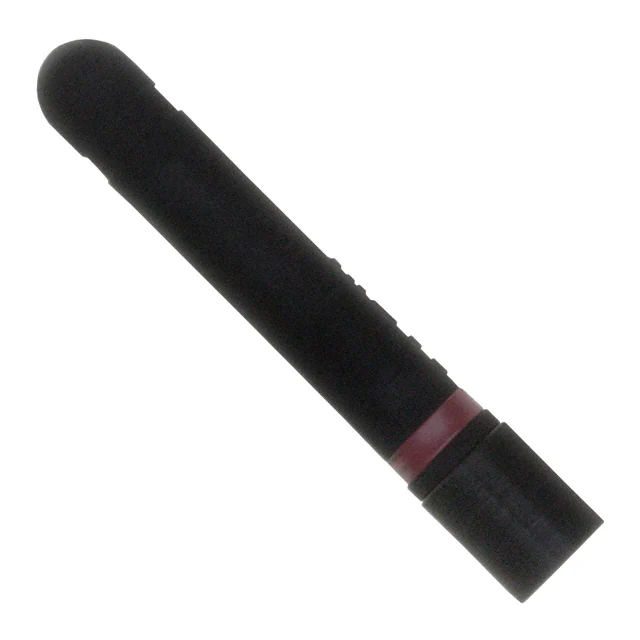

ANT-433-CW-RH-SMARF ANT 433MHZ WHIP STR SMA MALE |
424 |
|
Datasheet |
RH | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 425MHz ~ 440MHz | Whip, Straight | 1 | 1.9 | - | -5.6dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.008" (51.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
FXP810.07.0100CRF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
386 |
|
Datasheet |
Freedom | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Flat Patch | 2 | 1.7 | - | 2.4dBi, 5.1dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi |
|
AH086M555003-TRF ANT 3.5GHZ/5.6GHZ CHIP SLD |
4,895 |
|
Datasheet |
- | Tape & Reel (TR) | Active | WiFi | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 3.5GHz, 5.6GHz | 3.1GHz ~ 8GHz | Chip | 1 | 2.5 | - | 2.6dBi, 0.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | WiMax™ |
|
ANT-916-CW-RHRF ANT 916MHZ WHIP STR RP-SMA ML |
1,268 |
|
Datasheet |
RH | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 900MHz ~ 935MHz | Whip, Straight | 1 | 1.9 | - | -1.3dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.008" (51.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
W1063RF ANT 898MHZ WHIP TILT 6.6" |
2,046 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (300MHz ~ 1GHz) | 898MHz | 868MHz ~ 928MHz | Whip, Tilt | 1 | 2.5 | - | 3dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.673" (194.90mm) | WLAN |
|

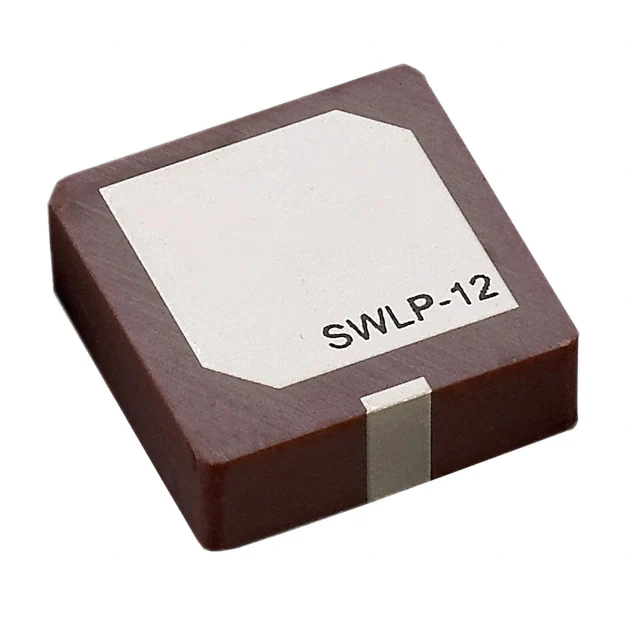

SWLP.2450.12.4.B.02RF ANT 2.4GHZ CER PATCH SLDR SMD |
11,253 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | 3 | - | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | WLAN, Zigbee™ |
|
DELTA8A/X/SMAM/S/RP/17RF ANT 2.4GHZ WHIP STR RP-SMA ML |
223 |
|
Datasheet |
DELTA 8A | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 0dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 1.063" (27.00mm) | Bluetooth, WLAN, Zigbee™ |
|
ANT-LTE-MON-SMARF ANT 700MHZ/850MHZ WHIP TILT |
1,282 |
|
Datasheet |
MON | Bag | Active | Cellular | Wide Band | 700MHz, 800MHz, 850MHz, 900MHz,1.7GHz, 1.8GHz,1.9GHz, 2.1GHz, 2.3GHz, 2.4GHz, 2.5GHz, 2.6GHz, 2.7GHz, 3.4GHz, 3.5GHz, 3.6GHz, 3.7GHz, 3.8GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz, 3.6GHz ~ 3.8GHz | Whip, Tilt/Swivel | 6 | 2.5, 3.5, 4.5, 3.5, 2.5, 2.75 | - | 4.75dBi, 2.75dBi, 1.75dBi, 1dBi, 4.85dBi, 5.5dBi | 15 W | - | SMA Male | - | - | - | Connector Mount | - | CAT-M1, Cellular, LTE, NB-IOT, 2G, 3G, 4G |
|

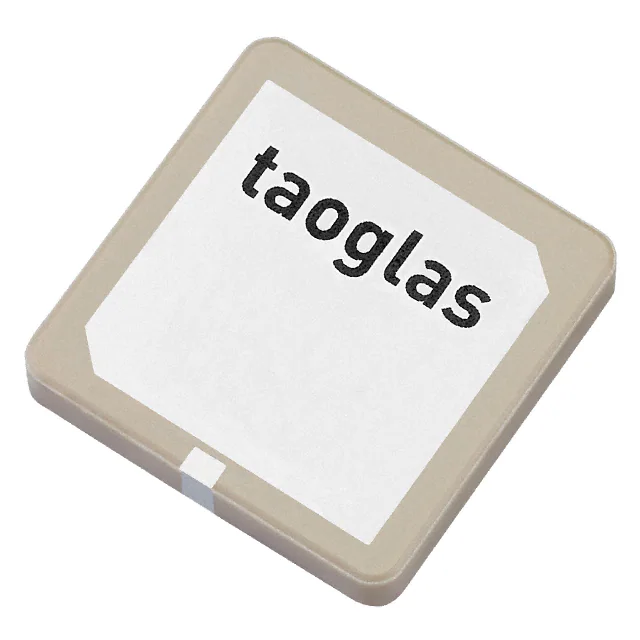

SGGP.25.4.A.02RF ANT 1.575/1.602GHZ CER PATCH |
9,968 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.602GHz | Ceramic Patch | 2 | 1.5 | -10dB | -0.14dBic, 1.75dBic | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|
ANT-916-CW-HWRF ANT 916MHZ WHIP STR RP-SMA ML |
1,478 |
|
Datasheet |
HW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 900MHz ~ 930MHz | Whip, Straight | 1 | 1.9 | - | 1.2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.724" (120.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-868-CW-HWRF ANT 868MHZ WHIP STR RP-SMA ML |
656 |
|
Datasheet |
HW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 855MHz ~ 880MHz | Whip, Straight | 1 | 1.9 | - | 0dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 5.335" (135.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|
RN-SMA-4RF ANT 2.4GHZ WHIP SMA MALE 4" |
2,466 |
|
Datasheet |
- | Bag | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.39GHz ~ 2.51GHz | Whip, Tilt | 1 | 1.9 | - | 2.2dBi | - | - | SMA Male | - | - | - | Connector Mount | 3.560" (90.42mm) | - |
|
TG.42.01124G LTE CONN MOUNT MONOPOLE ANT |
312 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | Whip, Right Angle | 7 | - | - | 2.1dBi, 3.3dBi, 3.29dBi, 3.56dBi, 3.6dBi, 3.6dBi, 3.62dBi | 5 W | - | SMA Male | IPX5 | - | - | Connector Mount | 2.449" (62.20mm) | LTE |
|
2066400001RF ANT 1.561/1.575GHZ CER PATCH |
5,462 |
|
Datasheet |
206640 | Tray | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | - | -8dB | 4.5dBi | - | LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.256" (6.50mm) | Beidou, Galileo, GLONASS, GPS |
|
ANT-2.4-CW-RCLRF ANT 2.4GHZ WHIP RA RP-SMA MAL |
1,903 |
|
Datasheet |
RCL | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Right Angle | 1 | 1.7 | - | 1.1dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.465" (88.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|

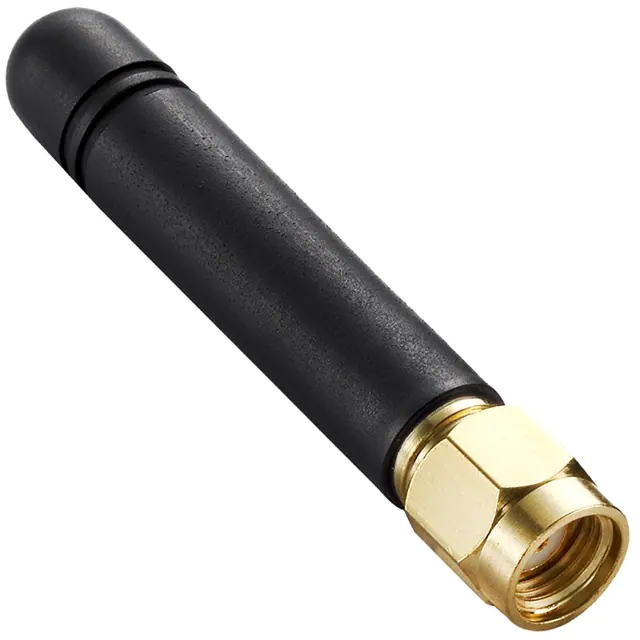

TG.22.0111RF ANT 850MHZ/900MHZ WHIP STR |
2,598 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 5 | 3.5 | -5dB | 1.42dBi, 1.91dBi, 2.51dBi, 3.23dBi, 2.89dBi | 20 W | - | SMA Male | - | - | - | Connector Mount | 1.898" (48.20mm) | CDMA, DCS, EDGE, GPRS, GSM, HSPA, PCS, UMTS, WCDMA |
|
TG.09.0113RF ANT 892MHZ/1.9GHZ WHIP TILT |
2,158 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Tilt | 2 | - | - | 2dBi, -0.1dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 2.835" (72.00mm) | CDMA, GSM, UMTS |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
