RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TI.92.2113915MHZ TERMINAL ANTENNA 2DBI SMA |
430 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Tilt | 1 | - | - | 1.21dBi, 2.14dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 7.795" (198.00mm) | ISM |
|
ANT-916-CW-RH-SMARF ANT 916MHZ WHIP STR SMA MALE |
273 |
|
Datasheet |
RH | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 900MHz ~ 935MHz | Whip, Straight | 1 | 1.9 | - | -1.3dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.008" (51.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
1000418RF ANT 2.4GHZ/4.9GHZ STAMPED MET |
5,523 |
|
Datasheet |
Prestta™ | Tray | Active | Bluetooth, Cellular, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Stamped Metal | 2 | 2.1 | - | 4dBi, 4.2dBi | - | - | U.FL | - | - | - | Screw Mount | 0.201" (5.10mm) | 802.11a/b/g/n/c, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
FXP75.07.0045BRF ANT 2.4GHZ FLAT IPEX 45MM |
1,287 |
|
Datasheet |
Atom | Bag | Active | Bluetooth | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Flat Patch | 1 | 2 | - | 2.5dBi | 2 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.009" (0.24mm) | Bluetooth |
|
IP.1621.25.4.A.02RF ANT 1.6GHZ CER PATCH PIN ADH |
1,098 |
|
Datasheet |
- | Tray | Active | - | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.616GHz ~ 1.626GHz | Ceramic Patch | 1 | 1.5 | - | 2dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | - |
|
ANT-868-PW-QWRF ANT 868MHZ WHIP STR CAB PAN |
373 |
|
Datasheet |
PW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 750MHz ~ 950MHz | Whip, Straight | 1 | 1.9 | - | 1.6dBi | - | Cable - 216mm | Solder | - | - | - | Panel Mount | 3.307" (84.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-433-PW-QWRF ANT 433MHZ WHIP STR CAB PAN |
174 |
|
Datasheet |
PW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 400MHz ~ 470MHz | Whip, Straight | 1 | 1.9 | - | 3.3dBi | - | Cable - 216mm | Solder | - | - | - | Panel Mount | 6.811" (173.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
ANT-868-CW-QWRF ANT 868MHZ WHIP STR RP-SMA ML |
1,025 |
|
Datasheet |
CW | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 700MHz, 750MHz, 800MHz, 900MHz, 950MHz | 750MHz ~ 950MHz | Whip, Straight | 1 | 1.9 | - | 1.6dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.307" (84.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
CGGBP.35.6.A.02RF ANT 1.56/1.575GHZ CER PATCH |
2,240 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.56GHz, 1.575GHz, 1.602GHz | 1.533GHz ~ 1.589GHz, 1.547GHz ~ 1.603GHz, 1.574GHz ~ 1.63GHz | Ceramic Patch | 3 | 2.5 | -10dB | 4.5dBi, 3dBi, 4.5dBi | - | - | Pin | - | - | - | Adhesive | 0.256" (6.50mm) | Beidou, Galileo, GLONASS, GPS |
|
ANT-2.4-CW-HWRF ANT 2.4GHZ WHIP STR RP-SMA ML |
1,228 |
|
Datasheet |
HW | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.3GHz ~ 2.6GHz | Whip, Straight | 1 | 2 | - | 3.2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.724" (120.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
SGGP.25.2.A.02RF ANT 1.575/1.602GHZ CER PATCH |
12,011 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Ceramic Patch | 2 | - | -10dB | 3.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | GLONASS, GPS |
|
ANT-433-CW-HD-SMARF ANT 433MHZ WHIP STR SMA MALE |
6,473 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 420MHz ~ 445MHz | Whip, Straight | 1 | 2 | - | 0.7dBi | - | - | SMA Male | - | - | - | Connector Mount | 3.465" (88.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
W6112B0100RF ANT FLAT PATCH IPEX ADH |
625 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | - | 698MHz ~ 960MHz, 1.428GHz ~ 1.51GHz, 1.559GHz ~ 1.61GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz | Flat Patch | 6 | - | -6dB | 4.6dBi | 3 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | LTE |
|
ANT-916-OC-LG-SMARF ANT 916MHZ WHIP TILT SMA MALE |
736 |
|
Datasheet |
OC | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 895MHz ~ 935MHz | Whip, Tilt | 1 | 2 | - | 2.2dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.618" (193.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|

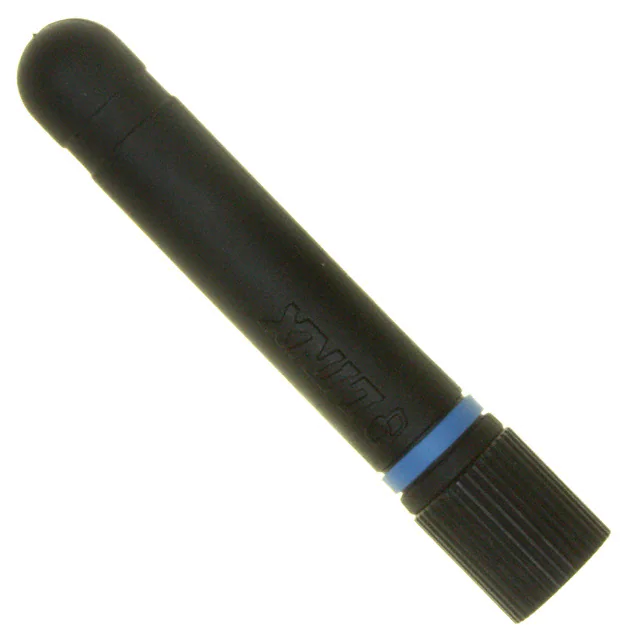

ANT-418-CW-RH-SMARF ANT 418MHZ WHIP STR SMA MALE |
266 |
|
Datasheet |
RH | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 413MHz ~ 423MHz | Whip, Straight | 1 | 1.9 | - | -6.7dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.008" (51.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
2128600001WI-FI/BLUETOOTH HINGED EXT ANTEN |
1,931 |
|
Datasheet |
212860 | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | - | -10dB | 5.3dBi, 4.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.268" (108.40mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
ANT-916-CW-HDRF ANT 916MHZ WHIP STR RP-SMA ML |
185 |
|
Datasheet |
HD | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 873MHz ~ 958MHz | Whip, Straight | 1 | 2 | - | -0.3dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.559" (65.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
W1063MRF ANT 898MHZ WHIP TILT SMA MALE |
1,084 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (300MHz ~ 1GHz) | 898MHz | 868MHz ~ 928MHz | Whip, Tilt | 1 | 2.5 | - | 3dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.673" (194.90mm) | WLAN |
|
ANT-868-CW-HW-SMARF ANT 868MHZ WHIP STR SMA MALE |
481 |
|
Datasheet |
HW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 855MHz ~ 880MHz | Whip, Straight | 1 | 1.9 | - | 0dBi | - | - | SMA Male | - | - | - | Connector Mount | 5.335" (135.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-868-CW-QW-SMARF ANT 868MHZ WHIP STR SMA MALE |
297 |
|
Datasheet |
CW | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 700MHz, 750MHz, 800MHz, 900MHz, 950MHz | 750MHz ~ 950MHz | Whip, Straight | 1 | 1.9 | - | 1.6dBi | - | - | SMA Male | - | - | - | Connector Mount | 3.307" (84.00mm) | ISM, LoRa, Sensor Networks, SigFox |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
